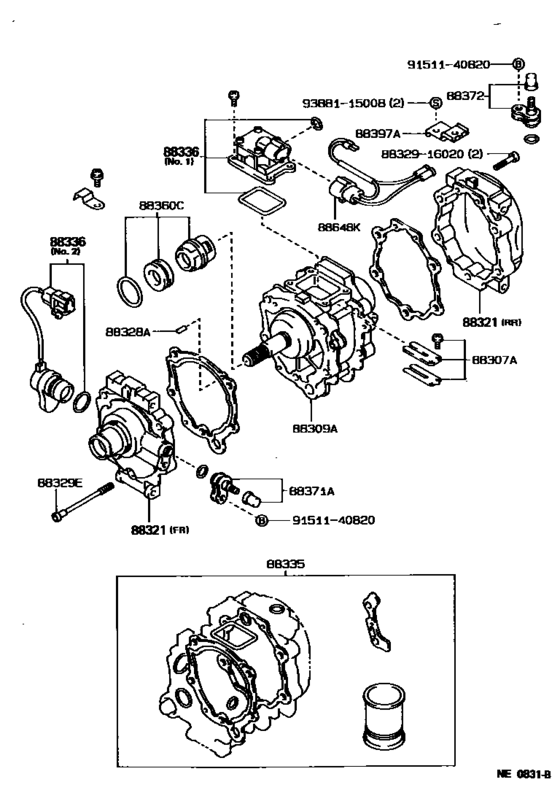

Heating & Air Conditioning - Compressor ([08.1987 - ] (8708- )GTS) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88307A
|
88307A
88307-16010
Reed Sub-Assy, Valve
[08.1987 - 08.1989] AE92..EFI |
88307-16010 |
— | ||
| replacement | |||||
|
88307A
|
88307A
88307-12050
Reed Sub-Assy, Valve
[08.1987 - 08.1989] AE92..EFI |
88307-12050 |
— | ||
|
88309A
|
88309A
88309-12010
Pump Sub-Assy, Compressor
[08.1989 - 06.1991] AE92..GTS |
88309-12010 |
— | ||
|
88309A
|
88309A
88309-16020
Pump Assy, Cooler Compressor
[08.1987 - 10.1988] AE92..EFI |
88309-16020 |
— | ||
|
88321
|
88321
88321-16030
Head, Cooler Compressor Cylinder
[08.1987 - 08.1989] AE92..USA..EFI FR; AE92..CND..EFI FR |
88321-16030 |
— | ||
|
88321
|
88321
88321-16040
Head, Cooler Compressor Cylinder
[08.1987 - 08.1989] AE92..USA..EFI W(POWER STEERING),FR; AE92..CND..EFI W(POWER STEERING),FR |
88321-16040 |
— | ||
|
88321
|
88321
88322-12030
Head, Cooler Compressor Cylinder
[08.1987 - 10.1988] AE92..EFI RR |
88322-12030 |
— | ||
|
88321
|
88321
88322-12050
Head, Cooler Compressor Cylinder
[08.1989 - 06.1991] AE92..GTS..CND RR |
88322-12050 |
— | ||
|
88328A
|
88328A
88328-10010
Pin, Cylinder Block
[08.1987 - 08.1989] AE92..EFI |
88328-10010 |
— | ||
|
88329E
|
88329E
88329-16010
Bolt, Through
[08.1987 - 06.1991] AE92..GTS |
88329-16010 |
— | ||
|
88335
|
88335
88335-16030
Gasket Kit, Overhaul
[08.1987 - 08.1989] AE92..CND..EFI |
88335-16030 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-16050
Gasket Kit, Overhaul
[08.1987 - 08.1989] AE92..CND..EFI |
88335-16050 |
— | ||
|
88335
|
88335
88335-16040
Gasket Kit, Overhaul
[08.1987 - 08.1989] AE92..USA..EFI W(POWER STEERING); AE92..CND..EFI W(POWER STEERING) |
88335-16040 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-16050
Gasket Kit, Overhaul
[08.1987 - 08.1989] AE92..USA..EFI W(POWER STEERING); AE92..CND..EFI W(POWER STEERING) |
88335-16050 |
— | ||
|
88335
|
88335
88335-16050
Gasket Kit, Overhaul
[08.1989 - 06.1991] AE92..GTS |
88335-16050 |
— | ||
|
88336
|
88336
88336-16010
Sensor, Compressor
[08.1987 - 06.1991] AE92..GTS NO.1 |
88336-16010 |
— | ||
|
88336
|
88336
88336-16020
Sensor, Compressor
[08.1987 - 06.1991] AE92..GTS NO.2 |
88336-16020 |
— | ||
|
88360C
|
88360C
88360-16010
Seal, Shaft
[08.1987 - 06.1991] AE92..GTS |
88360-16010 |
— | ||
|
88371A
|
88371A
88371-16050
Valve, Cooler Compressor Suction Service
[08.1987 - 10.1988] AE92..EFI |
88371-16050 |
— | ||
| replacement | |||||
|
88371A
|
88371A
88376-16020
Valve, Suction
[08.1987 - 10.1988] AE92..EFI |
88376-16020 |
— | ||
|
88371A
|
88371A
88376-16020
Valve, Suction
[08.1989 - 06.1991] AE92..GTS |
88376-16020 |
— | ||
|
88372
|
88372
88372-16030
Valve, Cooler Compressor Discharge Service
[08.1987 - 10.1988] AE92..EFI |
88372-16030 |
— | ||
| replacement | |||||
|
88372
|
88372
88376-16030
Valve, Discharge
[08.1987 - 10.1988] AE92..EFI |
88376-16030 |
— | ||
|
88372
|
88372
88376-16030
Valve, Discharge
[08.1989 - 06.1991] AE92..GTS |
88376-16030 |
— | ||
|
88397A
|
88397A
88397-16010
Clip, Compressor
[08.1987 - 06.1991] AE92..GTS |
88397-16010 |
— | ||
|
88648K
|
88648K
88648-12360
Wire Sub-Assy, Sensor
[08.1987 - 08.1989] AE92..USA..EFI; AE92..CND..EFI |
88648-12360 |
— | ||
|
88648K
|
88648K
88648-16140
Wire Sub-Assy, Sensor
[08.1987 - 08.1989] AE92..USA..EFI W(POWER STEERING); AE92..CND..EFI W(POWER STEERING) |
88648-16140 |
— | ||
|
8832916020
|
8832916020
88329-16020
Bolt, Through
|
88329-16020 |
— | ||
|
9151140820
|
9151140820
91511-40820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-40820 |
US $2.04 |
||
| replacement | |||||
|
9151140820
|
9151140820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.92 |
||
|
9388115008
|
9388115008
93881-15008
New Genuine Part
|
93881-15008 |
— | ||
