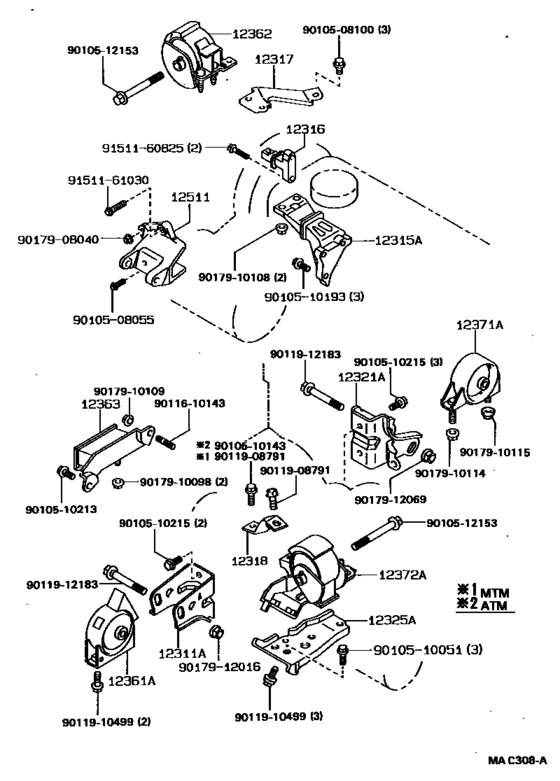

Mounting ([08.1987 - ] (8708- )4AGE) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-16040 Bracket, Engine Mounting, Front(For Transverse Engine)[08.1987 - 06.1991] 4AF#,4AGE..AE92 |
12311-16040 |
US $20.82 |
||
|
12315A
|
12315A
12315-16040
Bracket, Engine Mounting, Rh(For Transverse Engine)
[08.1987 - 06.1991] 4AGE..AE92 |
12315-16040 |
— | ||
|
12316
|
12316
12316-16010
Bracket, Engine Mounting, No.2 Rh
[08.1987 - 06.1991] 4AGE..AE92 |
12316-16010 |
— | ||
|
12317
|
12317
12317-16010 Stay, Engine Mounting, Rh[08.1987 - 06.1991] 4AGE..AE92 |
12317-16010 |
US $36.55 |
||
|
12318
|
12318
12318-16010 Stay, Engine Mounting, Lh[08.1987 - 06.1991] 4AF#,4AGE..AE92..5F |
12318-16010 |
US $24.46 |
||
|
12321A
|
12321A
12321-15050
Bracket, Engine Mounting, Rear(For Transverse Engine)
[08.1987 - 06.1991] 4AF#,4AGE..AE92..5F |
12321-15050 |
— | ||
|
12325A
|
12325A
12325-16060 Bracket, Engine Mounting, Lh(For Transverse Engine)[08.1987 - 06.1991] 4AF#,4AGE..AE92..5F |
12325-16060 |
US $33.63 |
||
|
12361A
|
12361A
12361-16040 Insulator, Engine Mounting, Front(For Transverse Engine)[08.1987 - 06.1991] 4AF#,4AGE..AE92..5F |
12361-16040 |
US $115.32 |
||
|
12362
|
12362
12362-16070
Insulator, Engine Mounting, Rh(For Transverse Engine)
[08.1987 - 08.1989] 4AGE..AE92 |
12362-16070 |
— | ||
|
12362
|
12362
12362-16150
Insulator, Engine Mounting, Rh(For Transverse Engine)
[08.1989 - 06.1991] 4AGE..AE92 |
12362-16150 |
— | ||
|
12363
|
12363
12363-15020
Insulator, Engine Mounting, Center
[08.1987 - 06.1991] 4AF#,4AGE..AE92..5F |
12363-15020 |
— | ||
|
12371A
|
12371A
12371-15200 Insulator, Engine Mounting, Rear[08.1987 - 08.1989] 4A#..AE92..5F |
12371-15200 |
US $145.60 |
||
|
12371A
|
12371A
12371-16190
Insulator, Engine Mounting, Rear
[08.1989 - 06.1991] 4A#..AE92..5F |
12371-16190 |
— | ||
|
12372A
|
12372A
12372-16060
Insulator, Engine Mounting, Lh(For Transverse Engine)
[08.1987 - 06.1991] 4AGE..AE92 |
12372-16060 |
— | ||
| replacement | |||||
|
12372A
|
12372A
12372-15110 Insulator, Engine Mounting, Lh(For Transverse Engine)[08.1987 - 06.1991] 4AGE..AE92 |
12372-15110 |
US $213.16 |
||
|
12511
|
12511
12511-16030 Bracket, Alternator, No.1[08.1987 - 06.1991] 4AGE..AE92 |
12511-16030 |
US $71.64 |
||
|
9010508055
|
9010508055
90105-08055 Bolt (For Overdrive Case & Transaxle Case Setting) |
90105-08055 |
US $4.48 |
||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.19 |
||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.87 |
||
|
9010510143
|
9010510143
90105-10143 New Genuine Part |
90105-10143 |
US $1.89 |
||
| replacement | |||||
|
9010510143
|
9010510143
91512-B1016 New Genuine Part |
91512-B1016 |
US $2.33 |
||
|
9010510193
|
9010510193
90105-10193
Bolt(For Torque Arm Setting)
|
90105-10193 |
— | ||
| replacement | |||||
|
9010510193
|
9010510193
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
from US $1.13 |
||
|
9010510213
|
9010510213
90105-10213 New Genuine Part |
90105-10213 |
US $2.62 |
||
|
9010510215
|
9010510215
90105-10215 New Genuine Part |
90105-10215 |
US $2.48 |
||
|
9010512153
|
9010512153
90105-12153 BOLT |
90105-12153 |
US $5.91 |
||
|
9011610143
|
9011610143
90116-10143 New Genuine Part |
90116-10143 |
US $2.62 |
||
|
9011908791
|
9011908791
90119-08791 Bolt(For Transaxle & Engine Setting) |
90119-08791 |
US $2.18 |
||
| replacement | |||||
|
9011908791
|
9011908791
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.58 |
||
|
9011912183
|
9011912183
90119-12183 New Genuine Part |
90119-12183 |
US $5.42 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9017910098
|
9017910098
90179-10098 New Genuine Part |
90179-10098 |
US $1.49 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.69 |
||
|
9017910109
|
9017910109
90179-10109 New Genuine Part |
90179-10109 |
US $1.16 |
||
|
9017910114
|
9017910114
90179-10114 New Genuine Part |
90179-10114 |
US $2.62 |
||
|
9017910115
|
9017910115
90179-10115 New Genuine Part |
90179-10115 |
US $3.49 |
||
|
9017912016
|
9017912016
90179-12016 NUT |
90179-12016 |
US $2.51 |
||
|
9017912069
|
9017912069
90179-12069 New Genuine Part |
90179-12069 |
US $3.32 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
|
9151161030
|
9151161030
91511-61030 Bolt (For Transaxle Case Upper Cover) |
91511-61030 |
US $4.30 |
||
| replacement | |||||
|
9151161030
|
9151161030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $3.05 |
||
