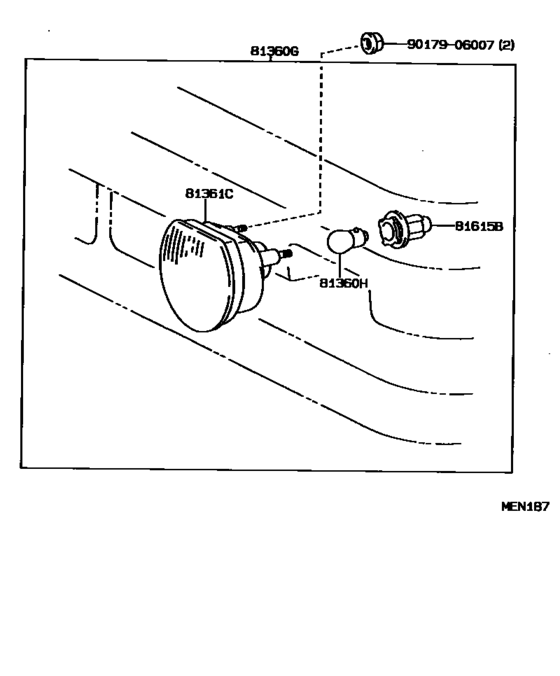

Spot Lamp ([08.1989 - ] (8908- )CND) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81360G
|
81360G
81360-12010 Lamp Assy, SpotSPOT [08.1989 - 06.1991] AE92..CND |
81360-12010 |
US $128.13 |
||
|
81360H
|
81360H
99132-11270 Bulb, Fog Lamp[08.1989 - 06.1991] AE92..CND |
99132-11270 |
US $2.89 |
||
|
81361C
|
81361C
81361-12010 Lens & Body, Spot LampSPOT LAMP [08.1989 - 06.1991] AE92..CND |
81361-12010 |
US $109.20 |
||
|
81615B
|
81615B
81615-87705 Wire Sub-Assy, Front Turn Signal Lamp Body[08.1989 - 06.1991] AE92..CND |
81615-87705 |
US $19.74 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.80 |
