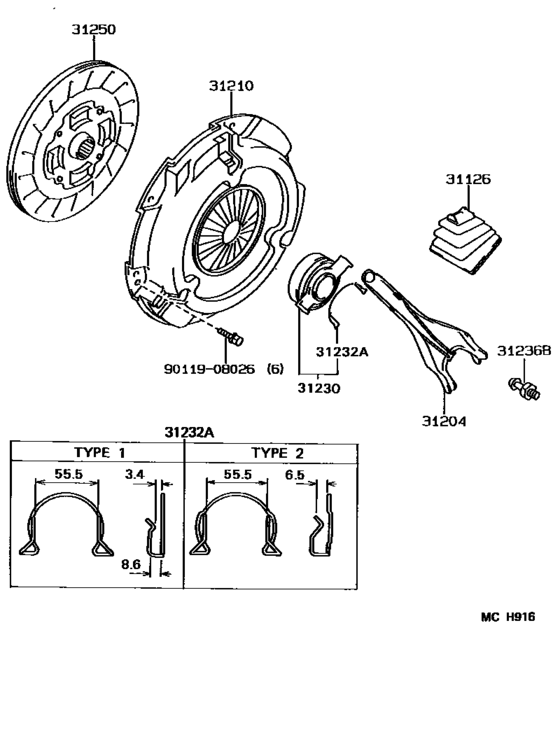

Clutch & Release Fork ([08.1987 - ] C50,C52 (8708- )5F) Diagram Toyota COROLLA
- Year
- 1989 - 1991
- Sales region
- Europe
- Frame
- AE92
- grade
- SR5
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[08.1989 - 06.1991] AE92..5F |
31126-12051 |
from US $11.29 |
||
|
31204
|
31204
31204-12050 Fork Sub-Assy, Clutch Release[08.1989 - 05.1991] AE92..5F |
31204-12050 |
from US $44.18 |
||
|
31204
|
31204
31204-17010 Fork Sub-Assy, Clutch Release[05.1991 - 06.1991] AE92..5F |
31204-17010 |
from US $45.79 |
||
|
31210
|
31210
31210-12210
Cover Assy, Clutch
[04.1991 - 06.1991] AE92..5F..(DX,SR5) |
31210-12210 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-12282 Cover Assy, ClutchCLUTCH [04.1991 - 06.1991] AE92..5F..(DX,SR5) |
31210-12282 |
from US $132.87 |
||
|
31210
|
31210
31210-16101 Cover Assy, Clutch[12.1988 - 11.1989] AE92..5F..(DX,SR5) |
31210-16101 |
US $163.07 |
||
| replacement | |||||
|
31210
|
31210
31210-12282 Cover Assy, ClutchCLUTCH [12.1988 - 11.1989] AE92..5F..(DX,SR5) |
31210-12282 |
from US $132.87 |
||
|
31210
|
31210
31210-16102 Cover Assy, Clutch[11.1989 - 04.1991] AE92..5F..(DX,SR5) |
31210-16102 |
US $163.07 |
||
| replacement | |||||
|
31210
|
31210
31210-12282 Cover Assy, ClutchCLUTCH [11.1989 - 04.1991] AE92..5F..(DX,SR5) |
31210-12282 |
from US $132.87 |
||
|
31230
|
31230
31230-12140
Bearing Assy, Clutch Release
[08.1989 - 05.1991] AE92..5F |
31230-12140 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-16061 Bearing Assy, Clutch Release[08.1989 - 05.1991] AE92..5F |
31230-16061 |
from US $51.56 |
||
|
31232A
|
31232A
31232-12040
Clip, Release Bearing Hub
[08.1989 - 05.1991] AE92..5F TYPE 1 |
31232-12040 |
— | ||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[05.1991 - 06.1991] AE92..5F |
31232-12070 |
US $3.58 |
||
|
31232A
|
31232A
31232-16031
Clip, Release Bearing Hub
[08.1989 - 05.1991] AE92..5F TYPE 2 |
31232-16031 |
— | ||
|
31236B
|
31236B
31236-12011 Ball, Release Fork[08.1989 - 05.1991] AE92..5F |
31236-12011 |
from US $12.72 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[05.1991 - 06.1991] AE92..5F |
31236-12020 |
US $9.14 |
||
|
31250
|
31250
31250-12200 Disc Assy, Clutch[08.1987 - 06.1990] AE92..5F..(DX,SR5) |
31250-12200 |
US $145.60 |
||
| replacement | |||||
|
31250
|
31250
31250-12393 Disc Assy, Clutch[08.1987 - 06.1990] AE92..5F..(DX,SR5) |
31250-12393 |
from US $102 |
||
|
31250
|
31250
31250-12201 Disc Assy, Clutch[06.1990 - 04.1991] AE92..5F..(DX,SR5) |
31250-12201 |
US $144.14 |
||
| replacement | |||||
|
31250
|
31250
31250-12393 Disc Assy, Clutch[06.1990 - 04.1991] AE92..5F..(DX,SR5) |
31250-12393 |
from US $102 |
||
|
31250
|
31250
31250-12290 Disc Assy, Clutch[04.1991 - 06.1991] AE92..5F..(DX,SR5) |
31250-12290 |
US $138.32 |
||
| replacement | |||||
|
31250
|
31250
31250-12393 Disc Assy, Clutch[04.1991 - 06.1991] AE92..5F..(DX,SR5) |
31250-12393 |
from US $102 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
