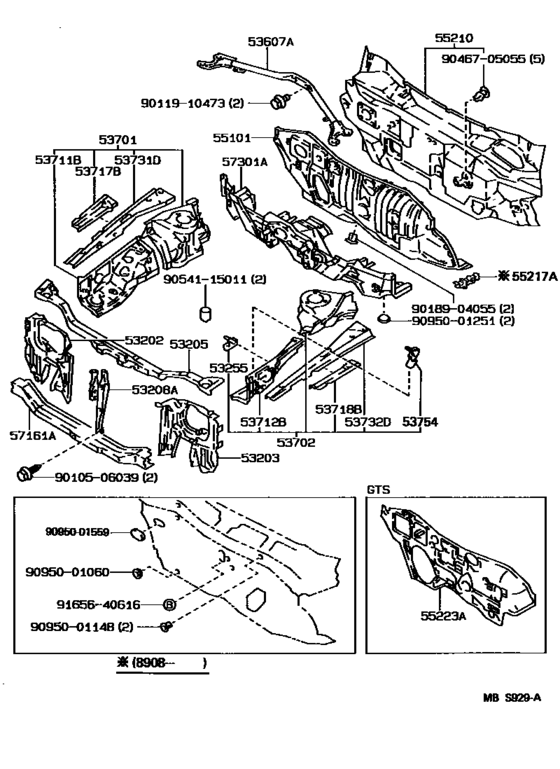

Front Fender Apron & Dash Panel ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1989 - 1991
- Sales region
- Europe
- Frame
- AE92
- grade
- SR5
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53202
|
53202
53211-12350 Support Sub-Assy, Radiator, Rh[08.1987 - 06.1991] AE92 |
53211-12350 |
US $75.71 |
||
|
53203
|
53203
53203-12270 Support Sub-Assy, Radiator, Lh[08.1987 - 06.1991] AE92 |
53203-12270 |
US $94.64 |
||
|
53205
|
53205
53216-12928
Support Sub-Assy, Radiator, Upper
[08.1987 - 06.1991] AE92..DX,SR5 |
53216-12928 |
— | ||
|
53208A
|
53208A
53208-12380 Support Sub-Assy, Hood LockHOOD LOCK [08.1987 - 06.1991] AE92 |
53208-12380 |
US $38.29 |
||
|
53255
|
53255
53255-12010 Bracket, Relay Box Mounting[08.1987 - 06.1991] AE92 |
53255-12010 |
US $5.24 |
||
|
53701
|
53701
53701-1A010 Apron Sub-Assy, Front Fender, Rh[08.1987 - 06.1991] AE92 |
53701-1A010 |
US $388.75 |
||
|
53702
|
53702
53702-1A030 Apron Sub-Assy, Front Fender, Lh[08.1987 - 06.1991] AE92 |
53702-1A030 |
US $388.75 |
||
|
53711B
|
53711B
53711-12210 Apron, Front Fender, Front Rh[08.1987 - 06.1991] AE92 |
53711-12210 |
US $126.67 |
||
|
53712B
|
53712B
53712-12170
Apron, Front Fender, Front Lh
[08.1987 - 06.1991] AE92 |
53712-12170 |
— | ||
|
53717B
|
53717B
53717-12040 Gusset, Fender Apron, Rh[08.1987 - 06.1991] AE92 |
53717-12040 |
US $22.13 |
||
|
53718B
|
53718B
53718-12040 Gusset, Fender Apron, Lh[08.1987 - 06.1991] AE92 |
53718-12040 |
US $22.13 |
||
|
53731D
|
53731D
53731-12130 Member, Front Apron To Cowl Side, Upper Rh[08.1989 - 11.1990] AE92 |
53731-12130 |
US $75.71 |
||
| replacement | |||||
|
53731D
|
53731D
53731-12140 Member, Front Apron To Cowl Side, Upper Rh[08.1989 - 11.1990] AE92 |
53731-12140 |
US $75.71 |
||
|
53731D
|
53731D
53731-12140 Member, Front Apron To Cowl Side, Upper Rh[11.1990 - 06.1991] AE92 |
53731-12140 |
US $75.71 |
||
|
53732D
|
53732D
53732-12110 Member, Front Apron To Cowl Side, Upper Lh[08.1989 - 11.1990] AE92 |
53732-12110 |
US $75.71 |
||
| replacement | |||||
|
53732D
|
53732D
53732-12120 Member, Front Apron To Cowl Side, Upper Lh[08.1989 - 11.1990] AE92 |
53732-12120 |
US $75.71 |
||
|
53732D
|
53732D
53732-12120 Member, Front Apron To Cowl Side, Upper Lh[11.1990 - 06.1991] AE92 |
53732-12120 |
US $75.71 |
||
|
53754
|
53754
53754-12010 Bracket, Relay Box Mounting, No.2[08.1989 - 06.1991] AE92 |
53754-12010 |
US $5.24 |
||
|
55101
|
55101
55101-1A250 Panel Sub-Assy, DashDASH [08.1987 - 06.1991] AE92..5F..(DX,SR5) |
55101-1A250 |
US $401.86 |
||
| replacements | |||||
|
55101
|
55101
90950-01025 Plug, Hole(For Front Fender Apron)[08.1987 - 06.1991] AE92..5F..(DX,SR5) |
90950-01025 |
US $4.30 |
||
|
55101
|
55101
55101-1A210 Panel Sub-Assy, DashDASH [08.1987 - 06.1991] AE92..5F..(DX,SR5) |
55101-1A210 |
US $407.68 |
||
|
55101
|
55101
55101-1A660 Panel Sub-Assy, DashDASH [08.1987 - 06.1991] AE92..5F..(DX,SR5) W(*CRC) |
55101-1A660 |
US $400.40 |
||
| replacement | |||||
|
55101
|
55101
55101-1A210 Panel Sub-Assy, DashDASH [08.1987 - 06.1991] AE92..5F..(DX,SR5) W(*CRC) |
55101-1A210 |
US $407.68 |
||
|
55210
|
55210
55210-12420 Insulator Assy, Dash PanelDASH PANEL [08.1987 - 06.1991] AE92 |
55210-12420 |
US $141.23 |
||
|
57161A
|
57161A
57161-12912 Member, Front Cross, Front W/rearFRONT CROSS, FRONT W/REAR [08.1987 - 06.1991] AE92 |
57161-12912 |
US $110.66 |
||
|
57301A
|
57301A
57301-12060 Member Sub-Assy, Steering Gear Box SupportSTEERING GEAR BOX SUPPORT [08.1987 - 06.1991] AE92 |
57301-12060 |
US $512.51 |
||
|
9010506039
|
9010506039
90105-06039
New Genuine Part
|
90105-06039 |
— | ||
|
9011910473
|
9011910473
90119-10473 New Genuine Part |
90119-10473 |
US $3.40 |
||
|
9018904055
|
9018904055
90189-04055 New Genuine Part |
90189-04055 |
US $1.61 |
||
|
9046705055
|
9046705055
90467-05055 New Genuine Part |
90467-05055 |
US $3.20 |
||
|
9054115011
|
9054115011
90541-15011 Cushion, Hood Bumper |
90541-15011 |
US $3.49 |
||
| replacement | |||||
|
9054115011
|
9054115011
90541-15033 Cushion, Back Door Lower Stopper |
90541-15033 |
from US $3.58 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $2.15 |
||
|
9095001148
|
9095001148
90950-01148 New Genuine Part |
90950-01148 |
US $1.60 |
||
|
9095001251
|
9095001251
90950-01251 Plug, Hole(For Instrument Lower Panel) |
90950-01251 |
US $2.04 |
||
| replacement | |||||
|
9095001251
|
9095001251
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.84 |
||
|
9095001559
|
9095001559
90950-01559 Grommet, (For Cooler Pipe) |
90950-01559 |
US $2.48 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
