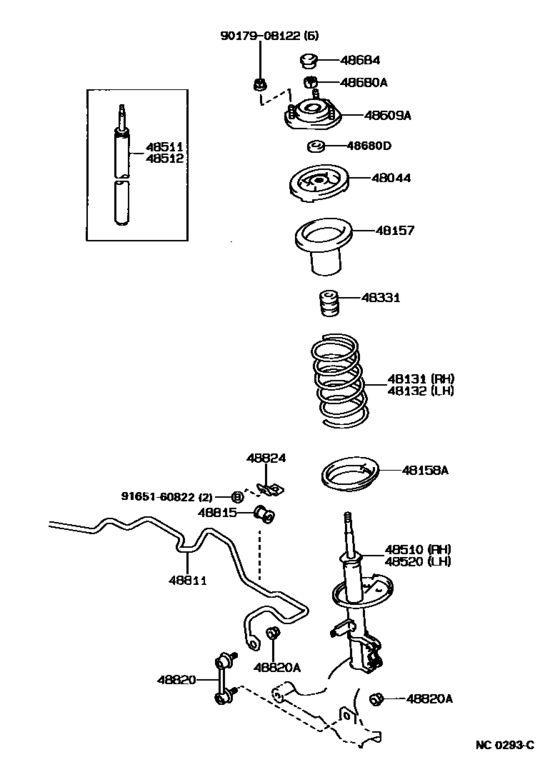

Front Spring & Shock Absorber ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1989 - 1991
- Sales region
- Europe
- Frame
- AE92
- grade
- SR5
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48044
|
48044
48044-12090 Seat Sub- Assy, Front Spring, No.1[08.1987 - 03.1991] AE92 |
48044-12090 |
from US $17.90 |
||
|
48131
|
48131
48131-1E720 Spring, Front Coil, Rh[09.1987 - 06.1991] AE92..5F..DX;AE92..5F..SR5..EFI |
48131-1E720 |
US $145.60 |
||
|
48132
|
48132
48131-1E740 Spring, Front Coil, Rh[09.1987 - 06.1991] AE92..5F..DX;AE92..5F..SR5..EFI |
48131-1E740 |
US $160.16 |
||
|
48157
|
48157
48157-12060 Insulator, Front Coil Spring, Upper[08.1987 - 03.1991] AE92 |
48157-12060 |
US $13.26 |
||
|
48158A
|
48158A
48158-12030 Insulator, Front Coil Spring, Lower[08.1987 - 03.1991] AE92 |
48158-12030 |
from US $12.19 |
||
|
48331
|
48331
48331-12100
Bumper, Front Spring, No.1
[08.1988 - 06.1991] AE92..DX,SR5 |
48331-12100 |
— | ||
| replacement | |||||
|
48331
|
48331
48331-12120 Bumper, Front Spring, No.1[08.1988 - 06.1991] AE92..DX,SR5 |
48331-12120 |
from US $8.56 |
||
|
48510
|
48510
48510-12520 Absorber Assy, Shock, Front Rh[08.1987 - 06.1991] AE92..DX,SR5 |
48510-12520 |
US $327.60 |
||
| replacement | |||||
|
48510
|
48510
48510-1A260 Absorber Assy, Shock, Front Rh[08.1987 - 06.1991] AE92..DX,SR5 |
48510-1A260 |
US $96.25 |
||
|
48511
|
48511
48511-12310 Absorber, Shock Front, Rh(For Cartridge Type)[08.1987 - 06.1991] AE92..DX,SR5 *90 |
48511-12310 |
US $196.56 |
||
| replacement | |||||
|
48511
|
48511
48511-12320 Absorber, Shock Front, Rh(For Cartridge Type)SHOCK FRONT, RH(FOR CARTRIDGE TYPE) [08.1987 - 06.1991] AE92..DX,SR5 *90 |
48511-12320 |
from US $68.13 |
||
|
48512
|
48512
48511-12310 Absorber, Shock Front, Rh(For Cartridge Type)[08.1987 - 06.1991] AE92..DX,SR5 *90 |
48511-12310 |
US $196.56 |
||
| replacement | |||||
|
48512
|
48512
48511-12320 Absorber, Shock Front, Rh(For Cartridge Type)SHOCK FRONT, RH(FOR CARTRIDGE TYPE) [08.1987 - 06.1991] AE92..DX,SR5 *90 |
48511-12320 |
from US $68.13 |
||
|
48520
|
48520
48520-12390 Absorber Assy, Shock, Front Lh[08.1987 - 06.1991] AE92..DX,SR5 |
48520-12390 |
US $327.60 |
||
| replacement | |||||
|
48520
|
48520
48520-1A130
Absorber Assy, Shock, Front Lh
[08.1987 - 06.1991] AE92..DX,SR5 |
48520-1A130 |
— | ||
|
48609A
|
48609A
48609-12192 Support Sub-Assy, Front Suspension[05.1989 - 06.1991] AE92..DX,SR5 |
48609-12192 |
US $83.52 |
||
|
48680A
|
48680A
94182-11400 Nut(For Idler Arm Support)[08.1989 - 03.1991] AE92 |
94182-11400 |
US $5.56 |
||
|
48680D
|
48680D
90303-22049 Seal, Dust(For Front Suspension Support)[08.1987 - 03.1991] AE92 |
90303-22049 |
from US $3.41 |
||
|
48684
|
48684
48684-32010 Cover, Bearing Dust[08.1987 - 03.1991] AE92 |
48684-32010 |
from US $6.18 |
||
|
9017908122
|
9017908122
90179-08122 Nut(For Rear Suspension Support) |
90179-08122 |
US $7.88 |
||
|
9165160822
|
9165160822
91651-60822
New Genuine Part
|
91651-60822 |
— | ||
| replacement | |||||
|
9165160822
|
9165160822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
