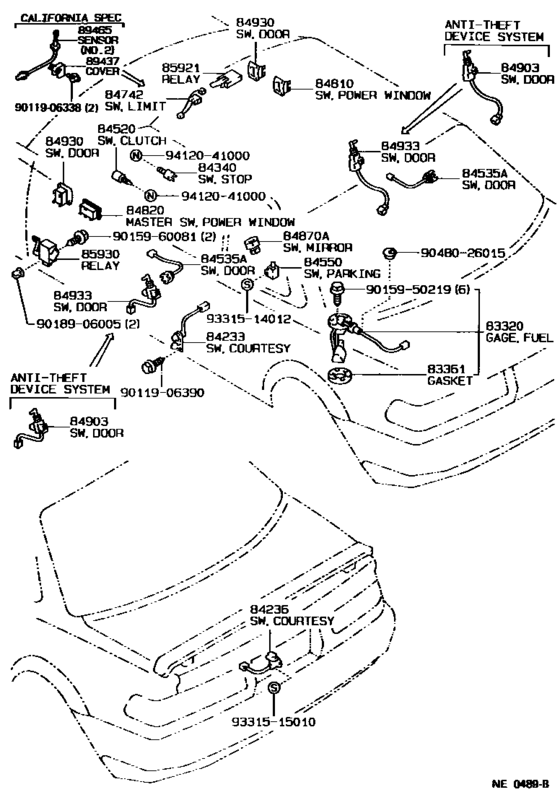

Switch & Relay & Computer ([08.1987 - 08.1989] (8708-8908)) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- AE92
- grade
- SR5
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-80072
Gage Assy, Fuel Sender
[08.1987 - 08.1989] AE92..CBR |
83320-80072 |
— | ||
|
83361
|
83361
83361-32020 Gasket, Fuel Sender Gage[08.1987 - 06.1991] AE92 |
83361-32020 |
US $2.97 |
||
|
84233
|
84233
84231-24010
Switch Assy, Courtesy Lamp (For Front Door)
[08.1987 - 06.1990] AE92 |
84231-24010 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-12070 Switch Assy, Courtesy Lamp (For Front Door)[08.1987 - 06.1990] AE92 |
84231-12070 |
from US $17.16 |
||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[08.1987 - 06.1991] AE92 |
84340-30030 |
from US $29.29 |
||
|
84520
|
84520
84520-12010
Switch Assy, Clutch Start
[08.1987 - 06.1991] AE92..5F |
84520-12010 |
— | ||
|
84535A
|
84535A
84535-12010 Switch, Door Lock[08.1987 - 06.1991] AE92..GTS,SR5 RH |
84535-12010 |
US $36.40 |
||
|
84535A
|
84535A
84535-12020 Switch, Door LockDOOR LOCK [08.1987 - 06.1991] AE92..GTS,SR5 LH |
84535-12020 |
US $36.40 |
||
|
84550
|
84550
84550-12060 Switch Assy, Parking Brake[08.1987 - 06.1991] AE92 |
84550-12060 |
US $51.07 |
||
|
84742
|
84742
84742-32010
Switch, Slide Roof Limit
[08.1987 - 06.1991] AE92 |
84742-32010 |
— | ||
|
84810
|
84810
84810-20060-03
Switch Assy, Power Window Regulator
[08.1987 - 08.1989] AE92..GTS,SR5 SHADOW GRAY,TRIM1# |
84810-20060-03 |
— | ||
| replacement | |||||
|
84810
|
84810
84810-20060-B2 Switch Assy, Power Window Regulator[08.1987 - 08.1989] AE92..GTS,SR5 SHADOW GRAY,TRIM1# |
84810-20060-B2 |
US $47.12 |
||
|
84810
|
84810
84810-20060-05
Switch Assy, Power Window Regulator
[08.1987 - 08.1989] AE92..SR5 DARK BEIGE,TRIM4# |
84810-20060-05 |
— | ||
| replacement | |||||
|
84810
|
84810
84810-20060-B2 Switch Assy, Power Window Regulator[08.1987 - 08.1989] AE92..SR5 DARK BEIGE,TRIM4# |
84810-20060-B2 |
US $47.12 |
||
|
84810
|
84810
84810-20060-12 Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.1987 - 08.1989] AE92..GTS,SR5 RED,TRIM3# |
84810-20060-12 |
US $50.23 |
||
| replacement | |||||
|
84810
|
84810
84810-20060-B2 Switch Assy, Power Window Regulator[08.1987 - 08.1989] AE92..GTS,SR5 RED,TRIM3# |
84810-20060-B2 |
US $47.12 |
||
|
84810
|
84810
84810-20060-14 Switch Assy, Power Window Regulator[08.1987 - 09.1988] AE92..GTS,SR5 DARK BLUE,TRIM8# |
84810-20060-14 |
US $50.23 |
||
| replacement | |||||
|
84810
|
84810
84810-20060-B2 Switch Assy, Power Window Regulator[08.1987 - 09.1988] AE92..GTS,SR5 DARK BLUE,TRIM8# |
84810-20060-B2 |
US $47.12 |
||
|
84810
|
84810
84810-20060-J0 Switch Assy, Power Window Regulator[09.1988 - 08.1989] AE92..GTS,SR5 DARK BLUE,TRIM8# |
84810-20060-J0 |
US $50.23 |
||
| replacement | |||||
|
84810
|
84810
84810-20060-B2 Switch Assy, Power Window Regulator[09.1988 - 08.1989] AE92..GTS,SR5 DARK BLUE,TRIM8# |
84810-20060-B2 |
US $47.12 |
||
|
84820
|
84820
84820-12200-02 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.1987 - 08.1989] AE92..GTS,SR5 RED,TRIM3# |
84820-12200-02 |
US $196.56 |
||
| replacement | |||||
|
84820
|
84820
84820-12200-03
Master Switch Assy, Power Window Regulator
[08.1987 - 08.1989] AE92..GTS,SR5 RED,TRIM3# |
84820-12200-03 |
— | ||
|
84820
|
84820
84820-12200-03
Master Switch Assy, Power Window Regulator
[08.1987 - 08.1989] AE92..GTS,SR5 SHADOW GRAY,TRIM1# |
84820-12200-03 |
— | ||
|
84820
|
84820
84820-12200-04 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.1987 - 08.1989] AE92..GTS,SR5 DARK BLUE,TRIM8# |
84820-12200-04 |
US $196.56 |
||
| replacement | |||||
|
84820
|
84820
84820-12200-03
Master Switch Assy, Power Window Regulator
[08.1987 - 08.1989] AE92..GTS,SR5 DARK BLUE,TRIM8# |
84820-12200-03 |
— | ||
|
84820
|
84820
84820-12200-05 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.1987 - 08.1989] AE92..SR5 DARK BEIGE,TRIM4# |
84820-12200-05 |
US $196.56 |
||
| replacement | |||||
|
84820
|
84820
84820-12200-03
Master Switch Assy, Power Window Regulator
[08.1987 - 08.1989] AE92..SR5 DARK BEIGE,TRIM4# |
84820-12200-03 |
— | ||
|
84870A
|
84870A
84870-20050 Switch Assy, Outer Mirror[08.1987 - 08.1989] AE92..GTS,SR5 |
84870-20050 |
US $103.32 |
||
| replacement | |||||
|
84870A
|
84870A
84870-20050-C0 Switch Assy, Outer Mirror[08.1987 - 08.1989] AE92..GTS,SR5 |
84870-20050-C0 |
from US $103.32 |
||
|
84930
|
84930
84930-16010-02 Switch Assy, Door ControlDOOR CONTROL [08.1987 - 08.1989] AE92..GTS,SR5 RED,TRIM3# |
84930-16010-02 |
US $63.19 |
||
| replacement | |||||
|
84930
|
84930
84930-16010-P0
Switch Assy, Door Control
[08.1987 - 08.1989] AE92..GTS,SR5 RED,TRIM3# |
84930-16010-P0 |
— | ||
|
84930
|
84930
84930-16010-03 Switch Assy, Door Control[08.1987 - 08.1989] AE92..GTS,SR5 SHADOW GRAY,TRIM1# |
84930-16010-03 |
US $63.19 |
||
| replacement | |||||
|
84930
|
84930
84930-16010-P0
Switch Assy, Door Control
[08.1987 - 08.1989] AE92..GTS,SR5 SHADOW GRAY,TRIM1# |
84930-16010-P0 |
— | ||
|
84930
|
84930
84930-16010-05 Switch Assy, Door Control[08.1987 - 08.1989] AE92..SR5 DARK BEIGE,TRIM4# |
84930-16010-05 |
US $63.19 |
||
| replacement | |||||
|
84930
|
84930
84930-16010-P0
Switch Assy, Door Control
[08.1987 - 08.1989] AE92..SR5 DARK BEIGE,TRIM4# |
84930-16010-P0 |
— | ||
|
84930
|
84930
84930-16010-14 Switch Assy, Door Control[08.1987 - 09.1988] AE92..GTS,SR5 DARK BLUE,TRIM8# |
84930-16010-14 |
US $63.19 |
||
| replacement | |||||
|
84930
|
84930
84930-16010-P0
Switch Assy, Door Control
[08.1987 - 09.1988] AE92..GTS,SR5 DARK BLUE,TRIM8# |
84930-16010-P0 |
— | ||
|
84930
|
84930
84930-16010-J0 Switch Assy, Door Control[09.1988 - 08.1989] AE92..GTS,SR5 DARK BLUE,TRIM8# |
84930-16010-J0 |
US $63.19 |
||
| replacement | |||||
|
84930
|
84930
84930-16010-P0
Switch Assy, Door Control
[09.1988 - 08.1989] AE92..GTS,SR5 DARK BLUE,TRIM8# |
84930-16010-P0 |
— | ||
|
85921
|
85921
85921-12020 Relay, Sliding Roof ControlSLIDING ROOF CONTROL [08.1987 - 06.1991] AE92 |
85921-12020 |
US $238.78 |
||
|
85930
|
85930
85930-12060
Relay Assy, Power Window
[08.1987 - 08.1989] AE92..GTS,SR5 |
85930-12060 |
— | ||
|
89465
|
89465
89465-19255 Sensor, OxygenOXYGEN [08.1987 - 08.1989] AE92..CBR |
89465-19255 |
US $131.04 |
||
| replacement | |||||
|
89465
|
89465
89465-29166 Sensor, Oxygen[08.1987 - 08.1989] AE92..CBR |
89465-29166 |
US $132.50 |
||
|
9011906338
|
9011906338
90119-06338
New Genuine Part
|
90119-06338 |
— | ||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.59 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9018906005
|
9018906005
90189-06005 CLIP |
90189-06005 |
US $2.33 |
||
|
9048026015
|
9048026015
90480-26015 New Genuine Part |
90480-26015 |
US $4.95 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.25 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
