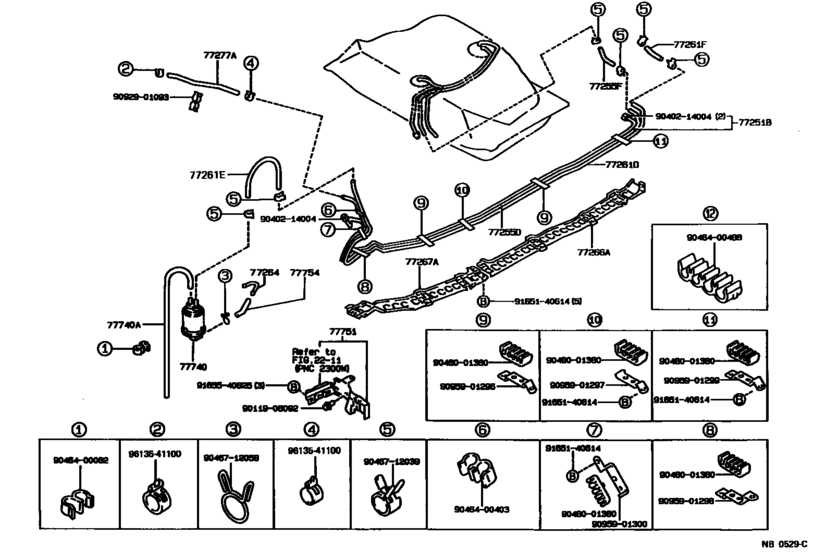

Fuel Tank & Tube ([08.1989 - ] (8708-8908)EFI ; (8908- )) Diagram Toyota COROLLA
- Year
- 1989 - 1991
- Sales region
- Europe
- Frame
- AE92
- grade
- SR5
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 06.1991
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-12510
Tube, Fuel Main
[08.1989 - 09.1989] AE92..DX,SR5 |
77251-12510 |
— | ||
|
77255D
|
77255D
77255-12360
Tube, Fuel Return
[08.1987 - 06.1991] AE92..EFI |
77255-12360 |
— | ||
|
77255F
|
77255F
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1987 - 06.1991] AE92..EFI *H,L=200 |
95333-06020 |
— | ||
| replacement | |||||
|
77255F
|
77255F
95337-06020 Hose, Differential Pressure Control[08.1987 - 06.1991] AE92..EFI *H,L=200 |
95337-06020 |
from US $10.21 |
||
|
77261D
|
77261D
77261-12260
Tube, Fuel Tank To Canister
[08.1987 - 06.1991] AE92 |
77261-12260 |
— | ||
|
77261E
|
77261E
77259-12120 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)[08.1987 - 06.1991] AE92..EFI |
77259-12120 |
US $14.71 |
||
|
77261F
|
77261F
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1987 - 06.1991] AE92 *H,L=200 |
95333-06020 |
— | ||
| replacement | |||||
|
77261F
|
77261F
95337-06020 Hose, Differential Pressure Control[08.1987 - 06.1991] AE92 *H,L=200 |
95337-06020 |
from US $10.21 |
||
|
77264
|
77264
77264-12160 Tube, Canister To Front Side MemberCANISTER TO FRONT SIDE MEMBER [08.1987 - 06.1991] AE92..EFI |
77264-12160 |
US $9.61 |
||
|
77266A
|
77266A
77266-12030
Protector, Fuel Tube, No.1
[08.1987 - 06.1991] AE92 |
77266-12030 |
— | ||
|
77267A
|
77267A
77267-12060
Protector, Fuel Tube, No.2
[08.1987 - 06.1991] AE92 |
77267-12060 |
— | ||
|
77277A
|
77277A
90447-12102 Hose, Fuel, No.1(For Return Tube, No.1)[08.1989 - 06.1991] AE92..DX,SR5 L=340 |
90447-12102 |
US $17.91 |
||
| replacement | |||||
|
77277A
|
77277A
90447-12137
Hose, Fuel, No.1(For Return Tube, No.1)
[08.1989 - 06.1991] AE92..DX,SR5 L=340 |
90447-12137 |
— | ||
|
77740
|
77740
77740-12520
Canister Assy, Charcoal
[08.1989 - 09.1989] AE92..DX,SR5 |
77740-12520 |
— | ||
|
77740A
|
77740A
90447-04125 Hose, Fuel, No.1(For Charcoal Canister)[08.1989 - 06.1991] AE92..DX,SR5 L=490 |
90447-04125 |
US $24.61 |
||
|
77751
|
77751
77750-12040 Bracket, Charcoal Canister BaseCHARCOAL CANISTER BASE [08.1989 - 09.1989] AE92..DX,SR5 |
77750-12040 |
US $36.55 |
||
|
77754
|
77754
77754-12110 Hose, Charcoal Canister Outlet, No.1CHARCOAL CANISTER OUTLET, NO.1 [08.1989 - 09.1989] AE92..DX,SR5 |
77754-12110 |
US $5.39 |
||
|
9011906092
|
9011906092
90119-06092
New Genuine Part
|
90119-06092 |
— | ||
| replacement | |||||
|
9011906092
|
9011906092
90119-06699 BOLT WWASHER |
90119-06699 |
from US $0.70 |
||
|
9040214004
|
9040214004
90402-14004 Nut, Union(For Oil Cooler Tube) |
90402-14004 |
US $3.32 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400403
|
9046400403
90464-00403 Clamp, Vacuum Tube |
90464-00403 |
US $2.33 |
||
|
9046400488
|
9046400488
90464-00488 New Genuine Part |
90464-00488 |
US $3.06 |
||
|
9046712039
|
9046712039
90467-12039 Clip, No.1(For Idle-Up Hose) |
90467-12039 |
US $2.48 |
||
| replacement | |||||
|
9046712039
|
9046712039
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9046712058
|
9046712058
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90467-12058 |
from US $0.72 |
||
|
9048001380
|
9048001380
90480-01380
New Genuine Part
|
90480-01380 |
— | ||
|
9092901093
|
9092901093
90929-01093 New Genuine Part |
90929-01093 |
US $3.79 |
||
|
9095901296
|
9095901296
90959-01296 New Genuine Part |
90959-01296 |
US $3.79 |
||
|
9095901297
|
9095901297
90959-01297 New Genuine Part |
90959-01297 |
US $4.22 |
||
|
9095901298
|
9095901298
90959-01298 New Genuine Part |
90959-01298 |
US $3.79 |
||
|
9095901299
|
9095901299
90959-01299 New Genuine Part |
90959-01299 |
US $3.79 |
||
|
9095901300
|
9095901300
90959-01300 New Genuine Part |
90959-01300 |
US $4.22 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165540625
|
9165540625
91655-40625 New Genuine Part |
91655-40625 |
US $1.60 |
||
| replacement | |||||
|
9165540625
|
9165540625
91651-60625 New Genuine Part |
91651-60625 |
US $2.87 |
||
|
9613541100
|
9613541100
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
96135-41100 |
— | ||
| replacement | |||||
|
9613541100
|
9613541100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.83 |
||
