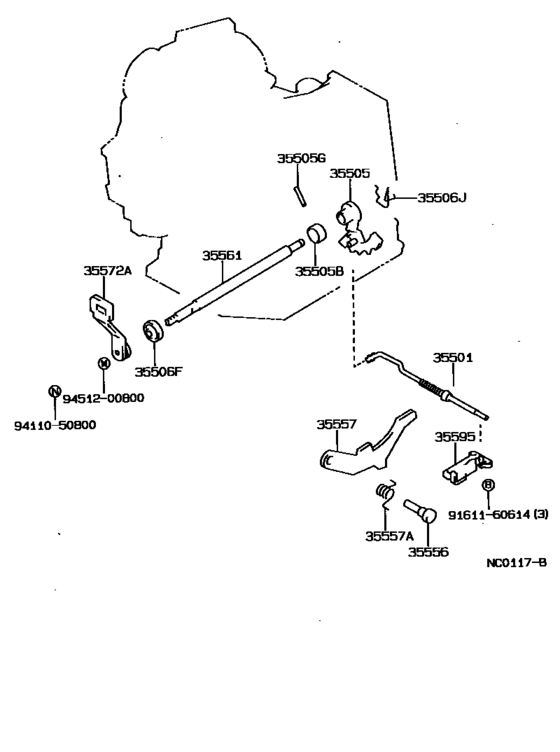

Throttle Link & Valve Lever (Atm) ([08.1987 - ] A131L (8708- )3FC) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-32010 Rod Sub-Assy, Parking Lock[08.1987 - 08.1988] AE92..3FC |
35501-32010 |
US $27.23 |
||
|
35501
|
35501
35501-32030 Rod Sub-Assy, Parking Lock[08.1988 - 06.1992] AE92..3FC |
35501-32030 |
US $19.66 |
||
|
35505
|
35505
35505-20010 Lever Sub-Assy, Manual Valve[12.1987 - 08.1988] AE92..3FC |
35505-20010 |
US $25.63 |
||
| replacement | |||||
|
35505
|
35505
35505-32040 Lever Sub-Assy, Manual Valve[12.1987 - 08.1988] AE92..3FC |
35505-32040 |
US $25.19 |
||
|
35505
|
35505
35505-32011 Lever Sub-Assy, Manual Valve[08.1987 - 12.1987] AE92..3FC |
35505-32011 |
US $25.33 |
||
| replacement | |||||
|
35505
|
35505
35505-32040 Lever Sub-Assy, Manual Valve[08.1987 - 12.1987] AE92..3FC |
35505-32040 |
US $25.19 |
||
|
35505
|
35505
35505-32030 Lever Sub-Assy, Manual Valve[08.1988 - 06.1992] AE92..3FC |
35505-32030 |
US $20.53 |
||
|
35505B
|
35505B
90560-20006 Spacer (For Manual Valve Lever)[08.1987 - 06.1992] AE9#..ATM |
90560-20006 |
from US $2.77 |
||
|
35505G
|
35505G
90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)[08.1987 - 06.1992] AE9#..ATM |
90254-04011 |
US $1.40 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[08.1987 - 06.1992] AE9#..ATM |
90311-12002 |
from US $4.04 |
||
|
35506J
|
35506J
90524-09001 Spring, Retainer (For Manual Valve Lever Shaft)[08.1987 - 06.1992] AE92..3FC |
90524-09001 |
US $1.89 |
||
|
35556
|
35556
35556-32010 Shaft, Parking Lock Pawl[08.1987 - 06.1992] AE92..3FC |
35556-32010 |
US $8.15 |
||
|
35557
|
35557
35557-32020 Pawl, Parking Lock[08.1987 - 06.1992] AE92..3FC |
35557-32020 |
US $37.71 |
||
|
35557A
|
35557A
90508-26047 Spring, Torsion (For Parking Lock Pawl)[08.1987 - 06.1992] AE92..3FC |
90508-26047 |
US $3.20 |
||
|
35561
|
35561
35561-32010 Shaft Sub-Assy, Manual Valve Lever[08.1987 - 06.1992] AE92..3FC |
35561-32010 |
US $28.54 |
||
|
35572A
|
35572A
35572-12090 Lever, Transmission Control Shaft[08.1987 - 06.1992] AE92..3FC |
35572-12090 |
US $14.41 |
||
|
35595
|
35595
35595-32010 Bracket, Parking Lock Pawl[08.1987 - 06.1992] AE92..3FC |
35595-32010 |
US $9.90 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
