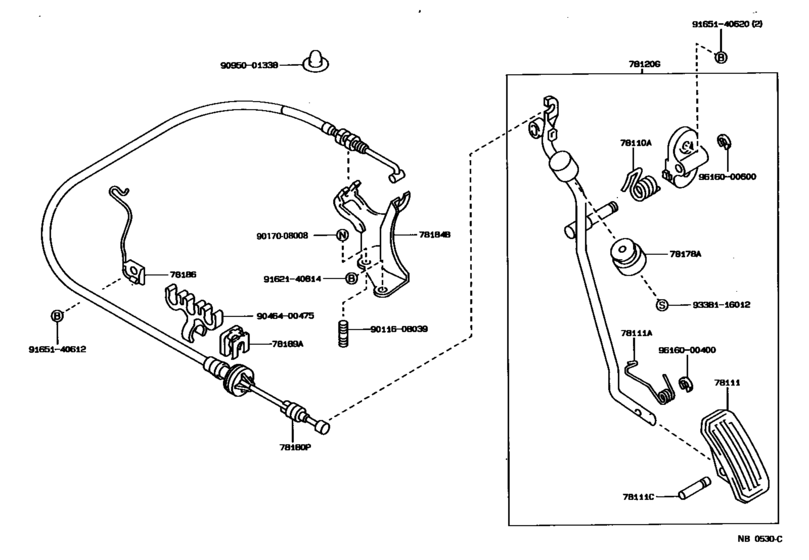

Accelerator Link ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90508-26036 Spring (For Accelerator Pedal Rod)[08.1987 - 06.1992] AE9#..5F |
90508-26036 |
US $7.28 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[08.1987 - 06.1992] AE9# |
78111-32010 |
US $8.56 |
||
|
78111A
|
78111A
90508-20056 Spring (For Accelerator Pedal)[08.1987 - 06.1992] AE9# |
90508-20056 |
US $7.28 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[08.1987 - 06.1992] AE9# |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-12090
Rod Assy, Accelerator Pedal
[08.1987 - 06.1992] AE9#..5F |
78120-12090 |
— | ||
|
78178A
|
78178A
78178-12030 Damper, Accelrator Pedal Rod DynamicACCELRATOR PEDAL ROD DYNAMIC [08.1987 - 06.1992] AE9# |
78178-12030 |
US $18.78 |
||
|
78180P
|
78180P
78180-1A350 Cable Assy, Accelerator ControlACCELERATOR CONTROL [08.1989 - 06.1992] AE9# |
78180-1A350 |
US $48.34 |
||
|
78184B
|
78184B
78184-12250 Bracket, Accelerator Control CableACCELERATOR CONTROL CABLE [02.1988 - 08.1990] AE9#..EFI |
78184-12250 |
US $20.82 |
||
|
78189A
|
78189A
78189-12030
Support, Accelerator Control Cable, No.2
[08.1987 - 06.1992] AE9# |
78189-12030 |
— | ||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $2.18 |
||
|
9017008008
|
9017008008
90170-08008 New Genuine Part |
90170-08008 |
US $1.60 |
||
|
9046400475
|
9046400475
90464-00475 Clamp, Throttle Cable, No.3 |
90464-00475 |
US $7.86 |
||
|
9095001338
|
9095001338
90950-01338 New Genuine Part |
90950-01338 |
US $1.75 |
||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $1.61 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.51 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
