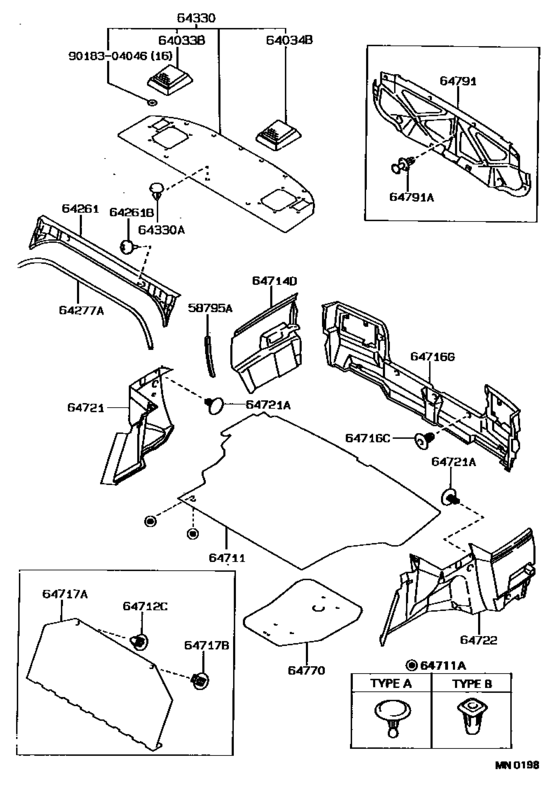

Package Tray Panel & Luggage Compartment Mat ([05.1987 - ] (8705- )SED) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- XLI
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64261
|
64261
64261-12040-03 Garnish, Room Partition[08.1990 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) SHADOW GRAY,TRIM1# |
64261-12040-03 |
US $18.05 |
||
|
64261
|
64261
64261-12040-04 Garnish, Room PartitionROOM PARTITION [08.1989 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) DARK BLUE,TRIM8# |
64261-12040-04 |
US $18.05 |
||
|
64261
|
64261
64261-12040-06 Garnish, Room PartitionROOM PARTITION [08.1989 - 05.1992] AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) BROWN,TRIM4# |
64261-12040-06 |
US $17.76 |
||
|
64261B
|
64261B
90541-09060 Cushion(For Room Partition Garnish)[08.1989 - 08.1990] AE92,CE90,EE90..SED..(XL,XLI) |
90541-09060 |
US $2.48 |
||
| replacement | |||||
|
64261B
|
64261B
90541-09010
Cushion(For Room Partition Garnish)
[08.1989 - 08.1990] AE92,CE90,EE90..SED..(XL,XLI) |
90541-09010 |
— | ||
|
64277A
|
64277A
64277-12040-03 Moulding, Room Partition Trim[08.1990 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) SHADOW GRAY,TRIM1# |
64277-12040-03 |
US $26.35 |
||
|
64277A
|
64277A
64277-12040-04 Moulding, Room Partition TrimROOM PARTITION TRIM [08.1989 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) DARK BLUE,TRIM8# |
64277-12040-04 |
US $26.35 |
||
|
64277A
|
64277A
64277-12040-06 Moulding, Room Partition TrimROOM PARTITION TRIM [08.1989 - 05.1992] AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) BROWN,TRIM4# |
64277-12040-06 |
US $26.35 |
||
|
64330
|
64330
64330-12830-03 Panel Assy, Package Tray Trim[05.1987 - 05.1992] AE9#,CE90,EE90..SED..(STD,XL,XLI) SHADOW GRAY,TRIM1# |
64330-12830-03 |
US $68.87 |
||
| replacement | |||||
|
64330
|
64330
64330-12850-B0 Panel Assy, Package Tray Trim[05.1987 - 05.1992] AE9#,CE90,EE90..SED..(STD,XL,XLI) SHADOW GRAY,TRIM1# |
64330-12850-B0 |
US $128.13 |
||
|
64330
|
64330
64330-12830-04 Panel Assy, Package Tray Trim[08.1989 - 05.1992] AE9#,CE90,EE90..SED..(STD,XL,XLI) DARK BLUE,TRIM8# |
64330-12830-04 |
US $68.87 |
||
| replacement | |||||
|
64330
|
64330
64330-12850-B0 Panel Assy, Package Tray Trim[08.1989 - 05.1992] AE9#,CE90,EE90..SED..(STD,XL,XLI) DARK BLUE,TRIM8# |
64330-12850-B0 |
US $128.13 |
||
|
64330
|
64330
64330-12830-06 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [08.1989 - 05.1992] AE9#,CE90,EE90..LHD..SED..(XL,XLI) BROWN,TRIM4# |
64330-12830-06 |
US $68.87 |
||
| replacement | |||||
|
64330
|
64330
64330-12850-B0 Panel Assy, Package Tray Trim[08.1989 - 05.1992] AE9#,CE90,EE90..LHD..SED..(XL,XLI) BROWN,TRIM4# |
64330-12850-B0 |
US $128.13 |
||
|
64330
|
64330
64330-12840-03 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [08.1989 - 05.1992] AE9#,CE90,EE90..SED..(STD,XL,XLI) W(3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1# |
64330-12840-03 |
US $67.85 |
||
| replacement | |||||
|
64330
|
64330
64330-12860-B0 Panel Assy, Package Tray Trim[08.1989 - 05.1992] AE9#,CE90,EE90..SED..(STD,XL,XLI) W(3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1# |
64330-12860-B0 |
US $128.13 |
||
|
64330
|
64330
64330-12840-04 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [08.1989 - 05.1992] AE9#,CE90,EE90..SED..(STD,XL,XLI) W(3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8# |
64330-12840-04 |
US $67.85 |
||
| replacement | |||||
|
64330
|
64330
64330-12860-B0 Panel Assy, Package Tray Trim[08.1989 - 05.1992] AE9#,CE90,EE90..SED..(STD,XL,XLI) W(3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8# |
64330-12860-B0 |
US $128.13 |
||
|
64330
|
64330
64330-12840-06 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [08.1989 - 05.1992] AE9#,CE90,EE90..LHD..SED..(XL,XLI) W(3-POINT TYPE REAR SEAT BELT),BROWN,TRIM4# |
64330-12840-06 |
US $67.85 |
||
| replacement | |||||
|
64330
|
64330
64330-12860-B0 Panel Assy, Package Tray Trim[08.1989 - 05.1992] AE9#,CE90,EE90..LHD..SED..(XL,XLI) W(3-POINT TYPE REAR SEAT BELT),BROWN,TRIM4# |
64330-12860-B0 |
US $128.13 |
||
|
64330
|
64330
64330-12850-03 Panel Assy, Package Tray Trim[05.1987 - 05.1992] AE9#,EE90..SED..(GL,GLI) SHADOW GRAY,TRIM1#; AE92,CE90,EE90..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT),SHADOW GRAY,TRIM1# |
64330-12850-03 |
US $131.04 |
||
| replacement | |||||
|
64330
|
64330
64330-12850-B0 Panel Assy, Package Tray Trim[05.1987 - 05.1992] AE9#,EE90..SED..(GL,GLI) SHADOW GRAY,TRIM1#; AE92,CE90,EE90..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT),SHADOW GRAY,TRIM1# |
64330-12850-B0 |
US $128.13 |
||
|
64330
|
64330
64330-12850-04 Panel Assy, Package Tray Trim[08.1989 - 05.1992] AE9#,EE90..SED..(GL,GLI) DARK BLUE,TRIM8#; AE92,CE90,EE90..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT),DARK BLUE,TRIM8# |
64330-12850-04 |
US $131.04 |
||
| replacement | |||||
|
64330
|
64330
64330-12850-B0 Panel Assy, Package Tray Trim[08.1989 - 05.1992] AE9#,EE90..SED..(GL,GLI) DARK BLUE,TRIM8#; AE92,CE90,EE90..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT),DARK BLUE,TRIM8# |
64330-12850-B0 |
US $128.13 |
||
|
64330
|
64330
64330-12850-06 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [08.1989 - 05.1992] AE9#,EE90..LHD..SED..(GL,GLI) BROWN,TRIM4#; AE92,CE90,EE90..LHD..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT),BROWN,TRIM4# |
64330-12850-06 |
US $131.04 |
||
| replacement | |||||
|
64330
|
64330
64330-12850-B0 Panel Assy, Package Tray Trim[08.1989 - 05.1992] AE9#,EE90..LHD..SED..(GL,GLI) BROWN,TRIM4#; AE92,CE90,EE90..LHD..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT),BROWN,TRIM4# |
64330-12850-B0 |
US $128.13 |
||
|
64330
|
64330
64330-12860-03 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [05.1987 - 05.1992] AE9#,EE90..SED..(GL,GLI) W(3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#; AE92,CE90,EE90..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT & 3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1# |
64330-12860-03 |
US $131.04 |
||
| replacement | |||||
|
64330
|
64330
64330-12860-B0 Panel Assy, Package Tray Trim[05.1987 - 05.1992] AE9#,EE90..SED..(GL,GLI) W(3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#; AE92,CE90,EE90..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT & 3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1# |
64330-12860-B0 |
US $128.13 |
||
|
64330
|
64330
64330-12860-04 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [08.1989 - 05.1992] AE9#,EE90..SED..(GL,GLI) W(3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#; AE92,CE90,EE90..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT & 3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8# |
64330-12860-04 |
US $131.04 |
||
| replacement | |||||
|
64330
|
64330
64330-12860-B0 Panel Assy, Package Tray Trim[08.1989 - 05.1992] AE9#,EE90..SED..(GL,GLI) W(3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#; AE92,CE90,EE90..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT & 3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8# |
64330-12860-B0 |
US $128.13 |
||
|
64330
|
64330
64330-12860-06 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [08.1989 - 05.1992] AE9#,EE90..LHD..SED..(GL,GLI) W(3-POINT TYPE REAR SEAT BELT),BROWN,TRIM4#; AE92,CE90,EE90..LHD..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT & 3-POINT TYPE REAR SEAT BELT),BROWN,TRIM4# |
64330-12860-06 |
US $131.04 |
||
| replacement | |||||
|
64330
|
64330
64330-12860-B0 Panel Assy, Package Tray Trim[08.1989 - 05.1992] AE9#,EE90..LHD..SED..(GL,GLI) W(3-POINT TYPE REAR SEAT BELT),BROWN,TRIM4#; AE92,CE90,EE90..LHD..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT & 3-POINT TYPE REAR SEAT BELT),BROWN,TRIM4# |
64330-12860-B0 |
US $128.13 |
||
|
64330A
|
64330A
90467-08046-03
Clip(For Package Tray Trim Panel)
[05.1987 - 09.1990] AE9#,CE90,EE90..SED GRAY,TRIM1# |
90467-08046-03 |
— | ||
| replacement | |||||
|
64330A
|
64330A
90467-08046-B1
Clip(For Package Tray Trim Panel)
[05.1987 - 09.1990] AE9#,CE90,EE90..SED GRAY,TRIM1# |
90467-08046-B1 |
— | ||
|
64330A
|
64330A
90467-08046-B1
Clip(For Package Tray Trim Panel)
[09.1990 - 05.1992] AE92,CE90,EE90..SED SHADOW GRAY,TRIM1# |
90467-08046-B1 |
— | ||
|
64330A
|
64330A
90467-08046-E0 Clip(For Front Door Trim Board)[08.1989 - 05.1992] AE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) BROWN,TRIM4# |
90467-08046-E0 |
US $1.60 |
||
|
64330A
|
64330A
90467-08046-J0
Clip(For Package Tray Trim Panel)
[08.1989 - 05.1992] AE9#,CE90,EE90..SED LIGHT BLUE,TRIM8# |
90467-08046-J0 |
— | ||
|
64711
|
64711
64711-12190-03 Mat, Luggage Compartment Floor[11.1989 - 05.1992] CE90,EE90..RHD..SED..XL LIGHT GRAY,TRIM1#,3#,8#; AE92,CE90,EE90..LHD..SED..(XL,XLI) LIGHT GRAY,TRIM1#,4#,8# |
64711-12190-03 |
US $165.98 |
||
|
64711
|
64711
64711-12200-03 Mat, Luggage Compartment Floor[08.1989 - 11.1989] AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) LIGHT GRAY,TRIM1#,4#,8#; CE90,EE90..RHD..SED LIGHT GRAY,TRIM1#,3#,8# |
64711-12200-03 |
US $165.98 |
||
|
64711A
|
64711A
90467-07079-B3
Clip(For Luggage Compartment Floor Mat)
[08.1990 - 05.1992] AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) LIGHT GRAY,TRIM1#,4#,8#,MALE; CE90,EE90..RHD..SED LIGHT GRAY,TRIM1#,3#,8#,MALE |
90467-07079-B3 |
— | ||
|
64711A
|
64711A
90467-10023 Clip(For Front Floor Mat)[08.1989 - 08.1990] AE92,CE90,EE90..SED..(XL,XLI) FEMALE |
90467-10023 |
US $1.25 |
||
|
64712C
|
64712C
90467-10034-01 Clip(For Side Heater Cover Board)[08.1990 - 05.1992] EE90..SED..STD BLACK,TRIM1#,8#; CE90,EE90..RHD..SED..XL BLACK,TRIM1#,3#,8#; AE92,CE90,EE90..LHD..SED..(XL,XLI) BLACK,TRIM1#,4#,8# |
90467-10034-01 |
US $1.75 |
||
|
64714D
|
64714D
64714-12100-03 Cover, Luggage Compartment Trim, Side, Rh[08.1989 - 05.1992] EE90..SED..STD LIGHT GRAY,TRIM1#,8#; AE95,CE90,EE90..RHD..SED LIGHT GRAY,TRIM1#,3#,8#; AE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) LIGHT GRAY,TRIM1#,4#,8# |
64714-12100-03 |
US $41.64 |
||
|
64716C
|
64716C
90467-05014-B0 Clip, Roof Headlining[08.1989 - 05.1992] AE92,CE90..LHD..SED;EE90..SED..MTM..XLI;EE90..LHD..SED..(GL,XL) LIGHT GRAY,TRIM1#,4#,8#; CE90,EE90..RHD..SED LIGHT GRAY,TRIM1#,3#,8# |
90467-05014-B0 |
US $1.38 |
||
|
64716G
|
64716G
64716-12100-03
Cover, Luggage Compartment Trim, Rear
[08.1989 - 05.1992] AE92,CE90..LHD..SED;EE90..SED..MTM..XLI;EE90..LHD..SED..(GL,XL) LIGHT GRAY,TRIM1#,4#,8#; CE90,EE90..RHD..SED LIGHT GRAY,TRIM1#,3#,8# |
64716-12100-03 |
— | ||
|
64717A
|
64717A
64717-01010-B0 Cover, Luggage Compartment Trim, FrontLUGGAGE COMPARTMENT TRIM, FRONT [06.1991 - 05.1992] EE90..SED..STD LIGHT GRAY,TRIM1#,8#; CE90,EE90..RHD..SED..XL LIGHT GRAY,TRIM1#,3#,8#; AE92,CE90,EE90..LHD..SED..(XL,XLI) LIGHT GRAY,TRIM1#,4#,8# |
64717-01010-B0 |
US $52.42 |
||
|
64717A
|
64717A
64717-12020-03 Cover, Luggage Compartment Trim, Front[08.1990 - 05.1992] EE90..SED..STD GRAY,TRIM1#,8#; CE90,EE90..RHD..SED..XL GRAY,TRIM1#,3#,8#; AE92,CE90,EE90..LHD..SED..(XL,XLI) GRAY,TRIM1#,4#,8# |
64717-12020-03 |
US $51.11 |
||
|
64721
|
64721
64721-12040-03 Cover, Luggage Compartment Trim, Inner Rh[08.1989 - 05.1992] EE90..SED..STD LIGHT GRAY,TRIM1#,8#; AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) LIGHT GRAY,TRIM1#,4#,8#; CE90,EE90..RHD..SED LIGHT GRAY,TRIM1#,3#,8# |
64721-12040-03 |
US $46.01 |
||
|
64721A
|
64721A
90467-07042-B0 Clip(For Luggage Compartment Trim Inner Cover)[08.1989 - 05.1992] EE90..SED..STD LIGHT GRAY,TRIM1#,8#,TYPE A; AE95,CE90,EE90..RHD..SED LIGHT GRAY,TRIM1#,3#,8#,TYPE A; AE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) LIGHT GRAY,TRIM1#,4#,8#,TYPE A |
90467-07042-B0 |
US $1.46 |
||
|
64721A
|
64721A
90468-04132-03 Clip(For Luggage Compartment Trim Inner Cover)[08.1989 - 05.1992] EE90..SED..STD LIGHT GRAY,TRIM1#,8#,TYPE B; AE95,CE90,EE90..RHD..SED LIGHT GRAY,TRIM1#,3#,8#,TYPE B; AE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) LIGHT GRAY,TRIM1#,4#,8#,TYPE B |
90468-04132-03 |
US $2.48 |
||
|
64722
|
64722
64722-12060-03 Cover, Luggage Compartment Trim, Inner LhLUGGAGE COMPARTMENT TRIM, INNER LH [08.1989 - 05.1992] EE90..SED..STD LIGHT GRAY,TRIM1#,8#; AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) LIGHT GRAY,TRIM1#,4#,8#; CE90,EE90..RHD..SED LIGHT GRAY,TRIM1#,3#,8# |
64722-12060-03 |
US $62.90 |
||
|
64770
|
64770
64770-12110 Cover Assy, Spare WheelSPARE WHEEL [05.1987 - 05.1992] AE92,CE90,EE90..SED |
64770-12110 |
US $51.54 |
||
|
64791
|
64791
64791-12020-03 Cover, Back Door TrimBACK DOOR TRIM [08.1989 - 05.1992] EE90..SED..STD LIGHT GRAY,TRIM1#,8#; AE95..LHD..SED..CBR;AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) LIGHT GRAY,TRIM1#,4#,8# |
64791-12020-03 |
US $224.22 |
||
|
64791A
|
64791A
90467-07072-03 Clip(For Back Door Trim)[08.1989 - 05.1992] EE90..SED..STD GRAY,TRIM1#,8#; AE95..LHD..SED..CBR;AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) GRAY,TRIM1#,4#,8# |
90467-07072-03 |
US $1.60 |
||
| replacement | |||||
|
64791A
|
64791A
90467-07072-B0 Clip (For Roof Side Garnish)[08.1989 - 05.1992] EE90..SED..STD GRAY,TRIM1#,8#; AE95..LHD..SED..CBR;AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) GRAY,TRIM1#,4#,8# |
90467-07072-B0 |
US $1.60 |
||
|
9018304046
|
9018304046
90183-04046 New Genuine Part |
90183-04046 |
US $2.15 |
||
