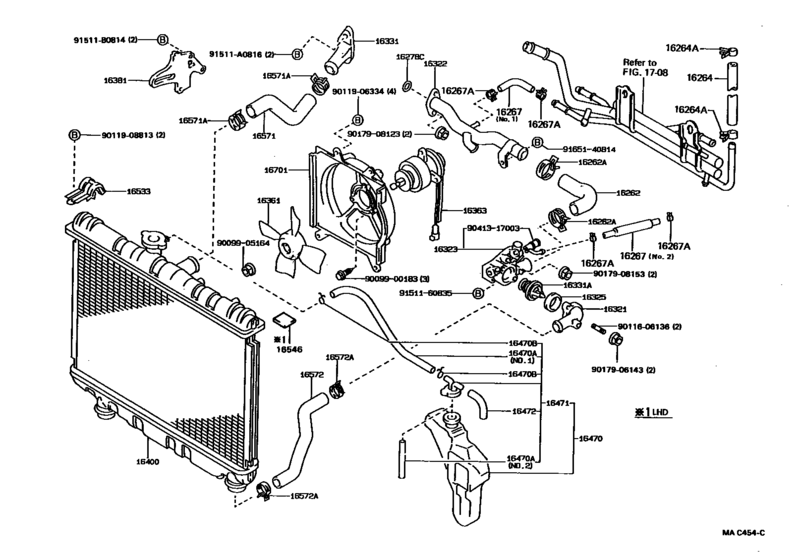

Radiator & Water Outlet ([08.1989 - ] (8908- )4AFE..AE92) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- XLI
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16262
|
16262
16262-15030 Hose, Water Inlet[05.1987 - 08.1990] 4AF#..AE9# |
16262-15030 |
from US $21.53 |
||
|
16262A
|
16262A
90467-36001 Clip(For Water Inlet Hose)[05.1987 - 08.1990] 4AF#..AE9# |
90467-36001 |
US $7.46 |
||
|
16264
|
16264
16264-16050
Hose, Water By-Pass, No.2
[08.1989 - 05.1992] 4AFE..AE92 |
16264-16050 |
— | ||
|
16264A
|
16264A
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1989 - 08.1990] 2E..EE90; 4AFE,4AGE..AE9# |
90467-13001 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[08.1989 - 08.1990] 2E..EE90; 4AFE,4AGE..AE9# |
96135-51300 |
from US $2.13 |
||
|
16264A
|
16264A
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[06.1991 - 05.1992] 4AFE..AE92 |
96135-41300 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[06.1991 - 05.1992] 4AFE..AE92 |
96135-51300 |
from US $2.13 |
||
|
16267
|
16267
16264-16050
Hose, Water By-Pass, No.2
[06.1991 - 05.1992] 4AFE..AE92 NO.1 |
16264-16050 |
— | ||
|
16267
|
16267
16267-16040
Hose, Water By-Pass, No.3
[08.1989 - 06.1991] 4AFE..AE92 NO.1 |
16267-16040 |
— | ||
|
16267
|
16267
90447-15021
Hose, Water By-Pass, No.3
[03.1988 - 05.1992] 4AFE..AE92 NO.2 |
90447-15021 |
— | ||
|
16267A
|
16267A
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1989 - 06.1991] 4AFE..AE92 |
90467-13001 |
— | ||
| replacement | |||||
|
16267A
|
16267A
96135-51300 Clamp, Hose[08.1989 - 06.1991] 4AFE..AE92 |
96135-51300 |
from US $2.13 |
||
|
16267A
|
16267A
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[06.1991 - 05.1992] 4AFE..AE92 |
96135-41300 |
— | ||
| replacement | |||||
|
16267A
|
16267A
96135-51300 Clamp, Hose[06.1991 - 05.1992] 4AFE..AE92 |
96135-51300 |
from US $2.13 |
||
|
16278C
|
16278C
96711-24035
Ring, O(For Water Pump)
[05.1987 - 08.1990] 4AF#,4AGE..AE9# |
96711-24035 |
— | ||
| replacement | |||||
|
16278C
|
16278C
96761-24035 Ring, O(For Water Pump)[05.1987 - 08.1990] 4AF#,4AGE..AE9# |
96761-24035 |
from US $2.73 |
||
|
16321
|
16321
16321-15020 Inlet, Water[08.1989 - 08.1990] 4AF#..AE9# |
16321-15020 |
US $42.34 |
||
|
16322
|
16322
16322-15020
Pipe, Water Inlet
[05.1987 - 05.1990] 4AF#..AE9# |
16322-15020 |
— | ||
| replacement | |||||
|
16322
|
16322
16322-15040 Pipe, Water Inlet[05.1987 - 05.1990] 4AF#..AE9# |
16322-15040 |
US $101.34 |
||
|
16322
|
16322
16322-15040 Pipe, Water Inlet[05.1990 - 08.1990] 4AF#..AE9# |
16322-15040 |
US $101.34 |
||
|
16322
|
16322
16322-15041
Pipe, Water Inlet
[06.1991 - 05.1992] 4AF#..AE92 |
16322-15041 |
— | ||
|
16323
|
16323
16323-16090
Housing, Water Inlet
[08.1989 - 05.1992] 4AFE..AE92 |
16323-16090 |
— | ||
|
16325
|
16325
16325-63010
Gasket, Water Inlet Housing, No.1
[08.1989 - 08.1990] 1C..CE90; 4AF#..AE9#; 2E#..EE90 |
16325-63010 |
— | ||
| replacement | |||||
|
16325
|
16325
16325-63011 Gasket, Water Inlet Housing, No.1[08.1989 - 08.1990] 1C..CE90; 4AF#..AE9#; 2E#..EE90 |
16325-63011 |
from US $3.88 |
||
|
16331
|
16331
16331-15080 Outlet, Water[05.1987 - 08.1990] 4AFE..AE92;4AF#..AE9#..5F |
16331-15080 |
from US $11.04 |
||
|
16331A
|
16331A
90916-03046 Thermostat[08.1989 - 08.1990] 1C..CE90 *WAX 82-95; 4AF#..AE9# *WAX 82-95; 2E#..EE90 *WAX 82-95 |
90916-03046 |
from US $22.27 |
||
|
16361
|
16361
16361-15080
Fan
[05.1987 - 05.1992] 1C..CE90; 2E#..EE90; 4AF#,4AGE..AE92 |
16361-15080 |
— | ||
|
16363
|
16363
16363-16030
Motor, Cooling Fan
[05.1987 - 05.1992] 1C..CE90; 2E#..EE90; 4AF#,4AGE..AE92 |
16363-16030 |
— | ||
|
16381
|
16381
16381-15060 Bar, Fan Belt Adjusting[05.1987 - 08.1990] 4AF#..AE9# |
16381-15060 |
US $32.47 |
||
|
16400
|
16400
16400-16150
Radiator Assy
[05.1987 - 05.1992] 4AF#..AE92..5F |
16400-16150 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-11180
Radiator Assy
[05.1987 - 05.1992] 4AF#..AE92..5F |
16400-11180 |
— | ||
|
16470
|
16470
16470-15040 Tank Assy, Radiator Reserve[05.1987 - 05.1992] 4AF#..AE9#; 1C..CE90; 2E#..EE90 |
16470-15040 |
from US $48.22 |
||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[08.1989 - 05.1992] 1C..CE90 L=600,NO.2; 2E#..EE90 L=600,NO.2; 4AF#,4AGE..AE9# L=600,NO.2 |
90445-12078 |
from US $6.75 |
||
|
16470A
|
16470A
90445-12117 Hose Or Pipe(For Radiator Reserve Tank)[08.1989 - 05.1992] 1C..CE90 *H,L=460,NO.1; 2E#..EE90 *H,L=460,NO.1; 4AF#..AE9# *H,L=460,NO.1 |
90445-12117 |
US $6.12 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[05.1987 - 05.1992] 1C..CE90; 2E#..EE90; 4AF#,4AGE..AE9# |
90467-11085 |
from US $0.72 |
||
|
16471
|
16471
16405-15050
Cap Sub-Assy, Reserve Tank
[05.1987 - 05.1992] 4AF#..AE9#; 1C..CE90; 2E#..EE90 |
16405-15050 |
— | ||
|
16472
|
16472
85338-74040
Hose(For Radiator Drain Cock)
[05.1987 - 05.1992] 1C..CE90; 2E#..EE90; 4AF#,4AGE..AE9# |
85338-74040 |
— | ||
|
16533
|
16533
16533-15090
Support, Radiator, Upper
[05.1987 - 05.1992] 2E#..EE90; 4AF#,4AGE..AE9# |
16533-15090 |
— | ||
|
16546
|
16546
16546-64010 Protector, RadiatorRADIATOR [08.1989 - 05.1992] 2E#..EE90..LHD; 4AF#,4AGE..AE9#..LHD; 1C..CE90..LHD |
16546-64010 |
US $2.33 |
||
|
16571
|
16571
16571-15150 Hose, Radiator, Inlet[05.1987 - 05.1992] 4AF#..AE92 |
16571-15150 |
from US $15.68 |
||
| replacement | |||||
|
16571
|
16571
1657115150A1
Hose Ae92 At171 90
[05.1987 - 05.1992] 4AF#..AE92 |
1657115150A1 |
— | ||
|
16571A
|
16571A
90467-34003
Clip(For Oil Return Hose)
[05.1987 - 05.1992] 1C..CE90; 4AF#,4AGE..AE9# |
90467-34003 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.1987 - 05.1992] 1C..CE90; 4AF#,4AGE..AE9# |
90467-34004 |
from US $3.41 |
||
|
16572
|
16572
16572-15190 Hose, Radiator, Outlet[05.1987 - 12.1990] 4AF#..AE9# |
16572-15190 |
US $30.75 |
||
| replacement | |||||
|
16572
|
16572
1657215190A
Hose Ae92
[05.1987 - 12.1990] 4AF#..AE9# |
1657215190A |
— | ||
|
16572A
|
16572A
90467-34003
Clip(For Oil Return Hose)
[05.1987 - 05.1992] 4AF#,4AGE..AE9# |
90467-34003 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.1987 - 05.1992] 4AF#,4AGE..AE9# |
90467-34004 |
from US $3.41 |
||
|
16701
|
16701
16711-15220 Shroud Sub-Assy, Fan[05.1987 - 05.1992] 2E#..EE90; 4AF#,4AGE..AE92 |
16711-15220 |
US $84.45 |
||
|
91511A0816
|
91511A0816
91511-A0816 New Genuine Part |
91511-A0816 |
US $1.89 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.79 |
||
|
9009900183
|
9009900183
90099-00183
New Genuine Part
|
90099-00183 |
— | ||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9011606136
|
9011606136
90116-06136 BOLT |
90116-06136 |
US $2.33 |
||
|
9011906334
|
9011906334
90119-06334 New Genuine Part |
90119-06334 |
US $2.15 |
||
|
9011908813
|
9011908813
90119-08813 BOLT W-WASHER |
90119-08813 |
from US $2.87 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.80 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9041317003
|
9041317003
90413-17003
New Genuine Part
|
90413-17003 |
— | ||
|
9151160835
|
9151160835
91511-60835
Bolt(For Cylinder Head Set Sub)
|
91511-60835 |
— | ||
| replacement | |||||
|
9151160835
|
9151160835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.40 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
