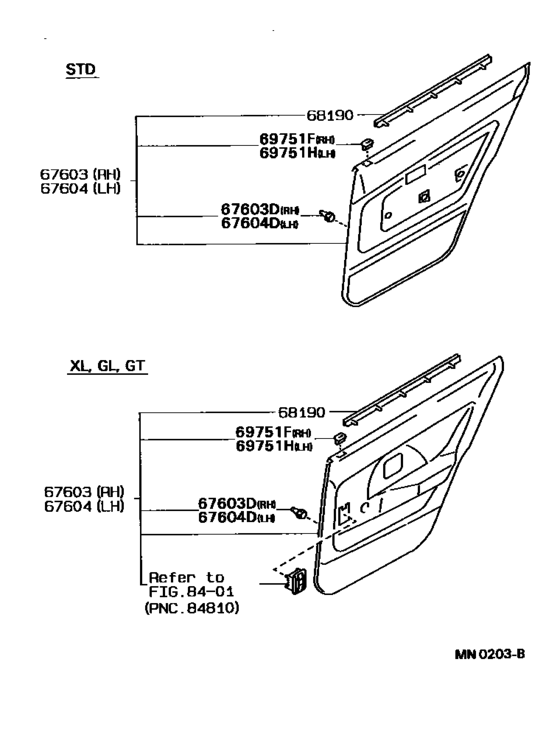

Rear Door Panel & Glass ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- XLI
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67603
|
67603
67630-1A710-03 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [08.1989 - 05.1992] AE9#,CE90,EE90..SED..(XL,XLI) SHADOW GRAY,TRIM1# |
67630-1A710-03 |
US $285.38 |
||
|
67603
|
67603
67630-1A710-04 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [08.1989 - 05.1992] AE9#,CE90,EE90..SED..(XL,XLI) DARK BLUE,TRIM8# |
67630-1A710-04 |
US $285.38 |
||
|
67603
|
67603
67630-1A710-06 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [08.1989 - 05.1992] AE9#,CE90,EE90..LHD..SED..(XL,XLI) BROWN,TRIM4# |
67630-1A710-06 |
US $285.38 |
||
|
67603
|
67603
67630-1A720-03 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [08.1989 - 05.1992] EE90..SED..XL;EE90..SED..MTM..XLI;AE9#,CE90..SED..(XL,XLI) W(*PW & *EL),SHADOW GRAY,TRIM1# |
67630-1A720-03 |
US $324.69 |
||
|
67603
|
67603
67630-1A720-04 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [08.1989 - 05.1992] EE90..SED..XL;EE90..SED..MTM..XLI;AE9#,CE90..SED..(XL,XLI) W(*PW & *EL),DARK BLUE,TRIM8# |
67630-1A720-04 |
US $324.69 |
||
|
67603
|
67603
67630-1A720-06 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE9#,CE90..LHD..SED..(XL,XLI) W(*PW & *EL),BROWN,TRIM4# |
67630-1A720-06 |
US $324.69 |
||
|
67603D
|
67603D
67771-12030 Retainer (For Quarter Inside Trim Board)[10.1989 - 05.1992] EE90..WG..GL;EE90..LHD..WG..5F;AE9#,CE90..GL,GLI,GTI,XL,XLI;EE90..(LB,SED)..(GL,GL I,XL,XLI); EE90..RHD..WG..XL W(*PW & *EL) |
67771-12030 |
US $3.40 |
||
|
67603D
|
67603D
67771-12050 Clip, Radiator Grille[08.1989 - 10.1989] AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI RED; EE90..RHD..WG..XL;AE92,CE90,EE90..LB |
67771-12050 |
from US $1.48 |
||
|
67603D
|
67603D
67771-89104 Clip (For Center Pillar Garnish Panel, Upper)[08.1989 - 10.1989] AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI WHITE |
67771-89104 |
US $2.87 |
||
|
67604
|
67604
67640-1A710-03 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [08.1989 - 05.1992] AE9#,CE90,EE90..SED..(XL,XLI) SHADOW GRAY,TRIM1# |
67640-1A710-03 |
US $285.38 |
||
|
67604
|
67604
67640-1A710-04 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [08.1989 - 05.1992] AE9#,CE90,EE90..SED..(XL,XLI) DARK BLUE,TRIM8# |
67640-1A710-04 |
US $285.38 |
||
|
67604
|
67604
67640-1A710-06 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [08.1989 - 05.1992] AE9#,CE90,EE90..LHD..SED..(XL,XLI) BROWN,TRIM4# |
67640-1A710-06 |
US $285.38 |
||
|
67604
|
67604
67640-1A720-03 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [08.1989 - 05.1992] EE90..SED..XL;EE90..SED..MTM..XLI;AE9#,CE90..SED..(XL,XLI) W(*PW & *EL),SHADOW GRAY,TRIM1# |
67640-1A720-03 |
US $324.69 |
||
|
67604
|
67604
67640-1A720-04 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [08.1989 - 05.1992] EE90..SED..XL;EE90..SED..MTM..XLI;AE9#,CE90..SED..(XL,XLI) W(*PW & *EL),DARK BLUE,TRIM8# |
67640-1A720-04 |
US $324.69 |
||
|
67604
|
67604
67640-1A720-06 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE9#,CE90..LHD..SED..(XL,XLI) W(*PW & *EL),BROWN,TRIM4# |
67640-1A720-06 |
US $324.69 |
||
|
67604D
|
67604D
67771-12030 Retainer (For Quarter Inside Trim Board)[10.1989 - 05.1992] EE90..WG..GL;EE90..LHD..WG..5F;AE9#,CE90..GL,GLI,GTI,XL,XLI;EE90..(LB,SED)..(GL,GL I,XL,XLI); EE90..RHD..WG..XL W(*PW & *EL) |
67771-12030 |
US $3.40 |
||
|
67604D
|
67604D
67771-12050 Clip, Radiator Grille[08.1989 - 10.1989] AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI RED |
67771-12050 |
from US $1.48 |
||
|
67604D
|
67604D
67771-89104 Clip (For Center Pillar Garnish Panel, Upper)[08.1989 - 10.1989] EE90..RHD..WG..XL; AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI WHITE |
67771-89104 |
US $2.87 |
||
|
68190
|
68190
68173-12120
Weatherstrip Assy, Rear Door Glass, Inner
[05.1987 - 05.1992] AE9#,CE90,EE90..(SED,WG)..(XL,XLI) |
68173-12120 |
— | ||
|
69751F
|
69751F
69751-12040-03 Holder, Front Door Lock Control Knob[10.1988 - 09.1990] AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI SHADOW GRAY,TRIM1# |
69751-12040-03 |
US $3.49 |
||
| replacement | |||||
|
69751F
|
69751F
69751-12040-B1 Holder, Front Door Lock Control Knob[10.1988 - 09.1990] AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI SHADOW GRAY,TRIM1# |
69751-12040-B1 |
US $3.67 |
||
|
69751F
|
69751F
69751-12040-06 Holder, Front Door Lock Control KnobFRONT DOOR LOCK CONTROL KNOB [08.1989 - 09.1989] AE95..LHD;AE92,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI) BROWN,TRIM4# |
69751-12040-06 |
US $3.49 |
||
| replacement | |||||
|
69751F
|
69751F
69751-12040-B1 Holder, Front Door Lock Control Knob[08.1989 - 09.1989] AE95..LHD;AE92,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI) BROWN,TRIM4# |
69751-12040-B1 |
US $3.67 |
||
|
69751F
|
69751F
69751-12040-B1 Holder, Front Door Lock Control Knob[09.1990 - 05.1992] AE92,CE90,EE90..GL,GLI,GTI,XL,XLI SHADOW GRAY,TRIM1# |
69751-12040-B1 |
US $3.67 |
||
|
69751F
|
69751F
69751-12040-J0 Holder, Door Locking Button Collar(For Front Door)[08.1989 - 05.1992] AE9#,CE90,EE90..GL,GLI,XL,XLI DARK BLUE,TRIM8# |
69751-12040-J0 |
US $3.49 |
||
|
69751H
|
69751H
69751-12040-03 Holder, Front Door Lock Control Knob[08.1989 - 09.1990] AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI SHADOW GRAY,TRIM1# |
69751-12040-03 |
US $3.49 |
||
| replacement | |||||
|
69751H
|
69751H
69751-12040-B1 Holder, Front Door Lock Control Knob[08.1989 - 09.1990] AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI SHADOW GRAY,TRIM1# |
69751-12040-B1 |
US $3.67 |
||
|
69751H
|
69751H
69751-12040-06 Holder, Front Door Lock Control KnobFRONT DOOR LOCK CONTROL KNOB [08.1989 - 09.1989] AE95..LHD;AE92,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI) BROWN,TRIM4# |
69751-12040-06 |
US $3.49 |
||
| replacement | |||||
|
69751H
|
69751H
69751-12040-B1 Holder, Front Door Lock Control Knob[08.1989 - 09.1989] AE95..LHD;AE92,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI) BROWN,TRIM4# |
69751-12040-B1 |
US $3.67 |
||
|
69751H
|
69751H
69751-12040-B1 Holder, Front Door Lock Control Knob[09.1990 - 05.1992] AE92,CE90,EE90..GL,GLI,GTI,XL,XLI SHADOW GRAY,TRIM1# |
69751-12040-B1 |
US $3.67 |
||
|
69751H
|
69751H
69751-12040-J0 Holder, Door Locking Button Collar(For Front Door)[08.1989 - 05.1992] AE9#,CE90,EE90..GL,GLI,XL,XLI DARK BLUE,TRIM8# |
69751-12040-J0 |
US $3.49 |
||
