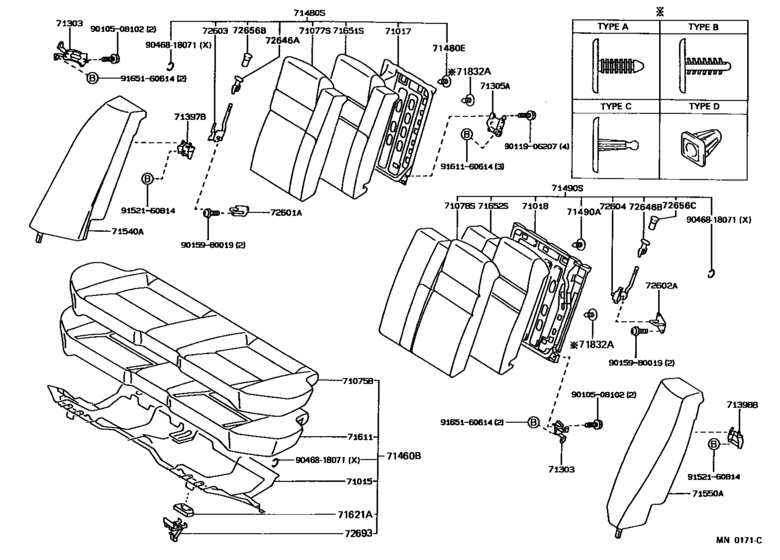

Rear Seat & Seat Track ([05.1987 - ] (8705- )SED..GL,XL,XLI) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- XLI
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71015
|
71015
71015-12260 Frame Sub-Assy, Rear Seat Cushion[05.1987 - 05.1992] AE92,CE90,EE90..SED |
71015-12260 |
US $104.83 |
||
|
71017
|
71017
71017-12260 Frame Sub-Assy, Rear Seat Back, Rh[02.1988 - 05.1992] CE90,EE90..RHD..SED;EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI); EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT) |
71017-12260 |
US $171.81 |
||
|
71018
|
71018
71018-12050 Frame Sub-Assy, Rear Seat Back, Lh[02.1988 - 05.1992] CE90,EE90..RHD..SED;EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI); EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) W(SPLIT FOLD DOWN REAR SEAT) |
71018-12050 |
US $171.81 |
||
|
71075B
|
71075B
71075-1E061-03
Cover, Rear Seat Cushion (For Bench Type)
[08.1989 - 05.1992] AE92,CE90,EE90..SED..(XL,XLI) SHADOW GRAY,TRIM1#; EE90..SED..STD W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
71075-1E061-03 |
— | ||
|
71075B
|
71075B
71075-1E061-04
Cover, Rear Seat Cushion (For Bench Type)
[08.1989 - 05.1992] AE92,CE90,EE90..SED..(XL,XLI) DARK BLUE,TRIM8#; EE90..SED..STD W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
71075-1E061-04 |
— | ||
|
71075B
|
71075B
71075-1E061-06
Cover, Rear Seat Cushion (For Bench Type)
[08.1989 - 05.1992] AE92,CE90,EE90..LHD..SED..(XL,XLI) BROWN,TRIM4# |
71075-1E061-06 |
— | ||
|
71077S
|
71077S
71077-1K121-03
Cover, Rear Seat Back, Rh (For Separate Type)
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SHADOW GRAY,TRIM1#; EE90..SED..3FC..EFI;CE90,EE90..RHD..SED..XL SHADOW GRAY,TRIM1# |
71077-1K121-03 |
— | ||
|
71077S
|
71077S
71077-1K121-04
Cover, Rear Seat Back, Rh (For Separate Type)
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) DARK BLUE,TRIM8#; EE90..SED..3FC..EFI;CE90,EE90..RHD..SED..XL DARK BLUE,TRIM8# |
71077-1K121-04 |
— | ||
|
71077S
|
71077S
71077-1K121-06
Cover, Rear Seat Back, Rh (For Separate Type)
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) BROWN,TRIM4# |
71077-1K121-06 |
— | ||
|
71078S
|
71078S
71078-1A631-03
Cover, Rear Seat Back, Lh(For Separate Type)
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SHADOW GRAY,TRIM1#; EE90..SED..3FC..EFI;CE90,EE90..RHD..SED..XL SHADOW GRAY,TRIM1# |
71078-1A631-03 |
— | ||
|
71078S
|
71078S
71078-1A631-04
Cover, Rear Seat Back, Lh(For Separate Type)
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) DARK BLUE,TRIM8#; EE90..SED..3FC..EFI;CE90,EE90..RHD..SED..XL DARK BLUE,TRIM8# |
71078-1A631-04 |
— | ||
|
71078S
|
71078S
71078-1A631-06
Cover, Rear Seat Back, Lh(For Separate Type)
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) BROWN,TRIM4# |
71078-1A631-06 |
— | ||
|
71303
|
71303
71303-12060 Hinge Sub-Assy, Rear Seat Back[08.1989 - 08.1990] CE90;AE92..LB,WG;EE90..XL,XLI;AE92..SED..(XL,XLI);EE90..(LB,WG)..(GL,STD) |
71303-12060 |
US $34.94 |
||
|
71305A
|
71305A
71305-12060 Hinge Sub-Assy, Rear Seat Back, Center[08.1989 - 08.1990] CE90;AE92..LB,WG;EE90..XL,XLI;AE92..SED..(XL,XLI);EE90..(LB,WG)..(GL,STD) |
71305-12060 |
US $32.76 |
||
|
71397B
|
71397B
71397-12020 Holder, Rear Seat Back, Rh[08.1989 - 08.1990] AE92,CE90,EE90..SED..(XL,XLI) |
71397-12020 |
US $3.20 |
||
|
71398B
|
71398B
71398-12020 Holder, Rear Seat Back, Lh[08.1989 - 08.1990] AE92,CE90,EE90..SED..(XL,XLI) |
71398-12020 |
US $3.20 |
||
|
71460B
|
71460B
71460-1E091-03
Cushion Assy, Rear Seat (For Bench Type)
[08.1989 - 05.1992] AE92,CE90,EE90..SED..(XL,XLI) ***,SHADOW GRAY,TRIM1#; EE90..SED..STD ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
71460-1E091-03 |
— | ||
|
71460B
|
71460B
71460-1E091-04
Cushion Assy, Rear Seat (For Bench Type)
[08.1989 - 05.1992] AE92,CE90,EE90..SED..(XL,XLI) ***,DARK BLUE,TRIM8#; EE90..SED..STD ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
71460-1E091-04 |
— | ||
|
71460B
|
71460B
71460-1E091-06
Cushion Assy, Rear Seat (For Bench Type)
[08.1989 - 05.1992] AE92,CE90,EE90..LHD..SED..(XL,XLI) ***,BROWN,TRIM4# |
71460-1E091-06 |
— | ||
|
71480E
|
71480E
90467-06037-13
Clip(For Rear Floor Carpet)
[08.1989 - 05.1992] CE90,EE90..RHD..SED;EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) GRAY,TRIM1#,TYPE A; EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SPLIT FOLD DOWN REAR SEAT,GRAY,TRIM1#,TYPE A |
90467-06037-13 |
— | ||
| replacement | |||||
|
71480E
|
71480E
90467-06037-P0
Clip, Rear Seat Back, Rh
[08.1989 - 05.1992] CE90,EE90..RHD..SED;EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) GRAY,TRIM1#,TYPE A; EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SPLIT FOLD DOWN REAR SEAT,GRAY,TRIM1#,TYPE A |
90467-06037-P0 |
— | ||
|
71480E
|
71480E
90467-06037-24 Clip, Rear Floor Carpet Set[08.1989 - 05.1992] CE90,EE90..RHD..SED;EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) DARK BLUE,TRIM8#,TYPE A; EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SPLIT FOLD DOWN REAR SEAT,DARK BLUE,TRIM8#,TYPE A |
90467-06037-24 |
US $1.89 |
||
| replacement | |||||
|
71480E
|
71480E
90467-06037-P0
Clip, Rear Seat Back, Rh
[08.1989 - 05.1992] CE90,EE90..RHD..SED;EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) DARK BLUE,TRIM8#,TYPE A; EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SPLIT FOLD DOWN REAR SEAT,DARK BLUE,TRIM8#,TYPE A |
90467-06037-P0 |
— | ||
|
71480E
|
71480E
90467-06037-26 Clip, Rear Seat Back, RhREAR FLOOR CARPET SET [08.1989 - 05.1992] EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) BROWN,TRIM4#,TYPE A; EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SPLIT FOLD DOWN REAR SEAT,BROWN,TRIM4#,TYPE A |
90467-06037-26 |
US $1.89 |
||
| replacement | |||||
|
71480E
|
71480E
90467-06037-P0
Clip, Rear Seat Back, Rh
[08.1989 - 05.1992] EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) BROWN,TRIM4#,TYPE A; EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SPLIT FOLD DOWN REAR SEAT,BROWN,TRIM4#,TYPE A |
90467-06037-P0 |
— | ||
|
71480E
|
71480E
90467-06037-33 Clip, Rear Seat Back, Rh[02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SPLIT FOLD DOWN REAR SEAT,GRAY,TRIM1#,4#,8#,TYPE A |
90467-06037-33 |
US $1.89 |
||
| replacement | |||||
|
71480E
|
71480E
90467-06037-P0
Clip, Rear Seat Back, Rh
[02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SPLIT FOLD DOWN REAR SEAT,GRAY,TRIM1#,4#,8#,TYPE A |
90467-06037-P0 |
— | ||
|
71480E
|
71480E
90467-07049-03 Clip(For Rear Floor Carpet)[08.1989 - 05.1992] EE90..SED..3FC..EFI;CE90,EE90..RHD..(SED,WG);AE92,EE90..LHD..SED..(GL,GLI);AE92,CE 90,EE90..LHD..WG..(XL,XLI) GRAY,TRIM1#,TYPE B; EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SPLIT FOLD DOWN REAR SEAT,GRAY,TRIM1 |
90467-07049-03 |
US $2.33 |
||
| replacement | |||||
|
71480E
|
71480E
90467-07049-C0 Clip[08.1989 - 05.1992] EE90..SED..3FC..EFI;CE90,EE90..RHD..(SED,WG);AE92,EE90..LHD..SED..(GL,GLI);AE92,CE 90,EE90..LHD..WG..(XL,XLI) GRAY,TRIM1#,TYPE B; EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SPLIT FOLD DOWN REAR SEAT,GRAY,TRIM1 |
90467-07049-C0 |
US $1.79 |
||
|
71480E
|
71480E
90467-07049-26
Clip(For Rear Floor Carpet)
[08.1989 - 05.1992] EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) BROWN,TRIM4#,TYPE B; EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SPLIT FOLD DOWN REAR SEAT,BROWN,TRIM4#,TYPE B |
90467-07049-26 |
— | ||
|
71480E
|
71480E
90467-07049-B0 Clip, Rear Seat Back, Rh[08.1989 - 05.1992] CE90,EE90..RHD..SED LIGHT GRAY,TRIM1#,3#,8#,TYPE B; EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) LIGHT GRAY,TRIM1#,4#,8#,TYPE B; EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SPLIT FOLD DOWN REAR SEAT,LIGHT |
90467-07049-B0 |
US $2.33 |
||
| replacement | |||||
|
71480E
|
71480E
90467-07049-C0 Clip[08.1989 - 05.1992] CE90,EE90..RHD..SED LIGHT GRAY,TRIM1#,3#,8#,TYPE B; EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) LIGHT GRAY,TRIM1#,4#,8#,TYPE B; EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SPLIT FOLD DOWN REAR SEAT,LIGHT |
90467-07049-C0 |
US $1.79 |
||
|
71480E
|
71480E
90467-07049-J0 Clip, Rear Floor Mat Set[08.1989 - 05.1992] CE90,EE90..WG..STD DARK BLUE,TRIM8#; EE90..WG..GL DARK BLUE,TRIM8#,TYPE A; EE90..SED..3FC..EFI;CE90,EE90..RHD..(SED,WG);AE92,EE90..LHD..SED..(GL,GLI);AE92,CE 90,EE90..LHD..WG..(XL,XLI) DARK BLUE,TRIM8#,TYPE B; EE90..LHD..SED..XL;EE90.. |
90467-07049-J0 |
US $2.33 |
||
|
71480S
|
71480S
71480-1K181-03
Back Assy, Rear Seat, Rh (For Separate Type)
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) ***,SHADOW GRAY,TRIM1#; EE90..SED..3FC..EFI;CE90,EE90..RHD..SED..XL ***,SHADOW GRAY,TRIM1# |
71480-1K181-03 |
— | ||
|
71480S
|
71480S
71480-1K181-04
Back Assy, Rear Seat, Rh (For Separate Type)
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) ***,DARK BLUE,TRIM8#; EE90..SED..3FC..EFI;CE90,EE90..RHD..SED..XL ***,DARK BLUE,TRIM8# |
71480-1K181-04 |
— | ||
|
71480S
|
71480S
71480-1K181-06
Back Assy, Rear Seat, Rh (For Separate Type)
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) ***,BROWN,TRIM4# |
71480-1K181-06 |
— | ||
|
71490S
|
71490S
71490-1A631-03
Back Assy, Rear Seat, Lh (For Separate Type)
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) ***,SHADOW GRAY,TRIM1#; EE90..SED..3FC..EFI;CE90,EE90..RHD..SED..XL ***,SHADOW GRAY,TRIM1# |
71490-1A631-03 |
— | ||
|
71490S
|
71490S
71490-1A631-04
Back Assy, Rear Seat, Lh (For Separate Type)
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) ***,DARK BLUE,TRIM8#; EE90..SED..3FC..EFI;CE90,EE90..RHD..SED..XL ***,DARK BLUE,TRIM8# |
71490-1A631-04 |
— | ||
|
71490S
|
71490S
71490-1A631-06
Back Assy, Rear Seat, Lh (For Separate Type)
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) ***,BROWN,TRIM4# |
71490-1A631-06 |
— | ||
|
71540A
|
71540A
71540-12151-03
Back Assy, Rear Side Seat, Rh
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SHADOW GRAY,TRIM1#; EE90..SED..3FC..EFI;CE90,EE90..RHD..SED..XL SHADOW GRAY,TRIM1# |
71540-12151-03 |
— | ||
|
71540A
|
71540A
71540-12151-04
Back Assy, Rear Side Seat, Rh
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) DARK BLUE,TRIM8#; EE90..SED..3FC..EFI;CE90,EE90..RHD..SED..XL DARK BLUE,TRIM8# |
71540-12151-04 |
— | ||
|
71540A
|
71540A
71540-12151-06
Back Assy, Rear Side Seat, Rh
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) BROWN,TRIM4# |
71540-12151-06 |
— | ||
|
71550A
|
71550A
71550-12151-03
Back Assy, Rear Side Seat, Lh
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SHADOW GRAY,TRIM1#; EE90..SED..3FC..EFI;CE90,EE90..RHD..SED..XL SHADOW GRAY,TRIM1# |
71550-12151-03 |
— | ||
|
71550A
|
71550A
71550-12151-04
Back Assy, Rear Side Seat, Lh
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) DARK BLUE,TRIM8#; EE90..SED..3FC..EFI;CE90,EE90..RHD..SED..XL DARK BLUE,TRIM8# |
71550-12151-04 |
— | ||
|
71550A
|
71550A
71550-12151-06
Back Assy, Rear Side Seat, Lh
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) BROWN,TRIM4# |
71550-12151-06 |
— | ||
|
71611
|
71611
71611-12550 Pad, Rear Seat Cushion[05.1987 - 05.1992] AE92,CE90,EE90..SED..(STD,XL,XLI) |
71611-12550 |
US $289.74 |
||
|
71621A
|
71621A
71621-12270 Pad, Rear Seat Cushion Silencer, A[08.1990 - 05.1992] AE92,CE90,EE90..SED |
71621-12270 |
US $2.33 |
||
|
71651S
|
71651S
71651-12580 Pad, Rear Seat Back, Rh(For Separate Type)[02.1988 - 05.1992] CE90,EE90..RHD..SED;EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI); EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) |
71651-12580 |
US $192.19 |
||
|
71652S
|
71652S
71652-12410 Pad, Rear Seat Back, Lh(For Separate Type)[02.1988 - 05.1992] CE90,EE90..RHD..SED;EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI); EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) |
71652-12410 |
US $246.06 |
||
|
71832A
|
71832A
90467-06037-13
Clip(For Rear Floor Carpet)
[08.1990 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) GRAY,TRIM1#,TYPE A |
90467-06037-13 |
— | ||
| replacement | |||||
|
71832A
|
71832A
90467-06037-P0
Clip, Rear Seat Back, Rh
[08.1990 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) GRAY,TRIM1#,TYPE A |
90467-06037-P0 |
— | ||
|
71832A
|
71832A
90467-06037-24 Clip, Rear Floor Carpet Set[08.1989 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) DARK BLUE,TRIM8#,TYPE A |
90467-06037-24 |
US $1.89 |
||
| replacement | |||||
|
71832A
|
71832A
90467-06037-P0
Clip, Rear Seat Back, Rh
[08.1989 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) DARK BLUE,TRIM8#,TYPE A |
90467-06037-P0 |
— | ||
|
71832A
|
71832A
90467-06037-26 Clip, Rear Seat Back, RhREAR FLOOR CARPET SET [08.1989 - 05.1992] AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) BROWN,TRIM4#,TYPE A |
90467-06037-26 |
US $1.89 |
||
| replacement | |||||
|
71832A
|
71832A
90467-06037-P0
Clip, Rear Seat Back, Rh
[08.1989 - 05.1992] AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) BROWN,TRIM4#,TYPE A |
90467-06037-P0 |
— | ||
|
71832A
|
71832A
90467-06037-33 Clip, Rear Seat Back, Rh[08.1990 - 05.1992] AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) GRAY,TRIM1#,4#,8#,TYPE A; CE90,EE90..RHD..SED GRAY,TRIM1#,3#,8#,TYPE A |
90467-06037-33 |
US $1.89 |
||
| replacement | |||||
|
71832A
|
71832A
90467-06037-P0
Clip, Rear Seat Back, Rh
[08.1990 - 05.1992] AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) GRAY,TRIM1#,4#,8#,TYPE A; CE90,EE90..RHD..SED GRAY,TRIM1#,3#,8#,TYPE A |
90467-06037-P0 |
— | ||
|
71832A
|
71832A
90467-07049-03 Clip(For Rear Floor Carpet)[08.1990 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) GRAY,TRIM1#,TYPE B |
90467-07049-03 |
US $2.33 |
||
| replacement | |||||
|
71832A
|
71832A
90467-07049-C0 Clip[08.1990 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) GRAY,TRIM1#,TYPE B |
90467-07049-C0 |
US $1.79 |
||
|
71832A
|
71832A
90467-07049-26
Clip(For Rear Floor Carpet)
[08.1989 - 05.1992] AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) BROWN,TRIM4#,TYPE B |
90467-07049-26 |
— | ||
|
71832A
|
71832A
90467-07049-B0 Clip, Rear Seat Back, Rh[08.1990 - 05.1992] AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) LIGHT GRAY,TRIM1#,4#,8#,TYPE B; CE90,EE90..RHD..SED LIGHT GRAY,TRIM1#,3#,8#,TYPE B |
90467-07049-B0 |
US $2.33 |
||
| replacement | |||||
|
71832A
|
71832A
90467-07049-C0 Clip[08.1990 - 05.1992] AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) LIGHT GRAY,TRIM1#,4#,8#,TYPE B; CE90,EE90..RHD..SED LIGHT GRAY,TRIM1#,3#,8#,TYPE B |
90467-07049-C0 |
US $1.79 |
||
|
71832A
|
71832A
90467-07049-J0 Clip, Rear Floor Mat Set[08.1989 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) DARK BLUE,TRIM8#,TYPE B |
90467-07049-J0 |
US $2.33 |
||
|
72601A
|
72601A
72601-12090 Striker Sub-Assy, Rear Seat Back Look, Rh[05.1987 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) |
72601-12090 |
US $22.42 |
||
|
72602A
|
72602A
72602-12040 Striker Sub-Assy, Rear Seat Back Lock, Lh[05.1987 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) |
72602-12040 |
US $22.42 |
||
|
72603
|
72603
72630-12130 Lock Sub-Assy, Rear Seat Back, Rh[05.1987 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) |
72630-12130 |
US $37.42 |
||
|
72604
|
72604
72640-12120 Lock Sub-Assy, Rear Seat Back, Lh[05.1987 - 05.1992] AE92,CE90,EE90..SED..(GL,GLI,XL,XLI) |
72640-12120 |
US $37.42 |
||
|
72646A
|
72646A
72646-12040-03 Grommet, Rear Seat Back Stop Button[02.1988 - 05.1992] CE90,EE90..RHD..SED;EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) SHADOW GRAY,TRIM1#; EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SHADOW GRAY,TRIM1# |
72646-12040-03 |
US $8.30 |
||
|
72646A
|
72646A
72646-12040-04 Grommet, Rear Seat Back Stop ButtonREAR SEAT BACK STOP BUTTON [02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) DARK BLUE,TRIM8# |
72646-12040-04 |
US $8.30 |
||
| replacement | |||||
|
72646A
|
72646A
72646-12040-03 Grommet, Rear Seat Back Stop Button[02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) DARK BLUE,TRIM8# |
72646-12040-03 |
US $8.30 |
||
|
72646A
|
72646A
72646-12040-06
Grommet, Rear Seat Back Stop Button
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) BROWN,TRIM4#; EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) BROWN,TRIM4# |
72646-12040-06 |
— | ||
| replacement | |||||
|
72646A
|
72646A
72646-12040-03 Grommet, Rear Seat Back Stop Button[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) BROWN,TRIM4#; EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) BROWN,TRIM4# |
72646-12040-03 |
US $8.30 |
||
|
72646B
|
72646B
72646-12040-03 Grommet, Rear Seat Back Stop Button[02.1988 - 05.1992] CE90,EE90..RHD..SED;EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) SHADOW GRAY,TRIM1#; EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) SHADOW GRAY,TRIM1# |
72646-12040-03 |
US $8.30 |
||
|
72646B
|
72646B
72646-12040-04 Grommet, Rear Seat Back Stop ButtonREAR SEAT BACK STOP BUTTON [02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) DARK BLUE,TRIM8# |
72646-12040-04 |
US $8.30 |
||
| replacement | |||||
|
72646B
|
72646B
72646-12040-03 Grommet, Rear Seat Back Stop Button[02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) DARK BLUE,TRIM8# |
72646-12040-03 |
US $8.30 |
||
|
72646B
|
72646B
72646-12040-06
Grommet, Rear Seat Back Stop Button
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) BROWN,TRIM4#; EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) BROWN,TRIM4# |
72646-12040-06 |
— | ||
| replacement | |||||
|
72646B
|
72646B
72646-12040-03 Grommet, Rear Seat Back Stop Button[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) BROWN,TRIM4#; EE90..SED..3FC..EFI;AE92,EE90..LHD..SED..(GL,GLI) BROWN,TRIM4# |
72646-12040-03 |
US $8.30 |
||
|
72656B
|
72656B
72656-20010-23
Button, Rear Seat Back Stop Release
[02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) GRAY,TRIM1#; EE90..RHD;CE90..RHD..SED;AE9#,CE90..LB,WG;EE90..LHD..(LB,WG);EE90..SED..3FC..EFI;A E92,EE90..LHD..SED..(GL,GLI) GRAY,TRIM1# |
72656-20010-23 |
— | ||
| replacement | |||||
|
72656B
|
72656B
72656-20010-C1
Button, Rear Seat Back Stop Release
[02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) GRAY,TRIM1#; EE90..RHD;CE90..RHD..SED;AE9#,CE90..LB,WG;EE90..LHD..(LB,WG);EE90..SED..3FC..EFI;A E92,EE90..LHD..SED..(GL,GLI) GRAY,TRIM1# |
72656-20010-C1 |
— | ||
|
72656B
|
72656B
72656-20010-48
Button, Rear Seat Back Stop Release
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) BROWN,TRIM4# |
72656-20010-48 |
— | ||
| replacement | |||||
|
72656B
|
72656B
72656-20010-C1
Button, Rear Seat Back Stop Release
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) BROWN,TRIM4# |
72656-20010-C1 |
— | ||
|
72656B
|
72656B
72656-20010-59 Button, Rear Seat Back Stop Release[02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) DARK BLUE,TRIM8# |
72656-20010-59 |
US $9.90 |
||
| replacement | |||||
|
72656B
|
72656B
72656-20010-C1
Button, Rear Seat Back Stop Release
[02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) DARK BLUE,TRIM8# |
72656-20010-C1 |
— | ||
|
72656C
|
72656C
72656-20010-23
Button, Rear Seat Back Stop Release
[02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) GRAY,TRIM1#; EE90..RHD;CE90..RHD..SED;AE9#,CE90..LB,WG;EE90..LHD..(LB,WG);EE90..SED..3FC..EFI;A E92,EE90..LHD..SED..(GL,GLI) GRAY,TRIM1# |
72656-20010-23 |
— | ||
| replacement | |||||
|
72656C
|
72656C
72656-20010-C1
Button, Rear Seat Back Stop Release
[02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) GRAY,TRIM1#; EE90..RHD;CE90..RHD..SED;AE9#,CE90..LB,WG;EE90..LHD..(LB,WG);EE90..SED..3FC..EFI;A E92,EE90..LHD..SED..(GL,GLI) GRAY,TRIM1# |
72656-20010-C1 |
— | ||
|
72656C
|
72656C
72656-20010-48
Button, Rear Seat Back Stop Release
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) BROWN,TRIM4# |
72656-20010-48 |
— | ||
| replacement | |||||
|
72656C
|
72656C
72656-20010-C1
Button, Rear Seat Back Stop Release
[08.1989 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) BROWN,TRIM4# |
72656-20010-C1 |
— | ||
|
72656C
|
72656C
72656-20010-59 Button, Rear Seat Back Stop Release[02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) DARK BLUE,TRIM8# |
72656-20010-59 |
US $9.90 |
||
| replacement | |||||
|
72656C
|
72656C
72656-20010-C1
Button, Rear Seat Back Stop Release
[02.1988 - 05.1992] EE90..LHD..SED..XL;EE90..SED..MTM..XLI;AE92,CE90..LHD..SED..(XL,XLI) DARK BLUE,TRIM8# |
72656-20010-C1 |
— | ||
|
72693
|
72693
72693-12050 Hook, Rear Seat Cushion Lock[12.1988 - 05.1992] AE92,CE90,EE90..SED |
72693-12050 |
US $8.59 |
||
|
9010508102
|
9010508102
90105-08102 New Genuine Part |
90105-08102 |
US $1.22 |
||
|
9011906207
|
9011906207
90119-06207 Bolt(For Transaxle Case Receiver) |
90119-06207 |
US $1.60 |
||
| replacement | |||||
|
9011906207
|
9011906207
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9015980019
|
9015980019
90159-80019 New Genuine Part |
90159-80019 |
US $1.79 |
||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.86 |
||
|
9152160814
|
9152160814
91521-60814
New Genuine Part
|
91521-60814 |
— | ||
| replacement | |||||
|
9152160814
|
9152160814
91511-B0814 BOLT |
91511-B0814 |
US $1.79 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
