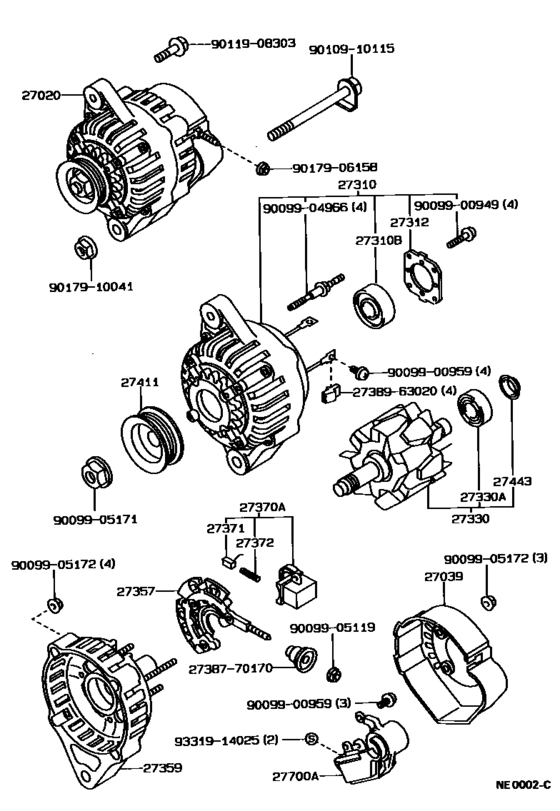

Alternator ([05.1987 - ] 12V 60A,70A (8705- )4AF#) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-16160 Alternator Assy[05.1987 - 08.1989] 4AF..AE9# 12V 60A |
27060-16160 |
US $1,374.46 |
||
|
27020
|
27020
27060-16170
Alternator Assy
[08.1989 - 07.1992] 4AF#..AE9#..ARL,GCC,GEN 12V 70A |
27060-16170 |
— | ||
|
27039
|
27039
27039-15170
Cover, Alternator Rear End
[09.1991 - 08.1993] 4AGE..AE92;4AF..AE92..GCC,GEN |
27039-15170 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[09.1991 - 08.1993] 4AGE..AE92;4AF..AE92..GCC,GEN |
27039-15171 |
— | ||
|
27039
|
27039
27039-72010
Cover, Alternator Rear End
[05.1987 - 09.1991] 4A#..AE9# |
27039-72010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[05.1987 - 09.1991] 4A#..AE9# |
27039-15171 |
— | ||
|
27310
|
27310
27310-16190
Frame Assy, Drive End, Alternator
[05.1987 - 08.1989] 4AF..AE9# |
27310-16190 |
— | ||
|
27310B
|
27310B
90099-10178 Bearing(For Alternator Drive End Frame)[05.1987 - 08.1993] 4A#..AE9# |
90099-10178 |
from US $17.65 |
||
|
27312
|
27312
27312-70200
Plate, Bearing Retainer, Alternator
[05.1987 - 08.1993] 4A#..AE9# |
27312-70200 |
— | ||
|
27330
|
27330
27330-72101
Rotor Assy, Alternator
[05.1987 - 09.1987] 4AF..AE92 |
27330-72101 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[05.1987 - 09.1988] 4A#..AE9# |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-63020 Holder, Alternator, W/rectifier[08.1989 - 08.1993] 4AGE..AE92;4AF#..AE9#..ARL,GCC,GEN |
27357-63020 |
US $152.01 |
||
|
27357
|
27357
27357-63060
Holder, Alternator, W/rectifier
[05.1987 - 08.1989] 4AF..AE9# |
27357-63060 |
— | ||
|
27359
|
27359
27359-16151
Frame, Alternator Rectifier End
[05.1987 - 08.1993] 4AF#..AE9# |
27359-16151 |
— | ||
| replacements | |||||
|
27359
|
27359
27359-16152
Frame, Alternator Rectifier End
[05.1987 - 08.1993] 4AF#..AE9# |
27359-16152 |
— | ||
|
27359
|
27359
27384-16380
Washer
[05.1987 - 08.1993] 4AF#..AE9# |
27384-16380 |
— | ||
|
27370A
|
27370A
27370-63021
Holder Assy, Alternator Brush
[05.1987 - 05.1991] 4AF#..AE9# |
27370-63021 |
— | ||
| replacement | |||||
|
27370A
|
27370A
27370-35060 Holder Assy, Alternator Brush[05.1987 - 05.1991] 4AF#..AE9# |
27370-35060 |
from US $17.08 |
||
|
27370A
|
27370A
27370-70300
Holder Assy, Alternator Brush
[05.1991 - 07.1992] 4AF..AE92..GCC,GEN |
27370-70300 |
— | ||
| replacement | |||||
|
27370A
|
27370A
27370-35060 Holder Assy, Alternator Brush[05.1991 - 07.1992] 4AF..AE92..GCC,GEN |
27370-35060 |
from US $17.08 |
||
|
27371
|
27371
27371-63020
Brush, Alternator
[05.1987 - 08.1988] 4A#,2E..AE9#,EE9# |
27371-63020 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[05.1987 - 08.1988] 4A#,2E..AE9#,EE9# |
27371-70300 |
from US $2.97 |
||
|
27371
|
27371
27371-70300 Brush, Alternator[05.1991 - 08.1993] 4AGE,2E..AE92,EE90;4AF,2E..AE92,EE97..GCC,GEN |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[08.1989 - 06.1990] 4A#,2E..AE9#,EE9#..ARL,GCC,GEN |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1989 - 06.1990] 4A#,2E..AE9#,EE9#..ARL,GCC,GEN |
27372-87501 |
— | ||
|
27372
|
27372
27372-72100
Spring, Alternator Brush
[05.1987 - 08.1989] 4A#,2E..AE9#,EE9# |
27372-72100 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[05.1987 - 08.1989] 4A#,2E..AE9#,EE9# |
27372-87501 |
— | ||
|
27411
|
27411
27411-16180
Pulley, Alternator
[08.1989 - 08.1993] 4AGE..AE92;4AF#..AE9#..ARL,GCC,GEN |
27411-16180 |
— | ||
|
27411
|
27411
27411-16190
Pulley, Alternator
[05.1987 - 08.1988] 4AF..AE9# |
27411-16190 |
— | ||
| replacement | |||||
|
27411
|
27411
27411-16191
Pulley, Alternator
[05.1987 - 08.1988] 4AF..AE9# |
27411-16191 |
— | ||
|
27411
|
27411
27411-16191
Pulley, Alternator
[08.1988 - 08.1989] 4AF..AE9# |
27411-16191 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[05.1987 - 06.1990] 4A#,2E..AE9#,EE9# |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-63021 Regulator Assy, Generator[05.1987 - 04.1988] 4AF#..AE9# |
27700-63021 |
US $285.38 |
||
| replacement | |||||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[05.1987 - 04.1988] 4AF#..AE9# |
27700-70030 |
US $263.54 |
||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[04.1988 - 08.1991] 4AF#..AE9# |
27700-70030 |
US $263.54 |
||
|
2738770170
|
2738770170
27387-70170
Insulator, Terminal
|
27387-70170 |
— | ||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
9009900949
|
9009900949
90099-00949
New Genuine Part
|
90099-00949 |
— | ||
|
9009900959
|
9009900959
90099-00959
New Genuine Part
|
90099-00959 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010910115
|
9010910115
90109-10115 New Genuine Part |
90109-10115 |
US $5.39 |
||
|
9011908303
|
9011908303
90119-08303 New Genuine Part |
90119-08303 |
US $2.51 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9017910041
|
9017910041
90179-10041 Nut(For Backing Plate To Rear Axle Housing Setting) |
90179-10041 |
US $2.33 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.25 |
||
