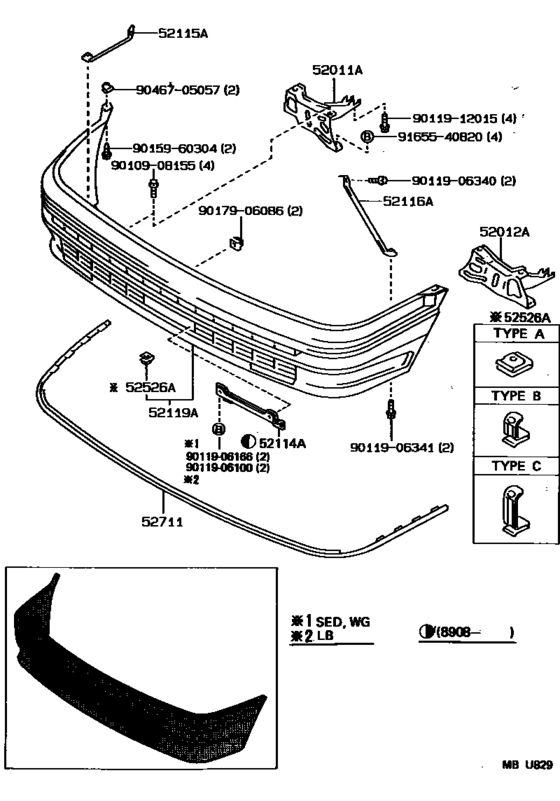

Front Bumper & Bumper Stay ([08.1989 - ] (8705-8908) ; (8908- )) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52011A
|
52011A
52011-12360
Arm Sub-Assy, Front Bumper, Rh
[05.1987 - 08.1990] AE92..GT..SA;AE95,CE90..SED;AE92,EE9#..(SED,WG)..(GL,SE,STD,XL) |
52011-12360 |
— | ||
|
52012A
|
52012A
52012-12370
Arm Sub-Assy, Front Bumper, Lh
[05.1987 - 08.1990] AE95,CE90..SED;AE92,EE9#..(SED,WG)..(GL,SE,STD,XL)..(GCC,GEN) |
52012-12370 |
— | ||
|
52115A
|
52115A
52115-12260
Support, Front Bumper Side, Rh
[05.1987 - 08.1989] EE90..LB;AE9#..LB,WG;AE92,EE90..SA TYPE E; AE9#,CE90..SED..GEN;EE9#..(SED,WG)..(GCC,GEN) |
52115-12260 |
— | ||
|
52116A
|
52116A
52116-12200
Support, Front Bumper Side, Lh
[05.1987 - 08.1989] EE90..LB;AE9#..LB,WG;AE92,EE90..SA TYPE E; AE9#,CE90..SED..GEN;EE9#..(SED,WG)..(GCC,GEN) |
52116-12200 |
— | ||
|
52119A
|
52119A
52119-1A190 Cover, Front Bumper[05.1987 - 05.1992] AE9#,CE90,EE90..SED..XL..GEN TYPE F,W(BUMPER MOULDING) |
52119-1A190 |
US $484.85 |
||
|
52119A
|
52119A
52119-1A350 Cover, Front Bumper[05.1987 - 05.1992] EE90..WG..4F;AE95,CE90..SED;EE90..4F..STD..GCC;AE92,EE9#..(SED,WG)..(STD,XL)..GEN TYPE F,W/O(BUMPER MOULDING) |
52119-1A350 |
US $484.85 |
||
|
52526A
|
52526A
52565-12040 Retainer, Front Bumper, Lower Center[05.1987 - 10.1989] AE92..GT..SA;AE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL TYPE A |
52565-12040 |
US $4.84 |
||
|
52526A
|
52526A
52565-12090 Retainer, Front Bumper, Lower No.1[05.1987 - 05.1988] EE9#;AE9#,CE90..LB,SED TYPE B |
52565-12090 |
US $9.03 |
||
|
52526A
|
52526A
52565-12110 Retainer, Front Bumper, Lower No.1[05.1987 - 05.1988] AE9#,CE90,EE9# TYPE C |
52565-12110 |
US $8.74 |
||
|
52526A
|
52526A
52565-16020 Retainer(For Timing Belt Cover)[10.1989 - 08.1990] AE92..GT..GEN TYPE A; AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN) TYPE A |
52565-16020 |
US $3.79 |
||
|
52711
|
52711
52711-12120
Moulding, Front Bumper
[05.1987 - 08.1989] AE9#,CE90,EE90..SED..(GL,XL)..(GCC,GEN) |
52711-12120 |
— | ||
|
9010908155
|
9010908155
90109-08155
New Genuine Part
|
90109-08155 |
— | ||
|
9011906100
|
9011906100
90119-06100 BOLT |
90119-06100 |
from US $1.11 |
||
|
9011906166
|
9011906166
90119-06166 BOLT |
90119-06166 |
US $1.43 |
||
|
9011906340
|
9011906340
90119-06340 BOLT |
90119-06340 |
US $1.79 |
||
|
9011906341
|
9011906341
90119-06341 BOLT |
90119-06341 |
US $2.15 |
||
|
9011912015
|
9011912015
90119-12015
New Genuine Part
|
90119-12015 |
— | ||
| replacement | |||||
|
9011912015
|
9011912015
90119-12297 New Genuine Part |
90119-12297 |
US $4.84 |
||
|
9015960304
|
9015960304
90159-60304 SCREW |
90159-60304 |
from US $1.01 |
||
|
9017906086
|
9017906086
90179-06086 NUT |
90179-06086 |
US $3.05 |
||
|
9046705057
|
9046705057
90467-05057 New Genuine Part |
90467-05057 |
from US $3.49 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.97 |
||
