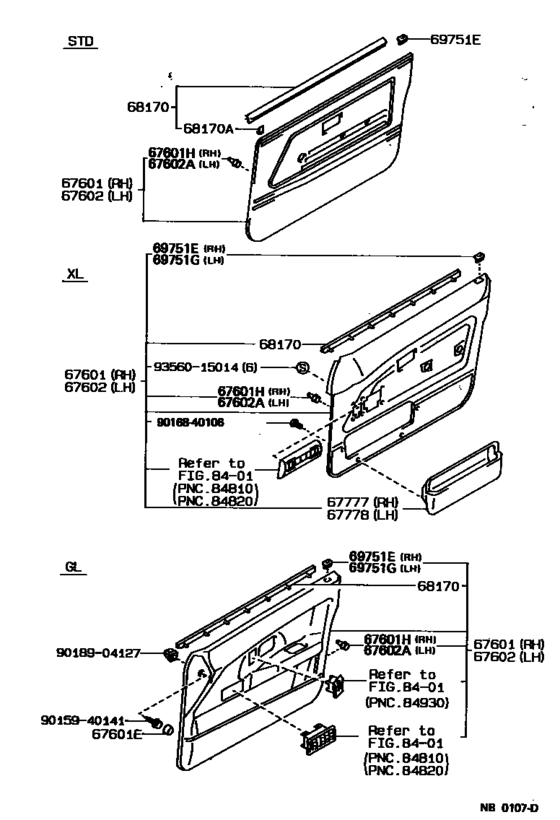

Front Door Panel & Glass ([05.1987 - 08.1989] (8705-8908)GEN,SA) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67601
|
67601
67650-1A180-03 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.1987 - 01.1989] AE9#,CE90,EE9#..LHD..XL SHADOW GRAY,TRIM1# |
67650-1A180-03 |
US $244.61 |
||
|
67601
|
67601
67650-1A180-04 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.1987 - 08.1989] AE9#,CE90,EE9#..LHD..XL DARK BLUE,TRIM8# |
67650-1A180-04 |
US $244.61 |
||
|
67601
|
67601
67650-1A180-05 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.1987 - 01.1989] AE9#,CE90,EE9#..LHD..XL DARK BEIGE,TRIM4# |
67650-1A180-05 |
US $244.61 |
||
|
67601
|
67601
67650-1A340-03 Board Sub-Assy, Front Door Trim, Rh[08.1989 - 07.1992] EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
67650-1A340-03 |
US $308.67 |
||
| replacement | |||||
|
67601
|
67601
67650-1A330-03 Board Sub-Assy, Front Door Trim, Rh[08.1989 - 07.1992] EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
67650-1A330-03 |
US $331.97 |
||
|
67601
|
67601
67650-1A340-04 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [08.1989 - 07.1992] EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
67650-1A340-04 |
US $308.67 |
||
|
67601
|
67601
67650-1A340-06 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [08.1989 - 08.1990] AE9#,CE90,EE90..LHD..XL W(FULL FABRIC SEAT),BROWN,TRIM4# |
67650-1A340-06 |
US $308.67 |
||
|
67601
|
67601
67650-1A440-03 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [08.1989 - 07.1992] EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
67650-1A440-03 |
US $432.43 |
||
|
67601
|
67601
67650-1A440-04 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [08.1989 - 07.1992] EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
67650-1A440-04 |
US $432.43 |
||
|
67601
|
67601
67650-1A440-06 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [08.1989 - 08.1990] AE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
67650-1A440-06 |
US $432.43 |
||
|
67601
|
67601
67650-1A470-03
Board Sub-Assy, Front Door Trim, Rh
[05.1987 - 08.1989] AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
67650-1A470-03 |
— | ||
|
67601
|
67601
67650-1A470-04
Board Sub-Assy, Front Door Trim, Rh
[05.1987 - 08.1989] AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
67650-1A470-04 |
— | ||
|
67601
|
67601
67650-1A470-05
Board Sub-Assy, Front Door Trim, Rh
[05.1987 - 08.1989] AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
67650-1A470-05 |
— | ||
|
67601
|
67601
67650-1A500-03
Board Sub-Assy, Front Door Trim, Rh
[05.1987 - 08.1989] AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
67650-1A500-03 |
— | ||
|
67601
|
67601
67650-1A500-04
Board Sub-Assy, Front Door Trim, Rh
[05.1987 - 08.1989] AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
67650-1A500-04 |
— | ||
|
67601
|
67601
67650-1A500-05
Board Sub-Assy, Front Door Trim, Rh
[05.1987 - 08.1989] AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
67650-1A500-05 |
— | ||
|
67601H
|
67601H
67771-12040 Clip (For Quarter Inside Trim Board)[05.1987 - 01.1989] AE9#,CE90,EE9#..XL |
67771-12040 |
from US $2.38 |
||
|
67602
|
67602
67620-1E450-03
Board Sub-Assy, Front Door Trim, Lh
[08.1987 - 07.1992] EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN SHADOW GRAY,TRIM1# |
67620-1E450-03 |
— | ||
|
67602
|
67602
67620-1E450-04
Board Sub-Assy, Front Door Trim, Lh
[08.1987 - 07.1992] EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN BLUE,TRIM8# |
67620-1E450-04 |
— | ||
|
67602
|
67602
67620-1E450-05
Board Sub-Assy, Front Door Trim, Lh
[08.1987 - 08.1989] EE90..LHD..SED..XL;AE9#,CE90..LHD..(SED,WG)..XL DARK BEIGE,TRIM4# |
67620-1E450-05 |
— | ||
|
67602
|
67602
67620-1E480-03 Board Sub-Assy, Front Door Trim, Lh[08.1989 - 07.1992] AE9#..XL..(ARL,GCC) SHADOW GRAY,TRIM1#; EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
67620-1E480-03 |
US $331.97 |
||
|
67602
|
67602
67620-1E480-04 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [08.1989 - 07.1992] AE9#..XL..(ARL,GCC) DARK BLUE,TRIM8#; EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
67620-1E480-04 |
US $331.97 |
||
|
67602
|
67602
67620-1E480-06 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [08.1989 - 08.1990] AE9#,CE90,EE90..LHD..XL W(FULL FABRIC SEAT),BROWN,TRIM4# |
67620-1E480-06 |
US $331.97 |
||
|
67602
|
67602
67620-1E500-03
Board Sub-Assy, Front Door Trim, Lh
[05.1987 - 08.1989] AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
67620-1E500-03 |
— | ||
|
67602
|
67602
67620-1E500-04
Board Sub-Assy, Front Door Trim, Lh
[05.1987 - 08.1989] AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
67620-1E500-04 |
— | ||
|
67602
|
67602
67620-1E500-05
Board Sub-Assy, Front Door Trim, Lh
[05.1987 - 08.1989] AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
67620-1E500-05 |
— | ||
|
67602
|
67602
67620-1E510-03 Board Sub-Assy, Front Door Trim, Lh[08.1989 - 07.1992] EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
67620-1E510-03 |
US $588.22 |
||
| replacement | |||||
|
67602
|
67602
67620-1E511-B0 Board Sub-Assy, Front Door Trim, Lh[08.1989 - 07.1992] EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
67620-1E511-B0 |
US $588.22 |
||
|
67602
|
67602
67620-1E510-04 Board Sub-Assy, Front Door Trim, Lh[08.1989 - 07.1992] EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
67620-1E510-04 |
US $588.22 |
||
| replacement | |||||
|
67602
|
67602
67620-1E511-J0 Board Sub-Assy, Front Door Trim, Lh[08.1989 - 07.1992] EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
67620-1E511-J0 |
US $588.22 |
||
|
67602
|
67602
67620-1E510-06 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [08.1989 - 08.1990] AE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
67620-1E510-06 |
US $588.22 |
||
|
67602
|
67602
67620-1E770-03
Board Sub-Assy, Front Door Trim, Lh
[05.1987 - 08.1989] AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
67620-1E770-03 |
— | ||
|
67602
|
67602
67620-1E770-04
Board Sub-Assy, Front Door Trim, Lh
[05.1987 - 08.1989] AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
67620-1E770-04 |
— | ||
|
67602
|
67602
67620-1E770-05
Board Sub-Assy, Front Door Trim, Lh
[05.1987 - 08.1989] AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
67620-1E770-05 |
— | ||
|
67602A
|
67602A
67771-12040 Clip (For Quarter Inside Trim Board)[05.1987 - 01.1989] AE9#,CE90,EE9#..XL |
67771-12040 |
from US $2.38 |
||
|
67778
|
67778
67777-12070-03 Pocket, Front Door Trim, Rh[05.1987 - 01.1989] AE95..XL..ARL;AE9#,CE90,EE9#..LHD..XL SHADOW GRAY,TRIM1# |
67777-12070-03 |
US $71.34 |
||
|
67778
|
67778
67777-12070-04 Pocket, Front Door Trim, Rh[05.1987 - 07.1992] AE95..XL..ARL;AE9#,CE90,EE9#..LHD..(SE,XL) DARK BLUE,TRIM8# |
67777-12070-04 |
US $71.34 |
||
|
67778
|
67778
67777-12070-05 Pocket, Front Door Trim, Rh[05.1987 - 01.1989] AE95..XL..ARL;AE9#,CE90,EE9#..LHD..XL DARK BEIGE,TRIM4# |
67777-12070-05 |
US $71.34 |
||
|
67778
|
67778
67777-12070-06 Pocket, Front Door Trim, RhFRONT DOOR TRIM, RH [08.1989 - 08.1990] AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
67777-12070-06 |
US $71.34 |
||
|
68170
|
68170
68171-12200
Weatherstrip Assy, Front Door Glass, Inner
[05.1987 - 01.1989] AE9#,CE90,EE9#..XL RH |
68171-12200 |
— | ||
|
68170
|
68170
68172-12130
Weatherstrip Assy, Front Door Glass, Inner
[05.1987 - 01.1989] AE9#,CE90,EE9#..XL LH |
68172-12130 |
— | ||
|
69751E
|
69751E
69751-12030-03 Holder, Front Door Lock Control Knob[10.1988 - 01.1989] AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
69751-12030-03 |
US $4.66 |
||
|
69751E
|
69751E
69751-12030-04 Holder, Front Door Lock Control Knob[10.1988 - 08.1989] AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
69751-12030-04 |
US $4.66 |
||
| replacement | |||||
|
69751E
|
69751E
69751-12030-03 Holder, Front Door Lock Control Knob[10.1988 - 08.1989] AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
69751-12030-03 |
US $4.66 |
||
|
69751E
|
69751E
69751-12030-05 Holder, Front Door Lock Control Knob[10.1988 - 01.1989] AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
69751-12030-05 |
US $4.66 |
||
|
69751E
|
69751E
69751-12030-06 Holder, Front Door Lock Control Knob[08.1989 - 10.1989] AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-06 |
US $4.66 |
||
| replacement | |||||
|
69751E
|
69751E
69751-12030-03 Holder, Front Door Lock Control Knob[08.1989 - 10.1989] AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-03 |
US $4.66 |
||
|
69751E
|
69751E
69751-12030-E0 Holder, Front Door Lock Control Knob[10.1989 - 08.1990] AE9#,CE90,EE90..LHD..XL BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-E0 |
US $4.66 |
||
| replacement | |||||
|
69751E
|
69751E
69751-12030-03 Holder, Front Door Lock Control Knob[10.1989 - 08.1990] AE9#,CE90,EE90..LHD..XL BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-03 |
US $4.66 |
||
|
69751E
|
69751E
69751-20060-03 Holder, Door Locking Button Collar(For Front Door)[05.1987 - 10.1988] AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1#; AE92..LHD..LB..5F;AE92..LHD..3FC..GL VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
69751-20060-03 |
US $4.95 |
||
| replacement | |||||
|
69751E
|
69751E
69751-20060-01 Holder, Front Door Locking Button Collar[05.1987 - 10.1988] AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1#; AE92..LHD..LB..5F;AE92..LHD..3FC..GL VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
69751-20060-01 |
US $4.95 |
||
|
69751E
|
69751E
69751-20060-25 Holder, Door Locking Button Collar(For Front Door)[05.1987 - 10.1987] EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
69751-20060-25 |
US $5.24 |
||
| replacement | |||||
|
69751E
|
69751E
69751-12030-05 Holder, Front Door Lock Control Knob[05.1987 - 10.1987] EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
69751-12030-05 |
US $4.66 |
||
|
69751E
|
69751E
69751-20060-44 Holder, Door Locking Button Collar(For Front Door)[05.1987 - 10.1987] AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
69751-20060-44 |
US $5.24 |
||
|
69751G
|
69751G
69751-12030-03 Holder, Front Door Lock Control Knob[08.1989 - 08.1993] AE9#,CE90,EE9#..XL;AE92,EE90..(SE,STD)..GCC SHADOW GRAY,TRIM1# |
69751-12030-03 |
US $4.66 |
||
|
69751G
|
69751G
69751-12030-04 Holder, Front Door Lock Control Knob[08.1989 - 07.1992] EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) DARK BLUE,TRIM8# |
69751-12030-04 |
US $4.66 |
||
| replacement | |||||
|
69751G
|
69751G
69751-12030-03 Holder, Front Door Lock Control Knob[08.1989 - 07.1992] EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) DARK BLUE,TRIM8# |
69751-12030-03 |
US $4.66 |
||
|
69751G
|
69751G
69751-12030-06 Holder, Front Door Lock Control Knob[08.1989 - 10.1989] AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-06 |
US $4.66 |
||
| replacement | |||||
|
69751G
|
69751G
69751-12030-03 Holder, Front Door Lock Control Knob[08.1989 - 10.1989] AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-03 |
US $4.66 |
||
|
69751G
|
69751G
69751-12030-E0 Holder, Front Door Lock Control Knob[10.1989 - 08.1990] AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-E0 |
US $4.66 |
||
| replacement | |||||
|
69751G
|
69751G
69751-12030-03 Holder, Front Door Lock Control Knob[10.1989 - 08.1990] AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-03 |
US $4.66 |
||
|
69751G
|
69751G
69751-20060-03 Holder, Door Locking Button Collar(For Front Door)[05.1987 - 10.1988] AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1#; AE92..LHD..LB..5F;AE92..LHD..3FC..GL VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
69751-20060-03 |
US $4.95 |
||
| replacement | |||||
|
69751G
|
69751G
69751-20060-01 Holder, Front Door Locking Button Collar[05.1987 - 10.1988] AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1#; AE92..LHD..LB..5F;AE92..LHD..3FC..GL VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
69751-20060-01 |
US $4.95 |
||
|
69751G
|
69751G
69751-20060-25 Holder, Door Locking Button Collar(For Front Door)[05.1987 - 10.1987] EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
69751-20060-25 |
US $5.24 |
||
| replacement | |||||
|
69751G
|
69751G
69751-12030-05 Holder, Front Door Lock Control Knob[05.1987 - 10.1987] EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
69751-12030-05 |
US $4.66 |
||
|
69751G
|
69751G
69751-20060-44 Holder, Door Locking Button Collar(For Front Door)[05.1987 - 10.1987] AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
69751-20060-44 |
US $5.24 |
||
|
9015940141
|
9015940141
90159-40141 SCREW |
90159-40141 |
from US $1.54 |
||
|
9016840106
|
9016840106
90168-40106 New Genuine Part |
90168-40106 |
US $1.16 |
||
|
9018904127
|
9018904127
90189-04127 New Genuine Part |
90189-04127 |
US $1.05 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.25 |
||
