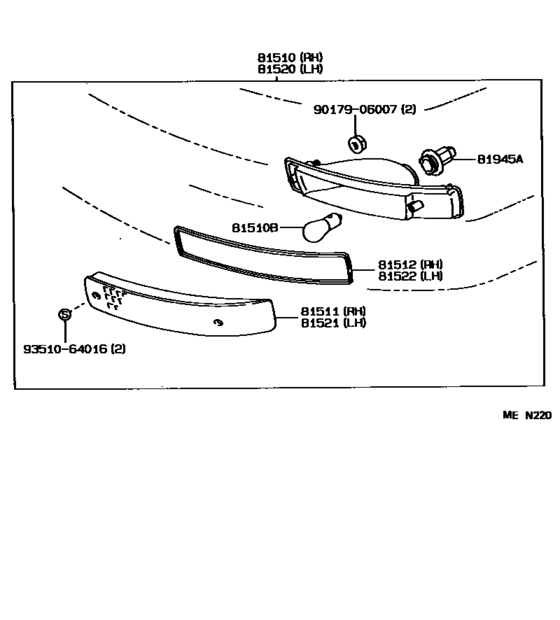

Front Turn Signal Lamp ([08.1989 - ] W(FRONT BUMPER TYPE E) (8908- )SED,WG) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81510
|
81510
81510-80053
Lamp Assy, Front Turn Signal, Rh
[05.1987 - 08.1989] AE9#,CE90,EE9# KOITO |
81510-80053 |
— | ||
| replacement | |||||
|
81510
|
81510
81510-80082
Lamp Assy, Front Turn Signal, Rh
[05.1987 - 08.1989] AE9#,CE90,EE9# KOITO |
81510-80082 |
— | ||
|
81510
|
81510
81510-80054 Lamp Assy, Front Turn Signal, Rh[05.1987 - 08.1989] AE9#,CE90,EE9# IKI |
81510-80054 |
US $75.71 |
||
|
81510B
|
81510B
99132-11210 Bulb (12V 21W)[05.1987 - 08.1993] AE9#,CE90,EE9# 12V 21W |
99132-11210 |
from US $2.81 |
||
|
81511
|
81511
81511-12560 Lens, Front Turn Signal Lamp, Rh[05.1987 - 08.1989] AE9#,CE90,EE9# KOITO |
81511-12560 |
US $15.43 |
||
| replacement | |||||
|
81511
|
81511
81511-12561
Lens, Front Turn Signal Lamp, Rh
[05.1987 - 08.1989] AE9#,CE90,EE9# KOITO |
81511-12561 |
— | ||
|
81511
|
81511
81511-12590
Lens, Front Turn Signal Lamp, Rh
[05.1987 - 08.1989] AE9#,CE90,EE9# IKI |
81511-12590 |
— | ||
|
81512
|
81512
81512-12560
Gasket, Front Turn Signal Lamp Lens, Rh
[05.1987 - 08.1989] AE9#,CE90,EE9# KOITO |
81512-12560 |
— | ||
|
81512
|
81512
81512-12590
Gasket, Front Turn Signal Lamp Lens, Rh
[05.1987 - 08.1989] AE9#,CE90,EE9# IKI |
81512-12590 |
— | ||
| replacement | |||||
|
81512
|
81512
81512-12480
Gasket, Front Turn Signal Lamp Lens, Rh
[05.1987 - 08.1989] AE9#,CE90,EE9# IKI |
81512-12480 |
— | ||
|
81520
|
81520
81520-80053
Lamp Assy, Front Turn Signal, Lh
[05.1987 - 08.1989] AE9#,CE90,EE9# KOITO |
81520-80053 |
— | ||
| replacement | |||||
|
81520
|
81520
81520-80082
Lamp Assy, Front Turn Signal, Lh
[05.1987 - 08.1989] AE9#,CE90,EE9# KOITO |
81520-80082 |
— | ||
|
81520
|
81520
81520-80054 Lamp Assy, Front Turn Signal, Lh[05.1987 - 08.1989] AE9#,CE90,EE9# IKI |
81520-80054 |
US $75.71 |
||
|
81521
|
81521
81521-12560
Lens, Front Turn Signal Lamp, Lh
[05.1987 - 08.1989] AE9#,CE90,EE9# KOITO |
81521-12560 |
— | ||
| replacement | |||||
|
81521
|
81521
81521-12561
Lens, Front Turn Signal Lamp, Lh
[05.1987 - 08.1989] AE9#,CE90,EE9# KOITO |
81521-12561 |
— | ||
|
81521
|
81521
81521-12590 Lens, Front Turn Signal Lamp, Lh[05.1987 - 08.1989] AE9#,CE90,EE9# IKI |
81521-12590 |
US $15.43 |
||
|
81522
|
81522
81512-12560
Gasket, Front Turn Signal Lamp Lens, Rh
[05.1987 - 08.1989] AE9#,CE90,EE9# KOITO |
81512-12560 |
— | ||
|
81522
|
81522
81512-12590
Gasket, Front Turn Signal Lamp Lens, Rh
[05.1987 - 08.1989] AE9#,CE90,EE9# IKI |
81512-12590 |
— | ||
| replacement | |||||
|
81522
|
81522
81512-12480
Gasket, Front Turn Signal Lamp Lens, Rh
[05.1987 - 08.1989] AE9#,CE90,EE9# IKI |
81512-12480 |
— | ||
|
81945A
|
81945A
81945-12010 Socket, Bulb[05.1987 - 08.1989] AE9#,CE90,EE9# |
81945-12010 |
from US $12.38 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9351064016
|
9351064016
93510-64016
New Genuine Part
|
93510-64016 |
— | ||
