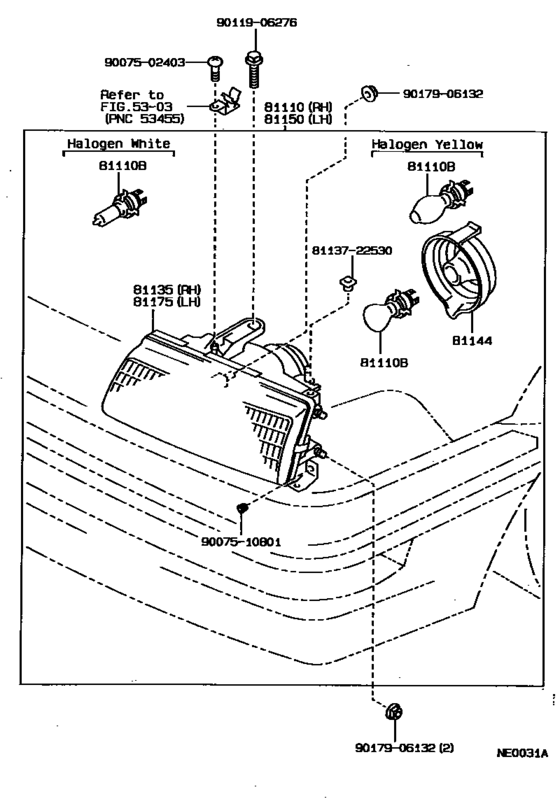

Headlamp ([05.1987 - ] (8705- )SED ; (8708- )AE92,EE9#..WG) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-1A610 Headlamp Assy, RhRH [05.1987 - 05.1992] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG)..(STD,XL)..GEN LH TRAFFIC SPEC |
81110-1A610 |
US $358.18 |
||
|
81110
|
81110
81110-1A620 Headlamp Assy, RhRH [05.1987 - 08.1988] AE92,CE90,EE9#..LHD..(SED,WG)..(STD,XL)..GEN LH TRAFFIC SPEC & HALOGEN WHITE |
81110-1A620 |
US $381.47 |
||
|
81110
|
81110
81110-1A630 Headlamp Assy, RhRH [05.1987 - 07.1992] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG)..(SE,STD,XL) |
81110-1A630 |
US $358.18 |
||
|
81110
|
81110
81110-1A640 Headlamp Assy, RhRH [05.1987 - 08.1989] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG)..(STD,XL) HALOGEN WHITE |
81110-1A640 |
US $313.04 |
||
|
81110
|
81110
81110-1A650 Headlamp Assy, Rh[05.1987 - 08.1989] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG) HALOGEN YELLOW |
81110-1A650 |
US $362.54 |
||
| replacement | |||||
|
81110
|
81110
81110-1A651 Headlamp Assy, Rh[05.1987 - 08.1989] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG) HALOGEN YELLOW |
81110-1A651 |
US $358.18 |
||
|
81110
|
81110
81110-1A651 Headlamp Assy, Rh[01.1990 - 05.1992] AE92,CE90,EE9#..LHD..(SED,WG)..GEN HALOGEN YELLOW,W(FR BUMPER TYPE E) |
81110-1A651 |
US $358.18 |
||
|
81110B
|
81110B
90981-13013 Bulb(For Headlamp, No.1)NO.1) [05.1987 - 08.1989] EE90..5F..XL..(GCC,GEN);EE90..(3FC,4F)..(STD,XL);AE9#,CE90,EE97..(STD,XL)..GEN 12V 45/40W,WHITE |
90981-13013 |
US $21.84 |
||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[05.1987 - 08.1989] EE90..5F..XL..(GCC,GEN);EE90..(3FC,4F)..(STD,XL);AE9#,CE90,EE97..(STD,XL)..GEN 12V 60/55W,*HAL *WH; EE90..GL;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE 90..(SR5,XL)..(ARL,SA) 12V 60/55W,*HAL *WH |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [05.1987 - 08.1989] EE90..5F..XL..(GCC,GEN);EE90..(3FC,4F)..(STD,XL);AE9#,CE90,EE97..(STD,XL)..GEN 12V 60/55W,*HAL *WH; EE90..GL;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE 90..(SR5,XL)..(ARL,SA) 12V 60/55W,*HAL *WH |
90981-13058 |
from US $33.60 |
||
|
81110B
|
81110B
90981-13016
Bulb(For Headlamp, No.1)
[05.1987 - 08.1989] AE95..LHD..SED;AE92,CE90,EE9#..LHD 12V 60/55W,*HAL *YE |
90981-13016 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13H01 Bulb(For Headlamp, No.1)[05.1987 - 08.1989] AE95..LHD..SED;AE92,CE90,EE9#..LHD 12V 60/55W,*HAL *YE |
90981-13H01 |
from US $112.53 |
||
|
81135
|
81135
81130-1A610 Unit Assy, Headlamp, RhHEADLAMP, RH [05.1987 - 05.1992] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG)..(STD,XL)..GEN LH TRAFIC SPEC |
81130-1A610 |
US $320.32 |
||
|
81135
|
81135
81130-1A620
Unit Assy, Headlamp, Rh
[05.1987 - 10.1987] AE92,CE90,EE9#..LHD..(SED,WG)..(STD,XL)..GEN LH TRAFIC SPEC & HALOGEN WHITE |
81130-1A620 |
— | ||
|
81135
|
81135
81130-1A630 Unit Assy, Headlamp, RhHEADLAMP, RH [05.1987 - 07.1992] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG)..(SE,STD,XL) |
81130-1A630 |
from US $161.77 |
||
|
81135
|
81135
81130-1A640 Unit Assy, Headlamp, RhHEADLAMP, RH [05.1987 - 11.1989] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG)..(SE,STD,XL) HALOGEN |
81130-1A640 |
US $282.46 |
||
|
81144
|
81144
81139-20730 Cover, Headlamp, No.1[05.1987 - 08.1993] AE9#,CE90,EE9# |
81139-20730 |
US $20.50 |
||
|
81150
|
81150
81160-1A610 Headlamp Assy, LhLH [05.1987 - 05.1992] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG)..(STD,XL)..GEN LH TRAFIC SPEC |
81160-1A610 |
US $358.18 |
||
|
81150
|
81150
81160-1A620 Headlamp Assy, LhLH [05.1987 - 10.1987] AE92,CE90,EE9#..LHD..(SED,WG)..(STD,XL)..GEN LH TRAFIC SPEC & HALOGEN WHITE |
81160-1A620 |
US $381.47 |
||
|
81150
|
81150
81160-1A630 Headlamp Assy, LhLH [05.1987 - 07.1992] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG)..(SE,STD,XL) |
81160-1A630 |
US $358.18 |
||
|
81150
|
81150
81160-1A640 Headlamp Assy, LhLH [05.1987 - 07.1992] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG)..(SE,STD,XL) HALOGEN WHITE |
81160-1A640 |
US $313.04 |
||
|
81150
|
81150
81160-1A650 Headlamp Assy, Lh[05.1987 - 08.1989] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG) HALOGEN YELLOW |
81160-1A650 |
US $416.42 |
||
| replacement | |||||
|
81150
|
81150
81160-1A651 Headlamp Assy, Lh[05.1987 - 08.1989] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG) HALOGEN YELLOW |
81160-1A651 |
US $410.59 |
||
|
81150
|
81150
81160-1A651 Headlamp Assy, Lh[01.1990 - 05.1992] AE92,CE90,EE9#..LHD..(SED,WG)..GEN HALOGEN YELLOW,W(FR BUMPER TYPE E) |
81160-1A651 |
US $410.59 |
||
|
81175
|
81175
81170-1A610 Unit Assy, Headlamp, LhHEADLAMP, LH [05.1987 - 05.1992] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG)..(STD,XL)..GEN LH TRAFIC SPEC |
81170-1A610 |
US $320.32 |
||
|
81175
|
81175
81170-1A620
Unit Assy, Headlamp, Lh
[05.1987 - 10.1987] AE92,CE90,EE9#..LHD..(SED,WG)..(STD,XL)..GEN LH TRAFIC SPEC & HALOGEN WHITE |
81170-1A620 |
— | ||
|
81175
|
81175
81170-1A630 Unit Assy, Headlamp, LhHEADLAMP, LH [05.1987 - 07.1992] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG)..(SE,STD,XL) |
81170-1A630 |
from US $161.77 |
||
|
81175
|
81175
81170-1A640
Unit Assy, Headlamp, Lh
[05.1987 - 11.1989] AE95..LHD..SED;AE92,CE90,EE9#..LHD..(SED,WG)..(SE,STD,XL) HALOGEN |
81170-1A640 |
— | ||
|
8113722530
|
8113722530
81137-22530
Nut, Headlamp Self Locking
|
81137-22530 |
— | ||
| replacement | |||||
|
8113722530
|
8113722530
90075-10004 Nut, Headlamp Self Locking |
90075-10004 |
from US $0.90 |
||
|
9007502403
|
9007502403
90075-02403 New Genuine Part |
90075-02403 |
US $2.15 |
||
|
9007510801
|
9007510801
90075-10801
New Genuine Part
|
90075-10801 |
— | ||
| replacement | |||||
|
9007510801
|
9007510801
90189-06111 CLIP |
90189-06111 |
from US $1.17 |
||
|
9011906276
|
9011906276
90119-06276 Bolt |
90119-06276 |
from US $1.65 |
||
|
9017906132
|
9017906132
90179-06132
Clip(For Front Bumper), No.1
|
90179-06132 |
— | ||
| replacement | |||||
|
9017906132
|
9017906132
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
