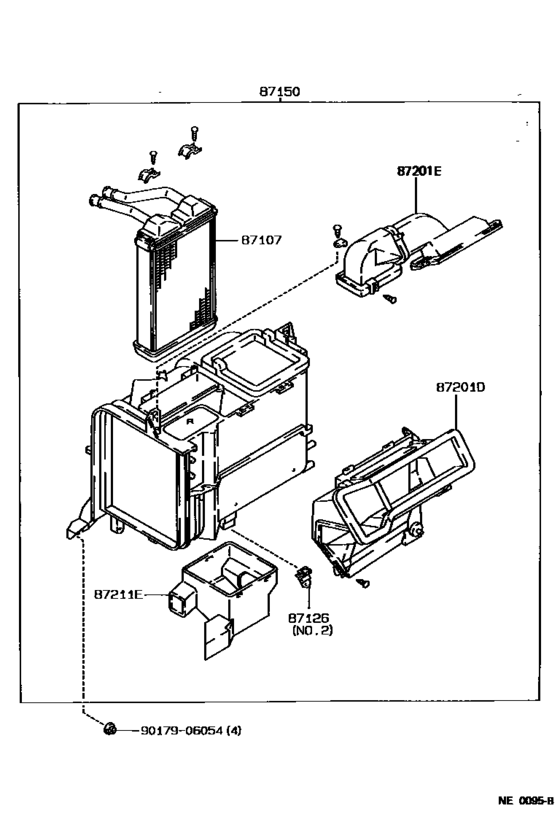

Heating & Air Conditioning - Heater Unit & Blower ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87107
|
87107
87107-12410
Unit Sub-Assy, Heater Radiator
[05.1987 - 07.1992] AE9#,CE90,EE9#..LHD |
87107-12410 |
— | ||
|
87126
|
87126
87126-12040 Clamp, Heater Control[05.1987 - 08.1989] AE9#,CE90,EE9#..GCC,GEN NO.1 |
87126-12040 |
US $4.08 |
||
|
87126
|
87126
87126-12050 Clamp, Heater Control[05.1987 - 08.1989] AE9#,CE90,EE9#..GCC,GEN NO.2 |
87126-12050 |
US $3.84 |
||
|
87150
|
87150
87150-12480
Radiator Assy, Heater
[05.1987 - 07.1992] AE9#,CE90,EE9#..LHD |
87150-12480 |
— | ||
|
87201D
|
87201D
87201-12170
Duct Sub-Assy, Air
[05.1987 - 07.1992] AE9#,CE90,EE9#..LHD |
87201-12170 |
— | ||
|
87211E
|
87211E
87211-12140
Duct, Air
[05.1987 - 07.1992] AE9#,CE90,EE9#..LHD |
87211-12140 |
— | ||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
