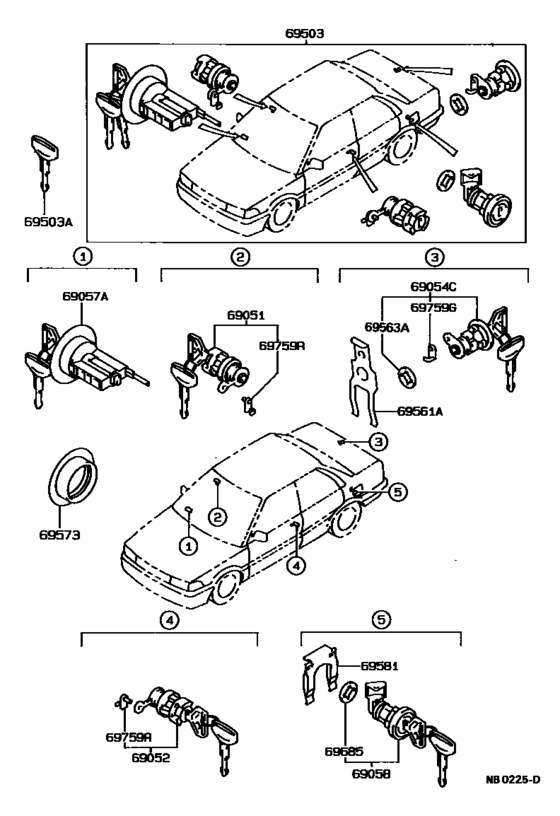

Lock Cylinder Set ([05.1987 - ] (8705- )SED) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-12200 Cylinder & Key Set, Door Lock, Rh[05.1987 - 07.1992] AE95,CE90;AE92,EE90..(LB,SED)..(GCC,GEN) |
69051-12200 |
US $47.47 |
||
| replacement | |||||
|
69051
|
69051
69051-12220 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [05.1987 - 07.1992] AE95,CE90;AE92,EE90..(LB,SED)..(GCC,GEN) |
69051-12220 |
US $47.76 |
||
|
69052
|
69052
69052-12200 Cylinder & Key Set, Door Lock, Lh[05.1987 - 07.1992] AE95,CE90;AE92,EE90..(LB,SED)..(GCC,GEN) |
69052-12200 |
US $47.47 |
||
| replacement | |||||
|
69052
|
69052
69052-12220 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [05.1987 - 07.1992] AE95,CE90;AE92,EE90..(LB,SED)..(GCC,GEN) |
69052-12220 |
US $44.54 |
||
|
69054C
|
69054C
69055-12410
Cylinder & Key Set, Luggage Compartment Lock
[05.1987 - 07.1992] AE9#,CE90,EE90..SED..(GL,GT,SE,XL)..(GCC,GEN) |
69055-12410 |
— | ||
| replacement | |||||
|
69054C
|
69054C
69055-12450
Cylinder & Key Set, Luggage Compartment Lock
[05.1987 - 07.1992] AE9#,CE90,EE90..SED..(GL,GT,SE,XL)..(GCC,GEN) |
69055-12450 |
— | ||
|
69057A
|
69057A
69057-12090 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [05.1987 - 07.1992] AE95,CE90;AE92,EE90..(LB,SED)..(GCC,GEN) |
69057-12090 |
US $94.64 |
||
| replacement | |||||
|
69057A
|
69057A
69057-12110 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [05.1987 - 07.1992] AE95,CE90;AE92,EE90..(LB,SED)..(GCC,GEN) |
69057-12110 |
US $103.38 |
||
|
69503
|
69503
69005-12760 Cylinder Set, Lock[05.1987 - 07.1992] AE9#,CE90,EE90..SED..(GL,GT,SE,XL)..(GCC,GEN) |
69005-12760 |
US $209.66 |
||
| replacement | |||||
|
69503
|
69503
69005-12790
Cylinder Set, Lock
[05.1987 - 07.1992] AE9#,CE90,EE90..SED..(GL,GT,SE,XL)..(GCC,GEN) |
69005-12790 |
— | ||
|
69503A
|
69503A
90999-00130
Key, Blank
[05.1987 - 07.1992] AE95,CE90;AE92,EE90..(LB,SED)..(GCC,GEN) MASTER KEY |
90999-00130 |
— | ||
| replacement | |||||
|
69503A
|
69503A
90999-00153 Key, Blank[05.1987 - 07.1992] AE95,CE90;AE92,EE90..(LB,SED)..(GCC,GEN) MASTER KEY |
90999-00153 |
from US $8.97 |
||
|
69503A
|
69503A
90999-00131 Key, Blank[05.1987 - 08.1989] AE9#,CE90..ARL,GEN;EE90..(LB,SED)..(GCC,GEN) MASTER KEY,W(*70) |
90999-00131 |
US $20.82 |
||
| replacement | |||||
|
69503A
|
69503A
90999-00153 Key, Blank[05.1987 - 08.1989] AE9#,CE90..ARL,GEN;EE90..(LB,SED)..(GCC,GEN) MASTER KEY,W(*70) |
90999-00153 |
from US $8.97 |
||
|
69503A
|
69503A
90999-00132 Key, Blank[05.1987 - 08.1989] AE9#,CE90..ARL,GEN;EE90..(LB,SED)..(GCC,GEN) MASTER KEY,W(*68) |
90999-00132 |
from US $16.68 |
||
| replacement | |||||
|
69503A
|
69503A
90999-00174 Key, Blank[05.1987 - 08.1989] AE9#,CE90..ARL,GEN;EE90..(LB,SED)..(GCC,GEN) MASTER KEY,W(*68) |
90999-00174 |
from US $13.34 |
||
|
69503A
|
69503A
90999-00133 Key, Blank[05.1987 - 08.1989] AE9#,CE90..ARL,GEN;EE90..(LB,SED)..(GCC,GEN) MASTER KEY,W(*69) |
90999-00133 |
US $27.66 |
||
| replacement | |||||
|
69503A
|
69503A
90999-00174 Key, Blank[05.1987 - 08.1989] AE9#,CE90..ARL,GEN;EE90..(LB,SED)..(GCC,GEN) MASTER KEY,W(*69) |
90999-00174 |
from US $13.34 |
||
|
69503A
|
69503A
90999-00137 Key, Blank[05.1987 - 07.1992] AE9#,CE90,EE90..SED..(GCC,GEN) SUB KEY |
90999-00137 |
US $20.82 |
||
| replacement | |||||
|
69503A
|
69503A
90999-00165 Key, Blank[05.1987 - 07.1992] AE9#,CE90,EE90..SED..(GCC,GEN) SUB KEY |
90999-00165 |
US $8.97 |
||
|
69503A
|
69503A
90999-00138 Key, BlankBLANK [05.1987 - 08.1989] AE9#,CE90,EE90..SED..(GCC,GEN) SUB KEY,W(*70) |
90999-00138 |
US $20.82 |
||
| replacement | |||||
|
69503A
|
69503A
90999-00165 Key, Blank[05.1987 - 08.1989] AE9#,CE90,EE90..SED..(GCC,GEN) SUB KEY,W(*70) |
90999-00165 |
US $8.97 |
||
|
69561A
|
69561A
69561-12170 Retainer, Luggage Compartment Lock Cylinder[05.1987 - 08.1993] AE9#,CE90,EE90..SED |
69561-12170 |
US $2.62 |
||
|
69573
|
69573
69573-12010 Pad, Ignition Switch Lock Cylinder[05.1987 - 10.1987] AE92,CE90,EE90..LB,SED |
69573-12010 |
US $5.59 |
||
|
69759G
|
69759G
69759-20090 Snap(For Rear Door Lock)[05.1987 - 08.1987] AE92,CE90,EE90..SED |
69759-20090 |
US $5.02 |
||
|
69759G
|
69759G
69759-24090 Snap, Front Door Lock Control Rod[08.1987 - 08.1993] AE9#,CE90,EE90..SED |
69759-24090 |
US $3.23 |
||
|
69759R
|
69759R
69759-30040
Snap, Rod(For Door Lock)
[05.1987 - 08.1993] AE95;AE92,CE90,EE90..LB,SED RH |
69759-30040 |
— | ||
|
69759R
|
69759R
69759-30050 Snap, Rod(For Door Lock)[05.1987 - 08.1993] AE95;AE92,CE90,EE90..LB,SED LH |
69759-30050 |
US $4.54 |
||
