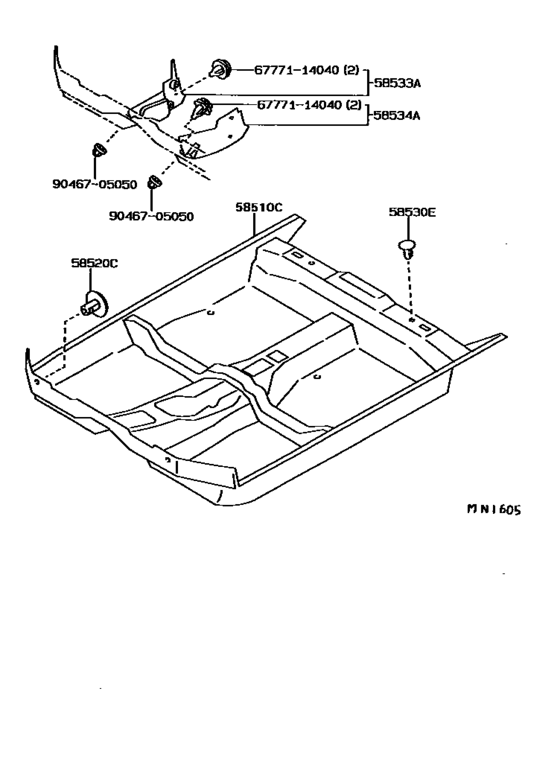

Mat & Carpet ([05.1987 - ] (8705- )SED) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58510C
|
58510C
58510-1A030-03
Carpet Assy, Front Floor, Front
[05.1987 - 08.1989] AE92,EE90..LHD..GL W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#; CE90 W(FOOTREST & FRONT SEAT BELT),SHADOW GRAY,TRIM1#; AE92,EE90..LHD..(STD,XL)..GEN W(FOOTREST & FRONT SEAT BELT),SHADOW GRAY,TRIM1# |
58510-1A030-03 |
— | ||
|
58510C
|
58510C
58510-1A030-04
Carpet Assy, Front Floor, Front
[05.1987 - 08.1987] AE92,EE90..LHD..XL W(FOOTREST & FRONT SEAT BELT),DARK BLUE,TRIM8# |
58510-1A030-04 |
— | ||
|
58510C
|
58510C
58510-1A030-05
Carpet Assy, Front Floor, Front
[05.1987 - 08.1989] AE92,EE90..LHD..GL W(FRONT SEAT BELT),DARK BEIGE,TRIM4#; CE90 W(FOOTREST & FRONT SEAT BELT),DARK BEIGE,TRIM4#; AE92,EE90..LHD..(STD,XL)..GEN W(FOOTREST & FRONT SEAT BELT),DARK BEIGE,TRIM4# |
58510-1A030-05 |
— | ||
|
58510C
|
58510C
58510-1A030-06 Carpet Assy, Front Floor, FrontFRONT FLOOR, FRONT [08.1989 - 08.1990] AE92,EE90..LHD..GL W(FRONT SEAT BELT),BROWN,TRIM4#; AE92,CE90,EE90..LHD..XL..GEN W(FOOTREST & FRONT SEAT BELT),BROWN,TRIM4# |
58510-1A030-06 |
US $760.03 |
||
| replacement | |||||
|
58510C
|
58510C
58510-1A030-E0
Carpet Assy, Front Floor, Front
[08.1989 - 08.1990] AE92,EE90..LHD..GL W(FRONT SEAT BELT),BROWN,TRIM4#; AE92,CE90,EE90..LHD..XL..GEN W(FOOTREST & FRONT SEAT BELT),BROWN,TRIM4# |
58510-1A030-E0 |
— | ||
|
58510C
|
58510C
58510-1A150-03
Carpet Assy, Front Floor, Front
[05.1987 - 05.1992] AE92,CE90,EE90..LHD..(STD,XL)..GEN SHADOW GRAY,TRIM1# |
58510-1A150-03 |
— | ||
| replacement | |||||
|
58510C
|
58510C
58510-1A150-B0
Carpet Assy, Front Floor, Front
[05.1987 - 05.1992] AE92,CE90,EE90..LHD..(STD,XL)..GEN SHADOW GRAY,TRIM1# |
58510-1A150-B0 |
— | ||
|
58510C
|
58510C
58510-1A150-04
Carpet Assy, Front Floor, Front
[05.1987 - 08.1989] AE92,CE90,EE90..LHD..XL..GEN DARK BLUE,TRIM8# |
58510-1A150-04 |
— | ||
| replacement | |||||
|
58510C
|
58510C
58510-1A150-J0
Carpet Assy, Front Floor, Front
[05.1987 - 08.1989] AE92,CE90,EE90..LHD..XL..GEN DARK BLUE,TRIM8# |
58510-1A150-J0 |
— | ||
|
58510C
|
58510C
58510-1A150-05
Carpet Assy, Front Floor, Front
[05.1987 - 08.1989] AE92,CE90,EE90..LHD..(STD,XL)..GEN DARK BEIGE,TRIM4# |
58510-1A150-05 |
— | ||
|
58510C
|
58510C
58510-1A150-06 Carpet Assy, Front Floor, FrontFRONT FLOOR, FRONT [08.1989 - 08.1990] AE92,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
58510-1A150-06 |
US $601.33 |
||
|
58510C
|
58510C
58510-1A160-03
Carpet Assy, Front Floor, Front
[05.1987 - 05.1992] AE92,EE90..LHD..GL SHADOW GRAY,TRIM1#; AE92,CE90,EE90..LHD..(STD,XL)..GEN W(FOOTREST),SHADOW GRAY,TRIM1# |
58510-1A160-03 |
— | ||
|
58510C
|
58510C
58510-1A160-04
Carpet Assy, Front Floor, Front
[05.1987 - 08.1989] AE92,CE90,EE90..LHD..XL..GEN W(FOOTREST),DARK BLUE,TRIM8# |
58510-1A160-04 |
— | ||
|
58510C
|
58510C
58510-1A160-05
Carpet Assy, Front Floor, Front
[05.1987 - 08.1989] AE92,EE90..LHD..GL DARK BEIGE,TRIM4#; AE92,CE90,EE90..LHD..(STD,XL)..GEN W(FOOTREST),DARK BEIGE,TRIM4# |
58510-1A160-05 |
— | ||
| replacement | |||||
|
58510C
|
58510C
58510-1A160-E0
Carpet Assy, Front Floor, Front
[05.1987 - 08.1989] AE92,EE90..LHD..GL DARK BEIGE,TRIM4#; AE92,CE90,EE90..LHD..(STD,XL)..GEN W(FOOTREST),DARK BEIGE,TRIM4# |
58510-1A160-E0 |
— | ||
|
58510C
|
58510C
58510-1A160-06 Carpet Assy, Front Floor, FrontFRONT FLOOR, FRONT [08.1989 - 08.1990] AE92,EE90..LHD..GL BROWN,TRIM4#; AE92,CE90,EE90..LHD..XL..GEN W(FOOTREST),BROWN,TRIM4# |
58510-1A160-06 |
US $745.47 |
||
|
58510C
|
58510C
58510-1A180-03 Carpet Assy, Front Floor, FrontFRONT FLOOR, FRONT [05.1987 - 08.1989] AE92,CE90,EE90..LHD..(STD,XL)..GEN W(FRONT SEAT BELT),SHADOW GRAY,TRIM1# |
58510-1A180-03 |
US $612.98 |
||
| replacement | |||||
|
58510C
|
58510C
58510-1A180-B0
Carpet Assy, Front Floor, Front
[05.1987 - 08.1989] AE92,CE90,EE90..LHD..(STD,XL)..GEN W(FRONT SEAT BELT),SHADOW GRAY,TRIM1# |
58510-1A180-B0 |
— | ||
|
58510C
|
58510C
58510-1A180-04 Carpet Assy, Front Floor, FrontFRONT FLOOR, FRONT [05.1987 - 08.1987] AE92,EE90..LHD..XL W(FRONT SEAT BELT),DARK BLUE,TRIM8# |
58510-1A180-04 |
US $612.98 |
||
| replacement | |||||
|
58510C
|
58510C
58510-1A180-J0
Carpet Assy, Front Floor, Front
[05.1987 - 08.1987] AE92,EE90..LHD..XL W(FRONT SEAT BELT),DARK BLUE,TRIM8# |
58510-1A180-J0 |
— | ||
|
58510C
|
58510C
58510-1A180-05 Carpet Assy, Front Floor, FrontFRONT FLOOR, FRONT [05.1987 - 08.1989] AE92,CE90,EE90..LHD..(STD,XL)..GEN W(FRONT SEAT BELT),DARK BEIGE,TRIM4# |
58510-1A180-05 |
US $612.98 |
||
| replacement | |||||
|
58510C
|
58510C
58510-1A180-E0
Carpet Assy, Front Floor, Front
[05.1987 - 08.1989] AE92,CE90,EE90..LHD..(STD,XL)..GEN W(FRONT SEAT BELT),DARK BEIGE,TRIM4# |
58510-1A180-E0 |
— | ||
|
58510C
|
58510C
58510-1A180-06 Carpet Assy, Front Floor, FrontFRONT FLOOR, FRONT [08.1989 - 08.1990] AE92,CE90,EE90..LHD..XL..GEN W(FRONT SEAT BELT),BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC & W(FRONT SEAT BELT),BROWN,TRIM4# |
58510-1A180-06 |
US $612.98 |
||
| replacement | |||||
|
58510C
|
58510C
58510-1A180-E0
Carpet Assy, Front Floor, Front
[08.1989 - 08.1990] AE92,CE90,EE90..LHD..XL..GEN W(FRONT SEAT BELT),BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC & W(FRONT SEAT BELT),BROWN,TRIM4# |
58510-1A180-E0 |
— | ||
|
58520C
|
58520C
90467-09068-01
Clip(For Front Floor Carpet)
[05.1987 - 02.1988] AE92..GTI BLACK,TRIM1#; AE92,EE90..RHD..(LB,SED)..(GL,XL) BLACK,TRIM1#,3#,4#; EE90..STD;EE90..LHD..GL;AE92..LHD..SED..5F..(GL,STD) BLACK,TRIM1#,4#; AE92..LHD..LB..5F;AE92..LHD..3FC..GL;AE92,CE90,EE90..LHD..(LB,SED)..XL BLACK,TRIM1#,4#, |
90467-09068-01 |
— | ||
|
58520C
|
58520C
90467-09068-11
Clip(For Front Floor Mat)
[08.1989 - 08.1990] AE92,EE90..RHD..SED..(GL,XL)..GEN BLACK,TRIM1#,3#,8#; AE9#,CE90,EE90..LHD..(GL,XL) BLACK,TRIM1#,4#,8#; EE97;AE9#,EE90..RHD..(LB,WG);AE92,EE90..(SE,STD)..(GCC,GEN) BLACK,TRIM1#,8# |
90467-09068-11 |
— | ||
| replacement | |||||
|
58520C
|
58520C
90467-09068-22 Clip(For Front Floor Mat)[08.1989 - 08.1990] AE92,EE90..RHD..SED..(GL,XL)..GEN BLACK,TRIM1#,3#,8#; AE9#,CE90,EE90..LHD..(GL,XL) BLACK,TRIM1#,4#,8#; EE97;AE9#,EE90..RHD..(LB,WG);AE92,EE90..(SE,STD)..(GCC,GEN) BLACK,TRIM1#,8# |
90467-09068-22 |
US $3.67 |
||
|
58530E
|
58530E
90467-06049-01
Clip(For Front Floor Rear Carpet)
[05.1987 - 08.1989] AE92..GT,GTI BLACK,TRIM1#; AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN BLACK,TRIM1#,3#,4#; AE92,EE90..STD;AE92,EE90..(GL,SE,XL)..SA BLACK,TRIM1#,4#; AE95..WG;AE9#,CE90,EE90..LHD..(LB,SED)..(GL,XL) BLACK,TRIM1#,4#,8# |
90467-06049-01 |
— | ||
| replacement | |||||
|
58530E
|
58530E
90467-06049-22 Clip(For Front Floor Mat)[05.1987 - 08.1989] AE92..GT,GTI BLACK,TRIM1#; AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN BLACK,TRIM1#,3#,4#; AE92,EE90..STD;AE92,EE90..(GL,SE,XL)..SA BLACK,TRIM1#,4#; AE95..WG;AE9#,CE90,EE90..LHD..(LB,SED)..(GL,XL) BLACK,TRIM1#,4#,8# |
90467-06049-22 |
from US $1.51 |
||
|
58530E
|
58530E
90467-06049-03
Clip(For Front Floor Rear Carpet)
[05.1987 - 08.1989] AE9#,CE90,EE90 GRAY,TRIM1# |
90467-06049-03 |
— | ||
| replacement | |||||
|
58530E
|
58530E
90467-06049-B0 Clip(For Front Floor Rear Carpet)[05.1987 - 08.1989] AE9#,CE90,EE90 GRAY,TRIM1# |
90467-06049-B0 |
US $1.40 |
||
|
58530E
|
58530E
90467-06049-15 Clip(For Front Floor Rear Carpet)[05.1987 - 09.1988] AE9#,CE90,EE90..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
90467-06049-15 |
US $1.89 |
||
| replacement | |||||
|
58530E
|
58530E
90467-06049-E0 Clip(For Front Floor Rear Carpet)[05.1987 - 09.1988] AE9#,CE90,EE90..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
90467-06049-E0 |
US $1.89 |
||
|
58530E
|
58530E
90467-06049-16 Clip(For Front Floor Rear Carpet)[08.1989 - 09.1989] AE9#,CE90..LHD..(GL,XL);EE90..LHD..(LB,SED)..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
90467-06049-16 |
US $1.89 |
||
| replacement | |||||
|
58530E
|
58530E
90467-06049-E4 Clip(For Front Floor Rear Carpet)[08.1989 - 09.1989] AE9#,CE90..LHD..(GL,XL);EE90..LHD..(LB,SED)..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
90467-06049-E4 |
US $1.89 |
||
|
58530E
|
58530E
90467-06049-24 Clip(For Front Floor Rear Carpet)[05.1987 - 09.1988] AE92,CE90,EE90..LHD..XL..GEN DARK BLUE,TRIM8#; AE95..WG;EE90..XL..GCC;AE95..LHD..SED;AE92,EE90..LHD..GL DARK BLUE,TRIM8# |
90467-06049-24 |
US $1.89 |
||
| replacement | |||||
|
58530E
|
58530E
90467-06049-J1 Clip(For Front Floor Rear Carpet)[05.1987 - 09.1988] AE92,CE90,EE90..LHD..XL..GEN DARK BLUE,TRIM8#; AE95..WG;EE90..XL..GCC;AE95..LHD..SED;AE92,EE90..LHD..GL DARK BLUE,TRIM8# |
90467-06049-J1 |
US $1.89 |
||
|
58530E
|
58530E
90467-06049-B0 Clip(For Front Floor Rear Carpet)[08.1989 - 07.1992] AE9#,CE90,EE90..ARL,GCC,GEN SHADOW GRAY,TRIM1# |
90467-06049-B0 |
US $1.40 |
||
|
58530E
|
58530E
90467-06049-E0 Clip(For Front Floor Rear Carpet)[09.1988 - 08.1989] AE9#,CE90,EE90..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
90467-06049-E0 |
US $1.89 |
||
|
58530E
|
58530E
90467-06049-E4 Clip(For Front Floor Rear Carpet)[09.1989 - 08.1990] AE9#,CE90..LHD..(GL,XL);EE90..LHD..(LB,SED)..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
90467-06049-E4 |
US $1.89 |
||
|
58530E
|
58530E
90467-06049-J1 Clip(For Front Floor Rear Carpet)[09.1988 - 08.1989] AE95..WG;EE90..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) DARK BLUE,TRIM8# |
90467-06049-J1 |
US $1.89 |
||
|
58533A
|
58533A
58533-12010 Cover, Floor Carpet, Center RhFLOOR CARPET, CENTER RH [05.1987 - 07.1992] AE92,CE90,EE9#..LHD |
58533-12010 |
US $27.96 |
||
|
58534A
|
58534A
58534-12020 Mat, Transmission CoverTRANSMISSION COVER [05.1987 - 07.1992] AE9#,CE90,EE9#..LHD |
58534-12020 |
US $34.65 |
||
|
6777114040
|
6777114040
67771-14040 Retainer, Door Trim |
67771-14040 |
US $3.23 |
||
|
9046705050
|
9046705050
90467-05050
Clip, Cowl Side Trim Board Set
|
90467-05050 |
— | ||
| replacement | |||||
|
9046705050
|
9046705050
90467-05050-22 Clip, Cowl Side Trim Board Set |
90467-05050-22 |
US $1.61 |
||
