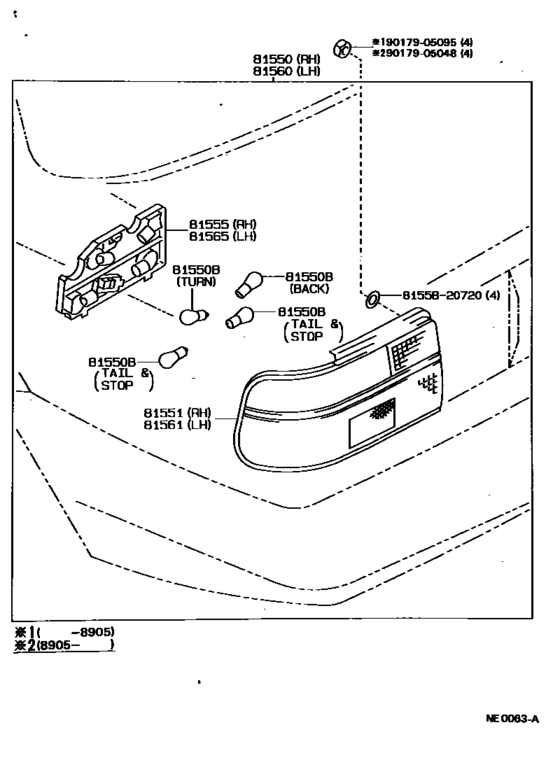

Rear Combination Lamp ([08.1990 - ] (8705-9008)SED..GCC,GEN ; (9008- )SED..GEN) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-1A420
Lamp Assy, Rear Combination, Rh
[05.1987 - 08.1990] AE9#,CE90,EE90..SED..(GL,SE,STD,XL)..(GCC,GEN) |
81550-1A420 |
— | ||
| replacement | |||||
|
81550
|
81550
81550-1A421 Lamp Assy, Rear Combination, Rh[05.1987 - 08.1990] AE9#,CE90,EE90..SED..(GL,SE,STD,XL)..(GCC,GEN) |
81550-1A421 |
US $345.07 |
||
|
81550
|
81550
81550-1A421 Lamp Assy, Rear Combination, Rh[12.1990 - 05.1992] AE92,CE90,EE90..SED..(GL,STD,XL)..GEN |
81550-1A421 |
US $345.07 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[05.1987 - 08.1989] EE9#;AE9#,CE90..LB,SED 12V 21W,TURN OR BACK |
99132-11210 |
from US $2.81 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[05.1987 - 05.1988] AE95..WG 12V 21/5W,TURN OR BACK; AE9#,CE90,EE90..SED 12V 21/5W,STOP & TAIL |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-1A420 Lens, Rear Combination Lamp, Rh[05.1987 - 08.1990] AE9#,CE90,EE90..SED..(GL,SE,STD,XL)..(GCC,GEN) |
81551-1A420 |
US $87.93 |
||
|
81555
|
81555
81555-1A360 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1987 - 08.1990] AE9#,CE90,EE90..SED..(GL,SE,STD,XL)..(GCC,GEN) |
81555-1A360 |
US $51.40 |
||
|
81560
|
81560
81560-1A380
Lamp Assy, Rear Combination, Lh
[05.1987 - 08.1990] AE9#,CE90,EE90..SED..(GL,SE,STD,XL)..(GCC,GEN) |
81560-1A380 |
— | ||
| replacement | |||||
|
81560
|
81560
81560-1A381 Lamp Assy, Rear Combination, Lh[05.1987 - 08.1990] AE9#,CE90,EE90..SED..(GL,SE,STD,XL)..(GCC,GEN) |
81560-1A381 |
US $345.07 |
||
|
81560
|
81560
81560-1A381 Lamp Assy, Rear Combination, Lh[12.1990 - 05.1992] AE92,CE90,EE90..SED..(GL,STD,XL)..GEN |
81560-1A381 |
US $345.07 |
||
|
81561
|
81561
81561-1A380
Lens, Rear Combination Lamp, Lh
[05.1987 - 08.1990] AE9#,CE90,EE90..SED..(GL,SE,STD,XL)..(GCC,GEN) |
81561-1A380 |
— | ||
|
81565
|
81565
81565-12890 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[05.1987 - 08.1990] AE9#,CE90,EE90..SED..(GL,SE,STD,XL)..(GCC,GEN) |
81565-12890 |
US $51.40 |
||
|
8155820720
|
8155820720
81558-20720
Gasket, Rear Combination Lamp Body, Rh
|
81558-20720 |
— | ||
|
9017905048
|
9017905048
90179-05048 New Genuine Part |
90179-05048 |
US $1.60 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.33 |
||
