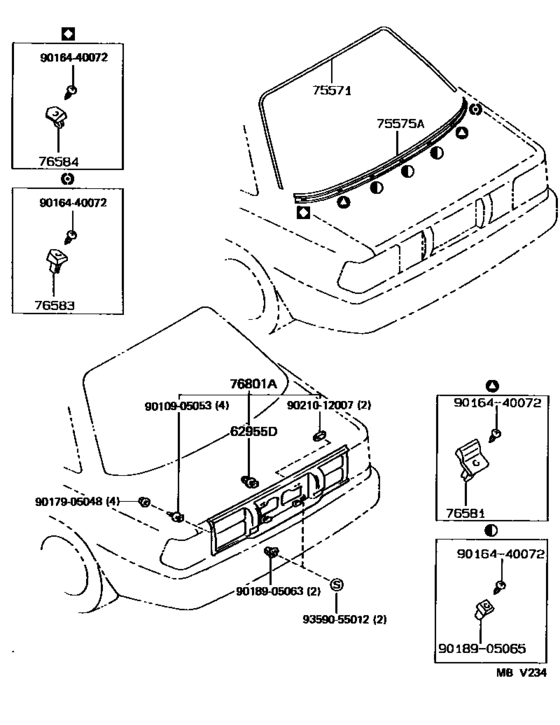

Rear Moulding ([08.1990 - ] (9008- )SED) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75571
|
75571
75571-12270
Moulding, Back Window, Outside Upper
[05.1987 - 07.1992] EE90..STD..GCC;AE9#,CE90,EE90..SED..(STD,XL)..GEN |
75571-12270 |
— | ||
|
75571
|
75571
75571-12500
Moulding, Back Window, Outside Upper
[05.1987 - 05.1992] AE92..LHD..SED..(STD,XL) W(CKD COUNTRIES) OR VENEZUELA SPEC |
75571-12500 |
— | ||
|
75575A
|
75575A
75575-12210
Moulding, Back Window, Outside Lower
[05.1987 - 08.1993] EE90..STD..GCC;AE9#,CE90,EE90..SED..(STD,XL)..(GEN,SA) |
75575-12210 |
— | ||
|
76581
|
76581
76581-12010 Retainer, Back Window Outside Moulding[05.1987 - 08.1993] AE9#,CE90,EE90..SED |
76581-12010 |
US $1.92 |
||
|
76583
|
76583
76583-12030 Retainer, Back Window Outside Lower Moulding, Rh[05.1987 - 08.1993] AE9#,CE90,EE90..SED |
76583-12030 |
US $1.41 |
||
|
76584
|
76584
76584-12010 Retainer, Back Window Outside Lower Moulding, Lh[05.1987 - 08.1993] AE9#,CE90,EE90..SED |
76584-12010 |
US $1.41 |
||
|
9010905053
|
9010905053
90109-05053 BOLT |
90109-05053 |
US $1.02 |
||
|
9016440072
|
9016440072
90164-40072 Screw |
90164-40072 |
US $1.75 |
||
|
9017905048
|
9017905048
90179-05048 New Genuine Part |
90179-05048 |
US $1.60 |
||
|
9018905063
|
9018905063
90189-05063 New Genuine Part |
90189-05063 |
US $1.02 |
||
|
9018905065
|
9018905065
90189-05065
New Genuine Part
|
90189-05065 |
— | ||
|
9021012007
|
9021012007
90210-12007
New Genuine Part
|
90210-12007 |
— | ||
|
9359055012
|
9359055012
93590-55012
New Genuine Part
|
93590-55012 |
— |
