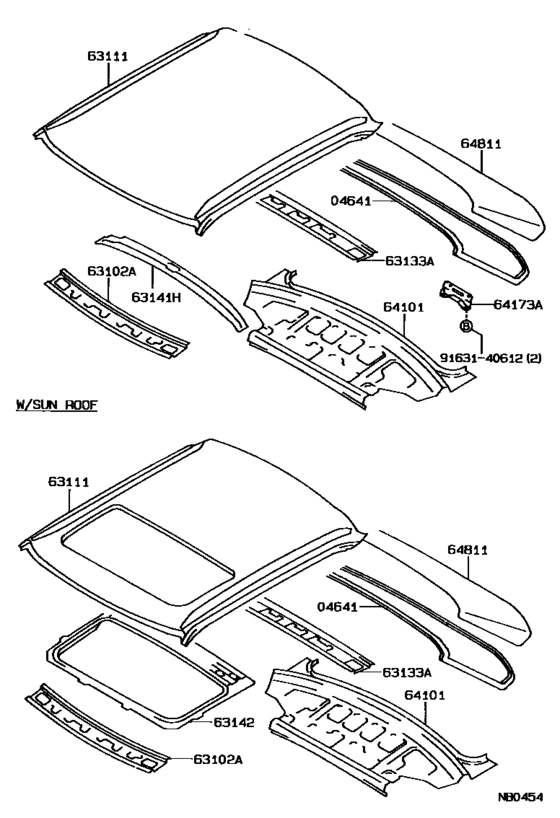

Roof Panel & Back Window Glass ([05.1987 - ] (8705- )SED) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04641
|
04641
04562-12010 Dam Kit, Windshield Glass[05.1987 - 08.1989] AE9#,CE90,EE9# |
04562-12010 |
from US $35.28 |
||
|
63102A
|
63102A
63102-12040 Panel Sub-Assy, Windshield Header[05.1987 - 08.1993] AE9#,CE90,EE90..SED |
63102-12040 |
US $47.47 |
||
|
63111
|
63111
63111-12300 Panel, Roof[05.1987 - 08.1988] AE9#,CE90,EE90..SED |
63111-12300 |
US $417.87 |
||
| replacement | |||||
|
63111
|
63111
63111-12301 Panel, Roof[05.1987 - 08.1988] AE9#,CE90,EE90..SED |
63111-12301 |
US $416.42 |
||
|
63111
|
63111
63111-12301 Panel, Roof[08.1988 - 08.1993] AE9#,CE90,EE90..SED |
63111-12301 |
US $416.42 |
||
|
63111
|
63111
63111-12310 Panel, Roof[05.1987 - 08.1988] AE9#,CE90,EE90..SED..(GL,XL) W(SUN ROOF) |
63111-12310 |
US $417.87 |
||
| replacement | |||||
|
63111
|
63111
63111-12311 Panel, Roof[05.1987 - 08.1988] AE9#,CE90,EE90..SED..(GL,XL) W(SUN ROOF) |
63111-12311 |
US $417.87 |
||
|
63111
|
63111
63111-12311 Panel, Roof[08.1988 - 07.1992] AE9#,CE90,EE90..SED..(GL,XL)..(GCC,GEN) W(SUN ROOF) |
63111-12311 |
US $417.87 |
||
|
63133A
|
63133A
63133-12160 Frame, Back Window, Upper[05.1987 - 08.1993] AE9#,CE90,EE90..SED |
63133-12160 |
US $28.10 |
||
|
63141H
|
63141H
63141-12130 Reinforcement, Roof Panel, Center[05.1987 - 08.1993] AE9#,CE90,EE90..LB,SED |
63141-12130 |
US $34.94 |
||
|
63142
|
63142
63142-12030 Reinforcement, Roof Panel, No.2[05.1987 - 07.1992] AE9#,CE90,EE90..(LB,SED)..(GL,GTI,SE,XL)..(GCC,GEN) |
63142-12030 |
US $126.67 |
||
|
64101
|
64101
64101-12350 Panel Sub-Assy, Upper Back[05.1987 - 08.1993] AE9#,CE90,EE90..SED |
64101-12350 |
US $318.86 |
||
|
64811
|
64811
64811-1A090 Glass, Back Window[05.1987 - 08.1993] EE90..SED..(3FC,4F)..(STD,XL);EE90..SED..5F..(STD,XL)..(GCC,GEN);AE9#,CE90..SED..( SE,STD,XL)..(GCC,GEN) *TEM,T=3.5 |
64811-1A090 |
US $546 |
||
|
64811
|
64811
64811-1A100 Glass, Back Window[05.1987 - 08.1993] EE90..SED..(3FC,4F)..(STD,XL);EE90..SED..5F..(STD,XL)..(GCC,GEN);AE9#,CE90..SED..( SE,STD,XL)..(GCC,GEN) *EHTT,T=3.5 |
64811-1A100 |
US $898.35 |
||
| replacement | |||||
|
64811
|
64811
64811-1A130 Glass, Back Window[05.1987 - 08.1993] EE90..SED..(3FC,4F)..(STD,XL);EE90..SED..5F..(STD,XL)..(GCC,GEN);AE9#,CE90..SED..( SE,STD,XL)..(GCC,GEN) *EHTT,T=3.5 |
64811-1A130 |
US $952.22 |
||
|
64811
|
64811
64811-1A120 Glass, Back WindowBACK WINDOW [05.1987 - 08.1987] AE92,EE90..STD *TT,T=3.5; AE92,CE90,EE90..SED..XL *TT,T=3.5 |
64811-1A120 |
US $594.05 |
||
| replacement | |||||
|
64811
|
64811
64811-1A130 Glass, Back Window[05.1987 - 08.1987] AE92,EE90..STD *TT,T=3.5; AE92,CE90,EE90..SED..XL *TT,T=3.5 |
64811-1A130 |
US $952.22 |
||
|
64811
|
64811
64811-1A130 Glass, Back Window[05.1987 - 08.1987] AE92,EE90..STD *EHTT,T=3.5; AE92,CE90,EE90..SED..XL *EHTT,T=3.5 |
64811-1A130 |
US $952.22 |
||
|
9163140612
|
9163140612
91631-40612 New Genuine Part |
91631-40612 |
US $1.75 |
||
