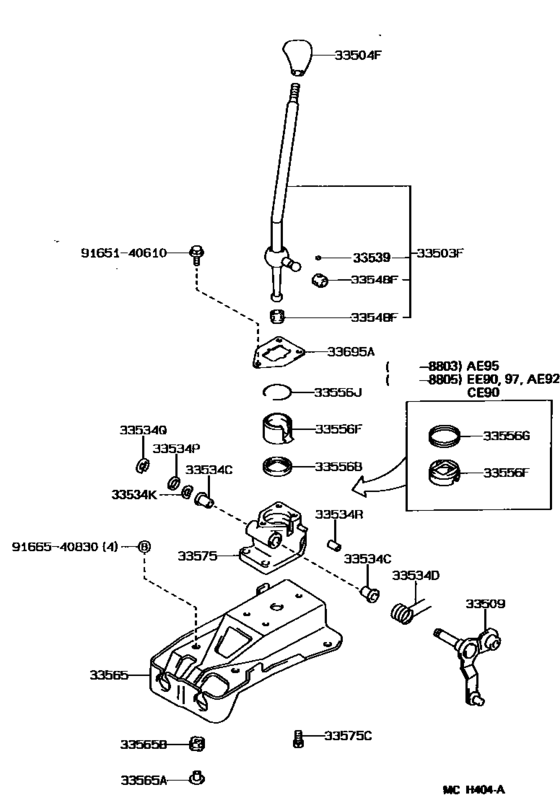

Shift Lever & Retainer ([05.1987 - ] (8705- )MTM) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33503F
|
33503F
33503-12360 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [05.1987 - 04.1989] AE92,CE90,EE9#..LHD..MTM |
33503-12360 |
US $47.47 |
||
| replacement | |||||
|
33503F
|
33503F
33503-12361 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [05.1987 - 04.1989] AE92,CE90,EE9#..LHD..MTM |
33503-12361 |
US $44.99 |
||
|
33503F
|
33503F
33503-12361 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [04.1989 - 07.1992] EE90..LHD..4F;CE90,EE97..LHD;AE92,EE90..LHD..(LB,SED)..5F |
33503-12361 |
US $44.99 |
||
|
33504F
|
33504F
33504-24010-20 Knob Sub-Assy, Shift Lever[05.1987 - 11.1988] AE9#,CE90,EE90..5F..(GL,XL)..(GCC,GEN,SA) GRAY,TRIM1# |
33504-24010-20 |
US $40.33 |
||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[05.1987 - 11.1988] AE9#,CE90,EE90..5F..(GL,XL)..(GCC,GEN,SA) GRAY,TRIM1# |
33504-24010-C1 |
from US $31.42 |
||
|
33504F
|
33504F
33504-24010-54 Knob Sub-Assy, Shift Lever[05.1987 - 07.1988] AE95..WG..5F;AE9#,CE90,EE90..LHD..(LB,SED)..5F..(GL,XL) DARK BLUE,TRIM8# |
33504-24010-54 |
US $40.33 |
||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[05.1987 - 07.1988] AE95..WG..5F;AE9#,CE90,EE90..LHD..(LB,SED)..5F..(GL,XL) DARK BLUE,TRIM8# |
33504-24010-C1 |
from US $31.42 |
||
|
33504F
|
33504F
33504-24010-55
Knob Sub-Assy, Shift Lever
[05.1987 - 08.1989] AE9#,CE90,EE90..5F..(GL,SR5,XL) DARK BEIGE,TRIM4# |
33504-24010-55 |
— | ||
|
33504F
|
33504F
33504-24010-B3 Knob Sub-Assy, Shift Lever[09.1990 - 07.1992] AE92..5F..SE;AE92,CE90..5F..(GL,XL)..GEN;EE90..(LB,SED)..5F..(GL,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
33504-24010-B3 |
US $40.33 |
||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[09.1990 - 07.1992] AE92..5F..SE;AE92,CE90..5F..(GL,XL)..GEN;EE90..(LB,SED)..5F..(GL,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
33504-24010-C1 |
from US $31.42 |
||
|
33504F
|
33504F
33504-24010-E1 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.1989 - 08.1990] AE9#,CE90,EE90..LHD..5F..(GL,XL) BROWN,TRIM4# |
33504-24010-E1 |
US $40.33 |
||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[08.1989 - 08.1990] AE9#,CE90,EE90..LHD..5F..(GL,XL) BROWN,TRIM4# |
33504-24010-C1 |
from US $31.42 |
||
|
33504F
|
33504F
33504-24010-J0 Knob Sub-Assy, Shift Lever[07.1988 - 08.1989] AE95..WG..5F;AE9#,CE90,EE90..LHD..(LB,SED)..5F..(GL,XL) DARK BLUE,TRIM8# |
33504-24010-J0 |
US $40.33 |
||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[07.1988 - 08.1989] AE95..WG..5F;AE9#,CE90,EE90..LHD..(LB,SED)..5F..(GL,XL) DARK BLUE,TRIM8# |
33504-24010-C1 |
from US $31.42 |
||
|
33509
|
33509
33509-12060 Crank Sub-Assy, Selecting Bell, No.1[05.1987 - 03.1988] AE9#,CE90,EE9#..MTM |
33509-12060 |
US $37.27 |
||
| replacements | |||||
|
33509
|
33509
33509-12080 Crank Sub-Assy, Selecting Bell, No.1[05.1987 - 03.1988] AE9#,CE90,EE9#..MTM |
33509-12080 |
US $37.13 |
||
|
33509
|
33509
90206-12003 Washer, Wave (For Selecting Bellcrank No.1)[05.1987 - 03.1988] AE9#,CE90,EE9#..MTM |
90206-12003 |
from US $0.96 |
||
|
33509
|
33509
33509-12080 Crank Sub-Assy, Selecting Bell, No.1[04.1989 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE92,CE90,EE9#..MTM..(GEN,SA) |
33509-12080 |
US $37.13 |
||
|
33534C
|
33534C
90386-12013 Bush (For Shift Lever Retainer)[05.1987 - 03.1988] AE9#,CE90,EE9#..MTM |
90386-12013 |
US $4.66 |
||
|
33534C
|
33534C
90386-12034 Bush (For Shift Lever Retainer)[05.1988 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA) |
90386-12034 |
US $1.97 |
||
|
33534D
|
33534D
90508-20084 Spring, Torsion (For Selecting Bellcrank No.1)[05.1987 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA) |
90508-20084 |
US $3.58 |
||
|
33534K
|
33534K
90206-12003 Washer, Wave (For Selecting Bellcrank No.1)[04.1989 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE92,CE90,EE9#..MTM..(GEN,SA) |
90206-12003 |
from US $0.96 |
||
|
33534P
|
33534P
90201-12052 Washer, Plate (For Selecting Bellcrank No.1)[05.1987 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA) |
90201-12052 |
US $0.52 |
||
|
33534Q
|
33534Q
96160-00900 Ring, E(For Injection Pump Lever)[05.1987 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA) |
96160-00900 |
from US $1.61 |
||
|
33534R
|
33534R
90540-06029 Cushion (For Selecting Bellcrank No.1)[05.1987 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA) |
90540-06029 |
US $2.80 |
||
|
33539
|
33539
33539-12010 Cushion, Shift Lever Anti-Rattle[08.1989 - 08.1993] AE92..5F..SE;EE90..4F..XL..GCC;EE90..(LB,SED)..MTM;AE9#,CE90,EE97..MTM..(ARL,GEN,S A) |
33539-12010 |
US $1.51 |
||
|
33548F
|
33548F
33548-12021 Bush, Shift Lever (For Column Shift)[05.1987 - 12.1988] AE9#,CE90,EE9#..MTM |
33548-12021 |
from US $2.42 |
||
|
33548F
|
33548F
33548-12040 Bush, No.1, Shift Lever (For Floor Shift)[08.1989 - 08.1993] AE92..5F..SE;EE90..4F..XL..GCC;EE90..(LB,SED)..MTM;AE9#,CE90,EE97..MTM..(ARL,GEN,S A) |
33548-12040 |
US $3.40 |
||
|
33556B
|
33556B
90385-34001 Bush (For Transmission Shift Lever Ball Seat)[05.1988 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA) |
90385-34001 |
US $3.84 |
||
|
33556F
|
33556F
33556-12040
Seat, Transmission Shift Lever Ball
[05.1987 - 03.1988] AE9#,CE90,EE9#..MTM |
33556-12040 |
— | ||
|
33556F
|
33556F
33556-20020 Seat, Transmission Shift Lever Ball[05.1988 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA) |
33556-20020 |
from US $8.56 |
||
|
33556G
|
33556G
90501-11040 Spring (For Transmission Shift Lever Ball Seat)[05.1987 - 03.1988] AE9#,CE90,EE9#..MTM |
90501-11040 |
US $2.18 |
||
|
33556J
|
33556J
90520-36018 Ring, Snap (For Shift Lever)[08.1988 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA) |
90520-36018 |
US $1.49 |
||
|
33565
|
33565
33565-12030 Plate, Control Shift Lever Retainer[05.1987 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA) |
33565-12030 |
US $93.18 |
||
|
33565A
|
33565A
90389-08031 Bush, No.2 (For Shift Lever Plate)[05.1987 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA) |
90389-08031 |
US $2.80 |
||
|
33565B
|
33565B
90389-10020 Bush, No.2 (For Control Shift Lever Retainer Plate)[05.1987 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA) |
90389-10020 |
US $2.80 |
||
|
33575
|
33575
33575-12120 Retainer, Control Shift Lever (For Floor Shift)[05.1987 - 05.1988] AE92,CE90,EE9#..MTM |
33575-12120 |
US $61.01 |
||
| replacement | |||||
|
33575
|
33575
33575-12H00 Retainer, Control Shift Lever (For Floor Shift)[05.1987 - 05.1988] AE92,CE90,EE9#..MTM |
33575-12H00 |
US $74.26 |
||
|
33575
|
33575
33575-32050 Retainer, Control Shift Lever (For Floor Shift)[05.1988 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE92,CE90,EE9#..MTM..(GEN,SA) |
33575-32050 |
US $60.86 |
||
|
33575C
|
33575C
90119-08622 Bolt (For Control Shift Lever Retainer)[05.1987 - 08.1993] EE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA) |
90119-08622 |
US $2.04 |
||
|
33695A
|
33695A
33695-12020 Cover, Shift Lever Ball[05.1987 - 03.1988] AE9#,CE90,EE9#..MTM |
33695-12020 |
US $4.08 |
||
| replacement | |||||
|
33695A
|
33695A
33695-12031 Cover, Shift Lever Ball[05.1987 - 03.1988] AE9#,CE90,EE9#..MTM |
33695-12031 |
US $3.93 |
||
|
33695A
|
33695A
33695-12031 Cover, Shift Lever Ball[07.1988 - 08.1988] AE92,CE90,EE9#..MTM |
33695-12031 |
US $3.93 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9166540830
|
9166540830
91665-40830
New Genuine Part
|
91665-40830 |
— | ||
| replacement | |||||
|
9166540830
|
9166540830
91661-60830 Bolt |
91661-60830 |
from US $1.61 |
||
