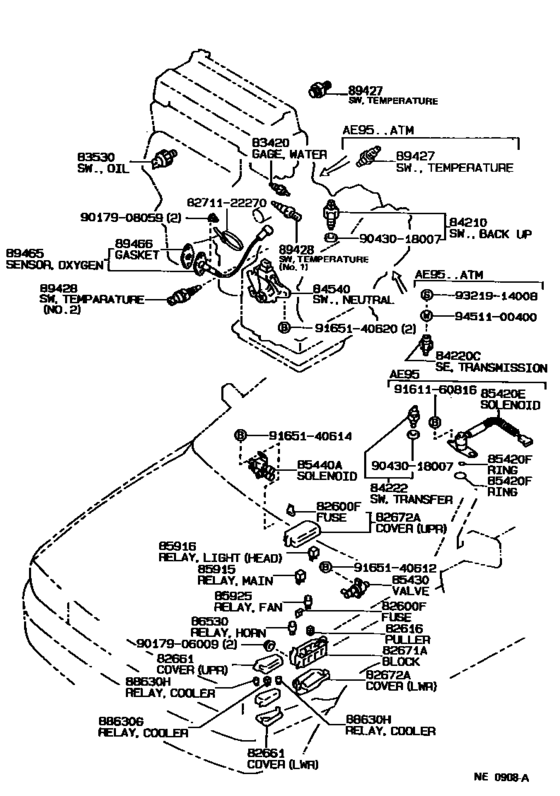

Switch & Relay & Computer ([05.1987 - ] (8705- )AE9#..GL,SE,SR5,STD,XL) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[05.1987 - 08.1989] AE9#,CE90,EE9# 30A |
90982-07011 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[05.1987 - 08.1989] AE9#,CE90,EE9# 10A |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[05.1987 - 08.1989] AE9#,CE90,EE9# 15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[05.1987 - 09.1989] AE9#,CE90,EE9# 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[05.1987 - 08.1989] AE9#,CE90,EE9# 7.5A |
90982-09005 |
from US $0.99 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[05.1987 - 08.1989] AE9#,CE90,EE9# |
82616-12010 |
US $3.40 |
||
|
82661
|
82661
82661-12140
Cover, Relay Block, No.1
[05.1987 - 08.1989] AE9#,CE90,EE9# UPR |
82661-12140 |
— | ||
|
82661
|
82661
82661-12160 Cover, Relay Block, No.1[05.1987 - 08.1989] AE9#,CE90,EE9# LWR |
82661-12160 |
US $7.28 |
||
|
82671A
|
82671A
82671-12050 Block, Junction[05.1987 - 08.1989] AE9#,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) |
82671-12050 |
US $196.56 |
||
|
82672A
|
82672A
82672-12010 Cover, Junction Block[05.1987 - 08.1989] AE92..LHD UPR; AE92..RHD..5F..GL UPR; AE92..(4FC,5F)..(SE,XL)..SA UPR; AE92..RHD..3FC UPR; AE95,EE9#..GCC,GEN,SA UPR |
82672-12010 |
US $28.83 |
||
|
82672A
|
82672A
82672-12070
Cover, Junction Block
[05.1987 - 08.1989] AE9#,CE90,EE9# LWR |
82672-12070 |
— | ||
|
82672A
|
82672A
82672-12140 Cover, Junction Block[08.1989 - 07.1992] AE9#,EE9#..(GL,SE,STD,XL)..(GCC,GEN) UPR |
82672-12140 |
US $30.28 |
||
|
83420
|
83420
83420-16020 Gage Assy, Water Temperature Sender[05.1987 - 08.1993] AE9#,EE9#..GL,SE,SR5,STD,XL |
83420-16020 |
from US $36.93 |
||
|
83530
|
83530
83530-30050
Switch Assy, Oil Pressure (For Engine)
[05.1987 - 08.1989] AE9#..GL,SE,SR5,STD,XL |
83530-30050 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[05.1987 - 08.1989] AE9#..GL,SE,SR5,STD,XL |
83530-60050 |
from US $29.06 |
||
|
83530
|
83530
83530-30051
Switch Assy, Oil Pressure (For Engine)
[03.1990 - 08.1993] AE9#..GL,SE,SR5,STD,XL |
83530-30051 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[03.1990 - 08.1993] AE9#..GL,SE,SR5,STD,XL |
83530-60050 |
from US $29.06 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[05.1987 - 08.1993] AE9#,CE90,EE9#..MTM..(GL,SE,SR5,STD,XL) |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[05.1987 - 08.1993] AE9#,CE90,EE9#..MTM..(GL,SE,SR5,STD,XL) |
84210-52050 |
from US $22.85 |
||
|
85430
|
85430
90925-09036
Valve, Outer Vent Control
[04.1989 - 08.1989] AE92..LHD..LB..5F;AE92..LHD..SED..3FC..GL;AE92..LHD..SED..(STD,XL) |
90925-09036 |
— | ||
|
85915
|
85915
90987-04002 Relay, Ignition, No.1[05.1987 - 08.1993] AE9#,CE90,EE9# |
90987-04002 |
from US $24.32 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[05.1987 - 08.1993] AE9#,CE90,EE9# MARUKO,TAIL |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[05.1987 - 08.1993] AE9#,CE90,EE9# MARUKO,TAIL |
90987-02004 |
from US $28.10 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[05.1987 - 08.1993] AE9#,CE90,EE9# NIPPONDENSO,TAIL |
90987-02004 |
from US $28.10 |
||
|
85916
|
85916
90987-02006 Relay[05.1987 - 09.1991] AE9#,CE90,EE9# HEAD |
90987-02006 |
from US $26.75 |
||
|
85925
|
85925
90987-03001 Relay[05.1987 - 06.1990] AE9#,CE90,EE9# |
90987-03001 |
from US $32.74 |
||
|
86530
|
86530
90987-02002
Relay, Ignition, No.1
[05.1987 - 08.1993] AE9#,CE90,EE9# MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
86530
|
86530
90987-02004 Relay Assy, Starter[05.1987 - 08.1993] AE9#,CE90,EE9# MARUKO |
90987-02004 |
from US $28.10 |
||
|
86530
|
86530
90987-02004 Relay Assy, Starter[05.1987 - 08.1993] AE9#,CE90,EE9# NIPPONDENSO |
90987-02004 |
from US $28.10 |
||
|
88630G
|
88630G
88630-32010
Relay Assy, Cooler
[05.1987 - 09.1990] AE9#,CE90,EE9# |
88630-32010 |
— | ||
|
88630H
|
88630H
90987-02004 Relay Assy, Starter[05.1987 - 09.1990] AE9#,CE90,EE9# |
90987-02004 |
from US $28.10 |
||
|
89428
|
89428
89428-15011 Switch, Temperature Detect, No.2[05.1987 - 08.1989] AE9# NO.1 |
89428-15011 |
US $78.62 |
||
| replacement | |||||
|
89428
|
89428
89428-32010 Switch, Temperature Detect, No.2[05.1987 - 08.1989] AE9# NO.1 |
89428-32010 |
US $84.91 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $3.58 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
|
9321914008
|
9321914008
93219-14008 Screw, W/washer(For Bearing Cover Setting) |
93219-14008 |
from US $2.33 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
