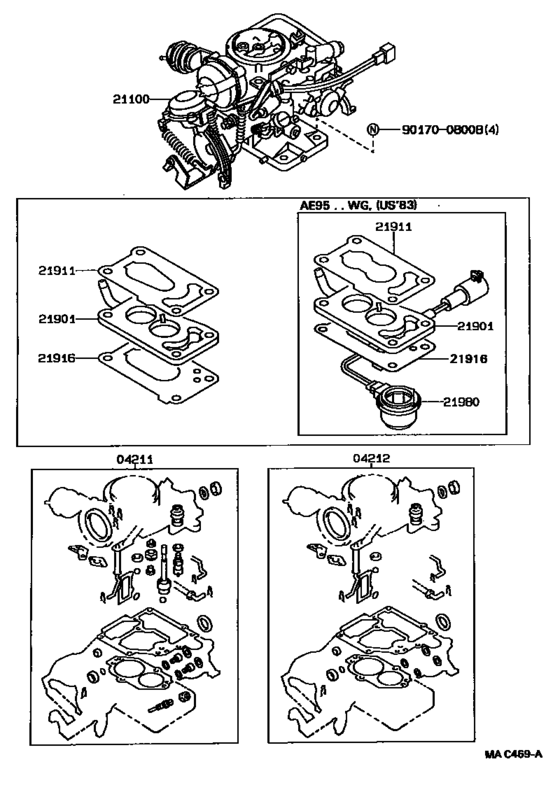

Carburetor Assembly ([05.1987 - ] (8705- )4AF) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- GL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04211
|
04211
04211-16130 Carburetor Kit[05.1987 - 03.1988] 4AF..AE9# |
04211-16130 |
US $205.30 |
||
| replacement | |||||
|
04211
|
04211
04211-16132
Carburetor Kit
[05.1987 - 03.1988] 4AF..AE9# |
04211-16132 |
— | ||
|
04211
|
04211
04211-16131 Carburetor Kit[03.1988 - 08.1989] 4AF..AE9# |
04211-16131 |
US $208.21 |
||
| replacement | |||||
|
04211
|
04211
04211-16132
Carburetor Kit
[03.1988 - 08.1989] 4AF..AE9# |
04211-16132 |
— | ||
|
04211
|
04211
04211-16140
Carburetor Kit
[05.1987 - 03.1988] 4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
04211-16140 |
— | ||
| replacement | |||||
|
04211
|
04211
04211-16142 Carburetor Kit[05.1987 - 03.1988] 4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
04211-16142 |
US $187.82 |
||
|
04211
|
04211
04211-16141
Carburetor Kit
[03.1988 - 08.1989] 4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
04211-16141 |
— | ||
| replacement | |||||
|
04211
|
04211
04211-16142 Carburetor Kit[03.1988 - 08.1989] 4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
04211-16142 |
US $187.82 |
||
|
04211
|
04211
04211-16190 Carburetor Kit[08.1987 - 08.1989] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
04211-16190 |
US $209.66 |
||
| replacement | |||||
|
04211
|
04211
04211-16191 Carburetor Kit[08.1987 - 08.1989] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
04211-16191 |
US $190.74 |
||
|
04211
|
04211
04211-16260
Carburetor Kit
[08.1989 - 11.1989] 4AF..AE92..LHD..5F EX. EMISSION CONTROL(*77) |
04211-16260 |
— | ||
| replacement | |||||
|
04211
|
04211
04211-16261 Carburetor Kit[08.1989 - 11.1989] 4AF..AE92..LHD..5F EX. EMISSION CONTROL(*77) |
04211-16261 |
US $145.60 |
||
|
04211
|
04211
04211-16270 Carburetor Kit[08.1989 - 02.1990] 4AF..AE92..5F |
04211-16270 |
US $160.16 |
||
| replacement | |||||
|
04211
|
04211
04211-16271
Carburetor Kit
[08.1989 - 02.1990] 4AF..AE92..5F |
04211-16271 |
— | ||
|
04211
|
04211
04211-16271
Carburetor Kit
[02.1990 - 05.1992] 4AF..AE92..5F |
04211-16271 |
— | ||
|
04212
|
04212
04212-16070
Gasket Kit, Carburetor
[05.1987 - 12.1987] 4AF..AE92;4AF..AE95..LHD |
04212-16070 |
— | ||
| replacement | |||||
|
04212
|
04212
04212-16071
Gasket Kit, Carburetor
[05.1987 - 12.1987] 4AF..AE92;4AF..AE95..LHD |
04212-16071 |
— | ||
|
04212
|
04212
04212-16071
Gasket Kit, Carburetor
[02.1990 - 08.1990] 4AF..AE9# |
04212-16071 |
— | ||
|
04212
|
04212
04212-16080 Gasket Kit, CarburetorCARBURETOR [08.1987 - 08.1989] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
04212-16080 |
US $96.10 |
||
| replacement | |||||
|
04212
|
04212
04212-16031 Gasket Kit, Carburetor[08.1987 - 08.1989] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
04212-16031 |
US $94.64 |
||
|
21100
|
21100
21100-16300 Carburetor Assy[05.1987 - 11.1987] 4AF..AE92 |
21100-16300 |
US $1,470.56 |
||
|
21100
|
21100
21100-16310
Carburetor Assy
[05.1987 - 08.1989] 4AF..AE92..LHD..5F EX. EMISSION CONTROL(*77) |
21100-16310 |
— | ||
| replacement | |||||
|
21100
|
21100
21100-16420
Carburetor Assy
[05.1987 - 08.1989] 4AF..AE92..LHD..5F EX. EMISSION CONTROL(*77) |
21100-16420 |
— | ||
|
21100
|
21100
21100-16311 Carburetor Assy[08.1989 - 11.1989] 4AF..AE92..LHD..5F EX. EMISSION CONTROL(*77) |
21100-16311 |
US $1,485.12 |
||
|
21100
|
21100
21100-16330
Carburetor Assy
[08.1987 - 08.1989] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
21100-16330 |
— | ||
|
21100
|
21100
21100-16380
Carburetor Assy
[11.1987 - 08.1989] 4AF..AE92..5F |
21100-16380 |
— | ||
| replacement | |||||
|
21100
|
21100
21100-16470
Carburetor Assy
[11.1987 - 08.1989] 4AF..AE92..5F |
21100-16470 |
— | ||
|
21100
|
21100
21100-16381
Carburetor Assy
[08.1989 - 05.1992] 4AF..AE92..5F |
21100-16381 |
— | ||
|
21901
|
21901
21901-15091
Insulator Sub-Assy, Carburetor Heat, No.1
[05.1987 - 05.1992] 4AF..AE92;4AF..AE95..SED |
21901-15091 |
— | ||
|
21901
|
21901
21901-16010
Insulator Sub-Assy, Carburetor Heat, No.1
[05.1987 - 08.1987] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
21901-16010 |
— | ||
|
21911
|
21911
21911-15071
Gasket, Carburetor
[05.1987 - 12.1989] 4AF..AE92;4AF..AE95..SED |
21911-15071 |
— | ||
| replacement | |||||
|
21911
|
21911
21911-15072 Gasket, Carburetor[05.1987 - 12.1989] 4AF..AE92;4AF..AE95..SED |
21911-15072 |
US $4.89 |
||
|
21911
|
21911
21911-15072 Gasket, Carburetor[12.1989 - 05.1992] 4AF..AE92;4AF..AE95..SED |
21911-15072 |
US $4.89 |
||
|
21911
|
21911
21911-16010
Gasket, Carburetor
[05.1987 - 08.1989] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
21911-16010 |
— | ||
| replacement | |||||
|
21911
|
21911
21911-16011
Gasket, Carburetor
[05.1987 - 08.1989] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
21911-16011 |
— | ||
|
21916
|
21916
21916-15040
Gasket, Carburetor, No.2
[05.1987 - 12.1989] 4AF..AE9# |
21916-15040 |
— | ||
| replacement | |||||
|
21916
|
21916
21916-15041 Gasket, Carburetor, No.2[05.1987 - 12.1989] 4AF..AE9# |
21916-15041 |
US $4.89 |
||
|
21916
|
21916
21916-15041 Gasket, Carburetor, No.2[12.1989 - 08.1990] 4AF..AE9# |
21916-15041 |
US $4.89 |
||
|
21980
|
21980
21980-15020 Heater Assy, Cold MixtureCOLD MIXTURE [05.1987 - 08.1987] 4AF..AE92..LHD |
21980-15020 |
US $291.20 |
||
|
21980
|
21980
21980-16010 Heater Assy, Cold MixtureCOLD MIXTURE [08.1987 - 08.1989] 4AF..AE95..WG;4AF..AE92..LHD |
21980-16010 |
US $288.29 |
||
| replacement | |||||
|
21980
|
21980
21980-16020
Heater Assy, Cold Mixture
[08.1987 - 08.1989] 4AF..AE95..WG;4AF..AE92..LHD |
21980-16020 |
— | ||
|
9017008008
|
9017008008
90170-08008 New Genuine Part |
90170-08008 |
US $1.60 |
||
