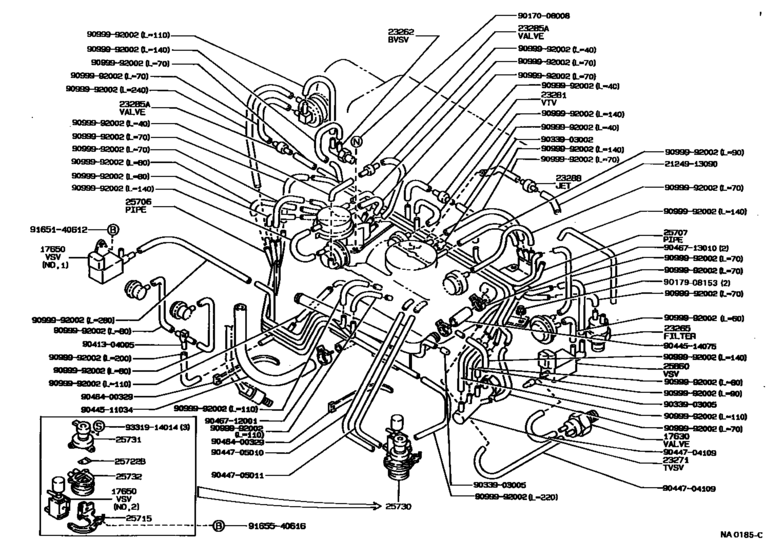

Vacuum Piping ([05.1987 - 08.1989] EXHAUST EMISSION CONTROL(US'83) (8705-8908)4AF) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- GL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17630
|
17630
17630-15021
Valve Assy, Air Control
[05.1987 - 08.1989] 4AF..AE92..LHD |
17630-15021 |
— | ||
|
17650
|
17650
90910-12053
Valve Assy, Vacuum Switching
[08.1987 - 08.1989] 4AF..AE92..LHD..5F; 4AF..AE92..LHD..3FC NO.1,EX. EMISSION CONTROL(US'83) |
90910-12053 |
— | ||
|
23262
|
23262
90925-05017 Valve, Bimetal Vacuum Switching, No.1[10.1987 - 08.1989] 4AF..AE92..LHD |
90925-05017 |
US $46.37 |
||
|
23262
|
23262
90925-05085
Valve, Bimetal Vacuum Switching, No.1
[08.1989 - 09.1989] 4AF..AE95;4AF..AE92..LB,SED |
90925-05085 |
— | ||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[05.1987 - 08.1990] 4AF#..AE9# |
90917-11022 |
from US $17.14 |
||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[08.1987 - 08.1989] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
90917-11023 |
from US $23.41 |
||
|
23271
|
23271
90925-02076
Valve, Thermostatic Vacuum Switching, No.1
[05.1987 - 08.1990] 4AF..AE9# |
90925-02076 |
— | ||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[08.1987 - 08.1989] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
90925-01014 |
— | ||
|
23281
|
23281
90925-01095
Valve, Vacuum Transmitting, No.1
[05.1987 - 08.1989] 4AF..AE9# |
90925-01095 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[05.1987 - 08.1989] 2E..EE90 EX. EMISSION CONTROL(*77); 4AF..AE95..LHD..SED;4AF,4AGE..AE92..LHD..5F EX. EMISSION CONTROL(*77) |
90917-10049 |
from US $6.03 |
||
|
23288
|
23288
90925-01091 Valve, Vacuum Transmitting, No.1[05.1987 - 08.1990] 4AF..AE9# |
90925-01091 |
US $29.35 |
||
|
25706
|
25706
25706-16210 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [05.1987 - 08.1989] 4AF..AE9# |
25706-16210 |
US $63.19 |
||
|
25706
|
25706
25706-16220 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [05.1987 - 11.1989] 4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
25706-16220 |
US $63.48 |
||
|
25706
|
25706
25706-16231 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [08.1987 - 08.1989] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
25706-16231 |
US $94.64 |
||
|
25707
|
25707
25707-16040 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [05.1987 - 08.1989] 4AF..AE9# |
25707-16040 |
US $75.71 |
||
|
25707
|
25707
25707-16050 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [05.1987 - 08.1989] 4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
25707-16050 |
US $107.74 |
||
|
25707
|
25707
25707-16051 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [08.1989 - 11.1989] 4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
25707-16051 |
US $104.83 |
||
|
25707
|
25707
25707-16090 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [08.1987 - 11.1987] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
25707-16090 |
US $106.29 |
||
| replacement | |||||
|
25707
|
25707
25707-16100 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [08.1987 - 11.1987] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
25707-16100 |
US $106.29 |
||
|
25707
|
25707
25707-16100 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [11.1987 - 08.1989] 4AF..AE92..LHD EX. EMISSION CONTROL(US'83) |
25707-16100 |
US $106.29 |
||
|
25707
|
25707
25707-16140 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [08.1989 - 08.1990] 4AF..AE9# |
25707-16140 |
US $74.26 |
||
|
25715
|
25715
25715-16020 Bracket, Emission Control ValveEMISSION CONTROL VALVE [05.1987 - 08.1987] 4AF..AE92..LHD |
25715-16020 |
US $11.79 |
||
|
25715
|
25715
25715-16040 Bracket, Emission Control ValveEMISSION CONTROL VALVE [10.1987 - 08.1989] 4AF..AE92..LHD |
25715-16040 |
US $14.71 |
||
|
25722B
|
25722B
25722-16010 Gasket, Electric Bleed Air Control ValveELECTRIC BLEED AIR CONTROL VALVE [08.1987 - 08.1989] 4AF..AE92..LHD..5F |
25722-16010 |
US $5.97 |
||
|
25730
|
25730
25730-16060 Valve Assy, Electric Bleed Air ControlELECTRIC BLEED AIR CONTROL [08.1987 - 10.1987] 4AF..AE92..LHD..5F |
25730-16060 |
US $441.17 |
||
|
25730
|
25730
25730-16100 Valve Assy, Electric Bleed Air ControlELECTRIC BLEED AIR CONTROL [10.1987 - 08.1989] 4AF..AE92..LHD..5F |
25730-16100 |
US $441.17 |
||
|
25731
|
25731
25731-16010 Valve, Electric Bleed Air ControlELECTRIC BLEED AIR CONTROL [08.1987 - 08.1989] 4AF..AE92..LHD |
25731-16010 |
US $413.50 |
||
|
25732
|
25732
25732-16010
Filter, Electric Bleed Air Control
[05.1987 - 08.1989] 4AF..AE92..LHD |
25732-16010 |
— | ||
|
25860
|
25860
25860-16100 Valve Assy, Vacuum Switching, No.1VACUUM SWITCHING, NO.1 [08.1987 - 08.1989] 4AF..AE92..LHD |
25860-16100 |
US $75.71 |
||
|
2124913090
|
2124913090
21249-13090 Pipe Or Hose |
21249-13090 |
US $4.51 |
||
| replacement | |||||
|
2124913090
|
2124913090
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9017008008
|
9017008008
90170-08008 New Genuine Part |
90170-08008 |
US $1.60 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $3.23 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.77 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.40 |
||
|
9044511034
|
9044511034
90445-11034 New Genuine Part |
90445-11034 |
US $6.99 |
||
|
9044514075
|
9044514075
90445-14075 Hose, No.1(For Air Pipe) |
90445-14075 |
US $5.39 |
||
|
9044704109
|
9044704109
90447-04109 Hose, No.1(For Idle-Up)NO.1(FOR IDLE-UP) |
90447-04109 |
US $4.95 |
||
|
9044705010
|
9044705010
90447-05010 New Genuine Part |
90447-05010 |
US $4.66 |
||
|
9044705011
|
9044705011
90447-05011 New Genuine Part |
90447-05011 |
US $4.37 |
||
|
9046400329
|
9046400329
90464-00329 Clamp (For Fuel Lid Lock Control Cable) |
90464-00329 |
US $2.62 |
||
| replacement | |||||
|
9046400329
|
9046400329
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9046712001
|
9046712001
90467-12001 Clip(For Carburetor Fuel Hose) |
90467-12001 |
US $2.18 |
||
| replacement | |||||
|
9046712001
|
9046712001
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9046713010
|
9046713010
90467-13010 Clip(For Ventilation Hose No.2) |
90467-13010 |
US $2.48 |
||
| replacement | |||||
|
9046713010
|
9046713010
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9331914014
|
9331914014
93319-14014 New Genuine Part |
93319-14014 |
US $2.91 |
||
