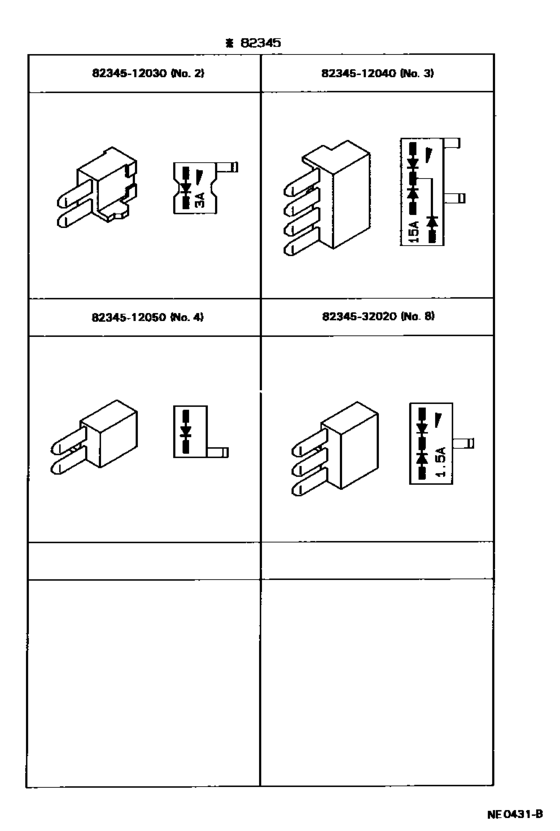

Wiring & Clamp ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- GL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82345
|
82345
82345-12030 Diode[05.1987 - 06.1988] AE92..SED NO.2; AE92..LHD..LB..5F..CBR NO.2; EE90..LHD..SED..MTM..(GL,XL) NO.2; EE90..LHD..LB..5F NO.2 |
82345-12030 |
US $11.36 |
||
|
82345
|
82345
82345-32020 Diode[05.1987 - 02.1988] AE95..EFI;AE92..5F..CBR;AE92..RHD..3FC;EE90..LHD..MTM;AE95,CE90,EE90..RHD NO.8 |
82345-32020 |
US $13.45 |
||
|
8234512030
|
8234512030
82345-12030 Diode |
82345-12030 |
US $11.36 |
||
|
8234512040
|
8234512040
82345-12040 Diode |
82345-12040 |
US $19.66 |
||
|
8234512050
|
8234512050
82345-12050 Diode |
82345-12050 |
US $14.16 |
||
|
8234532020
|
8234532020
82345-32020 Diode |
82345-32020 |
US $13.45 |
