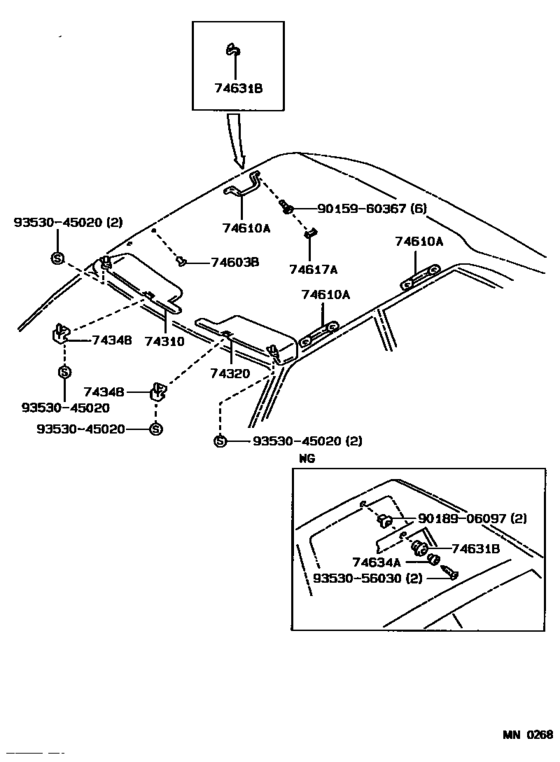

Armrest & Visor ([08.1987 - ] VISOR & ASSIST GRIP (8708- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- LE
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74310
|
74310
74310-1A030-06 Visor Assy, RhRH [08.1989 - 09.1989] AE92..LE..CND LIGHT BROWN,TRIM4#; AE9#..SED..DX..CND MOQUTTE & W(VANITY MIRROR),LIGHT BROWN,TRIM4# |
74310-1A030-06 |
US $56.35 |
||
| replacement | |||||
|
74310
|
74310
74310-12790-06 Visor Assy, RhRH [08.1989 - 09.1989] AE92..LE..CND LIGHT BROWN,TRIM4#; AE9#..SED..DX..CND MOQUTTE & W(VANITY MIRROR),LIGHT BROWN,TRIM4# |
74310-12790-06 |
US $54.02 |
||
|
74310
|
74310
74310-1A030-B2
Visor Assy, Rh
[11.1988 - 08.1990] AE92..LE..CBR;AE92..LE..CND..EFI LIGHT GRAY,TRIM1# |
74310-1A030-B2 |
— | ||
| replacement | |||||
|
74310
|
74310
74310-12790-03
Visor Assy, Rh
[11.1988 - 08.1990] AE92..LE..CBR;AE92..LE..CND..EFI LIGHT GRAY,TRIM1# |
74310-12790-03 |
— | ||
|
74310
|
74310
74310-1A030-D2
Visor Assy, Rh
[11.1988 - 06.1992] AE92..LE..CBR;AE92..LE..CND..EFI MAROON,TRIM3# |
74310-1A030-D2 |
— | ||
| replacement | |||||
|
74310
|
74310
74310-12790-02 Visor Assy, Rh[11.1988 - 06.1992] AE92..LE..CBR;AE92..LE..CND..EFI MAROON,TRIM3# |
74310-12790-02 |
US $54.02 |
||
|
74310
|
74310
74310-1A030-E3 Visor Assy, RhRH [09.1989 - 06.1992] AE92..LE..CND LIGHT BROWN,TRIM4#; AE9#..SED..DX..CND MOQUTTE & W(VANITY MIRROR),LIGHT BROWN,TRIM4# |
74310-1A030-E3 |
US $56.35 |
||
| replacement | |||||
|
74310
|
74310
74310-12790-06 Visor Assy, RhRH [09.1989 - 06.1992] AE92..LE..CND LIGHT BROWN,TRIM4#; AE9#..SED..DX..CND MOQUTTE & W(VANITY MIRROR),LIGHT BROWN,TRIM4# |
74310-12790-06 |
US $54.02 |
||
|
74310
|
74310
74310-1A030-J2
Visor Assy, Rh
[11.1988 - 06.1992] AE92..LE..CBR;AE92..LE..CND..EFI LIGHT BLUE,TRIM8# |
74310-1A030-J2 |
— | ||
| replacement | |||||
|
74310
|
74310
74310-12790-04
Visor Assy, Rh
[11.1988 - 06.1992] AE92..LE..CBR;AE92..LE..CND..EFI LIGHT BLUE,TRIM8# |
74310-12790-04 |
— | ||
|
74320
|
74320
74320-12590-02 Visor Assy, Lh[08.1990 - 06.1992] AE92..LE..CND MAROON,TRIM3#; AE92..SED..DX..CND MOQUTTE & W(VANITY MIRROR),MAROON,TRIM3# |
74320-12590-02 |
US $42.37 |
||
| replacement | |||||
|
74320
|
74320
74320-12590-D0 Visor Assy, Lh[08.1990 - 06.1992] AE92..LE..CND MAROON,TRIM3#; AE92..SED..DX..CND MOQUTTE & W(VANITY MIRROR),MAROON,TRIM3# |
74320-12590-D0 |
US $42.37 |
||
|
74320
|
74320
74320-12590-04 Visor Assy, Lh[08.1990 - 06.1992] AE92..LE..CND LIGHT BLUE,TRIM8#; AE92..SED..DX..CND MOQUTTE & W(VANITY MIRROR),LIGHT BLUE,TRIM8# |
74320-12590-04 |
US $42.37 |
||
| replacement | |||||
|
74320
|
74320
74320-12610-04
Visor Assy, Lh
[08.1990 - 06.1992] AE92..LE..CND LIGHT BLUE,TRIM8#; AE92..SED..DX..CND MOQUTTE & W(VANITY MIRROR),LIGHT BLUE,TRIM8# |
74320-12610-04 |
— | ||
|
74320
|
74320
74320-12650-B2
Visor Assy, Lh
[11.1988 - 08.1990] AE92..LE..CBR;AE92..LE..CND..EFI LIGHT GRAY,TRIM1# |
74320-12650-B2 |
— | ||
| replacement | |||||
|
74320
|
74320
74320-12600-03
Visor Assy, Lh
[11.1988 - 08.1990] AE92..LE..CBR;AE92..LE..CND..EFI LIGHT GRAY,TRIM1# |
74320-12600-03 |
— | ||
|
74320
|
74320
74320-12650-D2
Visor Assy, Lh
[11.1988 - 08.1990] AE92..LE..CBR;AE92..LE..CND..EFI MAROON,TRIM3# |
74320-12650-D2 |
— | ||
| replacement | |||||
|
74320
|
74320
74320-12600-02 Visor Assy, LhLH [11.1988 - 08.1990] AE92..LE..CBR;AE92..LE..CND..EFI MAROON,TRIM3# |
74320-12600-02 |
US $42.37 |
||
|
74320
|
74320
74320-12650-E3 Visor Assy, LhLH [08.1989 - 08.1990] AE92..LE..CND LIGHT BROWN,TRIM4#; AE9#..SED..DX..CND MOQUTTE & W(VANITY MIRROR),LIGHT BROWN,TRIM4# |
74320-12650-E3 |
US $42.81 |
||
|
74320
|
74320
74320-12650-J2
Visor Assy, Lh
[08.1989 - 08.1990] AE92..LE..CND LIGHT BLUE,TRIM8#; AE9#..SED..DX..CND MOQUTTE & W(VANITY MIRROR),LIGHT BLUE,TRIM8# |
74320-12650-J2 |
— | ||
| replacement | |||||
|
74320
|
74320
74320-12610-04
Visor Assy, Lh
[08.1989 - 08.1990] AE92..LE..CND LIGHT BLUE,TRIM8#; AE9#..SED..DX..CND MOQUTTE & W(VANITY MIRROR),LIGHT BLUE,TRIM8# |
74320-12610-04 |
— | ||
|
74348
|
74348
74348-12020-02
Holder, Visor
[10.1987 - 06.1992] AE9#..SED MAROON,TRIM3# |
74348-12020-02 |
— | ||
| replacement | |||||
|
74348
|
74348
74348-12020-B8 Holder, Visor (Gray)[10.1987 - 06.1992] AE9#..SED MAROON,TRIM3# |
74348-12020-B8 |
from US $5.91 |
||
|
74348
|
74348
74348-12020-03
Holder, Visor
[08.1989 - 08.1990] AE9#..SED..DX..USA LIGHT GRAY,TRIM1#; AE95..WG;AE92..CND;AE92..LE..USA;AE95..SED..CND LIGHT GRAY,TRIM1# |
74348-12020-03 |
— | ||
| replacement | |||||
|
74348
|
74348
74348-12020-B8 Holder, Visor (Gray)[08.1989 - 08.1990] AE9#..SED..DX..USA LIGHT GRAY,TRIM1#; AE95..WG;AE92..CND;AE92..LE..USA;AE95..SED..CND LIGHT GRAY,TRIM1# |
74348-12020-B8 |
from US $5.91 |
||
|
74348
|
74348
74348-12020-04 Holder, Visor[10.1987 - 06.1992] AE9# LIGHT BLUE,TRIM8# |
74348-12020-04 |
US $5.39 |
||
| replacement | |||||
|
74348
|
74348
74348-12020-B8 Holder, Visor (Gray)[10.1987 - 06.1992] AE9# LIGHT BLUE,TRIM8# |
74348-12020-B8 |
from US $5.91 |
||
|
74348
|
74348
74348-12020-16 Holder, VisorVISOR [08.1989 - 06.1992] AE9# LIGHT BROWN,TRIM4# |
74348-12020-16 |
US $5.39 |
||
| replacement | |||||
|
74348
|
74348
74348-12020-B8 Holder, Visor (Gray)[08.1989 - 06.1992] AE9# LIGHT BROWN,TRIM4# |
74348-12020-B8 |
from US $5.91 |
||
|
74603B
|
74603B
90467-06048-16 Clip, Roof Headlining[08.1989 - 06.1992] AE95;AE92..SED..(DX,LE) LIGHT BROWN,TRIM4# |
90467-06048-16 |
US $1.89 |
||
| replacement | |||||
|
74603B
|
74603B
90467-06048-A0 Clip(For Roof Headlining)[08.1989 - 06.1992] AE95;AE92..SED..(DX,LE) LIGHT BROWN,TRIM4# |
90467-06048-A0 |
US $2.51 |
||
|
74603B
|
74603B
90467-06048-B1 Clip, Roof Headlining[09.1988 - 08.1990] AE95;AE92..SED..(DX,LE) LIGHT GRAY,TRIM1# |
90467-06048-B1 |
US $1.89 |
||
|
74603B
|
74603B
90467-06048-D0 Clip, Roof Headlining[08.1989 - 09.1990] AE92..LE MAROON,TRIM3# |
90467-06048-D0 |
US $1.89 |
||
|
74603B
|
74603B
90467-06048-J0 Clip, Roof Headlining[09.1988 - 06.1992] AE95;AE92..SED..(DX,LE) LIGHT BLUE,TRIM8# |
90467-06048-J0 |
US $1.89 |
||
| replacement | |||||
|
74603B
|
74603B
90467-06048-W5 Clip, Roof HeadliningROOF HEADLINING [09.1988 - 06.1992] AE95;AE92..SED..(DX,LE) LIGHT BLUE,TRIM8# |
90467-06048-W5 |
US $1.89 |
||
|
74610A
|
74610A
74610-12020-02 Grip Sub-Assy, Assist[08.1989 - 06.1992] AE9#..SED..(DX,LE) W(SUN ROOF),MAROON,TRIM3# |
74610-12020-02 |
US $26.35 |
||
|
74610A
|
74610A
74610-12020-03 Grip Sub-Assy, Assist[08.1990 - 06.1992] AE92..SED..(DX,LE) W(SUN ROOF),LIGHT GRAY,TRIM1# |
74610-12020-03 |
US $26.35 |
||
| replacement | |||||
|
74610A
|
74610A
74610-12020-B2 Grip Sub-Assy, Assist[08.1990 - 06.1992] AE92..SED..(DX,LE) W(SUN ROOF),LIGHT GRAY,TRIM1# |
74610-12020-B2 |
US $26.35 |
||
|
74610A
|
74610A
74610-12020-04 Grip Sub-Assy, Assist[08.1989 - 06.1992] AE9#..SED..(DX,LE) W(SUN ROOF),LIGHT BLUE,TRIM8# |
74610-12020-04 |
US $26.35 |
||
|
74610A
|
74610A
74610-12020-06 Grip Sub-Assy, AssistASSIST [08.1989 - 06.1992] AE9#..SED..(DX,LE) W(SUN ROOF),LIGHT BROWN,TRIM4# |
74610-12020-06 |
US $26.35 |
||
|
74610A
|
74610A
74610-16010-02 Grip Sub-Assy, Assist[08.1987 - 06.1992] AE9#..SED..(DX,LE) MAROON,TRIM3# |
74610-16010-02 |
US $19.66 |
||
| replacement | |||||
|
74610A
|
74610A
74610-12030-B4 Grip Sub-Assy, Assist (Lt.Gray)[08.1987 - 06.1992] AE9#..SED..(DX,LE) MAROON,TRIM3# |
74610-12030-B4 |
from US $12.27 |
||
|
74610A
|
74610A
74610-16010-03 Grip Sub-Assy, Assist[08.1987 - 06.1992] AE9#..DX,LE,SR5 LIGHT GRAY,TRIM1# |
74610-16010-03 |
US $19.66 |
||
| replacement | |||||
|
74610A
|
74610A
74610-12030-B4 Grip Sub-Assy, Assist (Lt.Gray)[08.1987 - 06.1992] AE9#..DX,LE,SR5 LIGHT GRAY,TRIM1# |
74610-12030-B4 |
from US $12.27 |
||
|
74610A
|
74610A
74610-16010-04 Grip Sub-Assy, Assist[08.1987 - 06.1992] AE9#..DX,LE,SR5 LIGHT BLUE,TRIM8# |
74610-16010-04 |
US $19.66 |
||
| replacement | |||||
|
74610A
|
74610A
74610-12030-B4 Grip Sub-Assy, Assist (Lt.Gray)[08.1987 - 06.1992] AE9#..DX,LE,SR5 LIGHT BLUE,TRIM8# |
74610-12030-B4 |
from US $12.27 |
||
|
74610A
|
74610A
74610-16010-06 Grip Sub-Assy, Assist[08.1989 - 06.1992] AE9#..DX,LE,SR5 BROWN,TRIM4# |
74610-16010-06 |
US $19.66 |
||
| replacement | |||||
|
74610A
|
74610A
74610-12030-B4 Grip Sub-Assy, Assist (Lt.Gray)[08.1989 - 06.1992] AE9#..DX,LE,SR5 BROWN,TRIM4# |
74610-12030-B4 |
from US $12.27 |
||
|
74617A
|
74617A
74617-16010-02 Plug, Assist Grip[08.1987 - 06.1992] AE9#..SED..(DX,LE) MAROON,TRIM3# |
74617-16010-02 |
US $2.48 |
||
|
74617A
|
74617A
74617-16010-24 Plug, Assist Grip[08.1987 - 06.1992] AE9#..DX,LE,SR5 DEEP BLUE,TRIM8# |
74617-16010-24 |
US $2.48 |
||
|
74617A
|
74617A
74617-16010-53 Plug, Assist Grip[08.1987 - 06.1992] AE9#..DX,LE,SR5 LIGHT GRAY,TRIM1# |
74617-16010-53 |
US $1.46 |
||
|
74617A
|
74617A
74617-16010-E1 Plug, Assist Grip[08.1989 - 06.1992] AE9#..DX,LE,SR5 LIGHT BROWN,TRIM4# |
74617-16010-E1 |
US $2.48 |
||
|
74631B
|
74631B
74631-20040-02 Hook, CoatCOAT [01.1988 - 06.1992] AE9#..SED..(DX,LE) MAROON,TRIM3# |
74631-20040-02 |
US $4.37 |
||
|
74631B
|
74631B
74631-20040-04 Hook, CoatCOAT [01.1988 - 06.1992] AE95;AE92..SED..(DX,LE) BLUE,TRIM8# |
74631-20040-04 |
US $4.37 |
||
|
74631B
|
74631B
74631-20040-13 Hook, CoatCOAT [01.1988 - 06.1992] AE95;AE92..SED..(DX,LE) GRAY,TRIM1# |
74631-20040-13 |
US $4.37 |
||
| replacement | |||||
|
74631B
|
74631B
74631-14010-B0
Hook, Coat
[01.1988 - 06.1992] AE95;AE92..SED..(DX,LE) GRAY,TRIM1# |
74631-14010-B0 |
— | ||
|
74631B
|
74631B
74631-20040-16 Hook, CoatCOAT [08.1989 - 06.1992] AE95;AE92..SED..(DX,LE) LIGHT BROWN,TRIM4# |
74631-20040-16 |
US $4.37 |
||
| replacement | |||||
|
74631B
|
74631B
74631-14010-B0
Hook, Coat
[08.1989 - 06.1992] AE95;AE92..SED..(DX,LE) LIGHT BROWN,TRIM4# |
74631-14010-B0 |
— | ||
|
9015960367
|
9015960367
90159-60367 Screw |
90159-60367 |
from US $0.80 |
||
|
9018906097
|
9018906097
90189-06097 New Genuine Part |
90189-06097 |
US $1.05 |
||
|
9353045020
|
9353045020
93530-45020 SCREW |
93530-45020 |
from US $1.97 |
||
|
9353056030
|
9353056030
93530-56030 New Genuine Part |
93530-56030 |
US $1.46 |
||
