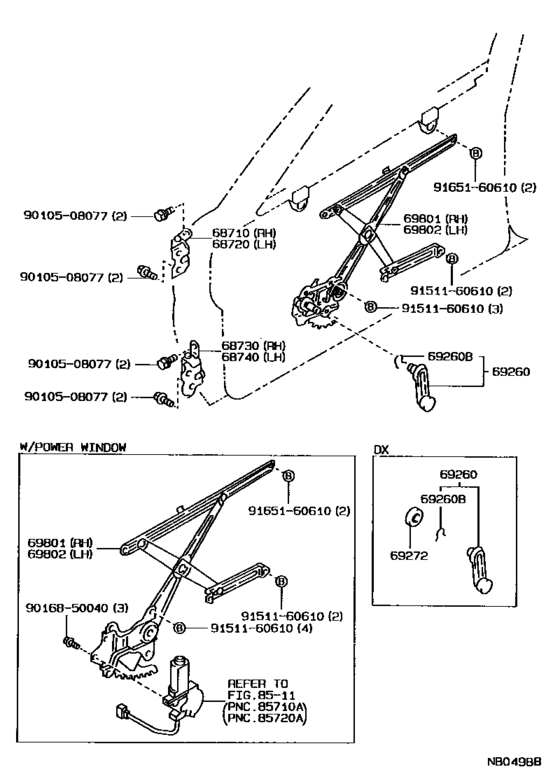

Front Door Window Regulator & Hinge ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- LE
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12110 Hinge Assy, Front Door, Upper Rh[08.1987 - 06.1992] AE9# |
68710-12110 |
US $40.70 |
||
|
68720
|
68720
68720-12110
Hinge Assy, Front Door, Upper Lh
[08.1987 - 06.1992] AE9# |
68720-12110 |
— | ||
|
68730
|
68730
68730-12070
Hinge Assy, Front Door, Lower Rh
[08.1987 - 06.1992] AE9# |
68730-12070 |
— | ||
|
68740
|
68740
68740-12070
Hinge Assy, Front Door, Lower Lh
[08.1987 - 06.1992] AE9# |
68740-12070 |
— | ||
|
69260
|
69260
69260-12080-02 Handle Assy, Front Door Window Regulator[08.1987 - 06.1992] AE92..LE MAROON,TRIM3# |
69260-12080-02 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-12080-B3 Handle Assy, Front Door Window Regulator[08.1987 - 06.1992] AE92..LE MAROON,TRIM3# |
69260-12080-B3 |
from US $10.76 |
||
|
69260
|
69260
69260-12080-03 Handle Assy, Front Door Window Regulator[08.1987 - 06.1992] AE9#..LE,SR5 SHADOW GRAY,TRIM1# |
69260-12080-03 |
US $13.54 |
||
|
69260
|
69260
69260-12080-04 Handle Assy, Front Door Window Regulator[08.1987 - 06.1992] AE9#..LE,SR5 BLUE,TRIM8# |
69260-12080-04 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-12080-B3 Handle Assy, Front Door Window Regulator[08.1987 - 06.1992] AE9#..LE,SR5 BLUE,TRIM8# |
69260-12080-B3 |
from US $10.76 |
||
|
69260
|
69260
69260-12080-06 Handle Assy, Front Door Window RegulatorFRONT DOOR WINDOW REGULATOR [08.1989 - 06.1992] AE9#..LE,SR5 BROWN,TRIM4# |
69260-12080-06 |
US $21.55 |
||
| replacement | |||||
|
69260
|
69260
69260-12080-B3 Handle Assy, Front Door Window Regulator[08.1989 - 06.1992] AE9#..LE,SR5 BROWN,TRIM4# |
69260-12080-B3 |
from US $10.76 |
||
|
69260B
|
69260B
90520-01005 Ring, Shaft Snap(For Front Door Window Regulator Handle)[08.1987 - 06.1992] AE9#..LE,SR5 |
90520-01005 |
from US $1.07 |
||
|
69801
|
69801
69801-12100
Regulator Sub-Assy, Front Door Window, Rh
[08.1987 - 06.1992] AE9#..LE,SR5 W(*PW) |
69801-12100 |
— | ||
|
69801
|
69801
69810-12290
Regulator Sub-Assy, Front Door Window, Rh
[08.1987 - 06.1992] AE9# |
69810-12290 |
— | ||
|
69802
|
69802
69802-12100 Regulator Sub-Assy, Front Door Window, Lh[08.1987 - 06.1992] AE9#..LE,SR5 W(*PW) |
69802-12100 |
US $97.55 |
||
|
69802
|
69802
69820-12290 Regulator Sub-Assy, Front Door Window, Lh[08.1987 - 06.1992] AE9# |
69820-12290 |
US $84.45 |
||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.97 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
US $2.15 |
||
