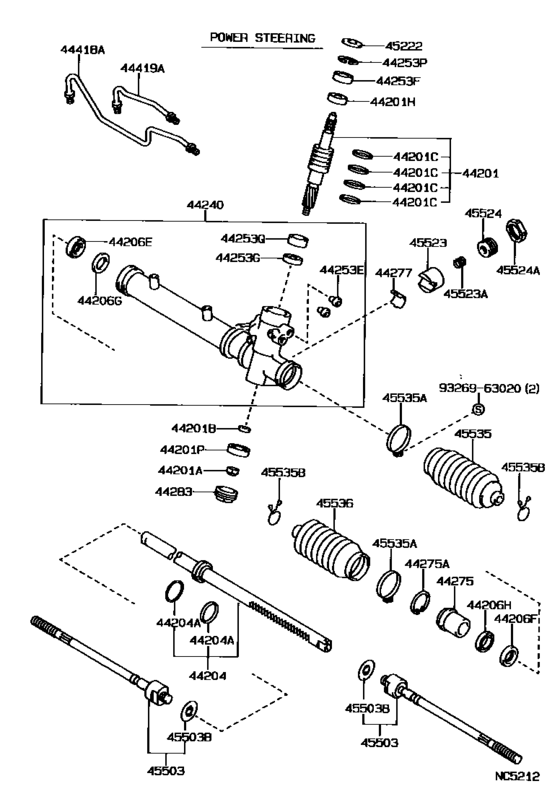

Front Steering Gear & Link ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- LE
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44201
|
44201
44201-12170 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [08.1989 - 06.1991] AE9# |
44201-12170 |
US $292.66 |
||
| replacements | |||||
|
44201
|
44201
44201-12171 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [08.1989 - 06.1991] AE9# |
44201-12171 |
from US $270.93 |
||
|
44201
|
44201
90179-12098
Nut, Lock(For Power Steering Control Valve)
[08.1989 - 06.1991] AE9# |
90179-12098 |
— | ||
|
44201
|
44201
44201-12171 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [06.1991 - 06.1992] AE92 |
44201-12171 |
from US $270.93 |
||
|
44201A
|
44201A
90179-12098
Nut, Lock(For Power Steering Control Valve)
[06.1991 - 06.1992] AE92 |
90179-12098 |
— | ||
|
44201A
|
44201A
94184-61200 Nut, Lock(For Power Steering Control Valve)[08.1989 - 06.1991] AE9# |
94184-61200 |
from US $1.03 |
||
|
44201B
|
44201B
90560-12030 Spacer(For Power Steering Control Valve)[08.1987 - 08.1990] AE9# |
90560-12030 |
US $3.32 |
||
|
44201C
|
44201C
90562-33002 Ring(For Power Steering Control Valve)[08.1987 - 08.1990] AE9# |
90562-33002 |
US $3.89 |
||
|
44201H
|
44201H
90369-19005 Bearing(For Power Steering Control Valve Upper)[08.1987 - 08.1990] AE9# |
90369-19005 |
US $18.35 |
||
|
44201P
|
44201P
90363-12008 Bearing(For Power Steering Control Valve Lower)[08.1987 - 08.1990] AE9# |
90363-12008 |
from US $11.01 |
||
|
44204
|
44204
44204-12040 Rack Sub-Assy, Power SteeringPOWER STEERING [08.1987 - 08.1990] AE9# |
44204-12040 |
US $254.80 |
||
| replacement | |||||
|
44204
|
44204
44204-12041 Rack Sub-Assy, Power SteeringPOWER STEERING [08.1987 - 08.1990] AE9# |
44204-12041 |
US $282.46 |
||
|
44204A
|
44204A
90301-33003 Ring(For Rack Steering Piston)[08.1987 - 06.1992] AE9# TOYOTA,INNER |
90301-33003 |
US $4.84 |
||
|
44204A
|
44204A
90562-37001 Ring(For Rack Steering Piston)[08.1987 - 06.1991] AE9# TOYOTA,OUTER; AE92..EFI TOYOAT,OUTER |
90562-37001 |
US $4.37 |
||
| replacement | |||||
|
44204A
|
44204A
90562-37004 Ring(For Rack Steering Piston)[08.1987 - 06.1991] AE9# TOYOTA,OUTER; AE92..EFI TOYOAT,OUTER |
90562-37004 |
US $3.86 |
||
|
44204A
|
44204A
90562-37004 Ring(For Rack Steering Piston)[06.1991 - 06.1992] AE92 TOYOTA,OUTER |
90562-37004 |
US $3.86 |
||
|
44206E
|
44206E
90310-24007 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1987 - 08.1990] AE9# |
90310-24007 |
US $2.77 |
||
| replacement | |||||
|
44206E
|
44206E
90310-24012 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1987 - 08.1990] AE9# |
90310-24012 |
from US $3.40 |
||
|
44206F
|
44206F
90310-24008 Seal, Oil, No.2(For Power Steering Cylinder Tube)[08.1987 - 08.1990] AE9# |
90310-24008 |
US $2.77 |
||
| replacement | |||||
|
44206F
|
44206F
90310-24012 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1987 - 08.1990] AE9# |
90310-24012 |
from US $3.40 |
||
|
44206G
|
44206G
90560-24005
Spacer, No.1(For Power Steering Cylinder Tube)
[08.1987 - 08.1990] AE9# |
90560-24005 |
— | ||
|
44206H
|
44206H
90560-24005
Spacer, No.1(For Power Steering Cylinder Tube)
[12.1991 - 06.1992] AE92 |
90560-24005 |
— | ||
|
44206H
|
44206H
90560-25007 Spacer, No.2(For Power Steering Cylinder Tube)[08.1987 - 08.1990] AE9# |
90560-25007 |
US $4.08 |
||
|
44240
|
44240
44240-12110
Housing Assy, Power Steering Rack
[08.1989 - 03.1991] AE9# |
44240-12110 |
— | ||
| replacements | |||||
|
44240
|
44240
45523-12080 Guide, Rack(For Steering Gear)[08.1989 - 03.1991] AE9# |
45523-12080 |
US $16.02 |
||
|
44240
|
44240
45517-12111 Grommet, Steering Rack Housing, No.2[08.1989 - 03.1991] AE9# |
45517-12111 |
from US $19.49 |
||
|
44240
|
44240
44240-12113 Housing Assy, Power Steering RackPOWER STEERING RACK [08.1989 - 03.1991] AE9# |
44240-12113 |
US $422.24 |
||
|
44240
|
44240
44277-12040 Seat, Rack Guide[08.1989 - 03.1991] AE9# |
44277-12040 |
from US $7.10 |
||
|
44240
|
44240
45524-12041 Cap, Steering Rack Guide Spring[08.1989 - 03.1991] AE9# |
45524-12041 |
US $9.03 |
||
|
44240
|
44240
44240-12111 Housing Assy, Power Steering RackPOWER STEERING RACK [06.1991 - 12.1991] AE92 |
44240-12111 |
US $422.24 |
||
| replacements | |||||
|
44240
|
44240
44240-12113 Housing Assy, Power Steering RackPOWER STEERING RACK [06.1991 - 12.1991] AE92 |
44240-12113 |
US $422.24 |
||
|
44240
|
44240
45523-12080 Guide, Rack(For Steering Gear)[06.1991 - 12.1991] AE92 |
45523-12080 |
US $16.02 |
||
|
44240
|
44240
44277-12040 Seat, Rack Guide[06.1991 - 12.1991] AE92 |
44277-12040 |
from US $7.10 |
||
|
44240
|
44240
45524-12041 Cap, Steering Rack Guide Spring[06.1991 - 12.1991] AE92 |
45524-12041 |
US $9.03 |
||
|
44240
|
44240
44240-12112 Housing Assy, Power Steering RackPOWER STEERING RACK [12.1991 - 05.1992] AE92 |
44240-12112 |
US $422.24 |
||
| replacements | |||||
|
44240
|
44240
44240-12113 Housing Assy, Power Steering RackPOWER STEERING RACK [12.1991 - 05.1992] AE92 |
44240-12113 |
US $422.24 |
||
|
44240
|
44240
45523-12080 Guide, Rack(For Steering Gear)[12.1991 - 05.1992] AE92 |
45523-12080 |
US $16.02 |
||
|
44240
|
44240
45524-12041 Cap, Steering Rack Guide Spring[12.1991 - 05.1992] AE92 |
45524-12041 |
US $9.03 |
||
|
44240
|
44240
44240-12113 Housing Assy, Power Steering RackPOWER STEERING RACK [05.1992 - 06.1992] AE92 |
44240-12113 |
US $422.24 |
||
|
44253E
|
44253E
90410-06002 Seat, Union(For Power Steering Control Valve)[08.1987 - 08.1990] AE9# |
90410-06002 |
US $3.94 |
||
|
44253F
|
44253F
90311-19007 Seal, Oil(For Power Steering Control Valve)[08.1987 - 08.1990] AE9# |
90311-19007 |
from US $1.97 |
||
|
44253G
|
44253G
90310-23005 Seal, Oil, No.2(For Power Steering Rack Housing)[08.1987 - 08.1990] AE9# |
90310-23005 |
from US $3.05 |
||
|
44253P
|
44253P
90521-41003
Ring, Snap(For Power Steering Control Valve)
[08.1987 - 08.1990] AE9# |
90521-41003 |
— | ||
|
44253Q
|
44253Q
90389-28001 Bush(For Power Steering Rack Housing)[08.1987 - 08.1990] AE9# |
90389-28001 |
US $5.77 |
||
|
44275
|
44275
44275-12020 Stopper, Cylinder End[08.1987 - 08.1990] AE9# |
44275-12020 |
US $10.63 |
||
|
44275
|
44275
44275-12080
Stopper, Cylinder End
[12.1991 - 06.1992] AE92 |
44275-12080 |
— | ||
| replacement | |||||
|
44275
|
44275
44275-12090 Stopper, Cylinder End[12.1991 - 06.1992] AE92 |
44275-12090 |
US $28.13 |
||
|
44275A
|
44275A
90521-50002 Ring, Hole Snap(For Cylinder End Stopper)[08.1987 - 08.1990] AE9# |
90521-50002 |
US $1.14 |
||
|
44277
|
44277
44277-12020 Seat, Rack Guide[08.1987 - 08.1990] AE9# |
44277-12020 |
US $5.39 |
||
|
44277
|
44277
44277-12040 Seat, Rack Guide[12.1991 - 06.1992] AE92 |
44277-12040 |
from US $7.10 |
||
|
44283
|
44283
44283-12010 Cap, Power Steering Rack Housing[08.1987 - 08.1990] AE9# |
44283-12010 |
US $8.21 |
||
|
44418A
|
44418A
44418-12140
Tube, Steering Right Turn Pressure
[08.1987 - 08.1990] AE9# |
44418-12140 |
— | ||
|
44419A
|
44419A
44419-12140
Tube, Steering Left Turn Pressure
[08.1987 - 08.1990] AE9# |
44419-12140 |
— | ||
|
45222
|
45222
45222-12090 Cover, Steering Gear Dust[08.1987 - 08.1990] AE9# |
45222-12090 |
US $3.20 |
||
|
45503
|
45503
45503-19125 End Sub-Assy, Steering Rack[08.1989 - 08.1990] AE9# |
45503-19125 |
from US $91.44 |
||
|
45503
|
45503
45503-19135 End Sub-Assy, Steering Rack[08.1989 - 08.1990] AE9#..DX,LE,STD W(POWER STEERING) |
45503-19135 |
US $109.88 |
||
|
45503B
|
45503B
90214-14009 Washer, Claw(For Steering Rack End)[08.1989 - 08.1990] AE9# OD=35.2 |
90214-14009 |
from US $1.68 |
||
|
45523
|
45523
45523-12020 Guide, Rack(For Power Steering)[08.1989 - 08.1990] AE9#..DX,LE,STD W(POWER STEERING) |
45523-12020 |
US $5.82 |
||
|
45523
|
45523
45523-12040 Guide, Rack(For Steering Gear)[08.1989 - 08.1990] AE9# |
45523-12040 |
US $6.29 |
||
|
45523
|
45523
45523-12060 Guide, Rack(For Steering Gear)[12.1991 - 05.1992] AE92..LE; AE92..DX,STD W(POWER STEERING) |
45523-12060 |
US $16.02 |
||
| replacement | |||||
|
45523
|
45523
45523-12080 Guide, Rack(For Steering Gear)[12.1991 - 05.1992] AE92..LE; AE92..DX,STD W(POWER STEERING) |
45523-12080 |
US $16.02 |
||
|
45523
|
45523
45523-12080 Guide, Rack(For Steering Gear)[05.1992 - 06.1992] AE92..LE; AE92..DX,STD W(POWER STEERING) |
45523-12080 |
US $16.02 |
||
|
45523A
|
45523A
90501-26038 Spring(For Power Steering Rack Guide)[08.1987 - 08.1990] AE92 |
90501-26038 |
US $2.62 |
||
|
45523A
|
45523A
90501-29016 Spring(For Steering Gear Rack Guide)[08.1989 - 08.1990] AE9#..DX,LE,STD W(POWER STEERING) |
90501-29016 |
US $6.99 |
||
|
45524
|
45524
45524-12010 Cap, Rack Guide Spring(For Power Steering)[08.1989 - 08.1990] AE9#..DX,LE,STD W(POWER STEERING) |
45524-12010 |
US $9.03 |
||
| replacement | |||||
|
45524
|
45524
45524-12041 Cap, Steering Rack Guide Spring[08.1989 - 08.1990] AE9#..DX,LE,STD W(POWER STEERING) |
45524-12041 |
US $9.03 |
||
|
45524
|
45524
45524-12041 Cap, Steering Rack Guide Spring[05.1992 - 06.1992] AE92..LE; AE92..DX,STD W(POWER STEERING) |
45524-12041 |
US $9.03 |
||
|
45524
|
45524
45524-16010 Cap(For Power Steering Pinion)[08.1989 - 08.1990] AE9# |
45524-16010 |
US $7.98 |
||
|
45524A
|
45524A
90179-33003 Nut(For Power Steering Rack Guide Cap)[08.1989 - 08.1990] AE9#..DX,LE,STD W(POWER STEERING) |
90179-33003 |
US $5.24 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[08.1989 - 08.1990] AE9# |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-12011 Boot, Steering Rack, No.1[08.1989 - 08.1990] AE9# |
45535-12011 |
from US $30.58 |
||
|
45535
|
45535
45535-12040
Boot, Steering Rack No.1(For Power Steering)
[08.1989 - 08.1990] AE9#..DX,LE,STD W(POWER STEERING) |
45535-12040 |
— | ||
|
45535A
|
45535A
90461-10273 Clamp(For Steering Rack Boot)[08.1989 - 08.1990] AE9# NO.1 BOOT |
90461-10273 |
from US $5.56 |
||
|
45535A
|
45535A
90949-01081 Clamp(For Power Steering Rack Boot)[08.1989 - 08.1990] AE9#..DX,LE,STD W(POWER STEERING) |
90949-01081 |
US $6.63 |
||
|
45535A
|
45535A
90949-01082 Clamp(For Power Steering Rack Boot)[08.1989 - 08.1990] AE9# NO.2 BOOT |
90949-01082 |
US $5.56 |
||
|
45535B
|
45535B
90467-18003 Clip Or Clamp(For Ventilation Hose)[08.1989 - 08.1990] AE9# |
90467-18003 |
from US $2.15 |
||
|
45536
|
45536
45535-12040
Boot, Steering Rack No.1(For Power Steering)
[08.1989 - 08.1990] AE9#..DX,LE,STD W(POWER STEERING) |
45535-12040 |
— | ||
|
45536
|
45536
45536-12030 Boot, Steering Rack, No.2[08.1989 - 08.1990] AE9# |
45536-12030 |
US $26.94 |
||
|
9326963020
|
9326963020
93269-63020 Screw(For Steering Rack Boot Clamp) |
93269-63020 |
US $1.97 |
||
