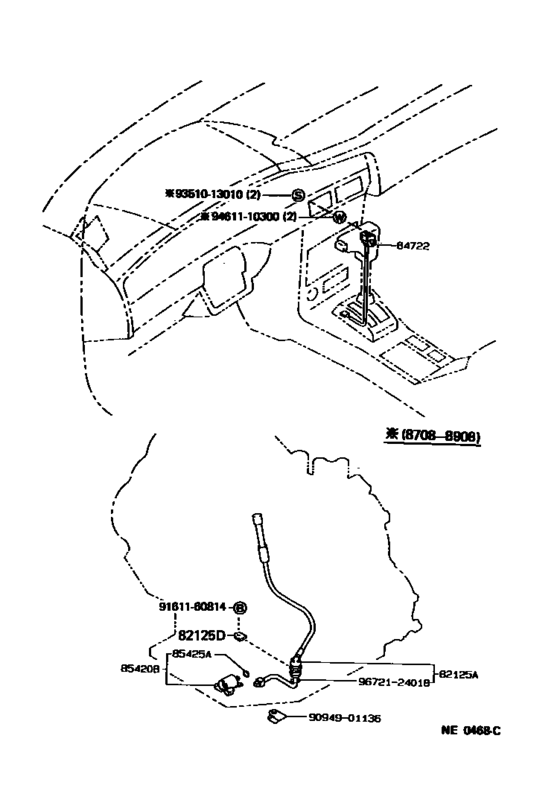

Overdrive & Electronic Controlled Transmission ([08.1987 - ] (8708- )4FC) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- LE
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82125A
|
82125A
82125-20100
Wire, Transmission
[08.1989 - 06.1990] AE92..4FC |
82125-20100 |
— | ||
|
82125D
|
82125D
33485-30020 Plate, Speedometer Sleeve Lock (For Atm)[08.1987 - 06.1992] AE9#..4FC |
33485-30020 |
from US $1.66 |
||
|
84722
|
84722
84722-12040-02 Switch, Transmission ControlTRANSMISSION CONTROL [08.1989 - 06.1992] AE9#..SED..4FC MAROON,TRIM3# |
84722-12040-02 |
US $42.22 |
||
| replacement | |||||
|
84722
|
84722
84722-12040-B1 Switch, Transmission ControlTRANSMISSION CONTROL [08.1989 - 06.1992] AE9#..SED..4FC MAROON,TRIM3# |
84722-12040-B1 |
US $42.22 |
||
|
84722
|
84722
84722-12040-03 Switch, Transmission ControlTRANSMISSION CONTROL [08.1989 - 08.1990] AE9#..4FC SHADOW GRAY,TRIM1# |
84722-12040-03 |
US $42.22 |
||
| replacement | |||||
|
84722
|
84722
84722-12040-B1 Switch, Transmission ControlTRANSMISSION CONTROL [08.1989 - 08.1990] AE9#..4FC SHADOW GRAY,TRIM1# |
84722-12040-B1 |
US $42.22 |
||
|
84722
|
84722
84722-12040-04 Switch, Transmission ControlTRANSMISSION CONTROL [08.1989 - 06.1992] AE9#..4FC DARK BLUE,TRIM8# |
84722-12040-04 |
US $42.22 |
||
| replacement | |||||
|
84722
|
84722
84722-12040-B1 Switch, Transmission ControlTRANSMISSION CONTROL [08.1989 - 06.1992] AE9#..4FC DARK BLUE,TRIM8# |
84722-12040-B1 |
US $42.22 |
||
|
84722
|
84722
84722-12040-06 Switch, Transmission ControlTRANSMISSION CONTROL [08.1989 - 06.1992] AE9#..4FC BROWN,TRIM4# |
84722-12040-06 |
US $42.22 |
||
| replacement | |||||
|
84722
|
84722
84722-12040-B1 Switch, Transmission ControlTRANSMISSION CONTROL [08.1989 - 06.1992] AE9#..4FC BROWN,TRIM4# |
84722-12040-B1 |
US $42.22 |
||
|
85420B
|
85420B
85420-10011
Solenoid Assy, Transmission
[11.1988 - 05.1992] AE9#..4FC |
85420-10011 |
— | ||
|
85425A
|
85425A
90301-06004 Ring, O No.3(For Transmission Solenoid)[08.1987 - 05.1992] AE9#..4FC |
90301-06004 |
from US $2.15 |
||
|
9094901136
|
9094901136
90949-01136 New Genuine Part |
90949-01136 |
US $3.20 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9351013010
|
9351013010
93510-13010 Bolt Or Pin (For Shift Lever Knob Setting) |
93510-13010 |
US $1.97 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9672124018
|
9672124018
96721-24018 Ring, O |
96721-24018 |
from US $3.78 |
||
