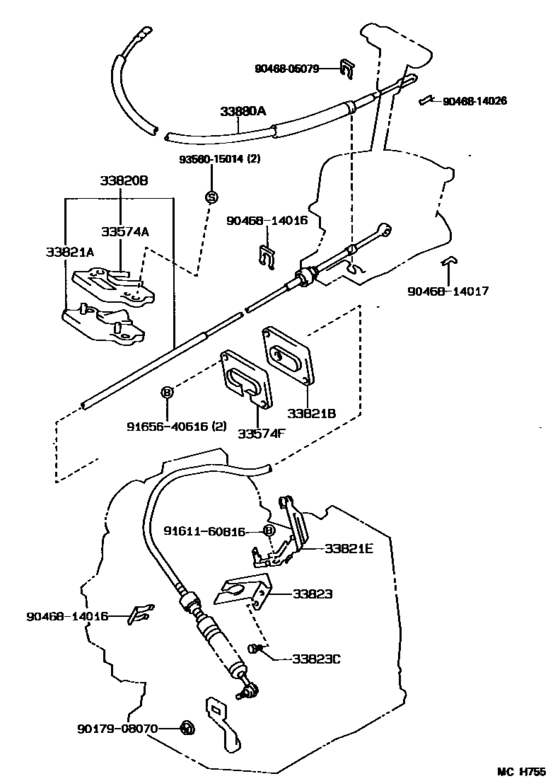

Shift Lever & Retainer ([08.1987 - ] (8708- )ATM) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- LE
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33574A
|
33574A
33574-12040
Retainer, Shift Cable Grommet, No.1
[08.1987 - 06.1992] AE9#..ATM |
33574-12040 |
— | ||
|
33574F
|
33574F
33574-12030 Retainer, Dust Seal (For Floor Shift)[08.1987 - 06.1992] AE9#..ATM |
33574-12030 |
US $7.43 |
||
|
33820B
|
33820B
33820-12150 Cable Assy, Transmission Control[08.1989 - 06.1992] AE92..4FC |
33820-12150 |
US $234.42 |
||
|
33821A
|
33821A
90480-01395 Grommet, No.1 (For Transmission Control Cable)[08.1987 - 06.1992] AE9#..ATM |
90480-01395 |
US $6.84 |
||
|
33821B
|
33821B
90480-01391
Grommet, No.2 (For Transmission Control Cable)
[08.1987 - 06.1992] AE9#..ATM |
90480-01391 |
— | ||
|
33821E
|
33821E
90949-01397 Clamp, No.1 (For Transmission Control Cable)[08.1987 - 09.1989] AE92..ATM |
90949-01397 |
US $9.17 |
||
| replacement | |||||
|
33821E
|
33821E
90949-01508 Clamp, No.1 (For Transmission Control Cable)[08.1987 - 09.1989] AE92..ATM |
90949-01508 |
US $8.88 |
||
|
33821E
|
33821E
90949-01508 Clamp, No.1 (For Transmission Control Cable)[09.1989 - 06.1992] AE92..ATM |
90949-01508 |
US $8.88 |
||
|
33823
|
33823
33823-12070 Bracket, Transmission Control Cable, No.1[02.1988 - 06.1992] AE9#..4FC..EFI |
33823-12070 |
US $26.35 |
||
|
33823C
|
33823C
91611-61022
Bolt (For Transmission Control Cable Bracket)
[08.1987 - 06.1992] AE9#..4FC |
91611-61022 |
— | ||
| replacement | |||||
|
33823C
|
33823C
91612-61022 Bolt (For Transmission Control Cable Bracket)[08.1987 - 06.1992] AE9#..4FC |
91612-61022 |
US $2.33 |
||
|
33880A
|
33880A
33880-12010
Cable Assy, Parking Lock (For Floor Shift)
[08.1989 - 06.1992] AE9#..ATM |
33880-12010 |
— | ||
|
9017908070
|
9017908070
90179-08070 Nut (For Connecting Rod Swivel) |
90179-08070 |
US $2.04 |
||
|
9046805079
|
9046805079
90468-05079 New Genuine Part |
90468-05079 |
US $1.46 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.82 |
||
|
9046814026
|
9046814026
90468-14026 New Genuine Part |
90468-14026 |
US $0.73 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.25 |
||
