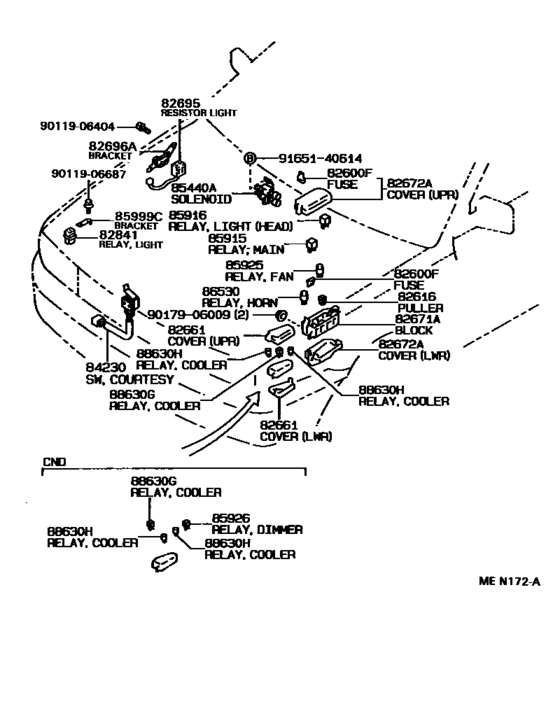

Switch & Relay & Computer ([08.1989 - ] (8908- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- LE
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[08.1989 - 06.1992] AE9# 30A |
90982-07011 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[08.1989 - 06.1992] AE9#..CND 10A |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1989 - 06.1992] AE92 15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1987 - 06.1992] AE9# 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1989 - 06.1992] AE92 7.5A |
90982-09005 |
from US $0.99 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[08.1989 - 06.1992] AE9# |
82616-12010 |
US $3.40 |
||
|
82661
|
82661
82661-12170 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [08.1989 - 06.1992] AE9#..CND UPR |
82661-12170 |
US $9.32 |
||
|
82661
|
82661
82661-12180 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [08.1989 - 06.1992] AE9#..CND LWR |
82661-12180 |
US $13.10 |
||
|
82671A
|
82671A
82671-12090 Block, JunctionJUNCTION [08.1989 - 06.1992] AE9#..CND |
82671-12090 |
US $149.97 |
||
|
82672A
|
82672A
82672-12070
Cover, Junction Block
[08.1989 - 06.1992] AE9# LWR |
82672-12070 |
— | ||
|
82672A
|
82672A
82672-12160 Cover, Junction BlockJUNCTION BLOCK [08.1989 - 06.1992] AE9#..CND UPR |
82672-12160 |
US $30.28 |
||
|
82695
|
82695
82695-12010 Resistor, Daytime Running LightDAYTIME RUNNING LIGHT [08.1991 - 06.1992] AE92..CND |
82695-12010 |
US $75.71 |
||
|
82696A
|
82696A
82696-13010 Bracket, Running Light ResistorRUNNING LIGHT RESISTOR [08.1991 - 06.1992] AE92..CND |
82696-13010 |
US $14.27 |
||
|
82841
|
82841
82841-12010 Relay, Running Light Voltage Control[08.1991 - 06.1992] AE92..CND |
82841-12010 |
US $62.90 |
||
|
85915
|
85915
90987-04002 Relay, Ignition, No.1[08.1987 - 06.1992] AE9# |
90987-04002 |
from US $24.30 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[08.1987 - 06.1992] AE9# MARUKO,TAIL |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1987 - 06.1992] AE9# MARUKO,TAIL |
90987-02004 |
from US $28.10 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1987 - 06.1992] AE9# NIPPONDENSO,TAIL |
90987-02004 |
from US $28.10 |
||
|
85916
|
85916
90987-02006 Relay[08.1987 - 06.1992] AE9# HEAD |
90987-02006 |
from US $26.75 |
||
|
85925
|
85925
90987-03001 Relay[08.1987 - 06.1992] AE9# |
90987-03001 |
from US $31.65 |
||
|
85926
|
85926
85926-30020 Relay, Headlamp Dimmer[08.1989 - 06.1992] AE9#..CND |
85926-30020 |
from US $44.58 |
||
|
85999C
|
85999C
85999-13010
Bracket, Relay, No.3
[08.1991 - 06.1992] AE92..CND |
85999-13010 |
— | ||
|
86530
|
86530
90987-02002
Relay, Ignition, No.1
[08.1987 - 06.1992] AE9# MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
86530
|
86530
90987-02004 Relay Assy, Starter[08.1987 - 06.1992] AE9# MARUKO |
90987-02004 |
from US $28.10 |
||
|
86530
|
86530
90987-02004 Relay Assy, Starter[08.1987 - 06.1992] AE9# NIPPONDENSO |
90987-02004 |
from US $28.10 |
||
|
88630G
|
88630G
88630-32010
Relay Assy, Cooler
[08.1987 - 09.1990] AE9# |
88630-32010 |
— | ||
|
88630H
|
88630H
90987-02004 Relay Assy, Starter[08.1987 - 09.1990] AE9# |
90987-02004 |
from US $28.10 |
||
|
9011906404
|
9011906404
90119-06404
New Genuine Part
|
90119-06404 |
— | ||
|
9011906687
|
9011906687
90119-06687 BOLT WWASHER |
90119-06687 |
US $2.15 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
