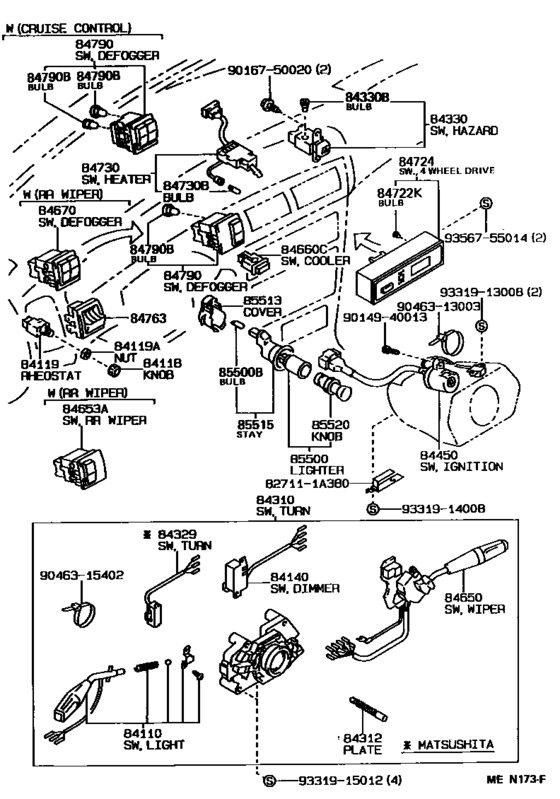

Switch & Relay & Computer ([08.1989 - ] (8908- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- LE
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-80001
Switch Assy, Light Control, No.1
[08.1987 - 06.1992] AE9# MATSUSHITA |
84112-80001 |
— | ||
|
84110
|
84110
84112-80002 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [08.1987 - 06.1992] AE9# TOKAIRIKA |
84112-80002 |
US $69.60 |
||
| replacement | |||||
|
84110
|
84110
84112-39585 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [08.1987 - 06.1992] AE9# TOKAIRIKA |
84112-39585 |
US $70.47 |
||
|
84118
|
84118
84118-12070 Knob, Light Control Rheostat[08.1987 - 06.1992] AE9# |
84118-12070 |
US $13.40 |
||
|
84119
|
84119
84119-32090
Rheostat, Light Control
[08.1988 - 06.1992] AE9# |
84119-32090 |
— | ||
| replacement | |||||
|
84119
|
84119
84119-03010 Rheostat, Light ControlLIGHT CONTROL [08.1988 - 06.1992] AE9# |
84119-03010 |
US $384.05 |
||
|
84119A
|
84119A
90170-09167
Nut, Tunnel Mode Select Switch
[08.1987 - 06.1992] AE9# |
90170-09167 |
— | ||
|
84140
|
84140
84140-12250 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.1987 - 06.1992] AE9# MATSUSHITA |
84140-12250 |
US $77.17 |
||
|
84140
|
84140
84140-12260
Switch Assy, Headlamp Dimmer
[08.1987 - 06.1992] AE9# TOKAIRIKA |
84140-12260 |
— | ||
| replacement | |||||
|
84140
|
84140
84140-26100
Switch Assy, Headlamp Dimmer
[08.1987 - 06.1992] AE9# TOKAIRIKA |
84140-26100 |
— | ||
|
84310
|
84310
84310-1A171 Switch Assy, Turn SignalTURN SIGNAL [08.1989 - 08.1990] AE9#..LE,SR5; AE95..DX W(INTERMITTENT WIPER); AE92..SED..DX W(INTERMITTENT WIPER); AE92..WG..USA W(INTERMITTENT WIPER) |
84310-1A171 |
US $254.80 |
||
|
84310
|
84310
84310-1A201 Switch Assy, Turn SignalTURN SIGNAL [08.1989 - 06.1992] AE9#..DX,LE,SR5 W(CRUISE CONTROL) |
84310-1A201 |
US $327.60 |
||
|
84312
|
84312
84312-12040 Plate, Horn Contact[08.1987 - 06.1992] AE9# TOKAIRIKA |
84312-12040 |
from US $6.49 |
||
|
84312
|
84312
84312-12050 Plate, Horn Contact[08.1987 - 06.1992] AE9# MATSUSHITA |
84312-12050 |
from US $8.05 |
||
|
84329
|
84329
84329-12030 Switch, Turn SignalTURN SIGNAL [08.1987 - 06.1992] AE9# |
84329-12030 |
US $14.12 |
||
|
84330
|
84330
84332-12300
Switch Assy, Hazard Warning Signal
[08.1989 - 06.1992] AE9# |
84332-12300 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-12310
Switch Assy, Hazard Warning Signal
[08.1989 - 06.1992] AE9# |
84332-12310 |
— | ||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[08.1989 - 06.1992] AE9# 14V 0.84W,14V 0.84W |
84999-10320 |
from US $4.30 |
||
|
84450
|
84450
84450-12170 Switch Assy, Ignition Or Starter[08.1989 - 06.1992] AE95..4FC;AE92..SED..ATM..(DX,LE) |
84450-12170 |
US $75.71 |
||
|
84650
|
84650
84652-12790 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.1987 - 08.1990] AE9#..LE,SR5 MATSUSHITA; AE95..DX;AE92..DX..CBR;AE92..DX..USA..EFI;AE92..SED..DX..CND..EFI W(INTERMITTENT WIPER),MATSUSHITA |
84652-12790 |
US $136.86 |
||
|
84650
|
84650
84652-12800
Switch Assy, Windshield Wiper
[08.1987 - 08.1990] AE9#..LE,SR5 TOKAIRIKA; AE95..DX;AE92..DX..CBR;AE92..DX..USA..EFI;AE92..SED..DX..CND..EFI W(INTERMITTENT WIPER),TOKAIRIKA |
84652-12800 |
— | ||
|
84650
|
84650
84652-12810
Switch Assy, Windshield Wiper
[08.1989 - 06.1992] AE9#..DX,LE,SR5 W(CRUISE CONTROL),MATSUSHITA |
84652-12810 |
— | ||
|
84650
|
84650
84652-12820 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.1989 - 06.1992] AE9#..DX,LE,SR5 W(CRUISE CONTROL),TOKAIRIKA |
84652-12820 |
US $199.47 |
||
|
84660C
|
84660C
84660-12130 Switch, Cooler[08.1989 - 08.1990] AE9#..CND |
84660-12130 |
US $52.85 |
||
|
84730
|
84730
84732-12270
Switch Assy, Heater Blower
[08.1987 - 06.1992] AE9# |
84732-12270 |
— | ||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[08.1987 - 06.1992] AE9# 14V 1.4W |
90981-11014 |
from US $2.15 |
||
|
84790
|
84790
84630-12110-02 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [08.1989 - 09.1989] AE9#..SED..CND W(CRUISE CONTROL),MAROON,TRIM3# |
84630-12110-02 |
US $77.17 |
||
| replacement | |||||
|
84790
|
84790
84630-12110-D0 Switch Assy, Cruise Control MainREAR WINDOW DEFOGGER [08.1989 - 09.1989] AE9#..SED..CND W(CRUISE CONTROL),MAROON,TRIM3# |
84630-12110-D0 |
US $84.45 |
||
|
84790
|
84790
84630-12110-03 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [08.1989 - 08.1990] AE9#..SED..CND W(CRUISE CONTROL),SHADOW GRAY,TRIM1#; AE9#..WG..CND W(CRUISE CONTROL),SHADOW GRAY,SHADOW GRAY,TRIM1# |
84630-12110-03 |
US $77.17 |
||
| replacement | |||||
|
84790
|
84790
84630-12110-B1 Switch Assy, Cruise Control Main[08.1989 - 08.1990] AE9#..SED..CND W(CRUISE CONTROL),SHADOW GRAY,TRIM1#; AE9#..WG..CND W(CRUISE CONTROL),SHADOW GRAY,SHADOW GRAY,TRIM1# |
84630-12110-B1 |
US $84.45 |
||
|
84790
|
84790
84630-12110-04 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [08.1989 - 09.1989] AE95..WG..CND DARK BLUE,TRIM8#; AE9#..SED..CND W(CRUISE CONTROL),DARK BLUE,TRIM8# |
84630-12110-04 |
US $84.45 |
||
| replacement | |||||
|
84790
|
84790
84630-12110-B0 Switch Assy, Cruise Control Main[08.1989 - 09.1989] AE95..WG..CND DARK BLUE,TRIM8#; AE9#..SED..CND W(CRUISE CONTROL),DARK BLUE,TRIM8# |
84630-12110-B0 |
US $84.45 |
||
|
84790
|
84790
84630-12110-06 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [08.1989 - 09.1989] AE9#..SED..CND W(CRUISE CONTROL),BROWN,TRIM4#; AE95..WG..CND W(CRUISE CONTROL),BROWN,BROWN,TRIM4# |
84630-12110-06 |
US $77.17 |
||
| replacement | |||||
|
84790
|
84790
84630-12110-D0 Switch Assy, Cruise Control MainREAR WINDOW DEFOGGER [08.1989 - 09.1989] AE9#..SED..CND W(CRUISE CONTROL),BROWN,TRIM4#; AE95..WG..CND W(CRUISE CONTROL),BROWN,BROWN,TRIM4# |
84630-12110-D0 |
US $84.45 |
||
|
84790
|
84790
84630-12110-D0 Switch Assy, Cruise Control MainREAR WINDOW DEFOGGER [09.1989 - 08.1990] AE9#..SED..CND W(CRUISE CONTROL),MAROON,TRIM3# |
84630-12110-D0 |
US $84.45 |
||
|
84790
|
84790
84630-12110-E0 Switch Assy, Cruise Control MainREAR WINDOW DEFOGGER [09.1989 - 08.1990] AE9#..SED..CND W(CRUISE CONTROL),BROWN,TRIM4#; AE9#..WG..CND W(CRUISE CONTROL),BROWN,BROWN,TRIM4# |
84630-12110-E0 |
US $84.45 |
||
| replacement | |||||
|
84790
|
84790
84630-12110-D0 Switch Assy, Cruise Control MainREAR WINDOW DEFOGGER [09.1989 - 08.1990] AE9#..SED..CND W(CRUISE CONTROL),BROWN,TRIM4#; AE9#..WG..CND W(CRUISE CONTROL),BROWN,BROWN,TRIM4# |
84630-12110-D0 |
US $84.45 |
||
|
84790
|
84790
84630-12110-J0 Switch Assy, Cruise Control MainREAR WINDOW DEFOGGER [09.1989 - 08.1990] AE9#..SED..CND W(CRUISE CONTROL),DARK BLUE,TRIM8#; AE9#..WG..CND W(CRUISE CONTROL),DARK BLUE,DARK BLUE,TRIM8# |
84630-12110-J0 |
US $84.45 |
||
| replacement | |||||
|
84790
|
84790
84630-12110-B0 Switch Assy, Cruise Control Main[09.1989 - 08.1990] AE9#..SED..CND W(CRUISE CONTROL),DARK BLUE,TRIM8#; AE9#..WG..CND W(CRUISE CONTROL),DARK BLUE,DARK BLUE,TRIM8# |
84630-12110-B0 |
US $84.45 |
||
|
84790
|
84790
84790-12290-02 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [08.1989 - 06.1992] AE9#..SED MAROON,TRIM3# |
84790-12290-02 |
US $57.66 |
||
| replacement | |||||
|
84790
|
84790
84790-12290-22
Switch Assy, Rear Window Defogger
[08.1989 - 06.1992] AE9#..SED MAROON,TRIM3# |
84790-12290-22 |
— | ||
|
84790
|
84790
84790-12290-03 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [08.1989 - 08.1990] AE92;AE95..SED SHADOW GRAY,TRIM1# |
84790-12290-03 |
US $57.66 |
||
| replacement | |||||
|
84790
|
84790
84790-12290-22
Switch Assy, Rear Window Defogger
[08.1989 - 08.1990] AE92;AE95..SED SHADOW GRAY,TRIM1# |
84790-12290-22 |
— | ||
|
84790
|
84790
84790-12290-04 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [08.1989 - 06.1992] AE92;AE95..SED DARK BLUE,TRIM8# |
84790-12290-04 |
US $57.66 |
||
| replacement | |||||
|
84790
|
84790
84790-12290-22
Switch Assy, Rear Window Defogger
[08.1989 - 06.1992] AE92;AE95..SED DARK BLUE,TRIM8# |
84790-12290-22 |
— | ||
|
84790
|
84790
84790-12290-06 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [08.1989 - 06.1992] AE92;AE95..SED BROWN,TRIM4# |
84790-12290-06 |
US $57.66 |
||
| replacement | |||||
|
84790
|
84790
84790-12290-22
Switch Assy, Rear Window Defogger
[08.1989 - 06.1992] AE92;AE95..SED BROWN,TRIM4# |
84790-12290-22 |
— | ||
|
84790
|
84790
84790-12290-B1 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [08.1990 - 06.1992] AE92..DX,LE SHADOW GRAY,TRIM1# |
84790-12290-B1 |
US $57.51 |
||
| replacement | |||||
|
84790
|
84790
84790-12290-22
Switch Assy, Rear Window Defogger
[08.1990 - 06.1992] AE92..DX,LE SHADOW GRAY,TRIM1# |
84790-12290-22 |
— | ||
|
85500
|
85500
85500-12250
Lighter Assy, Cigarette
[08.1987 - 06.1992] AE9# |
85500-12250 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-10120 Lighter Assy, Cigarette[08.1987 - 06.1992] AE9# |
85500-10120 |
US $59.98 |
||
|
85500B
|
85500B
84999-10230
Bulb, Cigarette Lighter
[08.1987 - 06.1992] AE9# 14V 1.4W |
84999-10230 |
— | ||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[05.1989 - 06.1992] AE9# |
85513-12020 |
from US $4.97 |
||
|
85515
|
85515
85515-12010 Stay, Cigarette Lighter Bezel[08.1987 - 06.1992] AE9# |
85515-12010 |
US $14.71 |
||
|
85520
|
85520
85520-20080 Knob And Element Assy, Cigarette Lighter[06.1988 - 06.1992] AE9# |
85520-20080 |
US $31.45 |
||
|
827111A380
|
827111A380
82711-1A380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A380 |
US $12.67 |
||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.25 |
||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $2.15 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $3.23 |
||
|
9046315402
|
9046315402
90463-15402 New Genuine Part |
90463-15402 |
US $3.06 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
