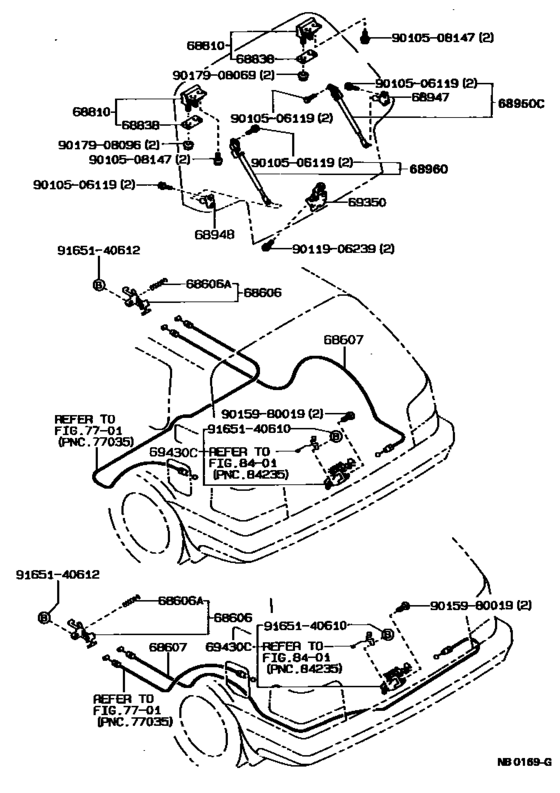

Back Door Lock & Handle ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- SR5
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68606
|
68606
64606-12050 Lever Sub-Assy, Luggage Door Lock Open[05.1987 - 11.1992] AE92,CE90,EE90..LHD..(GL,GLI,GTI,SR5,XL,XLI) |
64606-12050 |
from US $52.92 |
||
|
68606A
|
68606A
90506-09034 Spring, Tension(For Luggage Door Lock Open Lever)[05.1987 - 11.1992] AE92,CE90,EE90..LHD..(GL,GLI,GTI,SR5,XL,XLI) |
90506-09034 |
US $2.97 |
||
|
68607
|
68607
64607-12540
Cable Sub-Assy, Back Door Lock Control
[05.1987 - 11.1992] AE92,CE90,EE90..LHD..(GL,GLI,GTI,SR5,XL,XLI) |
64607-12540 |
— | ||
|
68810
|
68810
68801-12041 Hinge Assy, Back Door, Upper[08.1988 - 11.1992] AE92,CE90,EE90 |
68801-12041 |
US $26.79 |
||
|
68838
|
68838
68838-10011 Pad, Back Door Hinge, No.1[08.1988 - 11.1992] AE92,CE90,EE90 |
68838-10011 |
US $4.22 |
||
|
68947
|
68947
68947-12010 Bracket, Back Door Damper Stay, Lower Rh[05.1987 - 11.1992] AE92,CE90,EE90 |
68947-12010 |
US $5.82 |
||
|
68948
|
68948
68948-12010 Bracket, Back Door Damper Stay, Lower Lh[05.1987 - 11.1992] AE92,CE90,EE90 |
68948-12010 |
US $5.82 |
||
|
68950C
|
68950C
68950-19606
Stay Assy, Back Door, Rh
[08.1988 - 06.1991] AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
68950-19606 |
— | ||
| replacement | |||||
|
68950C
|
68950C
68950-19805
Stay Assy, Back Door, Rh
[08.1988 - 06.1991] AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
68950-19805 |
— | ||
|
68950C
|
68950C
68950-19616 Stay Assy, Back Door, Rh[08.1989 - 06.1991] AE92,CE90,EE90..3D..MTM..(GL,SR5,STD) W(*RW); EE90..5D..GL;EE90..3FC..GL;AE92,CE90,EE90..GLI,XL,XLI W(*RW OR REAR AIR SPOILER) |
68950-19616 |
US $123.76 |
||
| replacement | |||||
|
68950C
|
68950C
68950-19815 Stay Assy, Back Door, Rh[08.1989 - 06.1991] AE92,CE90,EE90..3D..MTM..(GL,SR5,STD) W(*RW); EE90..5D..GL;EE90..3FC..GL;AE92,CE90,EE90..GLI,XL,XLI W(*RW OR REAR AIR SPOILER) |
68950-19815 |
US $117.94 |
||
|
68950C
|
68950C
68950-19805
Stay Assy, Back Door, Rh
[06.1991 - 06.1992] AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
68950-19805 |
— | ||
|
68950C
|
68950C
68950-19815 Stay Assy, Back Door, Rh[06.1991 - 05.1992] AE92,CE90,EE90..3D..MTM..(GL,SR5,STD) W(*RW) |
68950-19815 |
US $117.94 |
||
|
68960
|
68960
68960-19296
Stay Assy, Back Door, Lh
[08.1988 - 06.1991] AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
68960-19296 |
— | ||
| replacement | |||||
|
68960
|
68960
68960-19495
Stay Assy, Back Door, Lh
[08.1988 - 06.1991] AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
68960-19495 |
— | ||
|
68960
|
68960
68960-19306 Stay Assy, Back Door, Lh[08.1989 - 06.1991] AE92,CE90,EE90..3D..MTM..(GL,SR5,STD) W(*RW); EE90..5D..GL;EE90..3FC..GL;AE92,CE90,EE90..GLI,XL,XLI W(*RW OR REAR AIR SPOILER) |
68960-19306 |
US $123.76 |
||
| replacement | |||||
|
68960
|
68960
68960-19505 Stay Assy, Back Door, Lh[08.1989 - 06.1991] AE92,CE90,EE90..3D..MTM..(GL,SR5,STD) W(*RW); EE90..5D..GL;EE90..3FC..GL;AE92,CE90,EE90..GLI,XL,XLI W(*RW OR REAR AIR SPOILER) |
68960-19505 |
US $117.94 |
||
|
68960
|
68960
68960-19495
Stay Assy, Back Door, Lh
[06.1991 - 06.1992] AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
68960-19495 |
— | ||
|
68960
|
68960
68960-19505 Stay Assy, Back Door, Lh[06.1991 - 05.1992] AE92,CE90,EE90..3D..MTM..(GL,SR5,STD) W(*RW) |
68960-19505 |
US $117.94 |
||
|
69350
|
69350
69350-12130 Lock Assy, Back Door[05.1987 - 11.1992] AE92,CE90,EE90 |
69350-12130 |
US $80.08 |
||
|
69430C
|
69430C
69430-12240 Striker Assy, Back Door Lock[05.1987 - 11.1992] AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
69430-12240 |
US $52.27 |
||
|
9010506119
|
9010506119
90105-06119
New Genuine Part
|
90105-06119 |
— | ||
| replacement | |||||
|
9010506119
|
9010506119
90105-06184 BOLT WASHER BASED |
90105-06184 |
US $1.25 |
||
|
9010508147
|
9010508147
90105-08147
New Genuine Part
|
90105-08147 |
— | ||
|
9011906239
|
9011906239
90119-06239 New Genuine Part |
90119-06239 |
US $1.60 |
||
| replacement | |||||
|
9011906239
|
9011906239
90119-06236 New Genuine Part |
90119-06236 |
US $0.96 |
||
|
9015980019
|
9015980019
90159-80019 New Genuine Part |
90159-80019 |
US $1.79 |
||
|
9017908069
|
9017908069
90179-08069 New Genuine Part |
90179-08069 |
US $1.75 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.40 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
