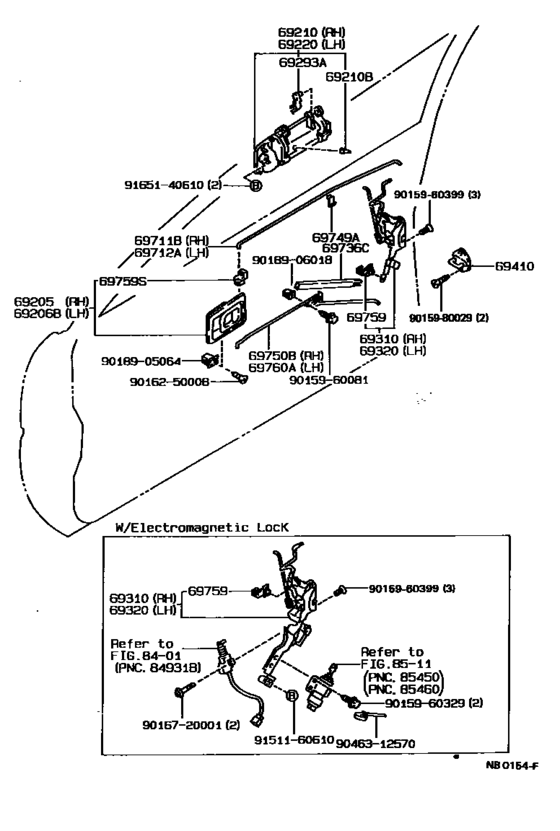

Front Door Lock & Handle ([05.1987 - ] (8705- )3D) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- SR5
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-16050-03
Handle Sub-Assy, Front Door Inside, Rh
[05.1987 - 11.1992] AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
69205-16050-03 |
— | ||
| replacement | |||||
|
69205
|
69205
69205-16050-01
Handle Sub-Assy, Front Door Inside, Rh
[05.1987 - 11.1992] AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
69205-16050-01 |
— | ||
|
69206B
|
69206B
69206-16050-03
Handle Sub-Assy, Front Door Inside, Lh
[05.1987 - 11.1992] AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
69206-16050-03 |
— | ||
| replacement | |||||
|
69206B
|
69206B
69206-16050-01
Handle Sub-Assy, Front Door Inside, Lh
[05.1987 - 11.1992] AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
69206-16050-01 |
— | ||
|
69210
|
69210
69210-12110 Handle Assy, Front Door, Outside Rh[05.1987 - 11.1992] AE92,CE90,EE90 |
69210-12110 |
US $98.80 |
||
|
69210B
|
69210B
90541-04014 Cushion, Console Box[08.1989 - 11.1992] AE92,CE90,EE90 |
90541-04014 |
from US $0.80 |
||
|
69220
|
69220
69220-12110 Handle Assy, Front Door Outside, Lh[05.1987 - 11.1992] AE92,CE90,EE90 |
69220-12110 |
US $98.80 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[05.1987 - 11.1992] AE92,CE90,EE90 RH |
69293-12030 |
from US $1.97 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[05.1987 - 11.1992] AE92,CE90,EE90 LH |
69293-12040 |
from US $1.93 |
||
|
69310
|
69310
69310-12291 Lock Assy, Front Door, Rh[08.1989 - 11.1992] AE92,CE90,EE90..3D |
69310-12291 |
US $116.48 |
||
|
69310
|
69310
69310-12301 Lock Assy, Front Door, RhFRONT DOOR, RH [08.1989 - 11.1992] EE90..LHD..3D..XL;EE90..3D..3FC..EFI;AE92,CE90..LHD..3D..(GLI,GTI,SR5,XL,XLI) W(*EL) |
69310-12301 |
US $101.92 |
||
|
69320
|
69320
69320-12301 Lock Assy, Front Door, Lh[08.1989 - 11.1992] AE92,CE90,EE90..3D |
69320-12301 |
US $116.48 |
||
|
69320
|
69320
69320-12321 Lock Assy, Front Door, LhFRONT DOOR, LH [08.1989 - 11.1992] EE90..LHD..3D..XL;EE90..3D..3FC..EFI;AE92,CE90..LHD..3D..(GLI,GTI,SR5,XL,XLI) W(*EL) |
69320-12321 |
US $116.48 |
||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[05.1987 - 11.1992] AE92,CE90,EE90 |
69410-87001 |
from US $9.50 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[05.1987 - 11.1992] AE92,CE90,EE90 |
69410-AA020 |
US $50.37 |
||
|
69711B
|
69711B
69711-12110 Link, Front Door Lock Remote Control, Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
69711-12110 |
US $8.88 |
||
|
69712A
|
69712A
69712-12120 Link, Front Door Lock Remote Control, Lh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
69712-12120 |
US $8.88 |
||
|
69736C
|
69736C
69736-12070
Guide, Front Door Locking Link
[05.1987 - 11.1992] AE92,CE90,EE90..3D RH |
69736-12070 |
— | ||
|
69736C
|
69736C
69736-12080
Guide, Front Door Locking Link
[05.1987 - 11.1992] AE92,CE90,EE90..3D LH |
69736-12080 |
— | ||
|
69750B
|
69750B
69750-12020 Link Assy, Front Door Inside Locking, Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
69750-12020 |
US $23.30 |
||
|
69759
|
69759
69759-20040 Snap, Auxiliary Catch Release Lever Control Link[05.1987 - 11.1992] AE92,CE90,EE90..3D LH,YELLOW |
69759-20040 |
from US $1.58 |
||
|
69759
|
69759
69759-20050 Snap(For Rear Door Lock)[05.1987 - 11.1992] AE92,CE90,EE90..3D RH,BROWN |
69759-20050 |
US $1.93 |
||
|
69759
|
69759
69759-20100 Snap, Tail Gate Handle[05.1987 - 11.1992] AE92,CE90,EE90..3D RH,RED; EE90..3D..3FC..EFI;EE90..LHD..3D..(GL,XL);AE92,CE90..LHD..3D..(GL,GLI,GTI,SR5,XL,X LI) W(*EL),RH,RED |
69759-20100 |
US $3.32 |
||
|
69759
|
69759
69759-20110 Snap, Auxiliary Catch Release Lever Control Link[05.1987 - 11.1992] AE92,CE90,EE90..3D LH,BLACK; EE90..3D..3FC..EFI;EE90..LHD..3D..(GL,XL);AE92,CE90..LHD..3D..(GL,GLI,GTI,SR5,XL,X LI) W(*EL),LH,BLACK |
69759-20110 |
from US $1.83 |
||
|
69759S
|
69759S
69759-22040 Snap, Door Inside Handle Rod(For Front Door)[05.1987 - 11.1992] AE92,CE90,EE90..3D RH |
69759-22040 |
US $4.48 |
||
|
69759S
|
69759S
69759-22050 Snap, Door Inside Handle Rod(For Front Door)[05.1987 - 11.1992] AE92,CE90,EE90..3D LH |
69759-22050 |
US $4.48 |
||
|
69760A
|
69760A
69760-12020 Link Assy, Front Door Inside Locking, Lh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
69760-12020 |
US $23.30 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9015960329
|
9015960329
90159-60329 New Genuine Part |
90159-60329 |
US $1.60 |
||
|
9015960399
|
9015960399
90159-60399 New Genuine Part |
90159-60399 |
US $1.60 |
||
|
9015980029
|
9015980029
90159-80029 New Genuine Part |
90159-80029 |
US $0.61 |
||
|
9016250008
|
9016250008
90162-50008 SCREW |
90162-50008 |
from US $0.86 |
||
|
9016720001
|
9016720001
90167-20001 New Genuine Part |
90167-20001 |
US $0.87 |
||
|
9018905064
|
9018905064
90189-05064 New Genuine Part |
90189-05064 |
US $1.89 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.58 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
