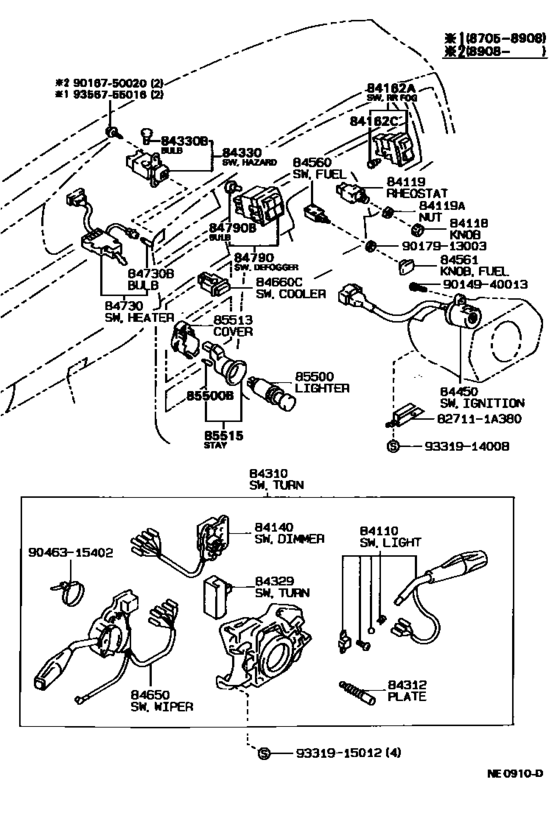

Switch & Relay & Computer ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- SR5
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-80001
Switch Assy, Light Control, No.1
[05.1987 - 11.1992] AE92,CE90,EE90..LHD MATSUSHITA |
84112-80001 |
— | ||
|
84110
|
84110
84112-80002 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [05.1987 - 11.1992] AE92,CE90,EE90..LHD TOKAIRIKA |
84112-80002 |
US $69.60 |
||
| replacement | |||||
|
84110
|
84110
84112-39585 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [05.1987 - 11.1992] AE92,CE90,EE90..LHD TOKAIRIKA |
84112-39585 |
US $70.47 |
||
|
84118
|
84118
84118-12070 Knob, Light Control Rheostat[05.1987 - 11.1992] AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
84118-12070 |
US $13.40 |
||
|
84119
|
84119
84119-20082 Rheostat, Light Control[05.1987 - 11.1992] AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
84119-20082 |
US $81.54 |
||
|
84119A
|
84119A
90170-09167
Nut, Tunnel Mode Select Switch
[05.1987 - 11.1992] AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
90170-09167 |
— | ||
|
84140
|
84140
84140-12250 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [05.1987 - 11.1992] AE92,CE90,EE90..LHD MATSUSHITA |
84140-12250 |
US $77.17 |
||
|
84140
|
84140
84140-12260
Switch Assy, Headlamp Dimmer
[05.1987 - 11.1992] AE92,CE90,EE90..LHD TOKAIRIKA |
84140-12260 |
— | ||
| replacement | |||||
|
84140
|
84140
84140-26100
Switch Assy, Headlamp Dimmer
[05.1987 - 11.1992] AE92,CE90,EE90..LHD TOKAIRIKA |
84140-26100 |
— | ||
|
84162A
|
84162A
84162-12070-01 Switch, Rear Fog LampREAR FOG LAMP [08.1989 - 05.1992] AE92..SR5 W(*PW & *EL),BLACK,TRIM1# |
84162-12070-01 |
US $57.08 |
||
|
84162A
|
84162A
84162-12080-01 Switch, Rear Fog LampREAR FOG LAMP [08.1989 - 05.1992] AE92..SR5 W(*EL),BLACK,TRIM1#; EE90..LHD..3D..XL;EE90..3D..3FC..EFI;AE92,CE90..LHD..3D..(XL,XLI) W(*EL),BLACK,TRIM1#,8# |
84162-12080-01 |
US $81.54 |
||
|
84162C
|
84162C
84999-10170 Bulb, Indicator Lamp[05.1987 - 11.1992] AE92,CE90,EE90 12V 1.12W |
84999-10170 |
US $7.88 |
||
|
84310
|
84310
84310-1A120 Switch Assy, Turn SignalTURN SIGNAL [08.1989 - 11.1992] AE92,CE90,EE90..LHD W(INTERMITTENT WIPER,WASHER-INTERLINKED) |
84310-1A120 |
US $264.99 |
||
|
84310
|
84310
84310-1A151 Switch Assy, Turn SignalTURN SIGNAL [08.1989 - 02.1990] AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI) |
84310-1A151 |
US $247.52 |
||
|
84310
|
84310
84310-1A440 Switch Assy, Turn SignalTURN SIGNAL [08.1989 - 06.1992] EE90..STD..EFI;EE90..LHD..(GL,XL,XLI);AE92,CE90..LHD..(GLI,SR5,STD,XL,XLI) W(INTERMITTENT WIPER & *RW) |
84310-1A440 |
US $264.99 |
||
| replacement | |||||
|
84310
|
84310
84310-1A120 Switch Assy, Turn SignalTURN SIGNAL [08.1989 - 06.1992] EE90..STD..EFI;EE90..LHD..(GL,XL,XLI);AE92,CE90..LHD..(GLI,SR5,STD,XL,XLI) W(INTERMITTENT WIPER & *RW) |
84310-1A120 |
US $264.99 |
||
|
84312
|
84312
84312-12040 Plate, Horn Contact[05.1987 - 11.1992] AE92,CE90,EE90 TOKAIRIKA |
84312-12040 |
from US $6.49 |
||
|
84312
|
84312
84312-12050 Plate, Horn Contact[05.1987 - 11.1992] AE92,CE90,EE90 MATSUSHITA |
84312-12050 |
from US $8.05 |
||
|
84329
|
84329
84329-12030 Switch, Turn SignalTURN SIGNAL [05.1987 - 11.1992] AE92,CE90,EE90..LHD |
84329-12030 |
US $14.12 |
||
|
84330
|
84330
84332-12310
Switch Assy, Hazard Warning Signal
[08.1989 - 11.1992] AE92,CE90,EE90..LHD |
84332-12310 |
— | ||
|
84330B
|
84330B
84999-10360 Bulb, Satellite Switch[08.1989 - 11.1992] AE92,CE90,EE90..LHD 14V 1.4W,28V 1.12W |
84999-10360 |
US $4.86 |
||
|
84330B
|
84330B
84999-10370 Bulb, Dpr Swich Assy[08.1989 - 11.1992] AE92,CE90,EE90..LHD 28V 1.12W,14V 1.4W |
84999-10370 |
US $7.17 |
||
|
84450
|
84450
84450-12150
Switch Assy, Ignition Or Starter
[05.1987 - 11.1992] AE92,CE90,EE90 |
84450-12150 |
— | ||
|
84650
|
84650
84652-12770
Switch Assy, Windshield Wiper
[05.1987 - 06.1992] AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI) MATSUSHITA |
84652-12770 |
— | ||
|
84650
|
84650
84652-12780 Switch Assy, Windshield WiperWINDSHIELD WIPER [05.1987 - 06.1992] AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI) TOKAIRIKA |
84652-12780 |
US $96.10 |
||
| replacement | |||||
|
84650
|
84650
84652-12800
Switch Assy, Windshield Wiper
[05.1987 - 06.1992] AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI) TOKAIRIKA |
84652-12800 |
— | ||
|
84650
|
84650
84652-12790 Switch Assy, Windshield WiperWINDSHIELD WIPER [05.1987 - 06.1992] EE90..STD..EFI;EE90..LHD..(GL,XL,XLI);AE92,CE90..LHD..(GL,GLI,SR5,STD,XL,XLI) W(INTERMITTENT WIPER),MATSUSHITA |
84652-12790 |
US $136.86 |
||
|
84650
|
84650
84652-12800
Switch Assy, Windshield Wiper
[05.1987 - 06.1992] EE90..STD..EFI;EE90..LHD..(GL,XL,XLI);AE92,CE90..LHD..(GL,GLI,SR5,STD,XL,XLI) W(INTERMITTENT WIPER),TOKAIRIKA |
84652-12800 |
— | ||
|
84650
|
84650
84652-12850
Switch Assy, Windshield Wiper
[08.1989 - 11.1992] AE92,CE90,EE90..LHD W(WASHER LINKED INTERMITTENT WIPER),MATSUSHITA |
84652-12850 |
— | ||
|
84650
|
84650
84652-12860 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.1989 - 11.1992] AE92,CE90,EE90..LHD W(WASHER LINKED INTERMITTENT WIPER),TOKAIRIKA |
84652-12860 |
US $107.74 |
||
|
84650
|
84650
84652-1A030
Switch Assy, Windshield Wiper
[08.1989 - 06.1992] EE90..STD..EFI;EE90..LHD..(GL,XL,XLI);AE92,CE90..LHD..(GLI,SR5,STD,XL,XLI) W(INTERMITTENT WIPER & *RW),MATSUSHITA |
84652-1A030 |
— | ||
|
84650
|
84650
84652-1A050 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.1989 - 06.1992] EE90..STD..EFI;EE90..LHD..(GL,XL,XLI);AE92,CE90..LHD..(GLI,SR5,STD,XL,XLI) W(INTERMITTENT WIPER & *RW),TOKAIRIKA |
84652-1A050 |
US $123.76 |
||
| replacement | |||||
|
84650
|
84650
84652-12860 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.1989 - 06.1992] EE90..STD..EFI;EE90..LHD..(GL,XL,XLI);AE92,CE90..LHD..(GLI,SR5,STD,XL,XLI) W(INTERMITTENT WIPER & *RW),TOKAIRIKA |
84652-12860 |
US $107.74 |
||
|
84660C
|
84660C
84660-12110 Switch, CoolerCOOLER [08.1989 - 06.1992] CE90..LHD; AE92,EE90..LHD..CBR |
84660-12110 |
from US $59.10 |
||
|
84730
|
84730
84732-12270
Switch Assy, Heater Blower
[05.1987 - 11.1992] AE92,CE90,EE90..LHD |
84732-12270 |
— | ||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[05.1987 - 11.1992] AE92,CE90,EE90 14V 1.4W |
90981-11014 |
from US $2.15 |
||
|
84790
|
84790
84790-12290-01 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [08.1989 - 11.1992] AE92..GTI,SR5 BLACK,TRIM1#; AE92,CE90,EE90..GL,GLI,STD,XL,XLI BLACK,TRIM1#,8# |
84790-12290-01 |
US $57.66 |
||
| replacement | |||||
|
84790
|
84790
84790-12290-22
Switch Assy, Rear Window Defogger
[08.1989 - 11.1992] AE92..GTI,SR5 BLACK,TRIM1#; AE92,CE90,EE90..GL,GLI,STD,XL,XLI BLACK,TRIM1#,8# |
84790-12290-22 |
— | ||
|
84790
|
84790
84790-12300-01 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [08.1989 - 11.1992] AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) W(*HC),BLACK,TRIM1#,8#; AE92..LHD..(GTI,SR5) W(*HC),BLACK,TRIM1# |
84790-12300-01 |
US $77.17 |
||
|
85500
|
85500
85500-12250
Lighter Assy, Cigarette
[05.1987 - 11.1992] AE92,CE90,EE90 |
85500-12250 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-10120 Lighter Assy, Cigarette[05.1987 - 11.1992] AE92,CE90,EE90 |
85500-10120 |
US $59.98 |
||
|
85500B
|
85500B
84999-10230
Bulb, Cigarette Lighter
[05.1987 - 11.1992] AE92,CE90,EE90 14V 1.4W |
84999-10230 |
— | ||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[05.1989 - 11.1992] AE92,CE90,EE90 |
85513-12020 |
from US $4.97 |
||
|
85515
|
85515
85515-12010 Stay, Cigarette Lighter Bezel[05.1987 - 11.1992] AE92,CE90,EE90 |
85515-12010 |
US $14.71 |
||
|
827111A380
|
827111A380
82711-1A380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A380 |
US $12.67 |
||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.25 |
||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $2.15 |
||
|
9017913003
|
9017913003
90179-13003 Bolt Or Nut, Rear Window Defogger Switch Set |
90179-13003 |
US $8.15 |
||
|
9046315402
|
9046315402
90463-15402 New Genuine Part |
90463-15402 |
US $3.06 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
