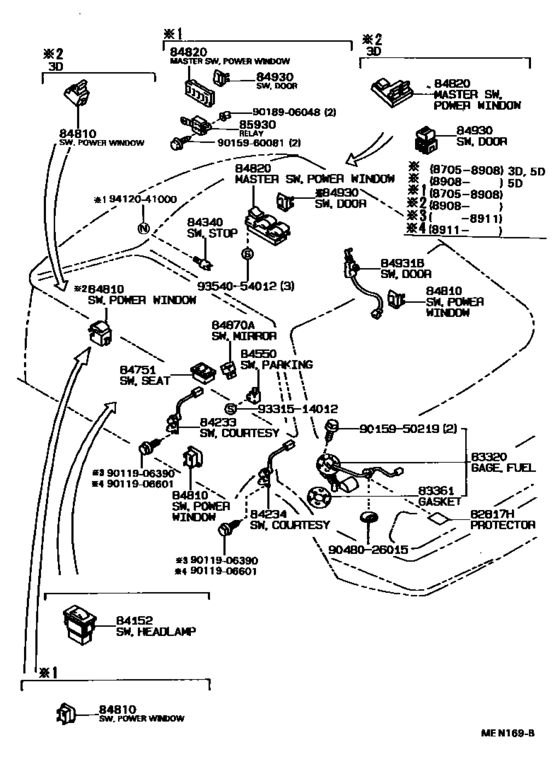

Switch & Relay & Computer ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- SR5
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-80080
Gage Assy, Fuel Sender
[05.1987 - 06.1992] AE92,EE90..(GL,SR5,XL)..CBR |
83320-80080 |
— | ||
|
83361
|
83361
83361-32020 Gasket, Fuel Sender Gage[08.1989 - 08.1990] EE90..GL,STD,XL;AE92,CE90..CBR,DSL |
83361-32020 |
US $2.97 |
||
|
84152
|
84152
84152-12010 Switch, Headlamp LevelingHEADLAMP LEVELING [08.1989 - 11.1989] AE92,CE90,EE90..LHD |
84152-12010 |
US $77.17 |
||
| replacement | |||||
|
84152
|
84152
84152-32010 Switch, Headlamp LevelingHEADLAMP LEVELING [08.1989 - 11.1989] AE92,CE90,EE90..LHD |
84152-32010 |
US $69.01 |
||
|
84233
|
84233
84231-12060
Switch Assy, Courtesy Lamp (For Front Door)
[03.1990 - 11.1992] AE92,CE90,EE90 |
84231-12060 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-12070 Switch Assy, Courtesy Lamp (For Front Door)[03.1990 - 11.1992] AE92,CE90,EE90 |
84231-12070 |
from US $17.16 |
||
|
84233
|
84233
84231-16060 Switch Assy, Courtesy Lamp (For Front Door)[08.1989 - 03.1990] AE92,CE90,EE90 |
84231-16060 |
US $14.41 |
||
| replacement | |||||
|
84233
|
84233
84231-12070 Switch Assy, Courtesy Lamp (For Front Door)[08.1989 - 03.1990] AE92,CE90,EE90 |
84231-12070 |
from US $17.16 |
||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[05.1987 - 11.1992] AE92,CE90,EE90 MATSUSHITA |
84340-30030 |
from US $29.29 |
||
|
84550
|
84550
84550-12060 Switch Assy, Parking Brake[05.1987 - 11.1992] AE92,CE90,EE90 |
84550-12060 |
US $51.07 |
||
|
84751
|
84751
84751-14010
Switch, Seat Heater
[02.1988 - 11.1992] AE92,CE90,EE90..LHD..(GL,GLI,GTI,SR5,XL,XLI) |
84751-14010 |
— | ||
|
84810
|
84810
84810-12070 Switch Assy, Power Window Regulator[08.1989 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI,SR5) FR |
84810-12070 |
US $50.67 |
||
| replacement | |||||
|
84810
|
84810
84810-95D00
Switch Assy, Power Window Regulator
[08.1989 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI,SR5) FR |
84810-95D00 |
— | ||
|
84820
|
84820
84820-12100 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.1989 - 11.1992] AE92..LHD..(GLI,GTI,SR5) |
84820-12100 |
US $216.94 |
||
|
84870A
|
84870A
84870-20080
Switch Assy, Outer Mirror
[08.1989 - 11.1992] AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
84870-20080 |
— | ||
|
84930
|
84930
84930-12080 Switch Assy, Door Control[08.1989 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI,SR5) |
84930-12080 |
US $49.50 |
||
|
84931B
|
84931B
84931-19035 Switch, Door Control[01.1989 - 11.1992] AE92..3D;EE90..RHD..GL;EE90..3D..3FC..EFI;CE90,EE90..LHD..3D..(GL,XL) |
84931-19035 |
US $47.90 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9011906601
|
9011906601
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.59 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9018906048
|
9018906048
90189-06048 GROMET |
90189-06048 |
US $2.51 |
||
|
9048026015
|
9048026015
90480-26015 New Genuine Part |
90480-26015 |
US $4.95 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.61 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
