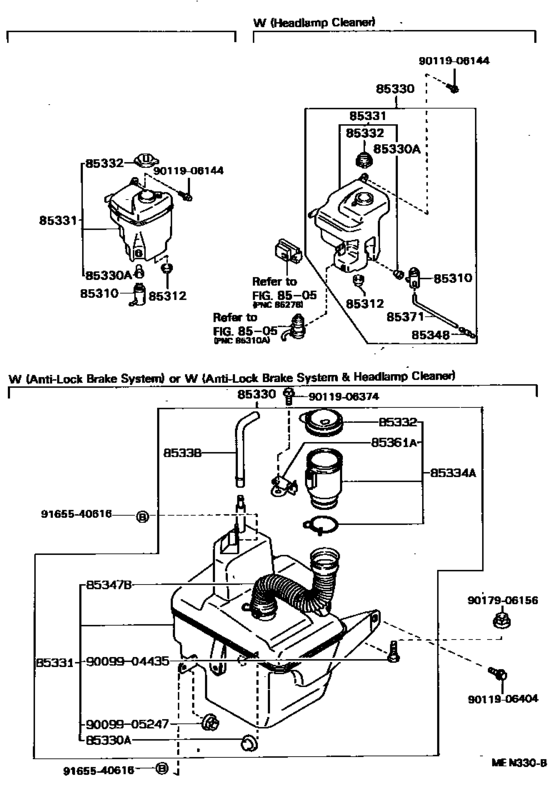

Windshield Washer ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- SR5
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85310
|
85310
85310-12180
Motor Assy, Rear Washer
[08.1989 - 11.1992] EE90..3D..4F;AE92,CE90,EE90..LHD..(3FC,5F) W(*HC) |
85310-12180 |
— | ||
| replacement | |||||
|
85310
|
85310
85310-89115
Motor Assy, Rear Washer
[08.1989 - 11.1992] EE90..3D..4F;AE92,CE90,EE90..LHD..(3FC,5F) W(*HC) |
85310-89115 |
— | ||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[08.1989 - 11.1992] EE90..3D..4F;AE92,CE90,EE90..3FC,5F |
85310-22080 |
from US $49.97 |
||
|
85312
|
85312
85312-12650
Packing, Windshield Washer Tank
[05.1987 - 11.1992] AE92,CE90,EE90 |
85312-12650 |
— | ||
|
85330
|
85330
85330-12210
Jar Assy, Windshield Washer
[08.1989 - 11.1992] EE90..3D..4F;AE92,CE90,EE90..LHD..(3FC,5F) W(*HC) |
85330-12210 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[05.1987 - 11.1992] AE92,CE90,EE90 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[05.1987 - 11.1992] AE92,CE90,EE90 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[05.1987 - 11.1992] AE92,CE90,EE90 |
90068-32002 |
US $7.46 |
||
|
85331
|
85331
85331-12660
Jar Assy, Windshield Washer
[05.1987 - 11.1992] AE92,CE90,EE90 |
85331-12660 |
— | ||
|
85331
|
85331
85331-12710
Jar Sub-Assy, Windshield Washer
[08.1989 - 06.1992] AE92..GLI,SR5,XL,XLI W(*HC); CE90..LHD W(*HC); EE90..LHD..5D W(*HC); EE90..LHD..3D W(*HC) |
85331-12710 |
— | ||
|
85332
|
85332
85332-12660
Cap, Windshield Washer Jar
[08.1989 - 11.1992] EE90..3D..4F;AE92,CE90,EE90..3FC,5F |
85332-12660 |
— | ||
| replacement | |||||
|
85332
|
85332
85316-34040 Cap Assy, Windshield Washer[08.1989 - 11.1992] EE90..3D..4F;AE92,CE90,EE90..3FC,5F |
85316-34040 |
from US $2.80 |
||
|
85332
|
85332
85332-22470
Cap, Windshield Washer Jar
[08.1989 - 11.1992] EE90..3D..4F;AE92,CE90,EE90..LHD..(3FC,5F) W(*HC) |
85332-22470 |
— | ||
| replacement | |||||
|
85332
|
85332
85316-34050 Cap Assy, Windshield Washer[08.1989 - 11.1992] EE90..3D..4F;AE92,CE90,EE90..LHD..(3FC,5F) W(*HC) |
85316-34050 |
from US $1.54 |
||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[08.1989 - 11.1992] EE90..3D..4F;AE92,CE90,EE90..3FC,5F 3-WAY |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[08.1989 - 06.1992] EE90..3D..4F;AE92,CE90,EE90..(3FC,5F)..(GL,GLI,SR5,STD,XL,XLI) 2-WAY |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90099-33185
Hose, Rear Washer (From Joint To Joint Or Nozzle)
[05.1987 - 11.1992] AE92,CE90,EE90..LHD L=120 |
90099-33185 |
— | ||
| replacement | |||||
|
85371
|
85371
90099-33299 Joint, Windshield Washer Elbow, No.2[05.1987 - 11.1992] AE92,CE90,EE90..LHD L=120 |
90099-33299 |
from US $4.37 |
||
|
85371
|
85371
90099-33410
Hose, Windshield Washer (From Motor To Joint)
[08.1989 - 06.1992] EE90..3D..4F;AE92,CE90,EE90..(3FC,5F)..(GL,GLI,SR5,STD,XL,XLI) *H,L=1100 |
90099-33410 |
— | ||
| replacement | |||||
|
85371
|
85371
90446-07001 Hose, Windshield Washer (From Motor To Joint)[08.1989 - 06.1992] EE90..3D..4F;AE92,CE90,EE90..(3FC,5F)..(GL,GLI,SR5,STD,XL,XLI) *H,L=1100 |
90446-07001 |
from US $1.75 |
||
|
85371
|
85371
90446-07001 Hose, Windshield Washer (From Motor To Joint)[05.1987 - 11.1992] AE92,CE90,EE90 |
90446-07001 |
from US $1.75 |
||
|
9009904435
|
9009904435
90099-04435
New Genuine Part
|
90099-04435 |
— | ||
|
9009905247
|
9009905247
90099-05247
New Genuine Part
|
90099-05247 |
— | ||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $1.08 |
||
|
9011906404
|
9011906404
90119-06404
New Genuine Part
|
90119-06404 |
— | ||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
