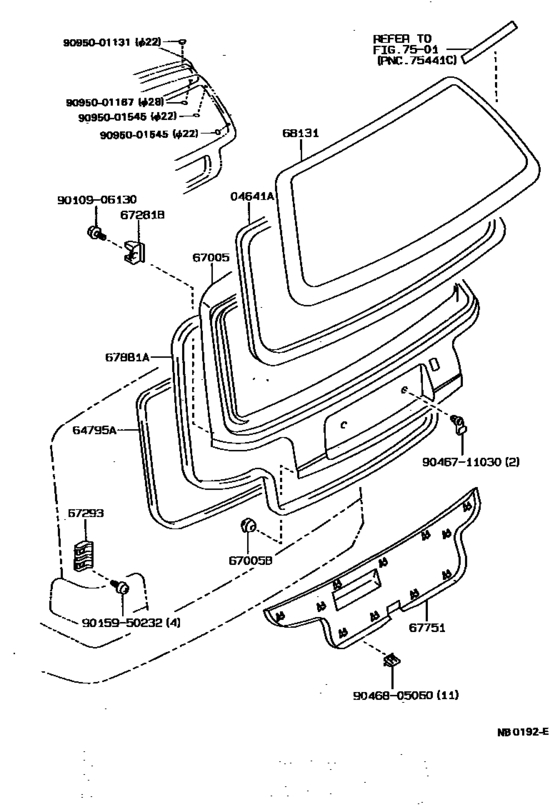

Back Door Panel & Glass ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- AE92
- grade
- GL
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04641A
|
04641A
04562-12010 Dam Kit, Windshield Glass[05.1987 - 11.1992] AE92,CE90,EE90 |
04562-12010 |
from US $35.28 |
||
|
64795A
|
64795A
64795-12030 Trim, Back Window Opening[05.1987 - 11.1992] AE92,CE90,EE90 |
64795-12030 |
US $30.58 |
||
|
67005
|
67005
67005-1A360
Panel Sub-Assy, Back Door
[05.1987 - 06.1992] AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
67005-1A360 |
— | ||
|
67005
|
67005
67005-1A370
Panel Sub-Assy, Back Door
[05.1987 - 06.1992] AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI W(*RW) |
67005-1A370 |
— | ||
|
67005
|
67005
67005-1A390
Panel Sub-Assy, Back Door
[05.1987 - 06.1992] AE92,CE90,EE90..GL,GLI,SR5,XL,XLI W(REAR AIR SPOILER & *RW) |
67005-1A390 |
— | ||
|
67005
|
67005
67005-1A520 Panel Sub-Assy, Back DoorBACK DOOR [05.1987 - 06.1992] AE92,CE90,EE90..GL,GLI,SR5,XL,XLI W(REAR AIR SPOILER) |
67005-1A520 |
US $709.07 |
||
|
67005B
|
67005B
90541-17002 Cushion(For Back Door Panel)[05.1987 - 11.1992] EE90..CBR;EE90..XLI;AE92,CE90..GL,GLI,GTI,STD,XL,XLI |
90541-17002 |
US $3.49 |
||
|
67281B
|
67281B
67281-12050 Stopper, Back Door, Lower[05.1987 - 11.1992] EE90..CBR;EE90..XLI;AE92,CE90..GL,GLI,GTI,STD,XL,XLI |
67281-12050 |
US $4.69 |
||
|
67293
|
67293
67293-12040
Cushion, Back Door Lower Stopper
[05.1987 - 11.1992] EE90..CBR;EE90..XLI;AE92,CE90..GL,GLI,GTI,STD,XL,XLI |
67293-12040 |
— | ||
|
67751
|
67751
67751-12090-03 Board, Back Door Trim[05.1987 - 11.1992] AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
67751-12090-03 |
US $142.69 |
||
|
67751
|
67751
67751-12090-04 Board, Back Door Trim[05.1987 - 08.1989] AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
67751-12090-04 |
US $144.14 |
||
| replacement | |||||
|
67751
|
67751
67751-12090-03 Board, Back Door Trim[05.1987 - 08.1989] AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
67751-12090-03 |
US $142.69 |
||
|
67751
|
67751
67751-12090-05 Board, Back Door Trim[05.1987 - 08.1989] AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
67751-12090-05 |
US $144.14 |
||
| replacement | |||||
|
67751
|
67751
67751-12090-K0 Board, Back Door Trim[05.1987 - 08.1989] AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
67751-12090-K0 |
US $144.14 |
||
|
67881A
|
67881A
67881-12210
Weatherstrip, Back Door
[05.1987 - 11.1992] EE90..CBR;EE90..XLI;AE92,CE90..GL,GLI,GTI,STD,XL,XLI |
67881-12210 |
— | ||
|
68131
|
68131
68131-12660 Glass, Back Door[05.1987 - 06.1992] AE92..GL,GLI,SR5,XL,XLI *EHTT,T=3.5 |
68131-12660 |
US $824.10 |
||
|
68131
|
68131
68131-1A100 Glass, Back DoorBACK DOOR [05.1987 - 06.1992] AE92..GL,GLI,SR5,XL,XLI *EHT,T=3.5 |
68131-1A100 |
US $787.70 |
||
| replacement | |||||
|
68131
|
68131
68131-12660 Glass, Back Door[05.1987 - 06.1992] AE92..GL,GLI,SR5,XL,XLI *EHT,T=3.5 |
68131-12660 |
US $824.10 |
||
|
68131
|
68131
68131-1A110 Glass, Back DoorBACK DOOR [05.1987 - 08.1989] AE92..CBR *EHT,T=3.5,W(*RWD HEAVY) |
68131-1A110 |
US $787.70 |
||
|
68131
|
68131
68131-1A120 Glass, Back DoorBACK DOOR [05.1987 - 06.1992] AE92..GL,GLI,SR5,XL,XLI *EHTT,T=3.5,W(*RWD HEAVY) |
68131-1A120 |
US $824.10 |
||
|
9010906130
|
9010906130
90109-06130 New Genuine Part |
90109-06130 |
US $1.16 |
||
|
9015950232
|
9015950232
90159-50232 SCREW WWASHER |
90159-50232 |
US $2.15 |
||
|
9046711030
|
9046711030
90467-11030 Clamp |
90467-11030 |
from US $4.12 |
||
|
9046805060
|
9046805060
90468-05060 Clip |
90468-05060 |
from US $1.05 |
||
|
9095001131
|
9095001131
90950-01131
PLUG HOLE
|
90950-01131 |
— | ||
| replacement | |||||
|
9095001131
|
9095001131
90950-01865 PLUG HOLE |
90950-01865 |
from US $1.25 |
||
|
9095001167
|
9095001167
90950-01167 Plug, Hole, No.3(For Dash Panel) |
90950-01167 |
US $3.49 |
||
|
9095001545
|
9095001545
90950-01545 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01545 |
US $2.62 |
||
