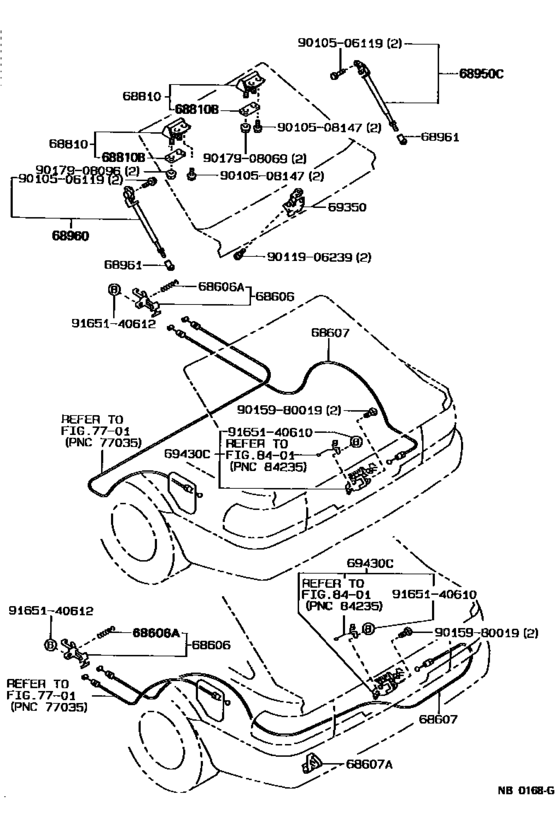

Back Door Lock & Handle ([05.1987 - ] (8705- )LB) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- LB
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68606
|
68606
64606-12050 Lever Sub-Assy, Luggage Door Lock Open[05.1987 - 05.1992] AE92,EE90..LHD..LB |
64606-12050 |
from US $52.92 |
||
|
68606A
|
68606A
90506-09034 Spring, Tension(For Luggage Door Lock Open Lever)[05.1987 - 05.1992] AE92,EE90..LB |
90506-09034 |
US $2.97 |
||
|
68607
|
68607
64607-12180
Cable Sub-Assy, Back Door Lock Control
[05.1987 - 05.1992] AE92,EE90..LHD..LB |
64607-12180 |
— | ||
|
68810
|
68810
68801-12030 Hinge Assy, Back Door, Upper[05.1987 - 08.1988] AE92,EE90..LB |
68801-12030 |
US $25.63 |
||
| replacement | |||||
|
68810
|
68810
68801-12031
Hinge Assy, Back Door, Upper
[05.1987 - 08.1988] AE92,EE90..LB |
68801-12031 |
— | ||
|
68810
|
68810
68801-12031
Hinge Assy, Back Door, Upper
[08.1988 - 05.1992] AE92,EE90..LB |
68801-12031 |
— | ||
|
68810B
|
68810B
68838-14021
Pad, Back Door Hinge
[05.1987 - 08.1988] AE92,EE90..LB |
68838-14021 |
— | ||
| replacement | |||||
|
68810B
|
68810B
68838-14022
Pad, Back Door Hinge
[05.1987 - 08.1988] AE92,EE90..LB |
68838-14022 |
— | ||
|
68810B
|
68810B
68838-14022
Pad, Back Door Hinge
[08.1988 - 07.1992] AE9#,EE9#..LB,WG |
68838-14022 |
— | ||
|
68950C
|
68950C
68950-19575 Stay Assy, Back Door, RhBACK DOOR, RH [05.1987 - 08.1988] AE92,EE90..LB..(GL,XL) |
68950-19575 |
US $158.70 |
||
| replacement | |||||
|
68950C
|
68950C
68950-19805
Stay Assy, Back Door, Rh
[05.1987 - 08.1988] AE92,EE90..LB..(GL,XL) |
68950-19805 |
— | ||
|
68950C
|
68950C
68950-19576 Stay Assy, Back Door, RhBACK DOOR, RH [08.1988 - 05.1992] AE92,EE90..LB..(GL,XL) |
68950-19576 |
US $158.70 |
||
| replacement | |||||
|
68950C
|
68950C
68950-19805
Stay Assy, Back Door, Rh
[08.1988 - 05.1992] AE92,EE90..LB..(GL,XL) |
68950-19805 |
— | ||
|
68950C
|
68950C
68950-19585 Stay Assy, Back Door, Rh[05.1987 - 08.1988] AE92..GTI; AE92,EE90..LB..(GL,XL) W(*RW) |
68950-19585 |
US $182 |
||
| replacement | |||||
|
68950C
|
68950C
68950-19586 Stay Assy, Back Door, Rh[05.1987 - 08.1988] AE92..GTI; AE92,EE90..LB..(GL,XL) W(*RW) |
68950-19586 |
US $180.54 |
||
|
68950C
|
68950C
68950-19586 Stay Assy, Back Door, Rh[08.1988 - 05.1992] AE92,EE90..LB..(GL,XL) W(*RW) |
68950-19586 |
US $180.54 |
||
|
68960
|
68960
68960-19265 Stay Assy, Back Door, LhBACK DOOR, LH [05.1987 - 08.1988] AE92,EE90..LB..(GL,XL) |
68960-19265 |
US $199.47 |
||
| replacement | |||||
|
68960
|
68960
68960-19495
Stay Assy, Back Door, Lh
[05.1987 - 08.1988] AE92,EE90..LB..(GL,XL) |
68960-19495 |
— | ||
|
68960
|
68960
68960-19266 Stay Assy, Back Door, LhBACK DOOR, LH [08.1988 - 05.1992] AE92,EE90..LB..(GL,XL) |
68960-19266 |
US $200.93 |
||
| replacement | |||||
|
68960
|
68960
68960-19495
Stay Assy, Back Door, Lh
[08.1988 - 05.1992] AE92,EE90..LB..(GL,XL) |
68960-19495 |
— | ||
|
68960
|
68960
68960-19275 Stay Assy, Back Door, Lh[05.1987 - 08.1988] AE92..GTI; AE92,EE90..LB..(GL,XL) W(*RW) |
68960-19275 |
US $182 |
||
| replacement | |||||
|
68960
|
68960
68960-19276 Stay Assy, Back Door, Lh[05.1987 - 08.1988] AE92..GTI; AE92,EE90..LB..(GL,XL) W(*RW) |
68960-19276 |
US $180.54 |
||
|
68960
|
68960
68960-19276 Stay Assy, Back Door, Lh[08.1988 - 05.1992] AE92,EE90..LB..(GL,XL) W(*RW) |
68960-19276 |
US $180.54 |
||
|
68961
|
68961
68961-12040 Bolt, Back Door Stay[03.1988 - 08.1989] AE92,EE90..LB |
68961-12040 |
US $6.70 |
||
|
69350
|
69350
69350-12110 Lock Assy, Back Door[05.1987 - 05.1992] AE92,EE90..LB |
69350-12110 |
US $78.62 |
||
|
69430C
|
69430C
69430-12180
Striker Assy, Back Door Lock
[05.1987 - 05.1992] AE92,EE90..LB |
69430-12180 |
— | ||
|
9010506119
|
9010506119
90105-06119
New Genuine Part
|
90105-06119 |
— | ||
| replacement | |||||
|
9010506119
|
9010506119
90105-06184 BOLT WASHER BASED |
90105-06184 |
US $1.25 |
||
|
9010508147
|
9010508147
90105-08147
New Genuine Part
|
90105-08147 |
— | ||
|
9011906239
|
9011906239
90119-06239 New Genuine Part |
90119-06239 |
US $1.60 |
||
| replacement | |||||
|
9011906239
|
9011906239
90119-06236 New Genuine Part |
90119-06236 |
US $0.96 |
||
|
9015980019
|
9015980019
90159-80019 New Genuine Part |
90159-80019 |
US $1.79 |
||
|
9017908069
|
9017908069
90179-08069 New Genuine Part |
90179-08069 |
US $1.75 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.40 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
