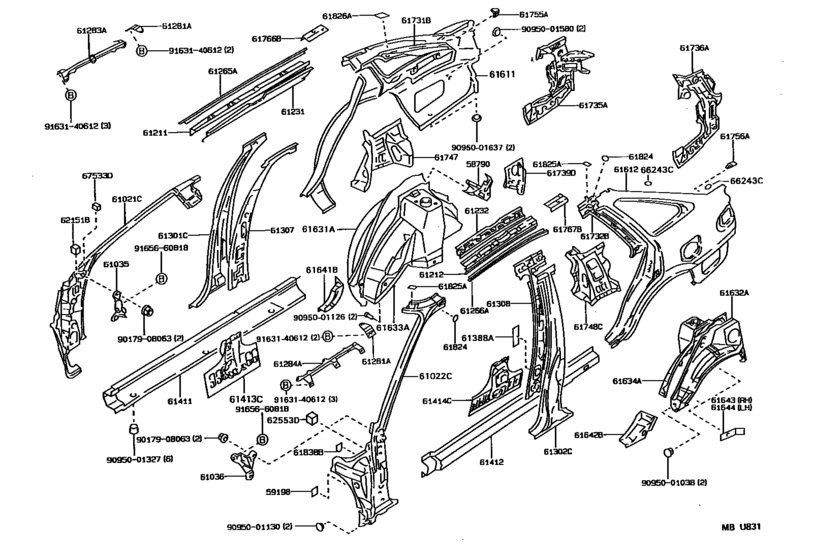

Side Member ([05.1987 - ] (8705- )LB) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- LB
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58790
|
58790
58790-12040 Carrier Assy, Jack[05.1987 - 05.1992] AE95..WG;AE92,EE90..LB |
58790-12040 |
US $29.27 |
||
|
59198
|
59198
59198-12010 Seal, Noise Shutter[05.1987 - 08.1993] AE9#,CE90,EE9# |
59198-12010 |
US $1.60 |
||
|
61021C
|
61021C
61021-12840 Pillar Sub-Assy, Front Body, RhFRONT BODY, RH [05.1987 - 05.1992] AE92,EE90..LHD..LB |
61021-12840 |
US $630.45 |
||
|
61022C
|
61022C
61022-12850 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [05.1987 - 05.1992] AE92,EE90..LHD..LB |
61022-12850 |
US $630.45 |
||
|
61035
|
61035
61035-12040 Bracket Sub-Assy, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [05.1987 - 07.1992] AE9#,CE90,EE9#..LHD |
61035-12040 |
US $26.35 |
||
|
61211
|
61211
61211-12230 Rail, Roof Side, Outer Rh[05.1987 - 05.1992] AE92,EE90..LB |
61211-12230 |
US $53.87 |
||
|
61212
|
61212
61212-12230 Rail, Roof Side, Outer Lh[05.1987 - 05.1992] AE92,EE90..LB |
61212-12230 |
US $53.87 |
||
|
61231
|
61231
61231-12450 Rail, Roof Side, Inner Rh[05.1987 - 05.1992] AE92,EE90..LB |
61231-12450 |
US $43.53 |
||
|
61232
|
61232
61232-12360 Rail, Roof Side, Inner Lh[05.1987 - 05.1992] AE92,EE90..LB |
61232-12360 |
US $43.53 |
||
|
61265A
|
61265A
61265-12160 Channel, Roof Drip Side, Center Rh[05.1987 - 05.1992] AE92,EE90..LB |
61265-12160 |
US $26.50 |
||
|
61266A
|
61266A
61266-12160 Channel, Roof Drip Side, Center Lh[05.1987 - 05.1992] AE92,EE90..LB |
61266-12160 |
US $26.50 |
||
|
61281A
|
61281A
61281-12030 Bracket, Sliding Roof Housing Side Mounting, No.1[05.1987 - 07.1992] AE9#,CE90,EE90..(LB,SED)..(GL,GTI,SE,XL)..(GCC,GEN) |
61281-12030 |
US $5.82 |
||
|
61283A
|
61283A
61283-12030 Bracket, Sliding Roof Housing Side Mounting, No.3 Rh[05.1987 - 07.1992] AE9#,CE90,EE90..(LB,SED)..(GL,GTI,SE,XL)..(GCC,GEN) |
61283-12030 |
US $21.99 |
||
|
61284A
|
61284A
61284-12030 Bracket, Sliding Roof Housing Side Mounting, No.3 Lh[05.1987 - 07.1992] AE9#,CE90,EE90..(LB,SED)..(GL,GTI,SE,XL)..(GCC,GEN) |
61284-12030 |
US $21.99 |
||
|
61301C
|
61301C
61301-12190 Pillar Sub-Assy, Center Body, Outer Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61301-12190 |
US $310.13 |
||
|
61302C
|
61302C
61302-12250 Pillar Sub-Assy, Center Body, Outer Lh[05.1987 - 08.1989] AE9#,CE90,EE9#..GCC,GEN,SA |
61302-12250 |
US $310.13 |
||
|
61307
|
61307
61307-12030 Pillar Sub-Assy, Center Body, Inner RhCENTER BODY, INNER RH [05.1987 - 07.1992] AE9#,CE90,EE90..(LB,SED)..(GCC,GEN) |
61307-12030 |
US $139.78 |
||
|
61308
|
61308
61308-12030 Pillar Sub-Assy, Center Body, Inner LhCENTER BODY, INNER LH [05.1987 - 07.1992] AE9#,CE90,EE90..(LB,SED)..(GCC,GEN) |
61308-12030 |
US $139.78 |
||
|
61388A
|
61388A
61388-12010 Plate, Center Body Pillar End, Rh[05.1987 - 12.1989] AE9#,CE90,EE9# |
61388-12010 |
US $5.82 |
||
|
61411
|
61411
61411-12370 Panel, Rocker, Outer Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61411-12370 |
US $299.94 |
||
|
61412
|
61412
61412-12360 Panel, Rocker, Outer Lh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61412-12360 |
US $299.94 |
||
|
61413C
|
61413C
61413-12040 Reinforcement, Rocker Panel, No.2 Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61413-12040 |
US $44.41 |
||
|
61414C
|
61414C
61414-12060 Reinforcement, Rocker Panel, No.2 Lh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61414-12060 |
US $44.41 |
||
|
61611
|
61611
61601-1E900 Panel, Quarter, Rh[05.1987 - 05.1992] AE92,EE90..LB |
61601-1E900 |
US $576.58 |
||
|
61612
|
61612
61602-1E900 Panel, Quarter, Lh[05.1987 - 05.1992] AE92,EE90..LB |
61602-1E900 |
US $576.58 |
||
|
61631A
|
61631A
61631-12230
Panel, Quarter Wheel House, Outer Rh
[05.1987 - 07.1992] AE9#,CE90,EE90..(LB,SED)..(GCC,GEN) |
61631-12230 |
— | ||
|
61632A
|
61632A
61632-12230
Panel, Quarter Wheel House, Outer Lh
[05.1987 - 07.1992] AE92,CE90,EE90..(LB,SED)..(GCC,GEN) |
61632-12230 |
— | ||
|
61633A
|
61633A
61607-12190 Panel, Quarter Wheel House, Inner Rh[05.1987 - 05.1992] AE92,EE90..LB |
61607-12190 |
US $225.68 |
||
| replacement | |||||
|
61633A
|
61633A
61607-12210
Panel, Quarter Wheel House, Inner Rh
[05.1987 - 05.1992] AE92,EE90..LB |
61607-12210 |
— | ||
|
61634A
|
61634A
61608-12200 Panel, Quarter Wheel House, Inner Lh[05.1987 - 05.1992] AE92,EE90..LB |
61608-12200 |
US $225.68 |
||
| replacement | |||||
|
61634A
|
61634A
61608-12220
Panel, Quarter Wheel House, Inner Lh
[05.1987 - 05.1992] AE92,EE90..LB |
61608-12220 |
— | ||
|
61641B
|
61641B
61641-12040 Gusset, Quarter Wheel House, Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61641-12040 |
US $20.68 |
||
|
61642B
|
61642B
61642-12040 Gusset, Quarter Wheel House, Lh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61642-12040 |
US $20.68 |
||
|
61643
|
61643
61643-12040 Gusset, Quarter Wheel House Center, RhQUARTER WHEEL HOUSE CENTER, RH [05.1987 - 08.1987] EE90..LHD..STD; EE90..RHD;EE90..LHD..(GL,XL);AE92,CE90..GL,STD,XL |
61643-12040 |
US $19.07 |
||
|
61644
|
61644
61604-12560
Gusset, Quarter Wheel House, Center Lh
[05.1987 - 05.1992] AE92,CE90,EE90..(LB,SED)..(GL,STD,XL)..GEN |
61604-12560 |
— | ||
|
61731B
|
61731B
61731-12440 Panel, Roof Side, Inner Rh[05.1987 - 05.1992] AE92,EE90..LB |
61731-12440 |
US $78.62 |
||
|
61732B
|
61732B
61732-12400 Panel, Roof Side, Inner Lh[05.1987 - 05.1992] AE92,EE90..LB |
61732-12400 |
US $78.62 |
||
|
61735A
|
61735A
61705-12949 Panel, Roof Side, Inner Rear Rh[05.1987 - 05.1992] AE92,EE90..LB |
61705-12949 |
US $88.82 |
||
|
61736A
|
61736A
61706-12954 Panel, Roof Side, Inner Rear Lh[05.1987 - 05.1992] AE92,EE90..LB |
61706-12954 |
US $88.82 |
||
|
61739D
|
61739D
61739-12100 Reinforcement, Jack Carrier Support[05.1987 - 05.1992] AE92,EE90..LB |
61739-12100 |
US $20.53 |
||
|
61747
|
61747
61747-12140 Brace, Roof Side Inner To Wheel House, Rh[05.1987 - 05.1992] AE92,EE90..LB |
61747-12140 |
US $44.41 |
||
|
61748C
|
61748C
61748-12140 Brace, Roof Side Inner To Wheel House, Lh[05.1987 - 05.1992] AE92,EE90..LB |
61748-12140 |
US $43.24 |
||
|
61755A
|
61755A
61755-12050 Retainer, Deck Side Trim, Upper Rh[05.1987 - 08.1989] AE92,EE90..LB |
61755-12050 |
US $3.64 |
||
|
61756A
|
61756A
61755-12050 Retainer, Deck Side Trim, Upper Rh[05.1987 - 08.1989] AE92,EE90..LB |
61755-12050 |
US $3.64 |
||
|
61766B
|
61766B
61766-12180 Reinforcement, Belt Anchor To Roof Side, Inner Rh[05.1987 - 05.1992] AE92,EE90..LB |
61766-12180 |
US $21.99 |
||
|
61767B
|
61767B
61767-12170 Reinforcement, Belt Anchor To Roof Side, Inner Lh[05.1987 - 05.1992] AE92,EE90..LB |
61767-12170 |
US $21.99 |
||
|
61824
|
61824
61824-12020 Plate, Noise Control, No.1[05.1987 - 05.1989] AE9#,CE90,EE9# |
61824-12020 |
US $2.18 |
||
| replacement | |||||
|
61824
|
61824
61824-12040 Plate, Noise Control, No.1[05.1987 - 05.1989] AE9#,CE90,EE9# |
61824-12040 |
US $1.89 |
||
|
61824
|
61824
61824-12040 Plate, Noise Control, No.1[05.1989 - 08.1993] AE9#,CE90,EE9# |
61824-12040 |
US $1.89 |
||
|
61825A
|
61825A
61825-12010 Cover, Roof Side, Inner Upper Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61825-12010 |
US $2.04 |
||
|
61826A
|
61826A
61826-12020 Pad, Noise Shutter, No.1[05.1987 - 07.1992] AE92,EE90..LB,WG |
61826-12020 |
US $2.04 |
||
|
61838B
|
61838B
61838-12010 Plate, Noise Control, No.5[05.1987 - 08.1993] AE9#,CE90,EE9# |
61838-12010 |
US $3.20 |
||
|
62151B
|
62151B
62151-12100 Pad, Cowl Side Silencer[05.1987 - 06.1991] AE9#,CE90,EE9# |
62151-12100 |
US $14.71 |
||
|
62553D
|
62553D
62553-12120 Pad, Cowl Side Silencer[05.1987 - 08.1993] AE9#,CE90,EE9# |
62553-12120 |
US $1.60 |
||
|
66243C
|
66243C
66243-20010 Protector, Rear Body, No.1[05.1989 - 08.1989] AE9#,CE90,EE90..LB,SED |
66243-20010 |
US $2.20 |
||
|
67533D
|
67533D
67533-12010 Pad, Front Door Lower Frame Garnish, Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
67533-12010 |
US $6.41 |
||
|
9017908063
|
9017908063
90179-08063 NUT |
90179-08063 |
US $2.87 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.84 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $6.45 |
||
|
9095001130
|
9095001130
90950-01130 Plug, Hole(For Rear Door Panel) |
90950-01130 |
US $5.24 |
||
| replacement | |||||
|
9095001130
|
9095001130
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.84 |
||
|
9095001327
|
9095001327
90950-01327 Plug, Hole(For Front Fender Apron) |
90950-01327 |
US $6.45 |
||
|
9095001580
|
9095001580
90950-01580 Plug, Hole(For Clutch Under Cover) |
90950-01580 |
US $4.12 |
||
|
9095001637
|
9095001637
90950-01637 PLUG HOLE |
90950-01637 |
US $1.97 |
||
|
9163140612
|
9163140612
91631-40612 New Genuine Part |
91631-40612 |
US $1.75 |
||
|
9165660818
|
9165660818
91656-60818 Clamp Or Clip, Hose(for Radiator Outlet No.1) |
91656-60818 |
US $1.89 |
||
| replacement | |||||
|
9165660818
|
9165660818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
