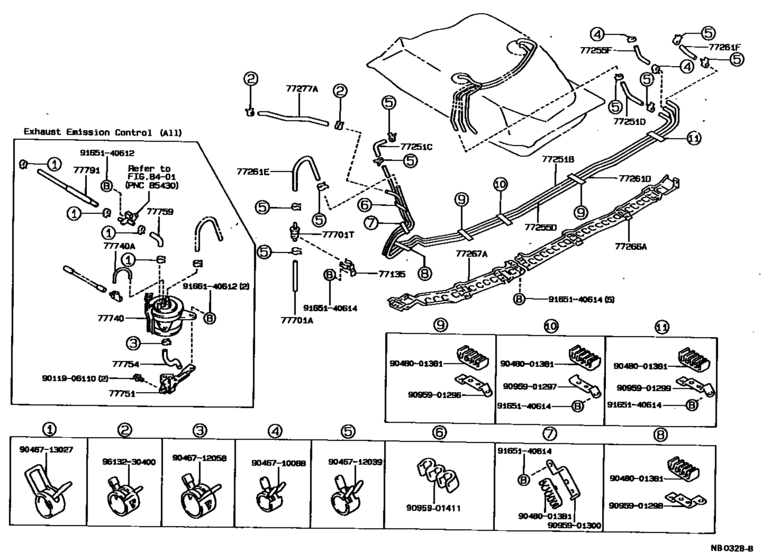

Fuel Tank & Tube ([05.1987 - 08.1989] (8705-8908)AE92,EE90..CBR) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- AE92
- grade
- XL
- body
- LB
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77135
|
77135
77135-20050 Bracket, Check Valve[05.1987 - 08.1989] AE92,EE90 |
77135-20050 |
US $5.68 |
||
|
77251B
|
77251B
77251-12380 Tube, Fuel MainFUEL MAIN [05.1987 - 05.1992] AE92,EE90..LHD..CBR |
77251-12380 |
US $29.70 |
||
|
77251C
|
77251C
77259-12150 Hose, Fuel, No.1(For Fuel Main Tube)FUEL, NO.1(FOR FUEL MAIN TUBE) [05.1987 - 05.1992] AE9#,EE90..LHD..CBR |
77259-12150 |
US $15 |
||
|
77251D
|
77251D
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[05.1987 - 08.1987] AE92,EE90..CBR *H,L=200 |
95333-06020 |
— | ||
| replacement | |||||
|
77251D
|
77251D
95337-06020 Hose, Differential Pressure Control[05.1987 - 08.1987] AE92,EE90..CBR *H,L=200 |
95337-06020 |
from US $10.21 |
||
|
77255D
|
77255D
77255-12350 Tube, Fuel ReturnFUEL RETURN [05.1987 - 08.1989] AE92..LHD..CBR;EE90..LHD..MTM |
77255-12350 |
US $19.80 |
||
|
77255F
|
77255F
95333-04015 Hose, Fuel, No.2 (For Fuel Return Tube)[05.1987 - 08.1989] AE92..CBR;EE90..LHD..MTM *H,L=150 |
95333-04015 |
US $6.12 |
||
| replacement | |||||
|
77255F
|
77255F
95337-04015 Hose, Fuel, No.2 (For Fuel Return Tube)[05.1987 - 08.1989] AE92..CBR;EE90..LHD..MTM *H,L=150 |
95337-04015 |
US $8.24 |
||
|
77261D
|
77261D
77261-12260
Tube, Fuel Tank To Canister
[05.1987 - 05.1992] AE92,CE90,EE90..LHD |
77261-12260 |
— | ||
|
77261E
|
77261E
77259-12130 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)[05.1987 - 08.1989] AE92..LHD..CBR;EE90..LHD..MTM EX.EMISSION CONTROL(US'83) |
77259-12130 |
US $14.12 |
||
|
77261E
|
77261E
77259-12140 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)[05.1987 - 08.1989] AE92,CE90,EE90 |
77259-12140 |
US $13.54 |
||
|
77261F
|
77261F
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[05.1987 - 12.1989] AE92,CE90,EE90 *H,L=200 |
95333-06020 |
— | ||
| replacement | |||||
|
77261F
|
77261F
95337-06020 Hose, Differential Pressure Control[05.1987 - 12.1989] AE92,CE90,EE90 *H,L=200 |
95337-06020 |
from US $10.21 |
||
|
77266A
|
77266A
77266-12030
Protector, Fuel Tube, No.1
[05.1987 - 12.1989] AE92,CE90,EE90 |
77266-12030 |
— | ||
|
77267A
|
77267A
77267-12060
Protector, Fuel Tube, No.2
[05.1987 - 12.1989] AE9#,CE90,EE90 |
77267-12060 |
— | ||
|
77277A
|
77277A
23271-15210 Hose, Fuel, No.1(For Return Tube, No.1)[05.1987 - 05.1992] AE9#..CBR |
23271-15210 |
US $11.07 |
||
|
77701A
|
77701A
77249-12050 Hose, Fuel, No.1 (For Breather Valve)[05.1987 - 08.1989] AE92,CE90,EE90 |
77249-12050 |
US $10.48 |
||
|
77701T
|
77701T
90917-10069
Valve, Check (For Main Fuel Tank)
[05.1987 - 08.1988] AE9#,CE90,EE90..GL,GTI,STD,XL |
90917-10069 |
— | ||
| replacement | |||||
|
77701T
|
77701T
90917-10082 Hose, Fuel, No.1 (For Breather Valve)[05.1987 - 08.1988] AE9#,CE90,EE90..GL,GTI,STD,XL |
90917-10082 |
from US $17.31 |
||
|
77740
|
77740
77740-12480
Canister Assy, Charcoal
[08.1987 - 08.1989] AE92..LHD..CBR;EE90..LHD..MTM |
77740-12480 |
— | ||
|
77740A
|
77740A
90447-04108 Hose, Fuel, No.1(For Charcoal Canister)FUEL, NO.1(FOR CHARCOAL CANISTER) [08.1987 - 08.1989] AE92..LHD..CBR |
90447-04108 |
US $4.66 |
||
|
77740A
|
77740A
90999-92002
Air Hose (300 mm)
[08.1987 - 08.1989] AE92..LHD..CBR *H,L=300 |
90999-92002 |
— | ||
|
77751
|
77751
77753-12010 Bracket, Charcoal Canister BaseCHARCOAL CANISTER BASE [08.1987 - 08.1989] AE92..LHD..CBR;EE90..LHD..MTM |
77753-12010 |
US $19.80 |
||
|
77754
|
77754
77754-12090 Hose, Charcoal Canister Outlet, No.1CHARCOAL CANISTER OUTLET, NO.1 [08.1987 - 08.1989] AE92..LHD..CBR;EE90..LHD..MTM |
77754-12090 |
US $9.61 |
||
|
77759
|
77759
77759-12080 Hose, Charcoal CanisterCHARCOAL CANISTER [08.1987 - 08.1989] AE92..LHD..CBR;EE90..LHD..MTM |
77759-12080 |
US $5.97 |
||
|
77791
|
77791
90447-14051 Hose, Fuel, No.1(For Charcoal Canister)OUTER VENT VALVE TO CARBURETOR [08.1987 - 08.1989] AE92..LHD..CBR L=355 |
90447-14051 |
US $18.64 |
||
|
9011906110
|
9011906110
90119-06110
New Genuine Part
|
90119-06110 |
— | ||
| replacement | |||||
|
9011906110
|
9011906110
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.92 |
||
|
9046710088
|
9046710088
90467-10088 Clip, No.2(For Idle-Up Hose) |
90467-10088 |
US $1.89 |
||
| replacement | |||||
|
9046710088
|
9046710088
96132-41000 Clip, No.1(For Idle-Up Hose) |
96132-41000 |
from US $1.43 |
||
|
9046712039
|
9046712039
90467-12039 Clip, No.1(For Idle-Up Hose) |
90467-12039 |
US $2.48 |
||
| replacement | |||||
|
9046712039
|
9046712039
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9046712058
|
9046712058
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90467-12058 |
from US $0.72 |
||
|
9046713027
|
9046713027
90467-13027 Clamp Or Clip(For Water By-Pass Hose No.2) |
90467-13027 |
US $3.20 |
||
| replacement | |||||
|
9046713027
|
9046713027
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
|
9048001381
|
9048001381
90480-01381 New Genuine Part |
90480-01381 |
US $2.62 |
||
|
9095901296
|
9095901296
90959-01296 New Genuine Part |
90959-01296 |
US $3.79 |
||
|
9095901297
|
9095901297
90959-01297 New Genuine Part |
90959-01297 |
US $4.22 |
||
|
9095901298
|
9095901298
90959-01298 New Genuine Part |
90959-01298 |
US $3.79 |
||
|
9095901299
|
9095901299
90959-01299 New Genuine Part |
90959-01299 |
US $3.79 |
||
|
9095901300
|
9095901300
90959-01300 New Genuine Part |
90959-01300 |
US $4.22 |
||
|
9095901411
|
9095901411
90959-01411 New Genuine Part |
90959-01411 |
US $3.06 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9166140612
|
9166140612
91661-40612 New Genuine Part |
91661-40612 |
US $2.33 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
