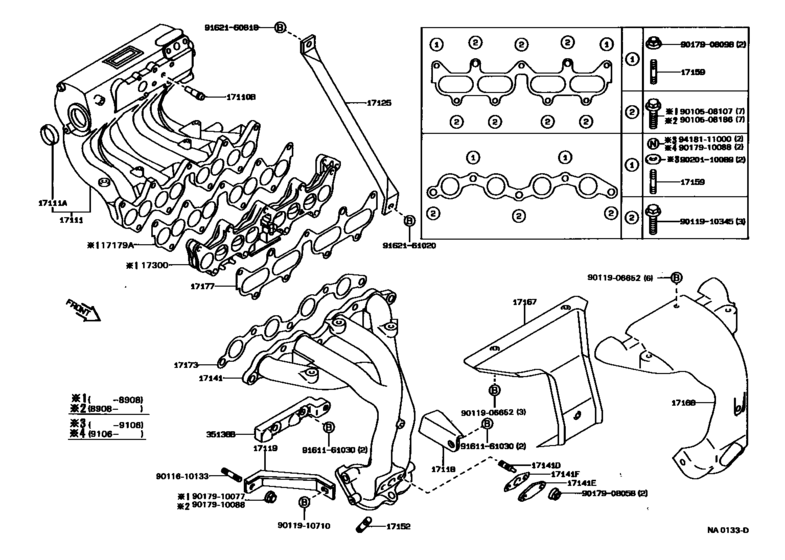

Manifold ([05.1987 - ] (8705- )4AGE) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- GTI
- body
- LB
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17110B
|
17110B
90405-10009 Union(For Positive Crankcase Ventilation)[05.1987 - 05.1992] 4AGE..AE92 |
90405-10009 |
US $2.62 |
||
|
17111
|
17111
17101-16100 Manifold, IntakeINTAKE [05.1987 - 08.1989] 4AGE..AE92..LHD EX. EMISSION CONTROL(US'83) |
17101-16100 |
US $567.84 |
||
|
17111
|
17111
17101-16130 Manifold, Intake[05.1987 - 08.1989] 4AGE..AE92 |
17101-16130 |
US $570.75 |
||
|
17111
|
17111
17101-16210 Manifold, Intake[08.1989 - 05.1992] 4AGE..AE92 |
17101-16210 |
US $563.47 |
||
|
17111
|
17111
17101-16220 Manifold, IntakeINTAKE [08.1989 - 05.1992] 4AGE..AE92 EX. EMISSION CONTROL(US'83) |
17101-16220 |
US $563.47 |
||
|
17111A
|
17111A
96411-43500 Plug, Tight, No.1[05.1987 - 05.1992] 4AGE..AE92 |
96411-43500 |
from US $3.59 |
||
|
17118
|
17118
17139-16040 Stay, Manifold[05.1987 - 05.1992] 4AGE..AE92 |
17139-16040 |
US $23.88 |
||
|
17119
|
17119
17118-16040 Stay, Manifold[05.1987 - 05.1992] 4AGE..AE92 |
17118-16040 |
US $21.84 |
||
|
17125
|
17125
17125-16031 Stay, Manifold[05.1987 - 08.1989] 4AGE..AE92 |
17125-16031 |
US $34.36 |
||
|
17125
|
17125
17125-16050 Stay, Surge Tank, No.1[08.1989 - 05.1992] 4AGE..AE92 |
17125-16050 |
US $35.53 |
||
|
17141
|
17141
17141-16180 Manifold, ExhaustEXHAUST [05.1987 - 08.1989] 4AGE..AE92 |
17141-16180 |
US $388.75 |
||
| replacement | |||||
|
17141
|
17141
17141-16260
Manifold, Exhaust
[05.1987 - 08.1989] 4AGE..AE92 |
17141-16260 |
— | ||
|
17141
|
17141
17141-16190
Manifold, Exhaust
[08.1987 - 08.1989] 4AGE..AE92..LHD EX. EMISSION CONTROL(US'83) |
17141-16190 |
— | ||
|
17141
|
17141
17141-16260
Manifold, Exhaust
[08.1989 - 05.1992] 4AGE..AE92 |
17141-16260 |
— | ||
|
17141
|
17141
17141-16270 Manifold, ExhaustEXHAUST [08.1989 - 05.1992] 4AGE..AE92 EX. EMISSION CONTROL(US'83) |
17141-16270 |
US $310.13 |
||
|
17141D
|
17141D
90116-08168 Bolt, Stud(For Oxygen Sensor)[08.1987 - 05.1992] 4AGE..AE92..LHD |
90116-08168 |
US $2.87 |
||
|
17141E
|
17141E
17148-41010 Plate, Exhaust Manifold[08.1987 - 05.1992] 4AGE..AE92..LHD |
17148-41010 |
US $11.88 |
||
|
17141F
|
17141F
89466-20020 Gasket(For Exhaust Manifold Plate)[10.1988 - 05.1992] 4AGE..AE92..LHD |
89466-20020 |
from US $12.77 |
||
|
17141F
|
17141F
89466-30010
Gasket(For Exhaust Manifold Plate)
[08.1987 - 10.1988] 4AGE..AE92..LHD |
89466-30010 |
— | ||
| replacement | |||||
|
17141F
|
17141F
89466-20020 Gasket(For Exhaust Manifold Plate)[08.1987 - 10.1988] 4AGE..AE92..LHD |
89466-20020 |
from US $12.77 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[05.1987 - 04.1989] 4AGE..AE92 |
90116-10058 |
from US $2.32 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[04.1989 - 08.1989] 4AF#,4AGE..AE9# |
90116-10146 |
from US $1.81 |
||
|
17152
|
17152
90126-10003 Bolt, Stud(For Turbocharger)[12.1990 - 04.1991] 4AGE..AE92 |
90126-10003 |
US $18.06 |
||
|
17159
|
17159
90116-08218
Bolt, Stud(For Manifold To Cylinder Head)
[05.1987 - 08.1989] 4AGE..AE92 INTAKE MANIFOLD |
90116-08218 |
— | ||
|
17159
|
17159
90116-08317
Bolt, Stud(For Manifold To Cylinder Head)
[08.1989 - 05.1992] 4AGE..AE92 INTAKE MANIFOLD |
90116-08317 |
— | ||
|
17159
|
17159
90116-10037 Bolt, Stud(For Manifold To Cylinder Head)[05.1987 - 05.1992] 4AGE..AE92 EXHAUST MANIFOLD |
90116-10037 |
US $4.66 |
||
|
17167
|
17167
17167-16050
Insulator, Exhaust Manifold Heat, No.1
[05.1987 - 05.1992] 4AGE..AE92 |
17167-16050 |
— | ||
|
17168
|
17168
17168-16060
Insulator, Exhaust Manifold Heat, No.2
[05.1987 - 05.1992] 4AGE..AE92 |
17168-16060 |
— | ||
|
17173
|
17173
17173-16010
Gasket, Exhaust Manifold To Head
[05.1987 - 05.1989] 4AGE..AE92 |
17173-16010 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-16011 Gasket, Exhaust Manifold To Head[05.1987 - 05.1989] 4AGE..AE92 |
17173-16011 |
from US $11.08 |
||
|
17173
|
17173
17173-16011 Gasket, Exhaust Manifold To Head[05.1989 - 05.1992] 4AGE..AE92 |
17173-16011 |
from US $11.08 |
||
|
17177
|
17177
17171-16040 Gasket, Intake Manifold To Head, No.1[08.1989 - 05.1992] 4AGE..AE92 |
17171-16040 |
US $16.97 |
||
|
17177
|
17177
17177-16012 Gasket, Intake Manifold To Head, No.1[05.1987 - 08.1989] 4AGE..AE92 |
17177-16012 |
from US $7.90 |
||
|
17179A
|
17179A
17171-16012 Gasket, Intake Manifold, No.2[05.1987 - 08.1989] 4AGE..AE92 |
17171-16012 |
US $10.75 |
||
|
17300
|
17300
17300-16011
Valve Assy, Intake Air Control
[05.1987 - 08.1989] 4AGE..AE92 |
17300-16011 |
— | ||
|
35138B
|
35138B
35138-12020 Adapter, Stiffener Plate[05.1987 - 05.1992] AE92..GTI |
35138-12020 |
US $61.01 |
||
|
9010508107
|
9010508107
90105-08107 New Genuine Part |
90105-08107 |
US $3.40 |
||
|
9010508186
|
9010508186
90105-08186 New Genuine Part |
90105-08186 |
US $2.06 |
||
|
9011610133
|
9011610133
90116-10133 Bolt, Stud(For Manifold To Cylinder Head) |
90116-10133 |
US $3.35 |
||
|
9011906652
|
9011906652
90119-06652 New Genuine Part |
90119-06652 |
US $0.51 |
||
|
9011910345
|
9011910345
90119-10345 BOLT |
90119-10345 |
US $2.87 |
||
|
9011910710
|
9011910710
90119-10710 New Genuine Part |
90119-10710 |
US $2.62 |
||
| replacement | |||||
|
9011910710
|
9011910710
90119-10519 New Genuine Part |
90119-10519 |
US $3.58 |
||
|
9017908058
|
9017908058
90179-08058 New Genuine Part |
90179-08058 |
US $4.02 |
||
|
9017908098
|
9017908098
90179-08098 New Genuine Part |
90179-08098 |
US $1.61 |
||
|
9017910077
|
9017910077
90179-10077 Nut (For Front Lower Ball Joint Setting) |
90179-10077 |
US $2.77 |
||
| replacement | |||||
|
9017910077
|
9017910077
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9020110089
|
9020110089
90201-10089
Washer, Plate(For Steering Tilt Lever)
|
90201-10089 |
— | ||
| replacement | |||||
|
9020110089
|
9020110089
90201-10283 Washer, Plate(For Steering Tilt Lever) |
90201-10283 |
from US $0.78 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9162161020
|
9162161020
91621-61020
Bolt(For Transaxle & Engine Setting)
|
91621-61020 |
— | ||
| replacement | |||||
|
9162161020
|
9162161020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $2.15 |
||
|
9418111000
|
9418111000
94181-11000 Nut(For Backing Plate To Rear Axle Housing Setting) |
94181-11000 |
US $3.23 |
||
