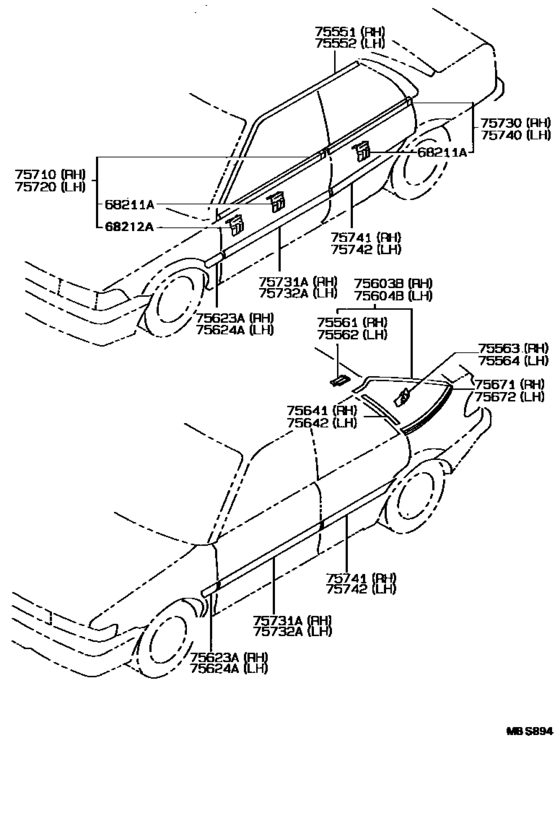

Side Moulding ([05.1987 - ] (8705- )LB,SED) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- GTI
- body
- LB
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68211A
|
68211A
68211-12130 Clip, Door Belt Moulding[08.1989 - 05.1992] AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI |
68211-12130 |
US $3.04 |
||
|
68212A
|
68212A
68212-12010 Clip, Door Glass Weatherstrip, Outer[08.1989 - 05.1992] AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI |
68212-12010 |
US $3.49 |
||
|
75551
|
75551
75551-12440 Moulding, Roof Drip Side Finish, RhROOF DRIP SIDE FINISH, RH [05.1987 - 05.1992] AE92,CE90,EE90..LB..(GTI,XL,XLI) |
75551-12440 |
US $48.19 |
||
|
75552
|
75552
75552-12440 Moulding, Roof Drip Side Finish, LhROOF DRIP SIDE FINISH, LH [05.1987 - 05.1992] AE92,CE90,EE90..LB..(GTI,XL,XLI) |
75552-12440 |
US $48.19 |
||
|
75561
|
75561
75561-12020 Clip, Roof Drip Side Finish Moulding, No.1[05.1987 - 05.1992] AE92,CE90,EE90..LB |
75561-12020 |
US $3.49 |
||
|
75562
|
75562
75562-12020 Clip, Roof Drip Side Finish Moulding, No.2[05.1987 - 05.1992] AE92,CE90,EE90..LB |
75562-12020 |
US $3.49 |
||
|
75563
|
75563
75563-12040 Retainer, Roof Drip Side Finish Moulding, No.1[05.1987 - 05.1992] AE92,CE90,EE90..LB |
75563-12040 |
US $3.49 |
||
|
75564
|
75564
75564-12020 Retainer, Roof Drip Side Finish Moulding, No.2[05.1987 - 05.1992] AE92,CE90,EE90..LB |
75564-12020 |
US $3.49 |
||
|
75603B
|
75603B
75603-12100 Moulding Sub-Assy, Quarter Window Outside, RhQUARTER WINDOW OUTSIDE, RH [05.1987 - 05.1992] AE92,CE90,EE90..LB..(GTI,XL,XLI) |
75603-12100 |
US $43.10 |
||
|
75604B
|
75604B
75604-12040 Moulding Sub-Assy, Quarter Window Outside, LhQUARTER WINDOW OUTSIDE, LH [05.1987 - 05.1992] AE92,CE90,EE90..LB..(GTI,XL,XLI) |
75604-12040 |
US $43.10 |
||
|
75623A
|
75623A
75623-12490
Moulding, Front Fender, Outside Rear Rh
[05.1987 - 05.1992] AE92,CE90,EE90..LB |
75623-12490 |
— | ||
|
75624A
|
75624A
75624-12490 Moulding, Front Fender, Outside Rear Lh[05.1987 - 05.1992] AE92,CE90,EE90..LB |
75624-12490 |
US $18.78 |
||
|
75641
|
75641
75641-12130 Moulding, Quarter Window, Outside Front Rh[05.1987 - 05.1992] AE92,CE90,EE90..LB |
75641-12130 |
US $35.53 |
||
|
75642
|
75642
75642-12130 Moulding, Quarter Window, Outside Front Lh[05.1987 - 05.1992] AE92,CE90,EE90..LB |
75642-12130 |
US $35.53 |
||
|
75671
|
75671
75671-12130 Moulding, Quarter Belt, RhQUARTER BELT, RH [05.1987 - 05.1992] AE92,CE90,EE90..LB..(GTI,XL,XLI) |
75671-12130 |
US $39.89 |
||
|
75672
|
75672
75672-12140 Moulding, Quarter Belt, LhQUARTER BELT, LH [05.1987 - 05.1992] AE92,CE90,EE90..LB..(GTI,XL,XLI) |
75672-12140 |
US $39.89 |
||
|
75710
|
75710
75710-12410 Moulding Assy, Front Door Belt, Rh[05.1987 - 05.1992] AE95..WG;AE95..SED..(XL,XLI);AE92,CE90,EE90..GTI,XL,XLI |
75710-12410 |
US $74.78 |
||
|
75720
|
75720
75720-12410
Moulding Assy, Front Door Belt, Lh
[05.1987 - 05.1992] AE95..WG;AE95..SED..(XL,XLI);AE92,CE90,EE90..GTI,XL,XLI |
75720-12410 |
— | ||
|
75730
|
75730
75730-12110
Moulding Assy, Rear Door Belt, Rh
[05.1987 - 02.1988] AE92,CE90,EE90..LB..(GTI,XL) |
75730-12110 |
— | ||
| replacement | |||||
|
75730
|
75730
75730-12111
Moulding Assy, Rear Door Belt, Rh
[05.1987 - 02.1988] AE92,CE90,EE90..LB..(GTI,XL) |
75730-12111 |
— | ||
|
75730
|
75730
75730-12111
Moulding Assy, Rear Door Belt, Rh
[02.1988 - 05.1992] AE92,CE90,EE90..LB..(GTI,XL,XLI) |
75730-12111 |
— | ||
|
75731A
|
75731A
75731-12890
Moulding, Front Door, Outside Rh
[05.1987 - 05.1992] AE92,CE90,EE90..LB |
75731-12890 |
— | ||
|
75732A
|
75732A
75732-12730 Moulding, Front Door, Outside Lh[05.1987 - 05.1992] AE92,CE90,EE90..LB |
75732-12730 |
US $74.26 |
||
|
75740
|
75740
75740-12200 Moulding Assy, Rear Door Belt, Lh[05.1987 - 02.1988] AE92,CE90,EE90..LB..(GTI,XL) |
75740-12200 |
US $47.47 |
||
| replacement | |||||
|
75740
|
75740
75740-12201 Moulding Assy, Rear Door Belt, Lh[05.1987 - 02.1988] AE92,CE90,EE90..LB..(GTI,XL) |
75740-12201 |
US $60.42 |
||
|
75740
|
75740
75740-12201 Moulding Assy, Rear Door Belt, Lh[02.1988 - 05.1992] AE92,CE90,EE90..LB..(GTI,XL,XLI) |
75740-12201 |
US $60.42 |
||
|
75741
|
75741
75741-12660
Moulding, Rear Door, Outside Rh
[05.1987 - 05.1992] AE92,CE90,EE90..LB |
75741-12660 |
— | ||
|
75742
|
75742
75742-12640 Moulding, Rear Door, Outside Lh[05.1987 - 05.1992] AE92,CE90,EE90..LB |
75742-12640 |
US $56.49 |
||
