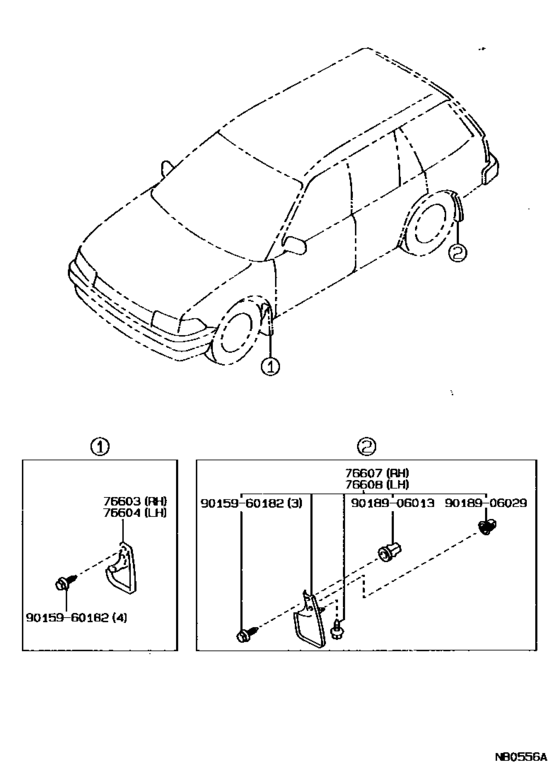

Mudguard & Spoiler ([10.1987 - ] (8710- )AE92..WG) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA (JPP)
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76603
|
76603
76621-12050
Mudguard Sub-Assy, Front Fender, Rh
[08.1987 - 06.1992] AE9# |
76621-12050 |
— | ||
|
76604
|
76604
76622-12050
Mudguard Sub-Assy, Front Fender, Lh
[08.1987 - 06.1992] AE9# |
76622-12050 |
— | ||
|
76607
|
76607
76625-19265
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[10.1987 - 09.1990] AE95..WG;AE92..WG..CBR |
76625-19265 |
— | ||
|
76608
|
76608
76626-19275
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[10.1987 - 09.1990] AE95..WG;AE92..WG..CBR |
76626-19275 |
— | ||
|
9015960182
|
9015960182
90159-60182 SCREW |
90159-60182 |
from US $1.13 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
from US $0.84 |
