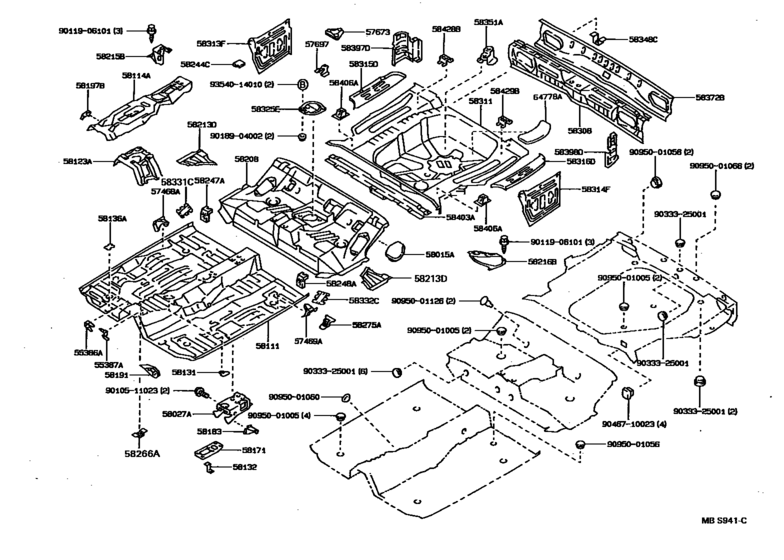

Floor Pan & Lower Back Panel ([10.1987 - ] (8710- )AE92..WG) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- AE92
- grade
- DX
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA (JPP)
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55386A
|
55386A
55386-12040 Bracket, Computer Mounting, No.1[08.1987 - 06.1992] AE92 |
55386-12040 |
US $10.48 |
||
|
55387A
|
55387A
55387-12020 Bracket, Computer Mounting, No.2[08.1987 - 06.1992] AE92 |
55387-12020 |
US $10.48 |
||
|
57468A
|
57468A
57468-12030 Bracket, Front Seat, Outside, Rear Rh[08.1987 - 06.1992] AE92 |
57468-12030 |
US $5.24 |
||
|
57469A
|
57469A
57469-12030 Bracket, Front Seat, Outside, Rear Lh[08.1987 - 06.1992] AE92 |
57469-12030 |
US $5.24 |
||
|
57673
|
57673
57607-12020 Bracket, Rear Seat Back Hinge Mounting[08.1987 - 08.1990] AE92..WG;AE92..LE..CBR |
57607-12020 |
US $12.67 |
||
|
57697
|
57697
57697-12020 Retainer, Rear Seat Cushion[08.1987 - 08.1990] AE92..CBR;AE9#..(DX,SR5,STD)..EFI |
57697-12020 |
US $5.68 |
||
|
58015A
|
58015A
58015-12020 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[08.1987 - 08.1990] AE92..CBR;AE92..(DX,STD)..EFI |
58015-12020 |
US $27.52 |
||
|
58027A
|
58027A
58027-12030 Reinforce Sub-Assy, Seat Belt Anchor[08.1987 - 08.1988] AE92 |
58027-12030 |
US $31.60 |
||
|
58027A
|
58027A
58027-12050 Reinforce Sub-Assy, Seat Belt Anchor[05.1989 - 08.1989] AE92 |
58027-12050 |
US $34.80 |
||
| replacement | |||||
|
58027A
|
58027A
58027-12060 Reinforce Sub-Assy, Seat Belt Anchor[05.1989 - 08.1989] AE92 |
58027-12060 |
US $35.82 |
||
|
58027A
|
58027A
58027-12060 Reinforce Sub-Assy, Seat Belt Anchor[05.1989 - 11.1989] AE92..CBR;AE92..USA..EFI |
58027-12060 |
US $35.82 |
||
|
58111
|
58111
58111-12200
Pan, Front Floor
[08.1987 - 06.1992] AE92 |
58111-12200 |
— | ||
|
58114A
|
58114A
58114-12050 Reinforcement, Front Floor Panel[08.1987 - 06.1992] AE92 |
58114-12050 |
US $62.61 |
||
|
58123A
|
58123A
58123-12040 Support, Shift & Select Lever[08.1987 - 06.1992] AE92 |
58123-12040 |
US $57.51 |
||
|
58131
|
58131
58131-12060 Bracket, Front Floor Heat Insulator, No.1[08.1987 - 06.1992] AE92 |
58131-12060 |
US $5.39 |
||
|
58132
|
58132
58132-32010 Bracket, Front Floor Heat Insulator, No.2[08.1987 - 06.1992] AE92 |
58132-32010 |
US $5.97 |
||
|
58136A
|
58136A
58136-12020 Cover, Front Floor Service Hole[08.1987 - 05.1989] AE92 |
58136-12020 |
US $2.91 |
||
|
58171
|
58171
58171-12080 Reinforcement, Parking Brake Base[08.1987 - 06.1992] AE92 |
58171-12080 |
US $12.23 |
||
|
58183
|
58183
58183-12090 Bracket, Front Seat Mounting, Inner[08.1987 - 06.1992] AE92 RH |
58183-12090 |
US $15.72 |
||
|
58183
|
58183
58184-12110 Bracket, Front Seat Mounting, Inner[08.1987 - 06.1992] AE92 LH |
58184-12110 |
US $15.72 |
||
|
58197B
|
58197B
58197-12010 Retainer, Instrument Panel Brace Mounting Bracket[08.1987 - 06.1992] AE9# |
58197-12010 |
US $3.79 |
||
|
58208
|
58208
58211-12170 Pan, Center Floor[08.1987 - 06.1992] AE92..LE;AE92..WG REAR SPLIT FOLD DOWN SEAT |
58211-12170 |
US $384.38 |
||
|
58208
|
58208
58211-12270 Pan, Center Floor[08.1988 - 06.1992] AE92..LE;AE92..WG REAR SPLIT FOLD DOWN SEAT,SEAT BELT HOLE |
58211-12270 |
US $381.47 |
||
|
58213D
|
58213D
58213-12020 Reinforcement, Center Floor Panel[08.1987 - 08.1990] AE92..CBR;AE92..(DX,STD)..EFI RH |
58213-12020 |
US $57.51 |
||
|
58213D
|
58213D
58214-12010 Reinforcement, Center Floor Panel[08.1987 - 08.1990] AE92..CBR;AE92..(DX,STD)..EFI LH |
58214-12010 |
US $57.51 |
||
|
58215B
|
58215B
58215-16010 Bracket, Rear Seat Mounting, Rh[08.1987 - 06.1992] AE92 |
58215-16010 |
US $9.03 |
||
|
58216B
|
58216B
58216-16010 Bracket, Rear Seat Mounting, Lh[08.1987 - 06.1992] AE92 |
58216-16010 |
US $9.03 |
||
|
58244C
|
58244C
58244-16030 Bracket, Rear Seat Cushion Mounting[08.1987 - 08.1990] AE92..CBR;AE92..(DX,STD)..EFI |
58244-16030 |
US $3.49 |
||
|
58247A
|
58247A
58247-12030 Reinforcement, Rear Seat Cushion Hinge, Rh[10.1987 - 06.1992] AE92..WG |
58247-12030 |
US $7.72 |
||
|
58248A
|
58248A
58247-12030 Reinforcement, Rear Seat Cushion Hinge, Rh[10.1987 - 06.1992] AE92..WG |
58247-12030 |
US $7.72 |
||
|
58266A
|
58266A
58266-22040 Bracket, Fuel Tube Clamp[08.1987 - 06.1992] AE9# |
58266-22040 |
US $4.08 |
||
|
58308
|
58308
58308-13090
Panel Sub-Assy, Body Lower Back, Inner
[10.1987 - 06.1992] AE92..WG |
58308-13090 |
— | ||
|
58311
|
58311
58311-12120
Pan, Rear Floor
[08.1987 - 06.1992] AE92 |
58311-12120 |
— | ||
|
58313F
|
58313F
58313-13100 Extension, Rear Floor Pan To Quarter Panel, Rh[10.1987 - 06.1992] AE92..WG |
58313-13100 |
US $18.05 |
||
|
58314F
|
58314F
58314-13090 Extension, Rear Floor Pan To Quarter Panel, Lh[10.1987 - 06.1992] AE92..WG |
58314-13090 |
US $18.05 |
||
|
58315D
|
58315D
58315-13010 Extension, Rear Floor Pan, Rh[10.1987 - 06.1992] AE92..WG |
58315-13010 |
US $17.47 |
||
|
58316D
|
58316D
58316-13010 Extension, Rear Floor Pan, Lh[10.1987 - 06.1992] AE92..WG |
58316-13010 |
US $17.47 |
||
|
58325E
|
58325E
58325-12020 Cover, Rear Floor Service Hole[08.1987 - 06.1992] AE92 |
58325-12020 |
US $10.48 |
||
|
58331C
|
58331C
58331-12010 Cover, Rear Floor Side Service Hole, Rh[08.1988 - 08.1990] AE92..CBR;AE92..(DX,STD)..EFI |
58331-12010 |
US $9.32 |
||
|
58332C
|
58332C
58332-12010 Cover, Rear Floor Side Service Hole, Lh[08.1988 - 08.1990] AE92..CBR;AE92..(DX,STD)..EFI |
58332-12010 |
US $9.32 |
||
|
58348C
|
58348C
58348-12010 Bracket, Rear Floor Heat Insulator, No.3[08.1987 - 06.1992] AE92 |
58348-12010 |
US $3.64 |
||
|
58351A
|
58351A
58351-12020 Bracket, Spare Wheel Carrier[08.1987 - 06.1992] AE92 |
58351-12020 |
US $11.21 |
||
|
58372B
|
58372B
58372-13060
Panel, Body Lower Back, Lower
[10.1987 - 06.1992] AE92..WG |
58372-13060 |
— | ||
|
58397D
|
58397D
58397-13030 Panel, Rear Floor End Dust Seal, Rh[10.1987 - 06.1992] AE92..WG |
58397-13030 |
US $33.49 |
||
|
58398D
|
58398D
58398-13020 Panel, Rear Floor End Dust Seal, Lh[10.1987 - 06.1992] AE92..WG |
58398-13020 |
US $33.49 |
||
|
58403A
|
58403A
58432-13030 Reinforcement Sub-Assy, Deck Board[10.1987 - 06.1992] AE92..WG |
58432-13030 |
US $41.79 |
||
|
58406A
|
58406A
58406-13010 Bracket Sub-Assy, Deck Board[10.1987 - 06.1992] AE92..WG RH |
58406-13010 |
US $14.12 |
||
|
58406A
|
58406A
58407-13010 Bracket Sub-Assy, Deck Board[10.1987 - 06.1992] AE92..WG LH |
58407-13010 |
US $14.12 |
||
|
58428B
|
58428B
58428-13010 Bracket, Deck Board, No.5 Rh[10.1987 - 06.1992] AE92..WG |
58428-13010 |
US $6.99 |
||
|
58429B
|
58429B
58428-13010 Bracket, Deck Board, No.5 Rh[10.1987 - 06.1992] AE92..WG |
58428-13010 |
US $6.99 |
||
|
64778A
|
64778A
64778-12050 Protector, Spare Wheel[08.1987 - 06.1992] AE9# |
64778-12050 |
US $20.53 |
||
| replacement | |||||
|
64778A
|
64778A
64778-12030 Protector, Spare Wheel[08.1987 - 06.1992] AE9# |
64778-12030 |
US $14.71 |
||
|
9010511023
|
9010511023
90105-11023 New Genuine Part |
90105-11023 |
US $2.48 |
||
|
9011906101
|
9011906101
90119-06101
New Genuine Part
|
90119-06101 |
— | ||
| replacement | |||||
|
9011906101
|
9011906101
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.97 |
||
|
9018904002
|
9018904002
90189-04002 GROMMET |
90189-04002 |
from US $2.15 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.29 |
||
|
9046710023
|
9046710023
90467-10023 Clip(For Front Floor Mat) |
90467-10023 |
US $1.25 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.42 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $1.99 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $2.15 |
||
|
9095001066
|
9095001066
90950-01066 New Genuine Part |
90950-01066 |
US $4.66 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $6.45 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.92 |
||
